Universal EW Jammer "Odin-3" with three antennas
Brand: Loki. Product type: EW Jammers.
The "Odin" anti-drone system is a universal complex for countering FPV drones, designed as a box that can be mounted on a vehicle roof or placed in a trench/dugout. The device blocks frequencies in the 300-5850 MHz range and provides signal suppression at a distance of up to 500 m. It is equipped with a remote control with a communication range of up to 3,000 meters. Designed to protect equipment, vehicles, and combat positions.
"Odin" Specifications
- Frequency range: from 200 to 5850 MHz. Ability to select any available bands: 200-300 MHz, 300-400 MHz, 400-500 MHz, 500-610 MHz, 610-720 MHz, 720-840 MHz, 840-950 MHz, 950–1050 MHz, 1050–1200 MHz, 1200–1350 MHz, 1350–1500 MHz, 2400-2500 MHz, 5150-5350 MHz, 5725-5850 MHz.
- Output power: 50 W per antenna. Total power depends on the number of antennas (for 3 antennas: 50 W * 3 = 150 W).
- Effective operating distance: 350 m (assuming distance between drone and drone operator is 3000 m).
- Maximum complex power: up to 250 W.
- Battery capacity: 35,000 mAh.
- Average output power: 47 dBm.
- Power supply: DC 12V-24V (autonomous power supply) and AC 110-240V.
- Operating temperature: -25 - +85 °C.
- Kit weight: 12 kg (housing + antennas).
- Technology: GaN — modern semiconductor technology with better efficiency, less heat dissipation, and more compact dimensions.
- Cooling: dual active cooling.
- Protection: reverse polarity protection.
- Control: wireless control up to 3,000 meters, remote control, and control panel for cabin installation.
- Mounting: magnetic car mount.
- Monitor: built-in monitor for performance and characteristic diagnostics.
- Antenna control: switches for powering each individual antenna.
- Manufacture: Ukraine.
Special design elements
- 1. 4-magnet car mount.
- 2. External charging - 29.4.
- 3. Switch from battery to external charging.
- 4. Power buttons for each individual antenna.
- 5. Active cooling.
- 6. Antenna connectors.
- 7. Connector for remote controls.
- 1. Diagnostic monitor.
- 2. 12-24 V power connector.
- 3. Backlight and indication.
"Odin-3" Package Contents
- 3 antennas. The number of antennas can be chosen according to needs; any of the possible bands can be selected for each antenna.
- Control panel for car cabin installation — 1 pc.
- Remote control (operates up to 3,000 meters) — 1 pc.
- Power cable for connection to the vehicle's electrical system.
- "Odin" complex assembled — 1 pc.
- Battery pack — power supply for onboard battery — 1 pc.
- Documentation: passport and user manual — 1 pc.
Additional information and photos

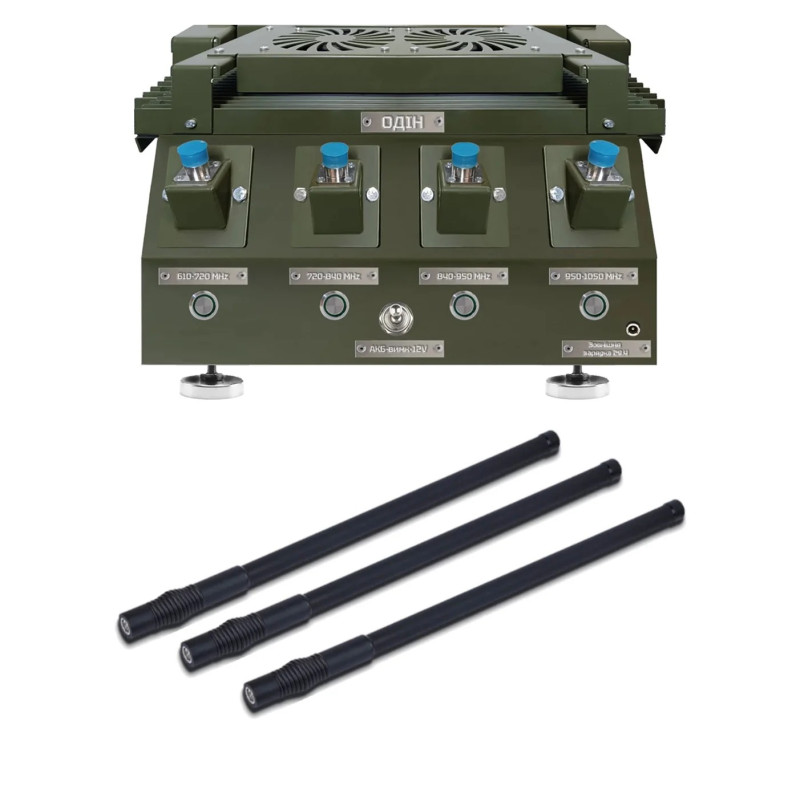

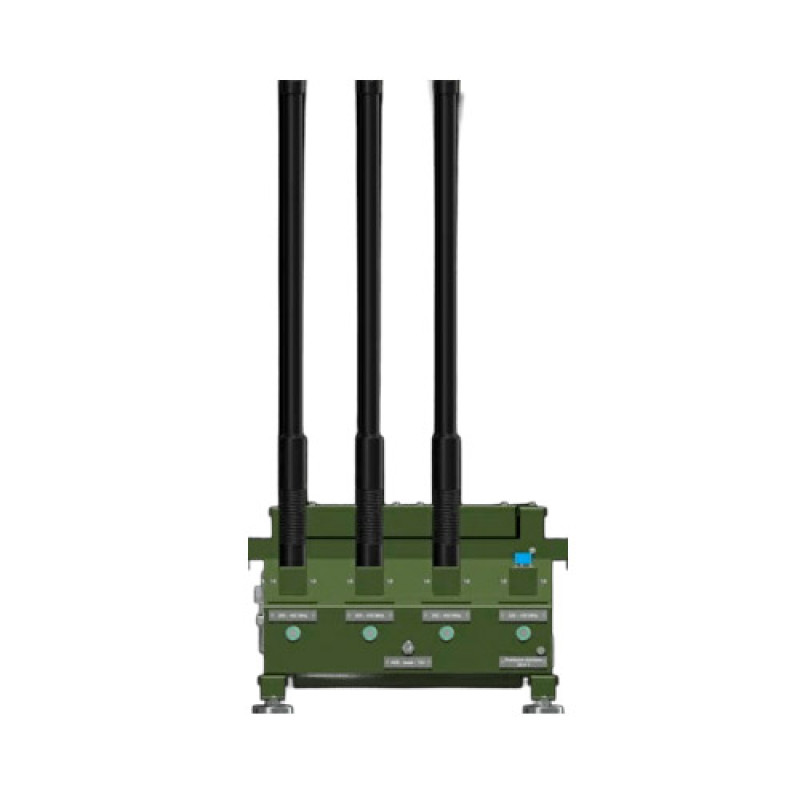

The description includes illustrations and photos of the complex and its parts. Links to images: Photo "ODIN" - front view, Panel diagram, Complex with installed antennas, Control panel and power cable, Additional battery (optional), High-speed charger (optional).
This description contains all technical specifications, package contents, and design features indicated by the manufacturer. When choosing a configuration, the number of antennas and bands for each antenna can be flexibly selected according to tactical needs.
