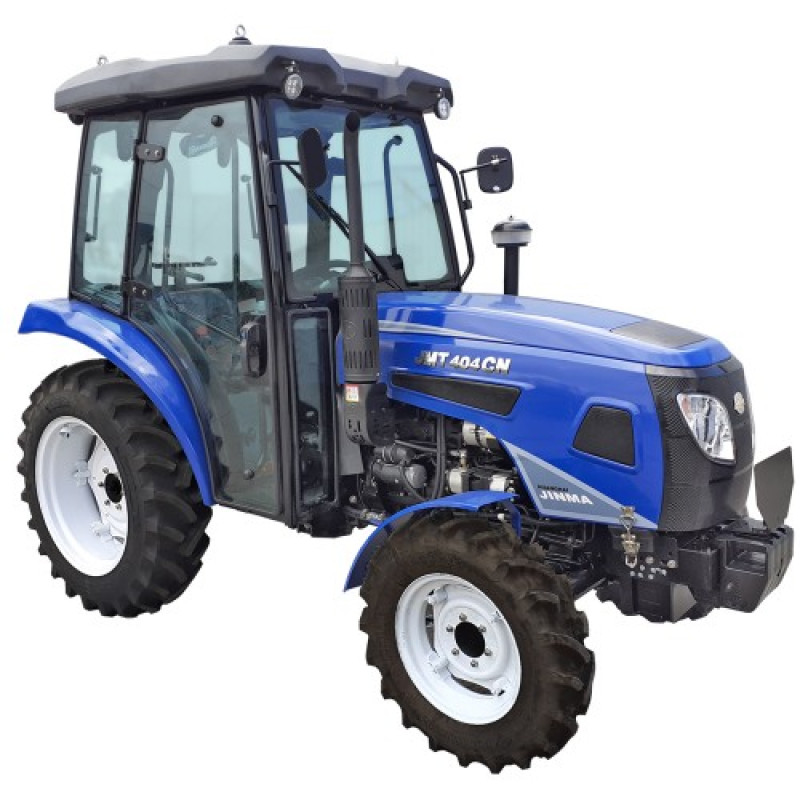

Description of JINMA JMT 404CN Tractor
The modern all-wheel-drive universal tractor "Jinma" JMT 404CN has everything necessary for performing all types of tractor work in agriculture, utilities, or construction. Thanks to its design features and modern glass cabin, the tractor ensures high productivity and a decent level of comfort for the operator in any season and weather conditions. The proprietary cabin is fully capable of protecting the driver from cold, precipitation, dust, and unwanted physical contact with the environment. A car radio and an additional fan are installed.

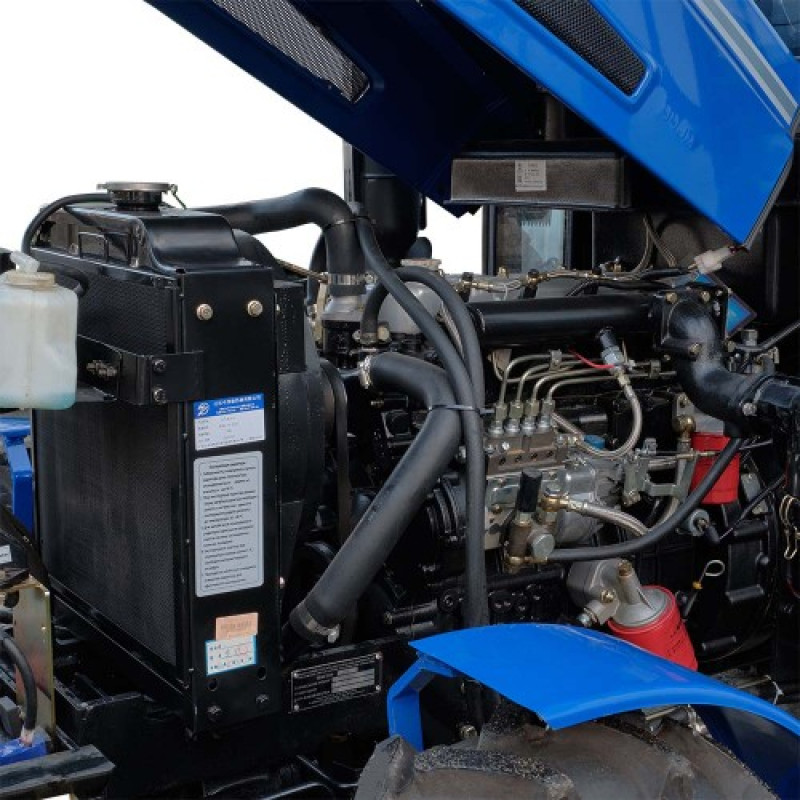

A powerful 40 hp engine and a robust hitch system allow the JMT 404CN to be used as a primary tractor for cultivating medium-sized land plots or for auxiliary and transport work on large agro-technical and livestock industrial complexes.
The transmission is gear-driven, characterized by low noise levels. The modernized gearbox (4+1) ×2×2, with an additional low range, provides 16 forward gears and 4 reverse gears. The front axle can be quickly engaged and disengaged as needed, as can the rear axle differential lock. The brakes are rear drum brakes, and there is a parking brake. Hydraulic power steering ensures easy and precise control in all driving conditions, even with maximum load on the hitch system. The lifting capacity of the rear hitch system with a hydraulic lift is 650 kg. The power take-off (PTO) shaft is two-speed – 540 and 1000 rpm. A quick-release towing device allows simultaneous use of the PTO and trailer towing.
Design features of the "JMT 404CN" tractor:
- Spacious cabin with all-round glazing;
- New molded polymer cabin roof with a ventilation hatch;

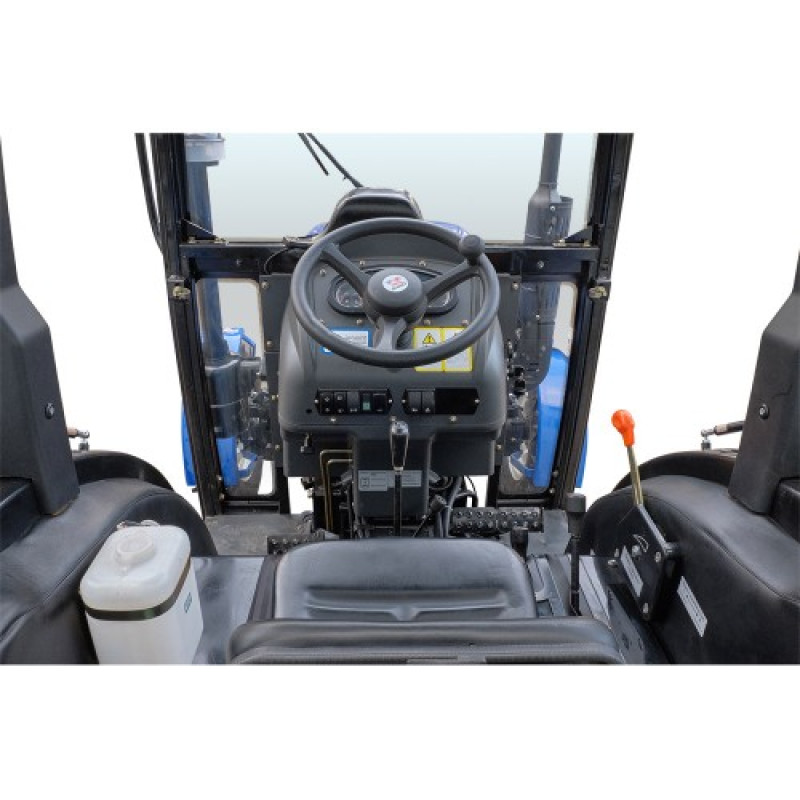

- Convenient placement of all levers and other controls;
- Wide pedals with long travel, "hand throttle" lever on the fender, to the right of the driver;
- Powerful front optics;
- 16+4 gearbox, additional low range in the gearbox;
- Rear axle differential lock;
- Air filter with high intake and translucent cyclone;
- Flame plug for preheating air in the intake manifold;
- "Safe start" – electric starter lockout by the clutch pedal;
- Large fuel tank under the hood, enlarged diameter filler neck;
- Hood with a large opening angle, convenient and reliable hood support;
- Fuel return line from injectors to the tank;
- Cooling system expansion tank;
- Muffler and muffler elbow covered with a protective casing;
- Hydraulic power steering with a separate oil tank and pump;

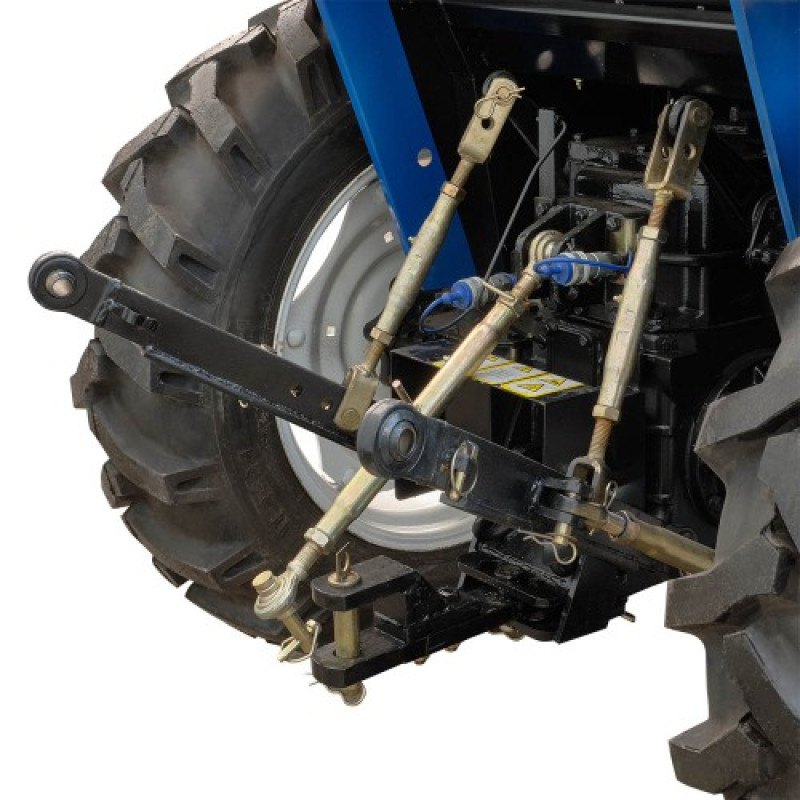

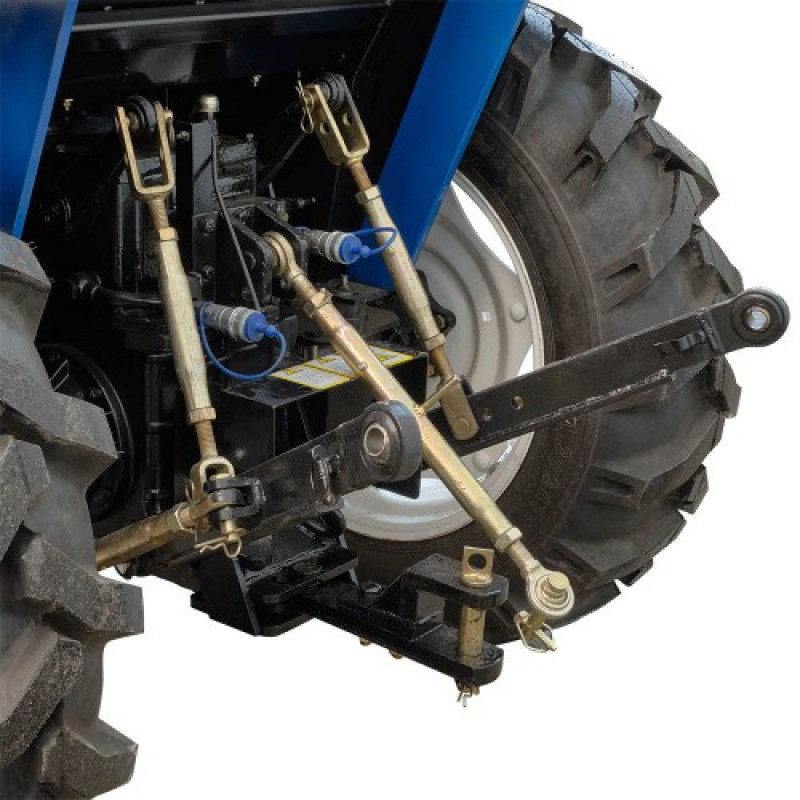

- Reinforced hydraulic hitch mechanism with stepless adjustment of lower links;
- Separate hydraulic pump for the hitch system;
- Hooks for trailer safety chains on the towing device;
- Two-speed power take-off (PTO) shaft 540 and 1000 rpm;
- High ground clearance and crop clearance;
- Wheel disc mounting on captive bolts;
- Rear and front wheel discs are detachable, track adjustment by repositioning discs and rims;
- Wheel nipple protection.
Equipment of the "JMT 404CN" mini-tractor:

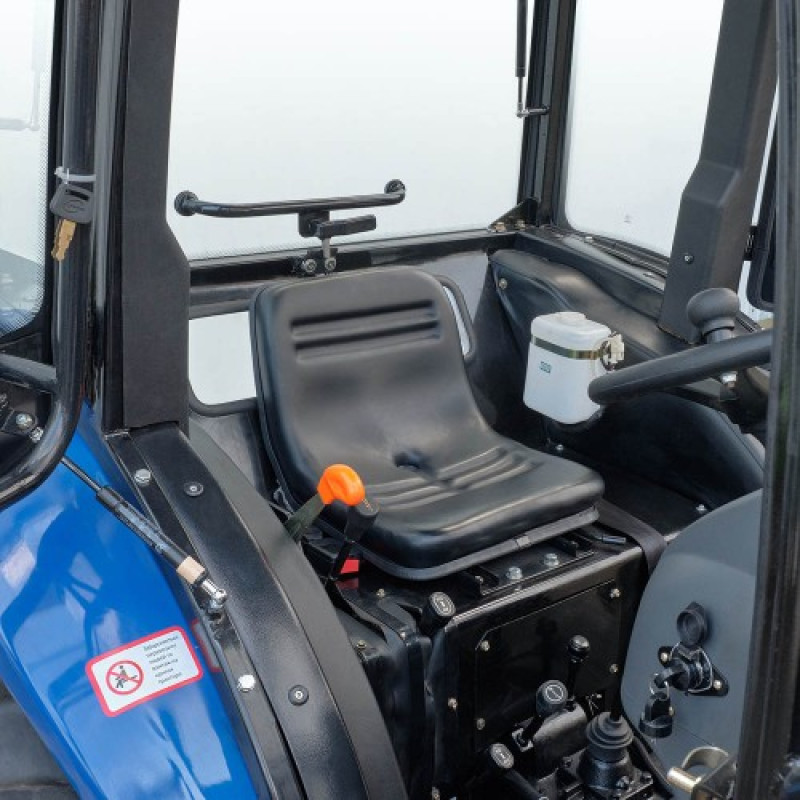

- Driver's seat adjustable for distance to the steering wheel;
- 350 W electric generator;
- Automotive-type electrical fuses;
- LED front and rear work lights under the cabin roof;
- Electrical socket for trailer;

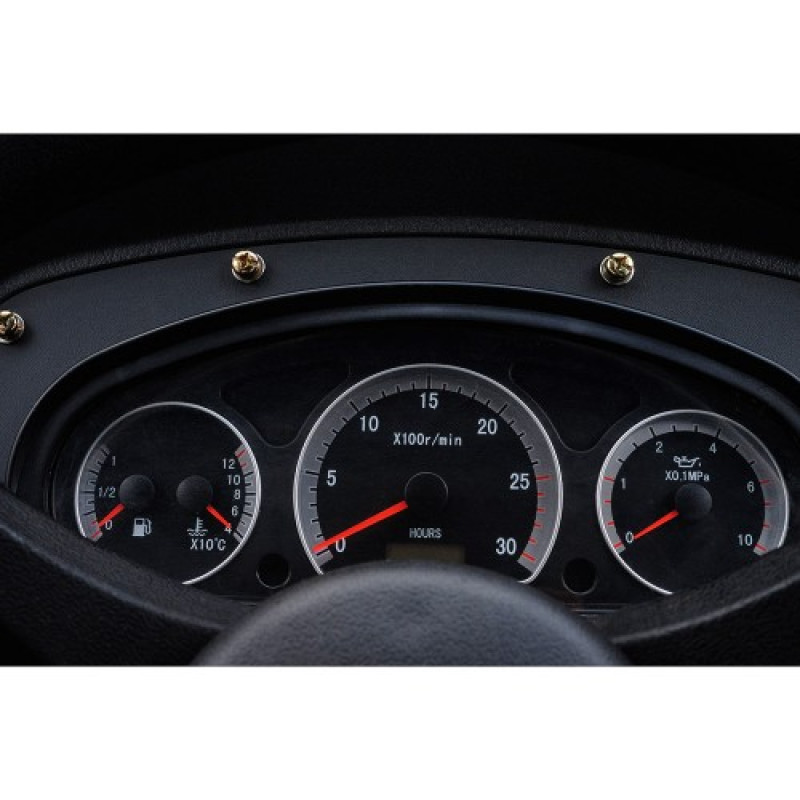

- Electronic instrument panel (hour meter, oil pressure gauge, fuel level gauge, tachometer, water temperature gauge, onboard voltage gauge, emergency battery charge, etc.);
- Large rearview mirrors on rigid brackets;
- Mp3 player and cabin fan;
- Soft upholstery on pillars and fenders inside the cabin, with space for small items and a cup holder;
- Electric front windshield wiper with integrated washer;
- Swinging drawbar for trailer towing;
- Two hydraulic outlets with quick-release couplings;
- Quick steering knob on the steering wheel;
- Convenient footrest on the left side;
- Front fenders;
- Front mounted weights 4×12 kg.
You can buy the "JMT 404CN" tractor throughout Ukraine from our official representatives or order it via the special feedback form in the "Contacts" section. All JINMA tractors come with a 2-year warranty period.
