Product Code: FA101-162977-101
283 400 грн.
Buy this product in 1 click:
Main specifications
Additional Footrests:
From the left side
Additional front/rear payload, (unit × kg):
3x20 / –
Additional Step-Down Gearboxes:
2 bands
Agrotechnical clearance, mm:
360
Air Filter:
Contact-oil: high air intake with cyclone, oil bath, metal mesh
All specifications
We will deliver this product:
Payment
Description

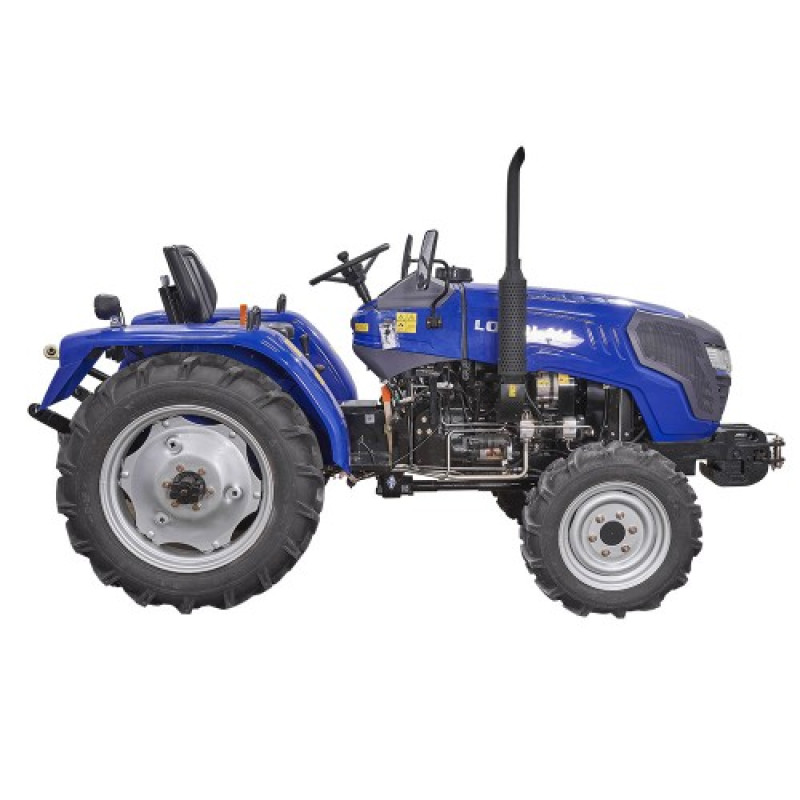

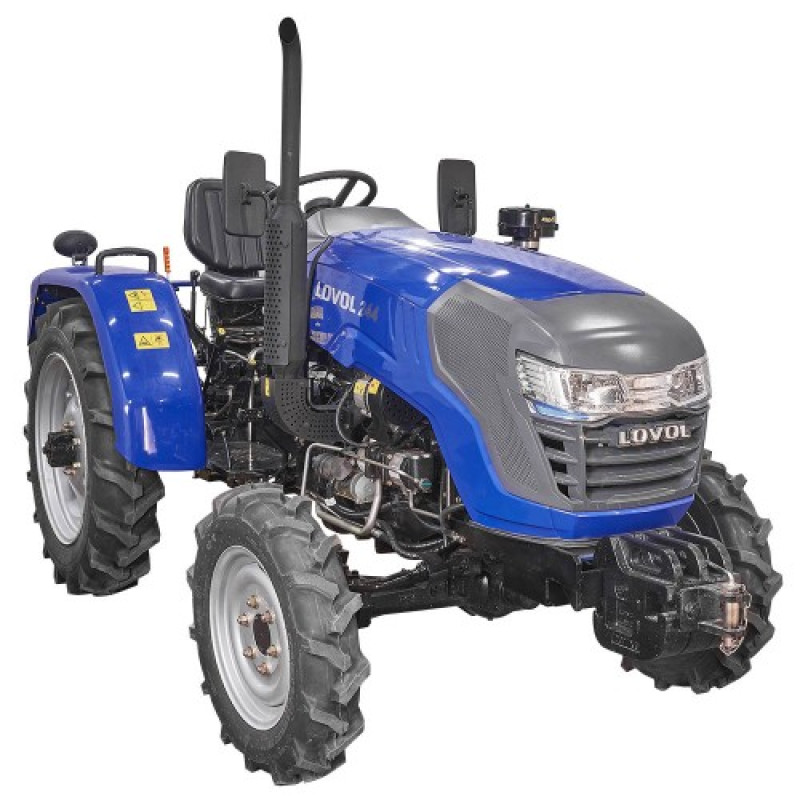

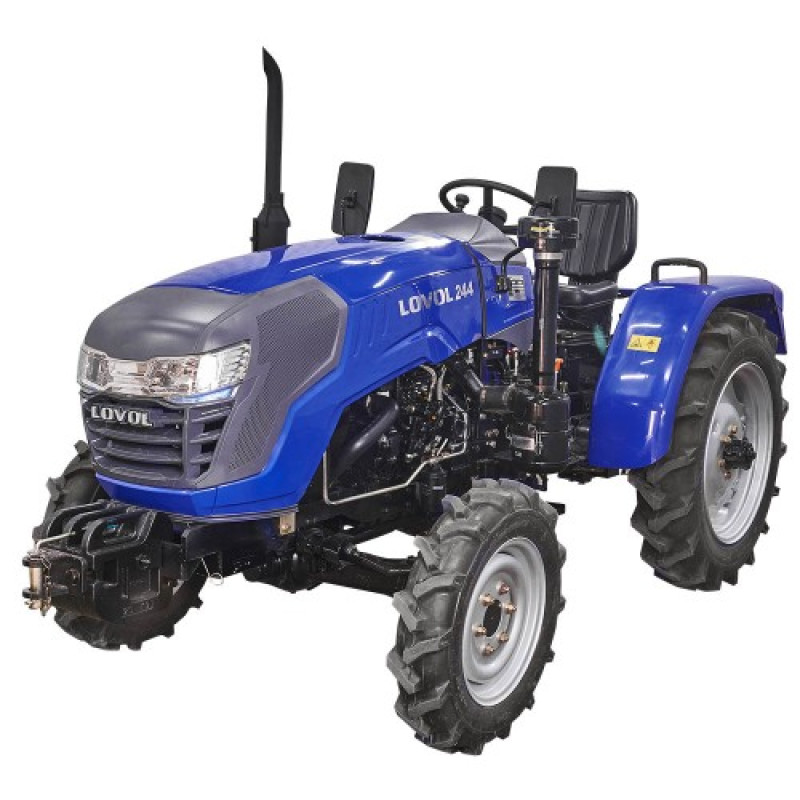

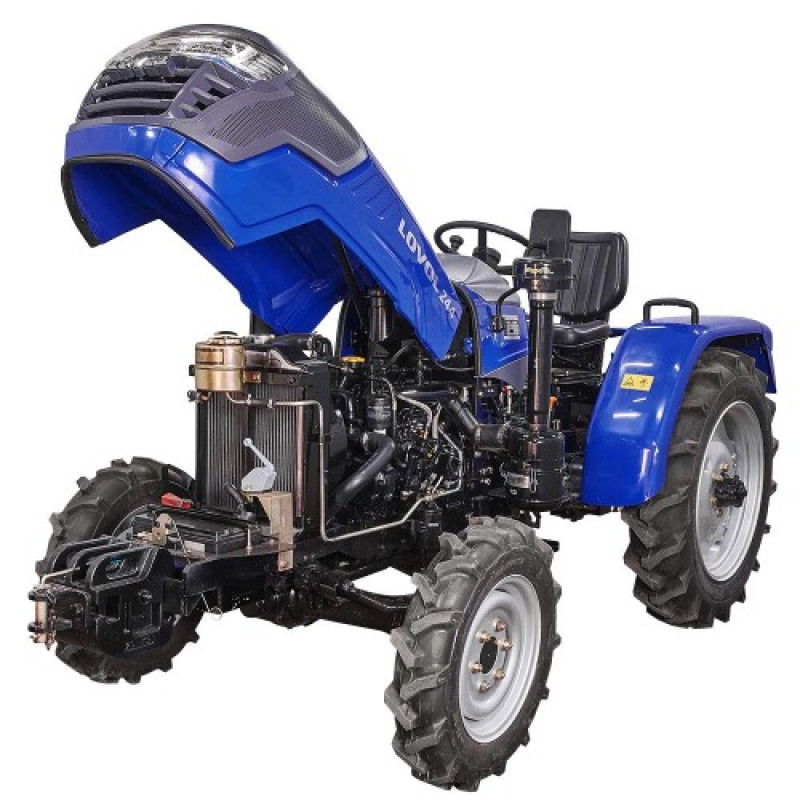

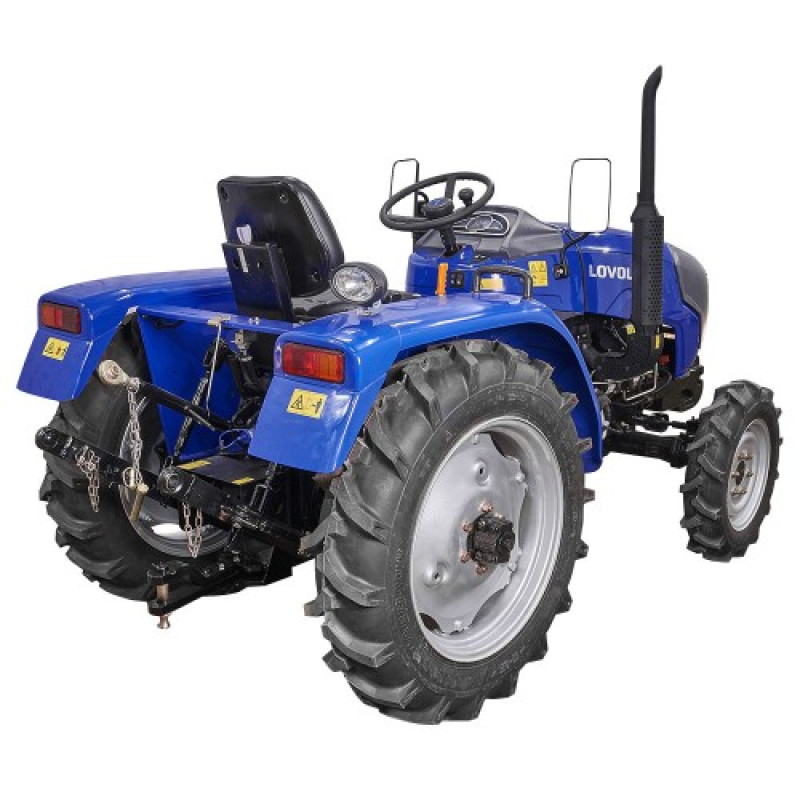

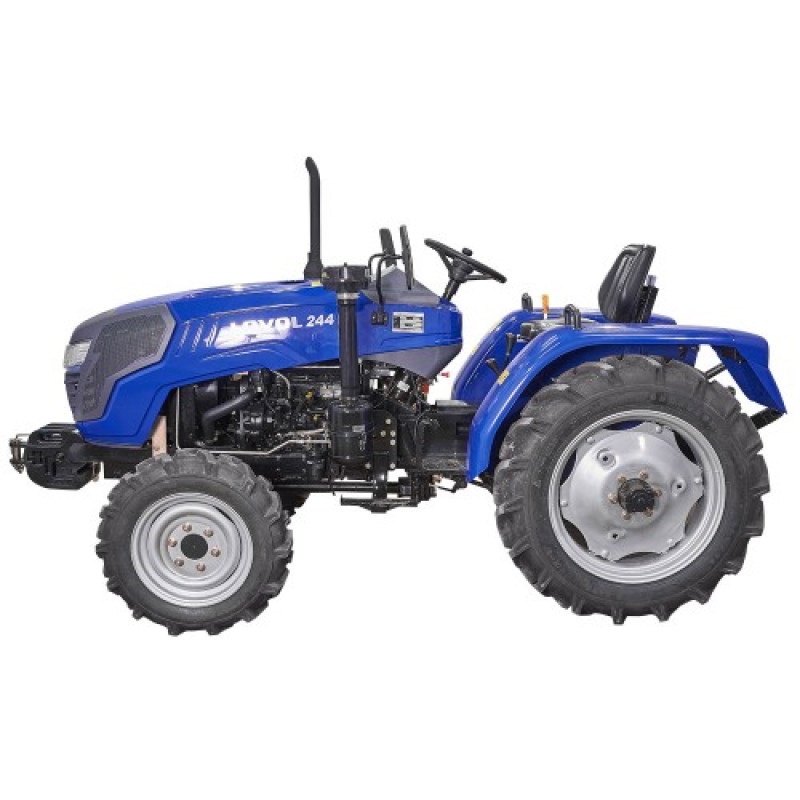

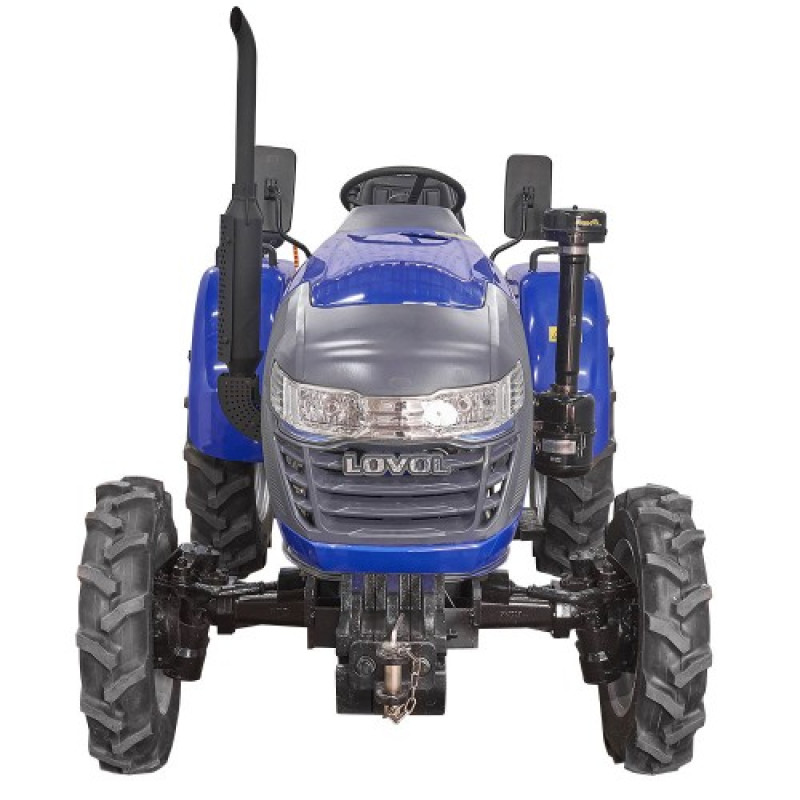

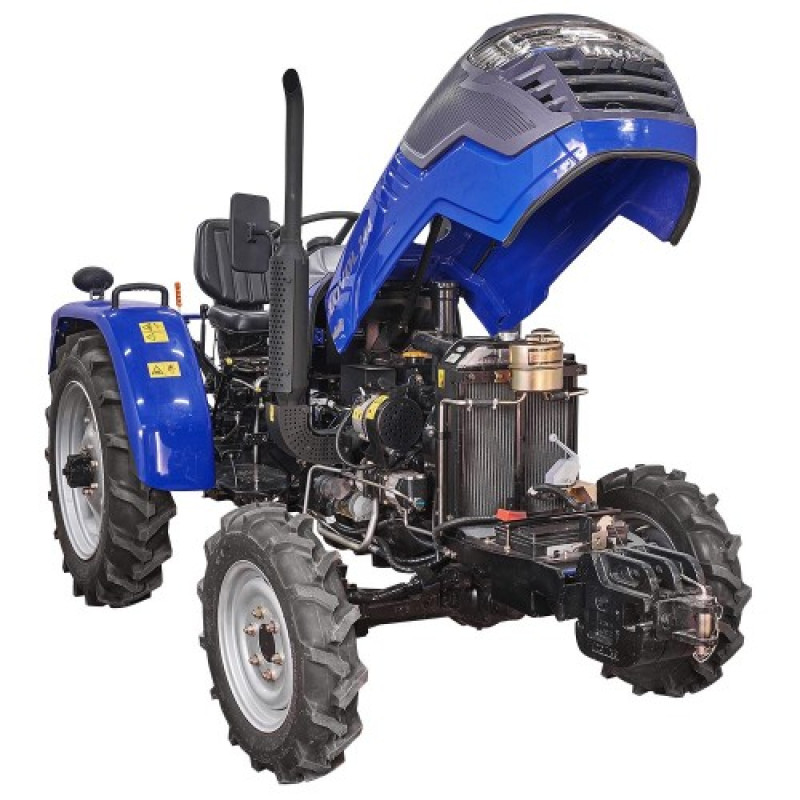

Design features of the Foton/Lovol FT244HM mini-tractor:

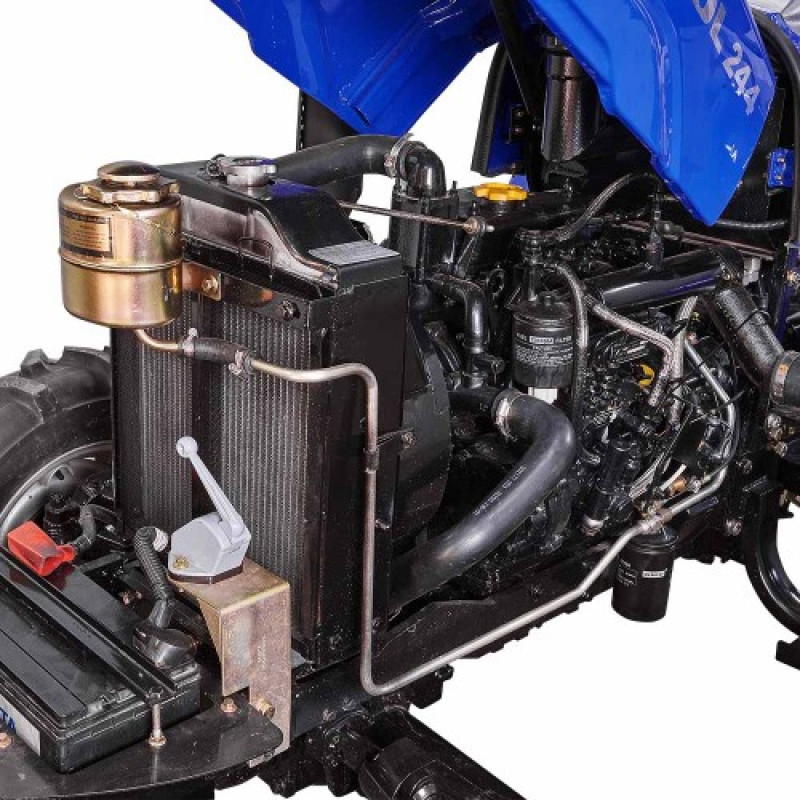

- economical and reliable 3-cylinder engine;
- large, convenient fuel tank;
- electric-flame air preheating system in the intake manifold;
- muffler covered with a protective casing along its entire length;
- 2-speed power take-off shaft: 540/1000 rpm;
- hydraulic system with separate hydraulic pump and oil bath;
- towing device – quick-release pendulum drawbar;
- portal-type front drive axle with high side reduction gears;
- high ground clearance and agricultural clearance;

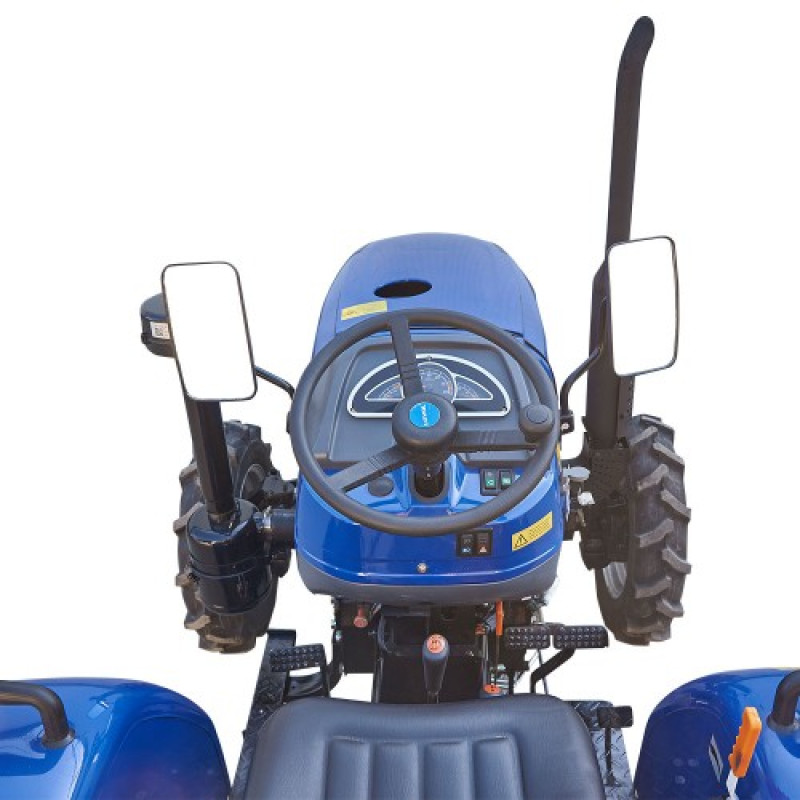

- spacious operator's area;
- convenient arrangement of control systems;
- gearbox with extended speed range 8+2;
- large wheels: front 6.00-16, rear 9.50-24;
- rear drum brakes;
- separate rear-wheel brakes;
- adjustable front and rear track;
- rear axle differential lock.
Foton/Lovol FT244HM mini-tractor configuration:

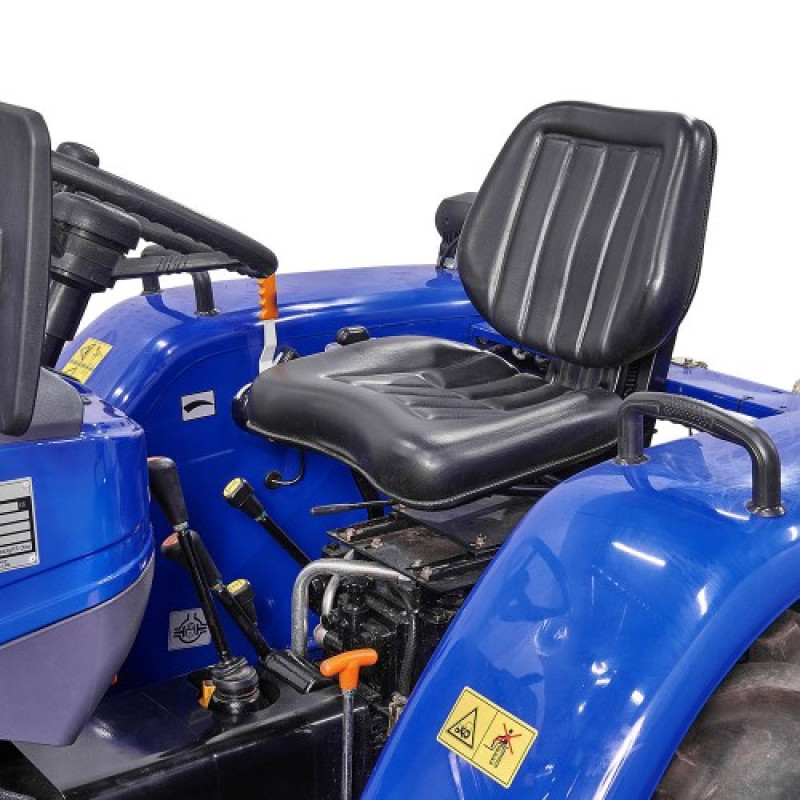

- comfortable adjustable seat with shock absorber;

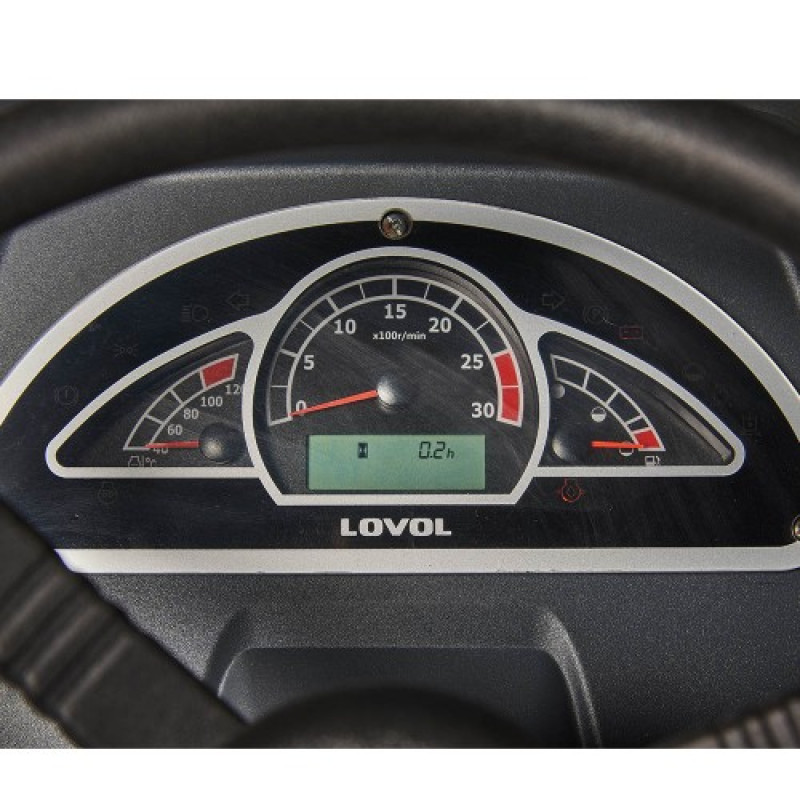

- combined instrument panel: digital hour meter, analog tachometer, analog fuel level gauge, analog engine temperature indicator, low battery charge indicator, etc.;
- additional footrest with high ribbing;
- electrical socket for trailer;
- hood shock absorber;
- large rearview mirrors;
- one hydraulic output with quick-release couplings;
- front mounted weights;
- battery disconnect switch;
- rear auxiliary headlight.
The FT 244HM tractor can be purchased throughout Ukraine from our official representatives or ordered via the special feedback form in the "Contacts" section. All Foton/Lovol tractors come with a 2-year warranty.
Specifications
Additional Footrests
From the left side
Additional front/rear payload, (unit × kg)
3x20 / –
Additional Step-Down Gearboxes
2 bands
Agrotechnical clearance, mm
360
Air Filter
Contact-oil: high air intake with cyclone, oil bath, metal mesh
Battery disconnect switch
On the left side of the front axle frame
Battery voltage and capacity, V/Ah
12 / 80
Brakes
Rear wheels, drum, mechanically actuated, dual pedals
Clearance, mm
290
Clutch coupling
Dry, single-plate, normally closed type
Cooling System
Liquid, closed, with forced circulation of coolant
Crankcase oil capacity, L
5.0
Crankcase oil type
Engine oils for diesel engines M-10G2K, SAE 5W-30, 10W-30, 10W-40
Dashboard
Electronic, Combined
Design of side guy lines and braces
The lower rods are not adjustable, the central upper rod, vertical posts, and side braces are smoothly adjustable via thread
Driver's Seat
On shock absorber, adjustable for distance to handlebars, without armrests
Engine displacement, cm³
1532
Engine model
KM385BT
Engine type
Diesel, 4-stroke, with direct injection
Front Axle
Lead, turning off
Front tire size
6.00-16
Front track, mm
1280, 1380
Fuel injection pressure, MPa (kgf/cm²)
18.5-19.0 (185-190)
Fuel pre-filter
CX0706A, with drain plug
Fuel tank capacity, L
29.0
Gear Shifting Formula
(4+1)x2
Generator – type, voltage (V), power (W)
AC, 14, 750
Hydraulic fluid type
MG-46V, MGE-46V in summer, M-15V(S) in winter
Hydraulic lift actuator
Integrated hydraulic cylinder, separate gear hydraulic pump
Hydraulic Lift Control
Three-position hydraulic control valve
Hydraulic lift oil placement
Separately in the cavity of the hydraulic lift mechanism
Hydraulic outputs for connecting attachments
1 with quick-release coupling, controlled by the main hydraulic distributor
Hydraulic system oil tank volume, L
9.5
Intake manifold air heater
Electric flare candle
Kit Contents
Hood with hydraulic lift
Launch System
Electric Starter
Lighting Equipment
Main headlights, rear headlight, tail lights, front and rear turn signals
Lubrication System
Combined, pump and spray
Main Gearbox
4 speeds
Maximum payload capacity of the attachment mechanism, kg
420
Minimum turning radius with brakes, m
3
Minimum turning radius without brakes, m
3.75
Nominal crankshaft speed, rpm
2350
Nominal fuel consumption, g/kW*h
≤248
Nominal pulling force, kN
5.8
Number and arrangement of cylinders
3, vertical
Oil filter for lubrication system
+
Operating weight, kg
1355
Other Electronic Equipment
Audible alarm, emergency signaling
Overall dimensions (L x W x H), mm
3340x1460x1960
Parking Brake
Lever-actuated main brake lock
Power steering oil tank volume, L
1,2
Power Take-Off (PTO)
Rear, longitudinal, 6 splines, Ø35
Power take-off (PTO) shaft speed, rpm
540 / 1000
Rated engine power, hp (kW)
24 (17.6)

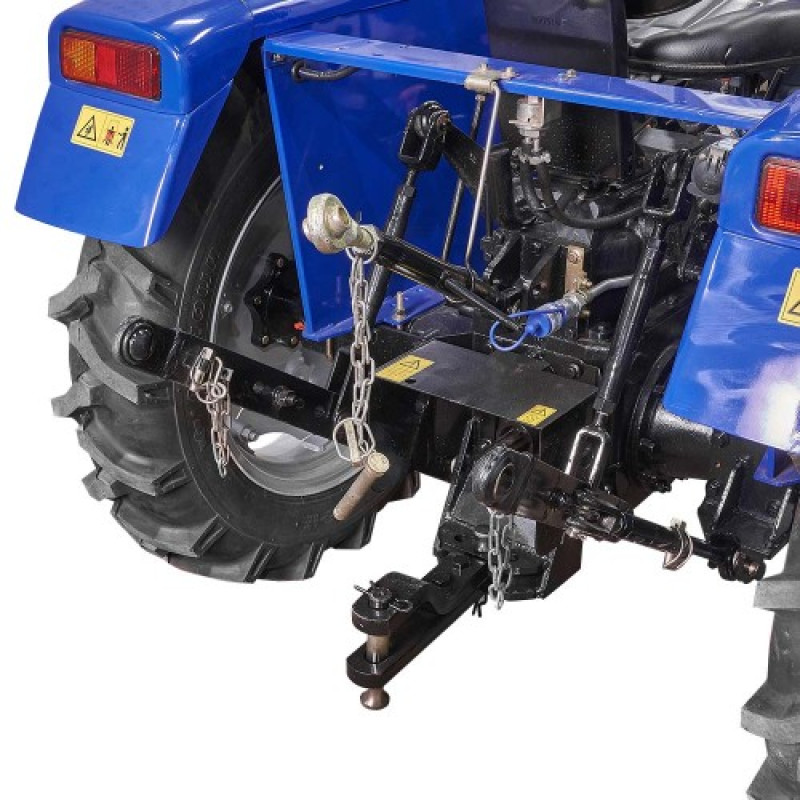

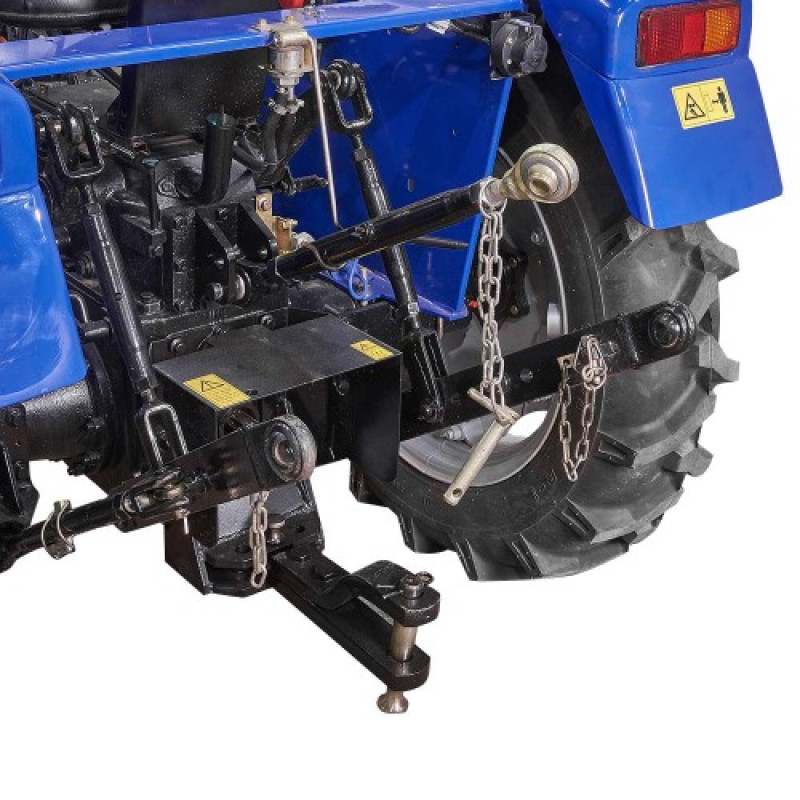

Rear attachment system
Universal 3-point with hydraulic lift
Rear axle differential lock
Lever
Rear Tire Size
9.50-24
Rear track, mm
1080, 1160, 1260
Simultaneous PTO and towing capability
+
Steering
Hydraulic
Steering Hydraulic Cylinder
Two-way symmetrical
Theoretical forward speed, km/h
1.71-25.76
Theoretical reverse speed, km/h
2.23-10.29
Towing Device
Removable pendulum earring with vertical non-rotating trunnion
Trailer Connector Socket
+
Transmission type
Mechanical gear
Transmission/FWD axle oil capacity, L
15.0 / 3.5
Type of grease in NVG
MG-46V, MGE-46V in summer, M-V(S) in winter
Type of lubricant in the transmission and front axle crankcase
Transmission Oil TAP-15, TAD-17, Silver SAE 85W-90; Gold SAE 80W-90; Platinum SAE 75W-90
Wheel formula
4x4
Wheelbase, mm
1670
