Product Code: FA101-181633-101
322 640 грн.
Buy this product in 1 click:
Main specifications
Bore/stroke:
85/90
Braking Mechanism:
disc brakes
Clutch:
dry, cam-actuated, single-action
Cooling system fan drive:
V-belt drive
Engine cooling system capacity, L:
8
All specifications
We will deliver this product:
Payment
Description

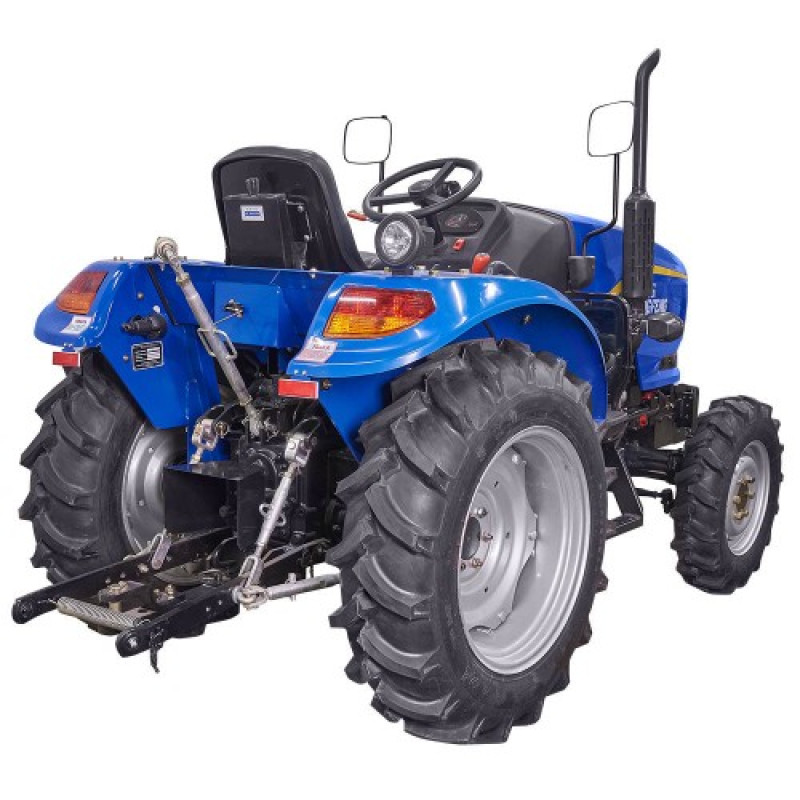

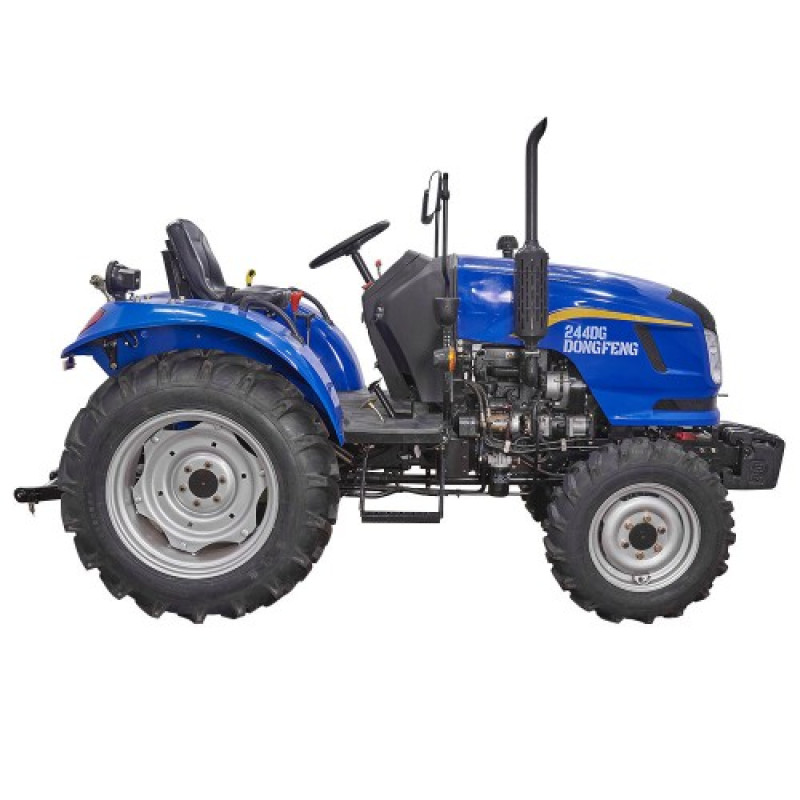

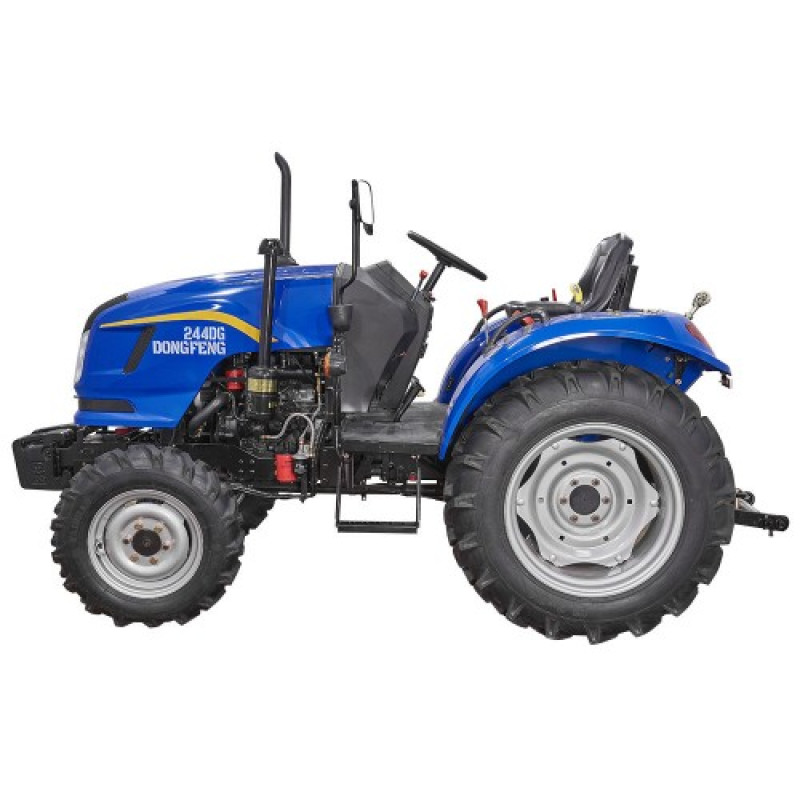

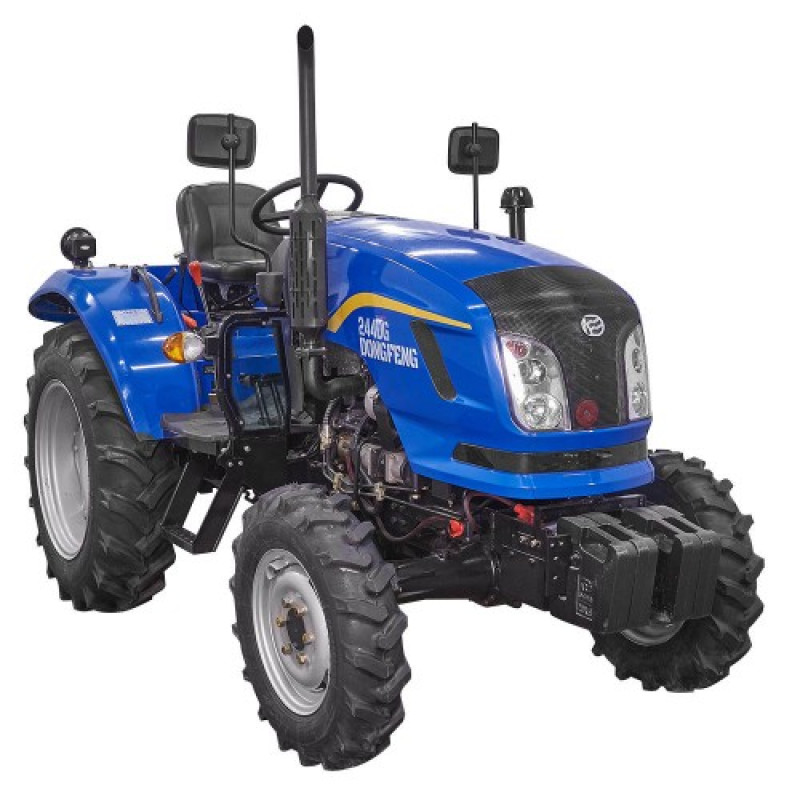

Description of the Dongfeng 244DG Tractor
This versatile 24 hp all-wheel-drive tractor is a further modernization of the DF 244DHX model. It is designed for a wide range of agricultural, transport, and other tasks in private households, small and medium-sized farms, and utility services.
Design Features of the Dongfeng 244DG Tractor:
- New, modern design;
- Reliable 24 hp 3-cylinder engine;
- 8+8 reverse gearbox;
- Safe engine start, clutch pedal lock;
- Hydraulic power steering with a separate reservoir and hydraulic pump;

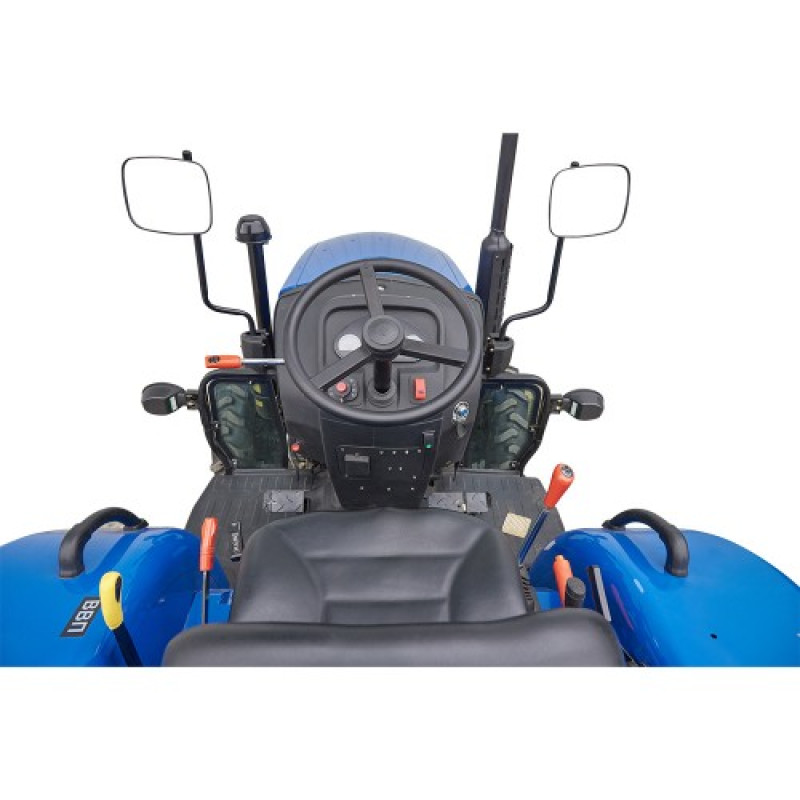

- Control levers located on the sides of the seat with multi-colored handles;
- Switchable front-wheel drive axle;
- 2-speed PTO 540/1000 rpm;
- Adjustable front and rear tracks;
- Wide tires 6.50-16 / 11.2-24;
- Separate disc brakes for the rear wheels;
- Automotive-type parking brake;
- Hand throttle;
- Rear axle differential lock;

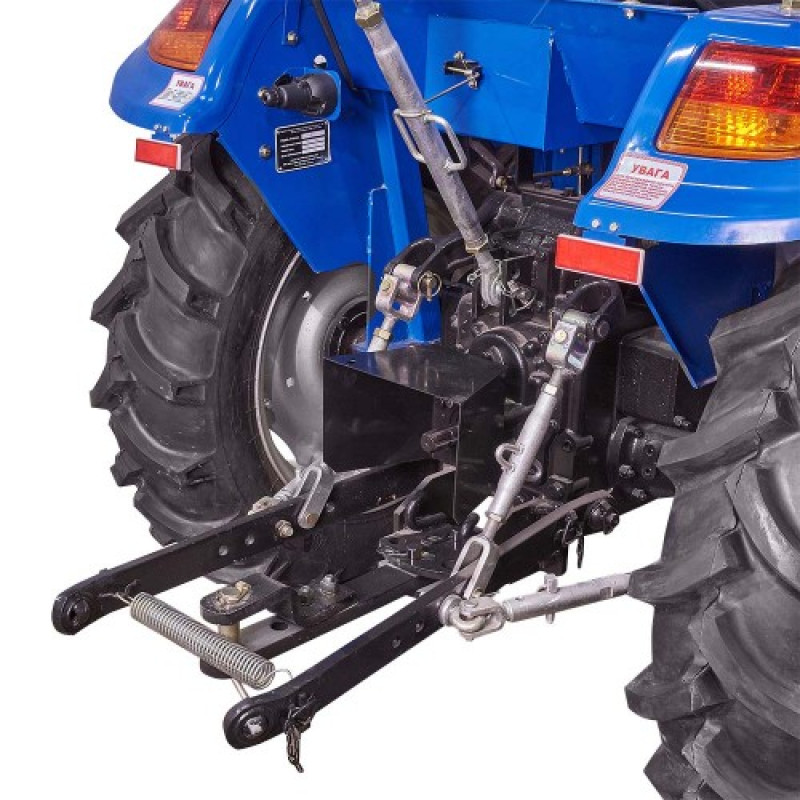

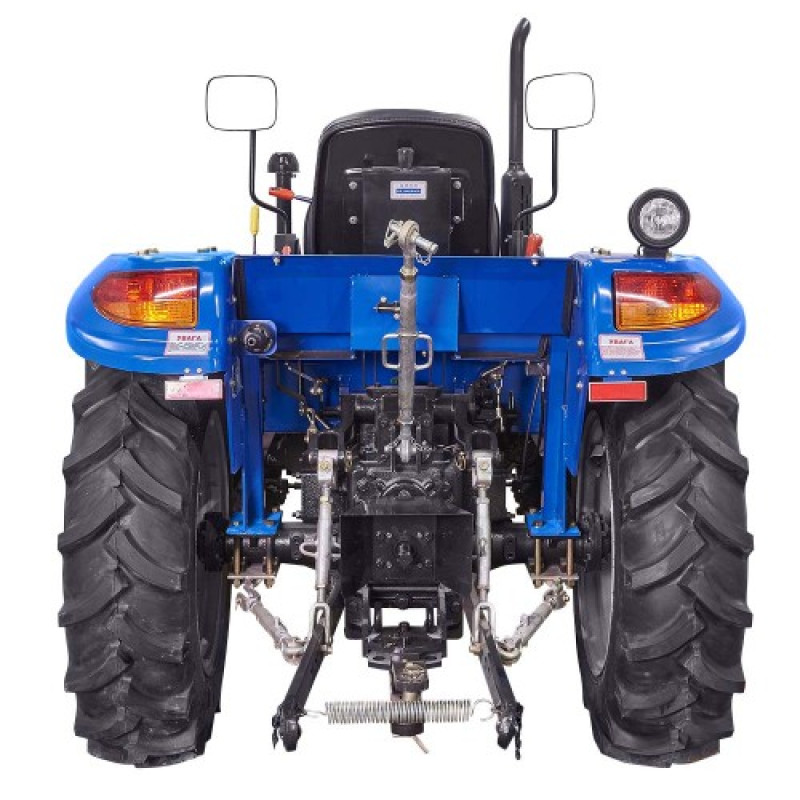

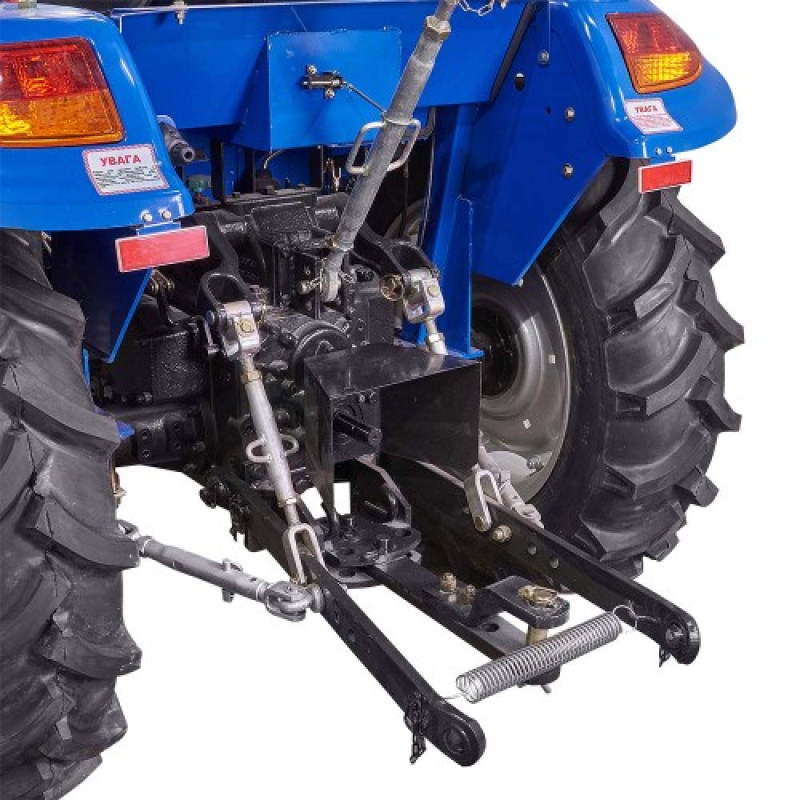

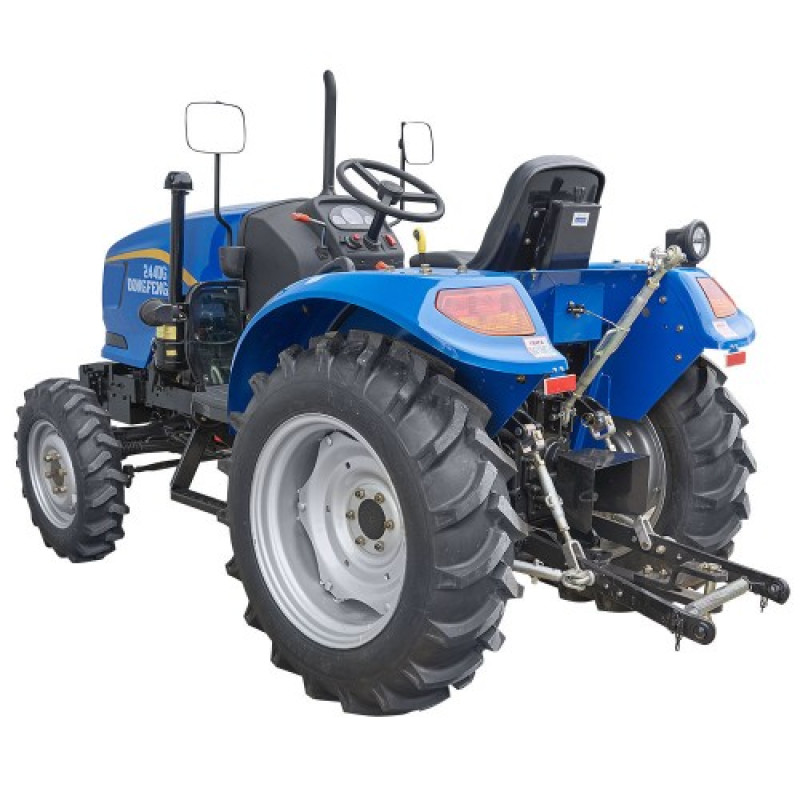

- Powerful three-point hitch system;
- Combined oil bath for gearbox and hydraulic system;
- Quick-release towing device with limited movement.
Dongfeng 244DG Model Configuration:

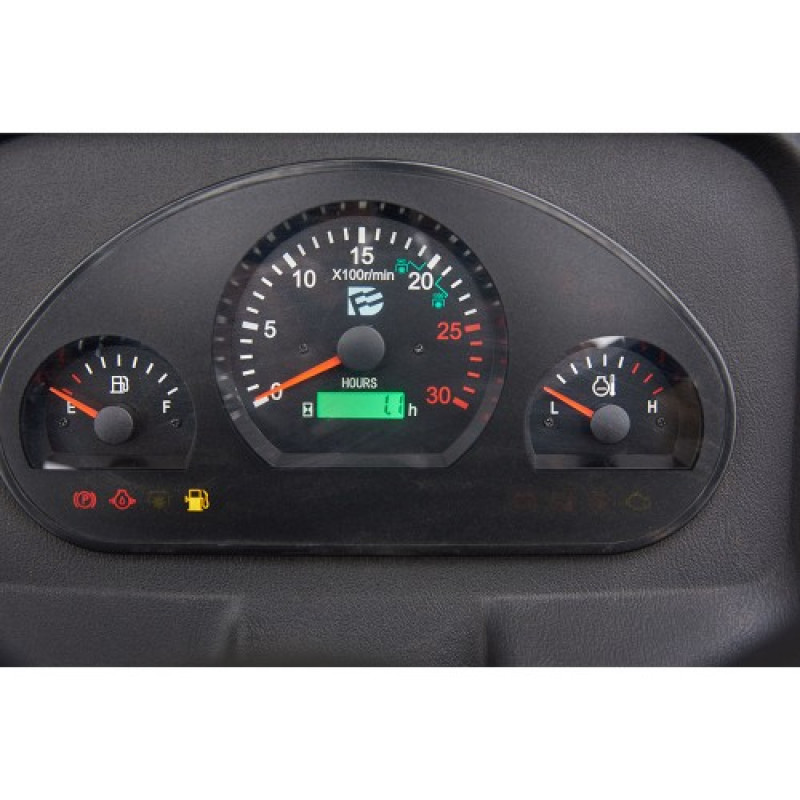

- Instrument panel with separate gauges: digital hour meter, analog gauges for coolant temperature, oil pressure, ammeter, fuel level indicator;

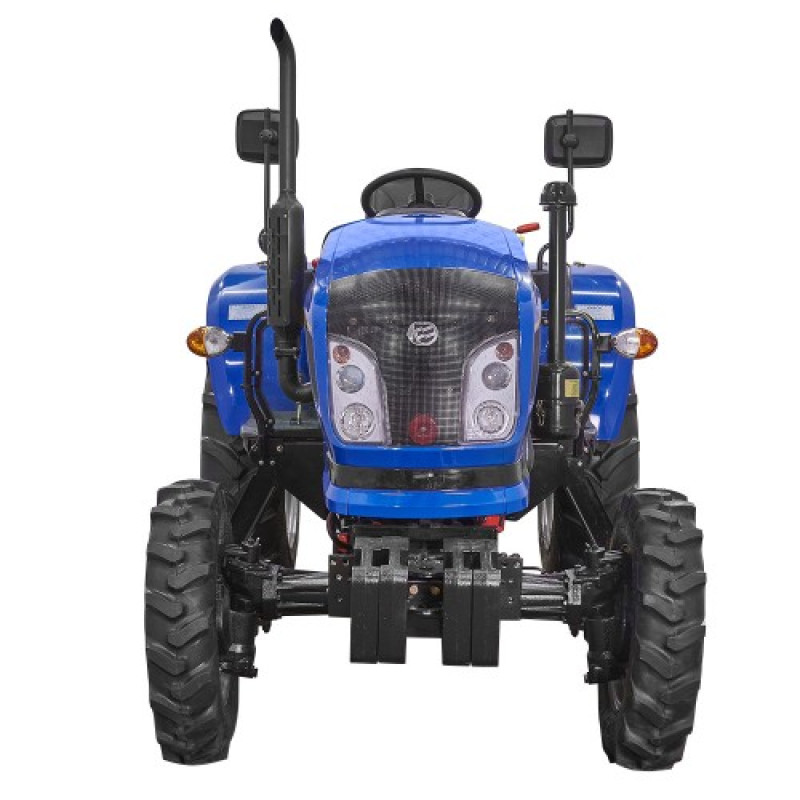

- Effective front optics, projector low-beam headlights;
- Additional rear headlight;

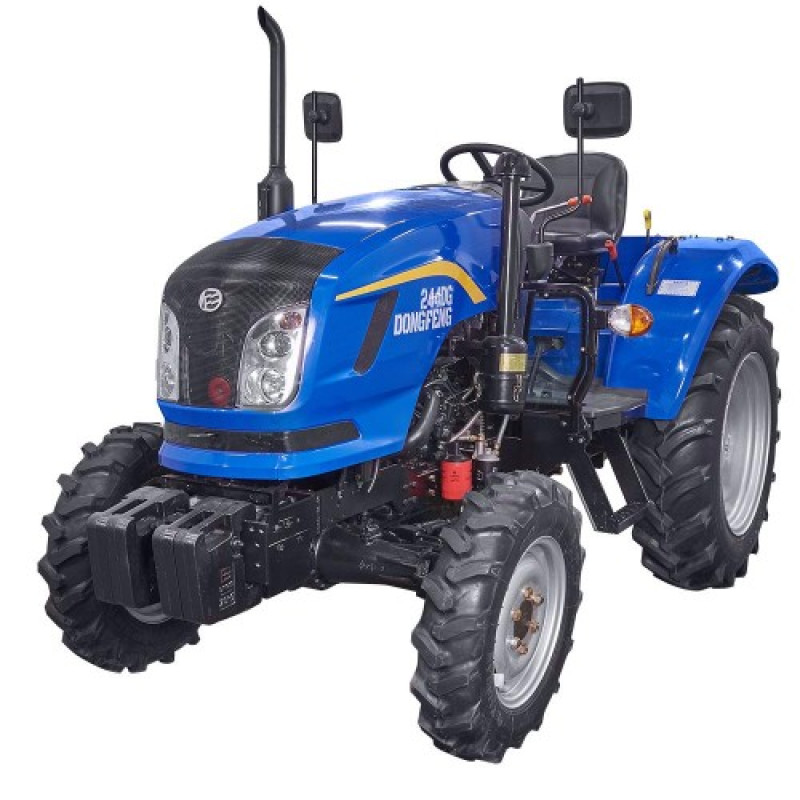

- Front mounted weights 4x20 kg;

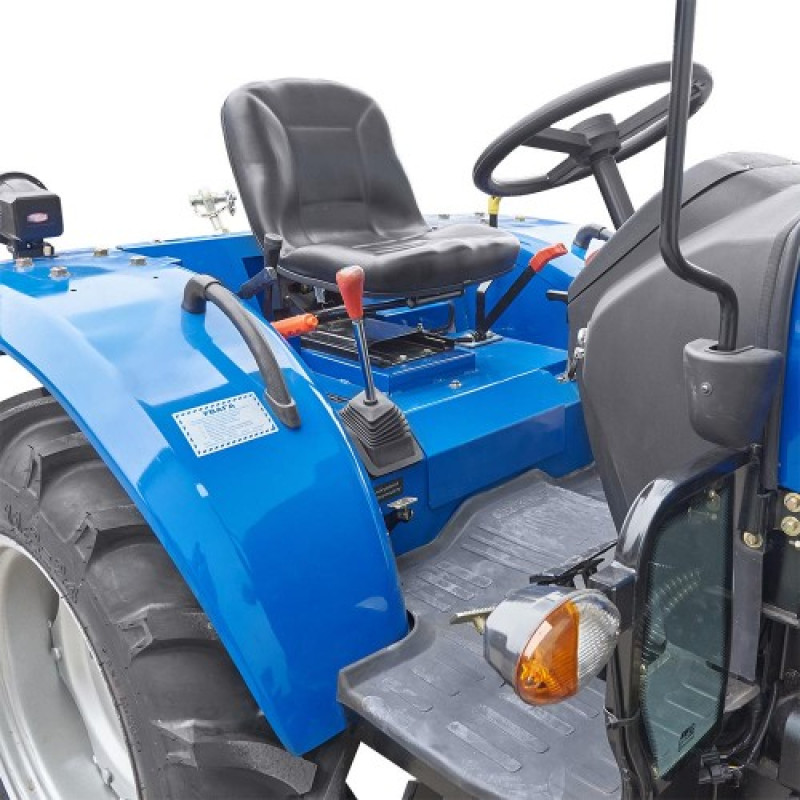

- Adjustable seat with shock absorber;
- Flat floor with rubber mat;
- Operator's area fully protected from dirt from below;
- Transparent mudguards;
- Convenient and wide footrests on both sides;
- Electrical socket for trailer;
- Battery disconnect switch;

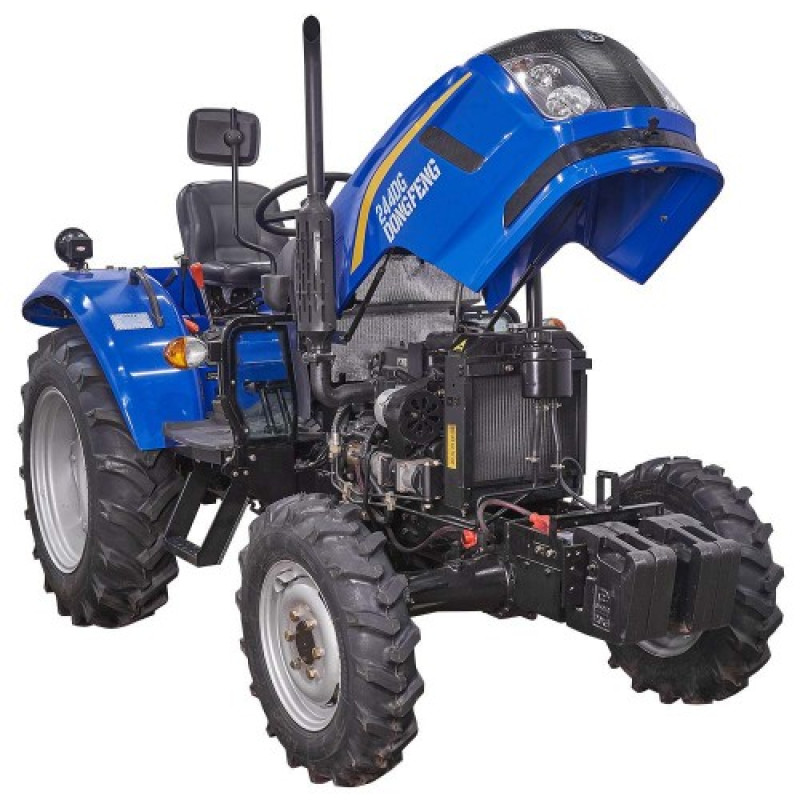

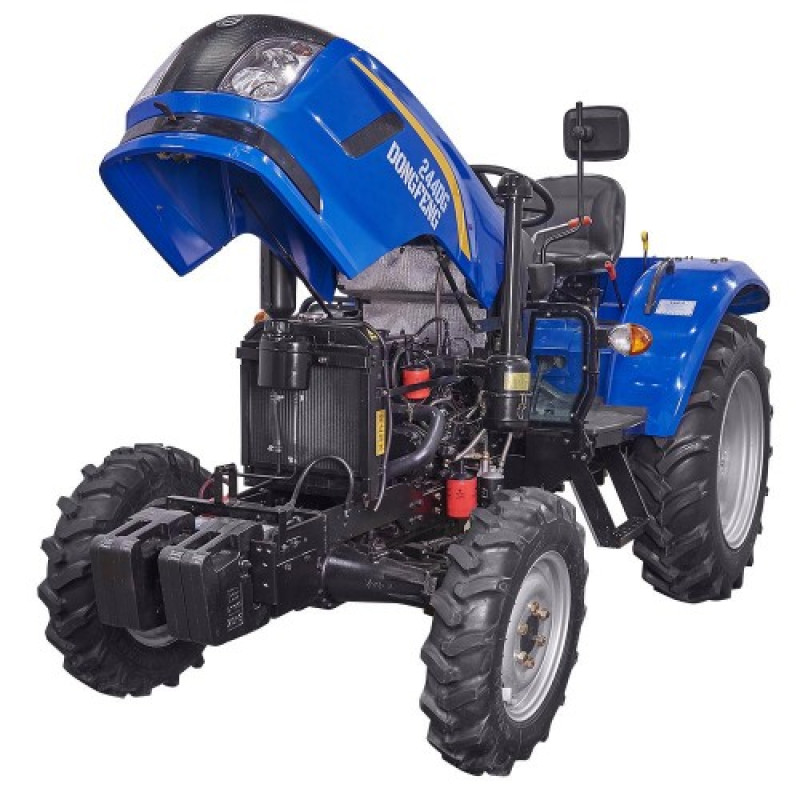

- Two gas struts for the hood;
- High muffler with protective cover;
- Rearview mirrors;
- Side marker light and turn signal repeaters on side protective arches;
- Original combined rear stop/marker lights, turn signals;
- Additional rear reflectors;
- Emergency stop signal.
You can purchase the Dongfeng DF 244DG tractor throughout Ukraine through our official representatives, or order it using the special feedback form in the "Contacts" section. All Dongfeng tractors come with a 2-year warranty period.
Specifications
Bore/stroke
85/90
Braking Mechanism
disc brakes
Clutch
dry, cam-actuated, single-action
Cooling system fan drive
V-belt drive
Engine cooling system capacity, L
8
Engine displacement, cm³
1532
Engine oil capacity, L
6.5
Engine oil type
10W-40 15W-40
Engine Start
electric starter with safe start

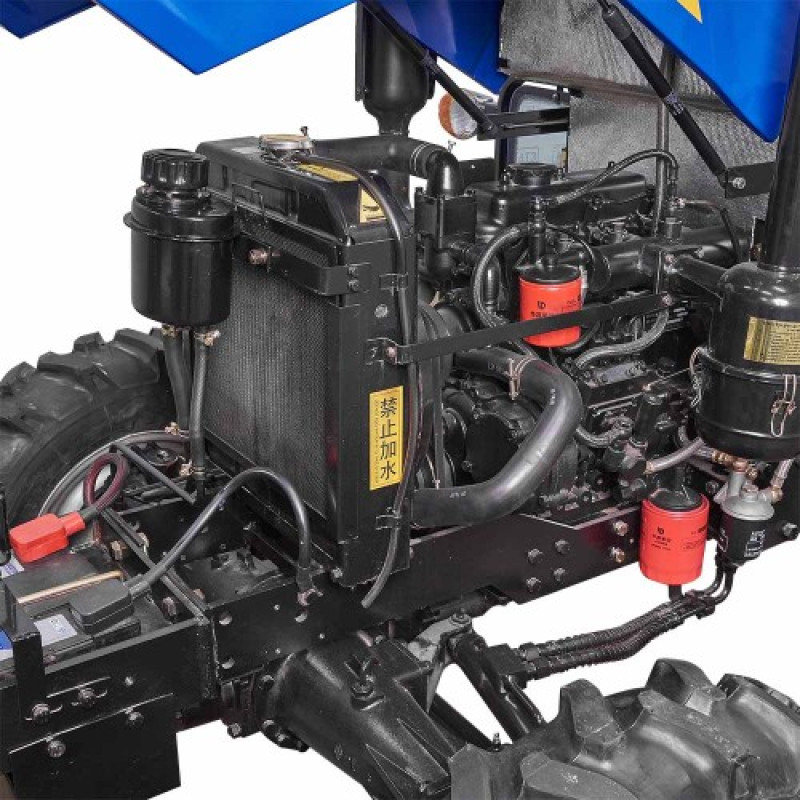

Engine type
vertical, 3-cylinder, 4-stroke diesel with forced water cooling and direct injection
Front axle crankcase volume, L
5
Front axle lubricant type
TAP-15 or Silver SAE 85W-90; Gold SAE 80W-90; Platinum SAE 75W-90 (transmission)
Front tire size
6.50-16
Front track, mm
1100, 1400
Fuel pump type
plunger, in-line
Fuel tank capacity, L
28
Gearbox
(4x2)+(4x2)
Gearbox and rear axle crankcase volume, L
20
Hydraulic pump type
gear pump
Lift body volume, L
—
Loaded weight, kg
1560
Maximum payload capacity of the attachment mechanism, kg
420
Minimum clearance, mm
380
Minimum turning radius with brakes, m
3.0±0.2
Minimum turning radius without brakes, m
3.45±0.2
Nominal engine crankshaft speed, rpm
2400
Nominal fuel consumption, g/kW*h
248
Nominal pulling force, kN
6.6
Overall dimensions (L x W x H), mm
3250x1570x1980
Power take-off (PTO) shaft speed, rpm
540/1000
Rated engine power, hp (kW)
24 (17.6)
Rear axle differential lock
+
Rear Tire Size
11.2-24
Rear track, mm
1100, 1200, 1400, 1500
Steering
UP
Theoretical forward speed, km/h
1.4—25.5
Theoretical reverse speed, km/h
1.41—25.69
Type of oil in gearbox and rear axle
TAP-15 or Silver SAE 85W-90; Gold SAE 80W-90; Platinum SAE 75W-90 (transmission)
Wheel formula
4x4
Wheelbase, mm
1750
