Product Code: FA101-43813-101
372 120 грн.
Buy this product in 1 click:
Main specifications
Bore/stroke:
90 /100
Braking Mechanism:
disc brakes
Clutch:
dry, twin-disc
Cooling system fan drive:
V-belt drive
Engine cooling system capacity, L:
6
All specifications
We will deliver this product:
Payment
Description

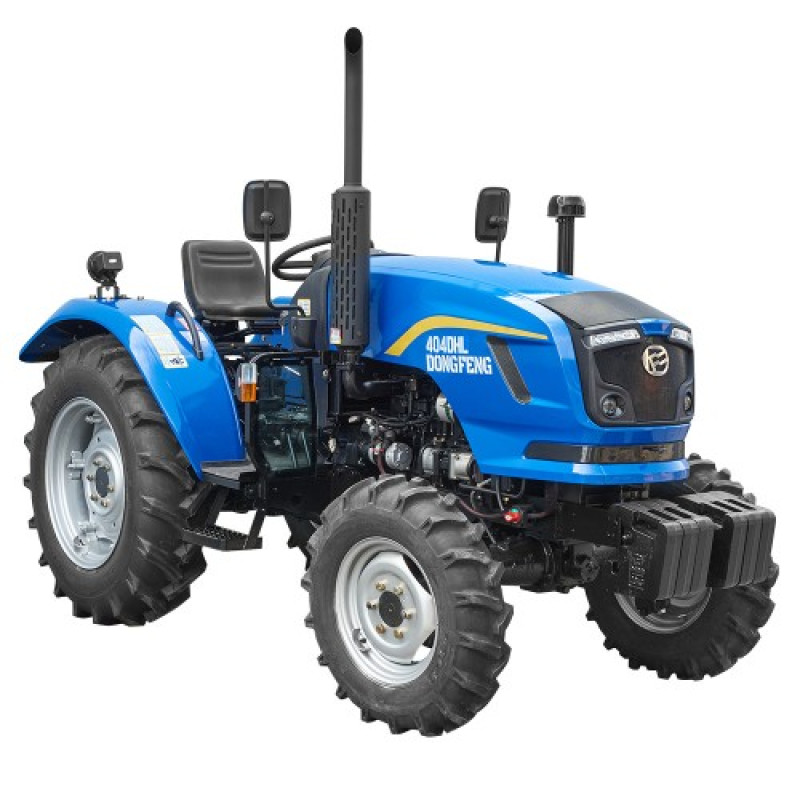

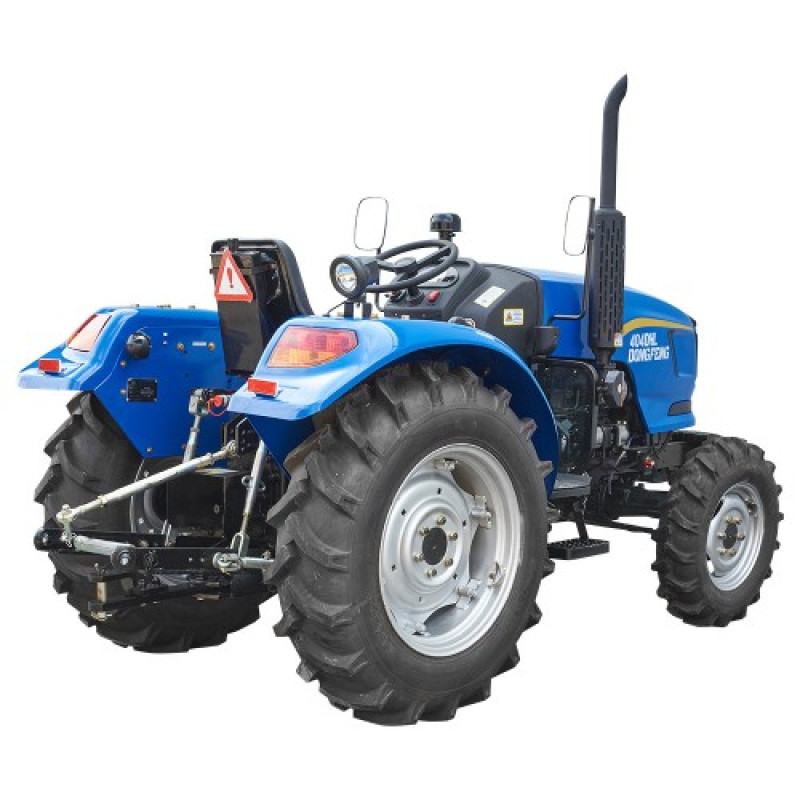

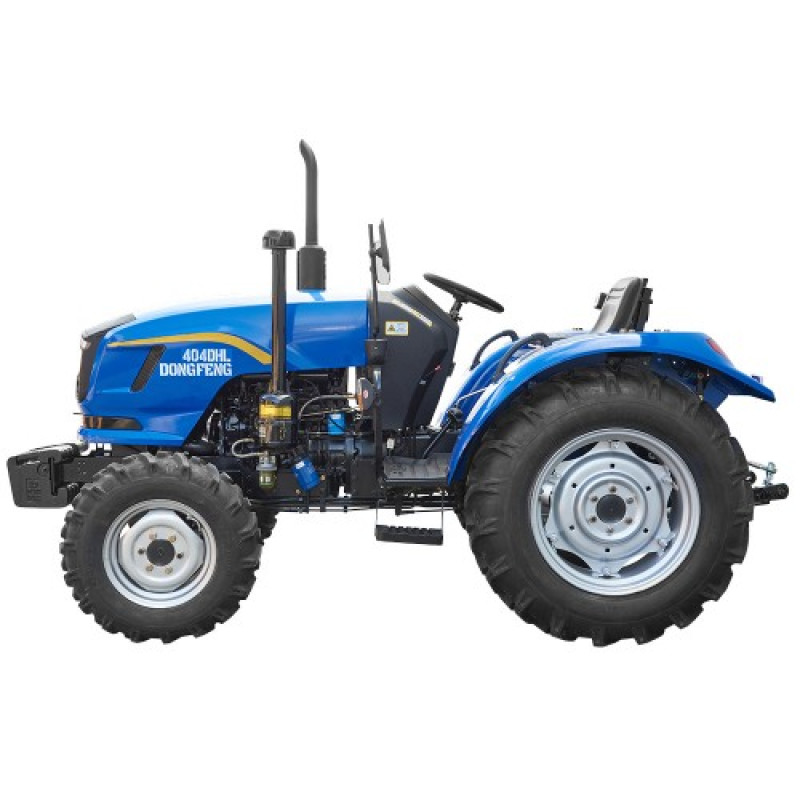

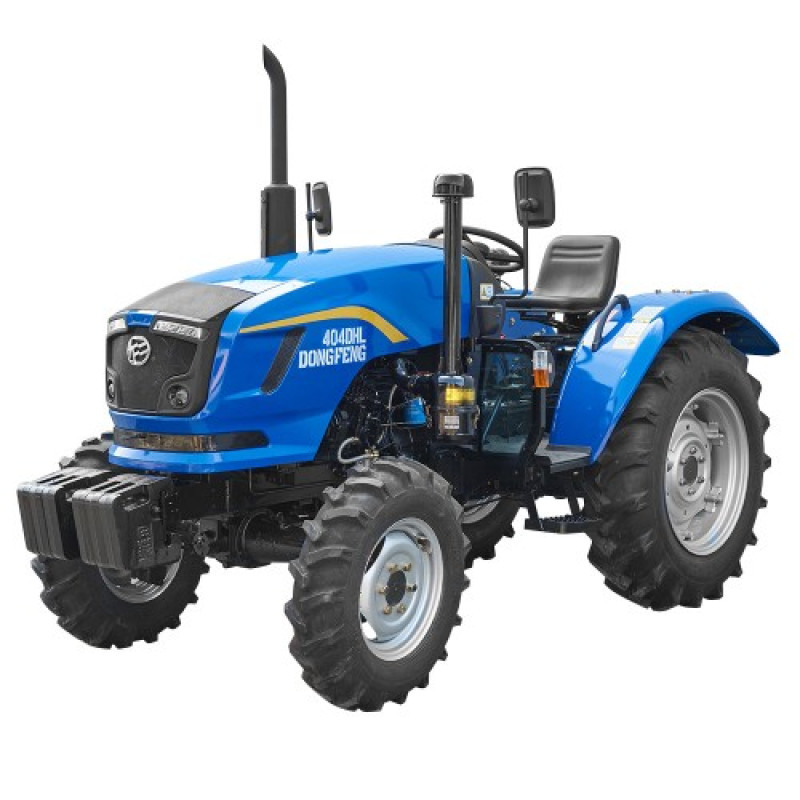

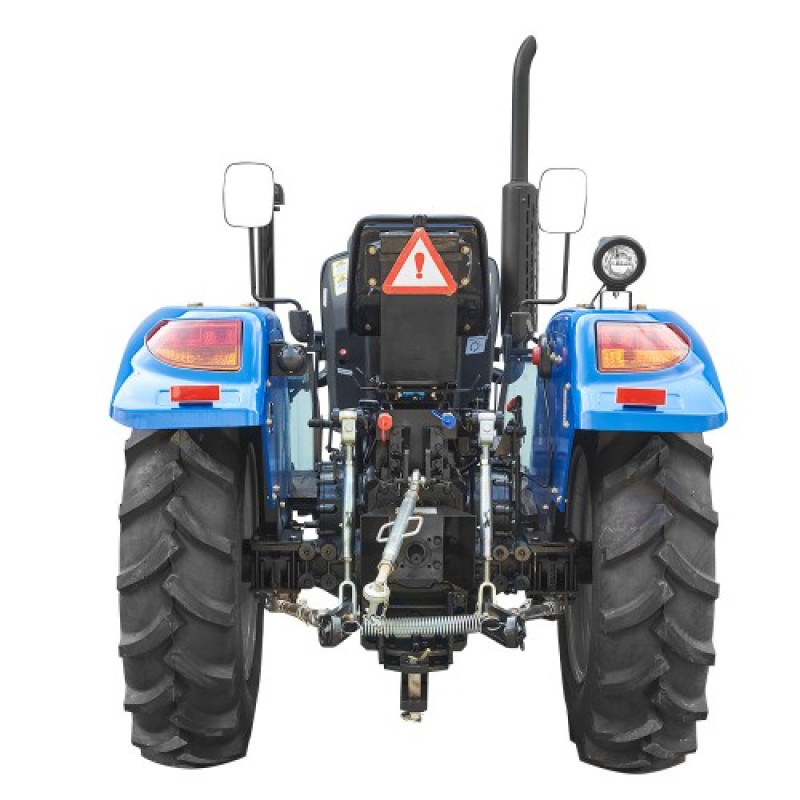

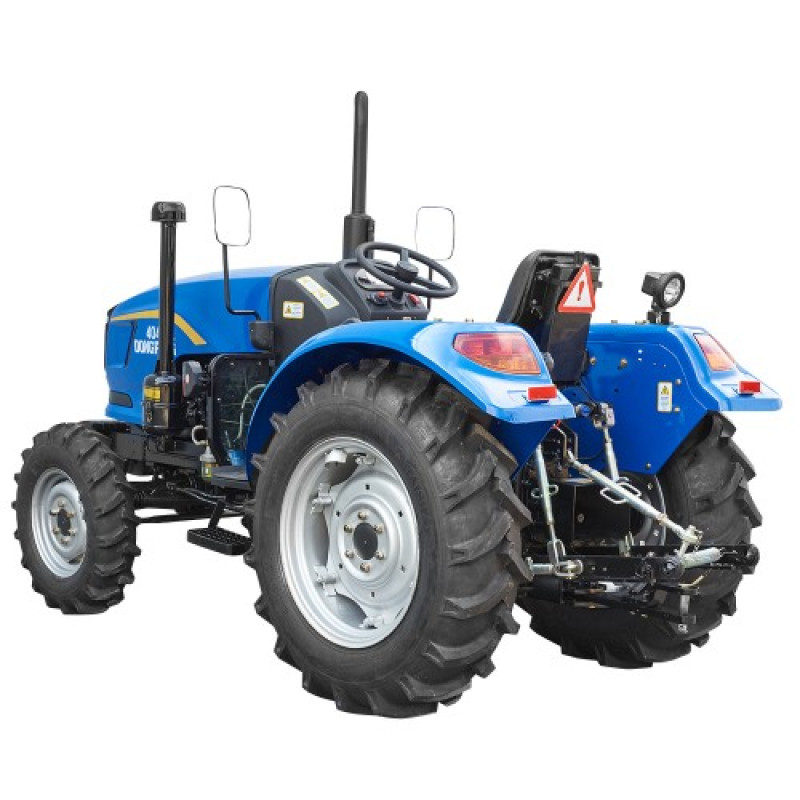

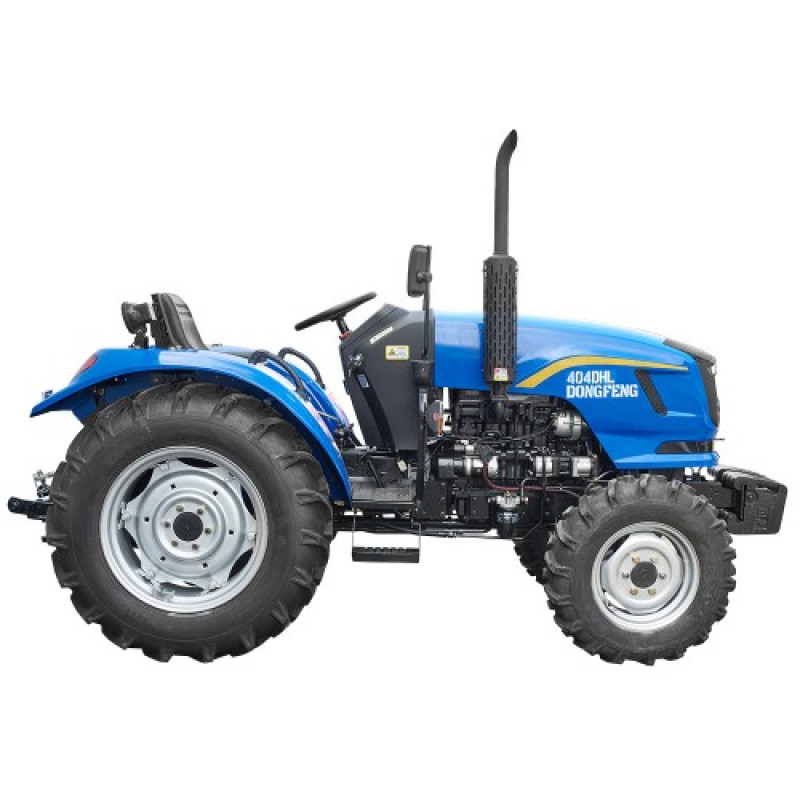

Description of the Dongfeng 404DHL Tractor
A versatile 40 hp all-wheel-drive tractor in an extended configuration. It ensures the completion of a full cycle of agricultural work, including plowing and pre-sowing soil cultivation, on fields up to 20 hectares. The design, equipment, and configuration of the tractor are similar to the 404DHL model.
Design Features of the Dongfeng 404DHL Tractor:
- new, modern design;

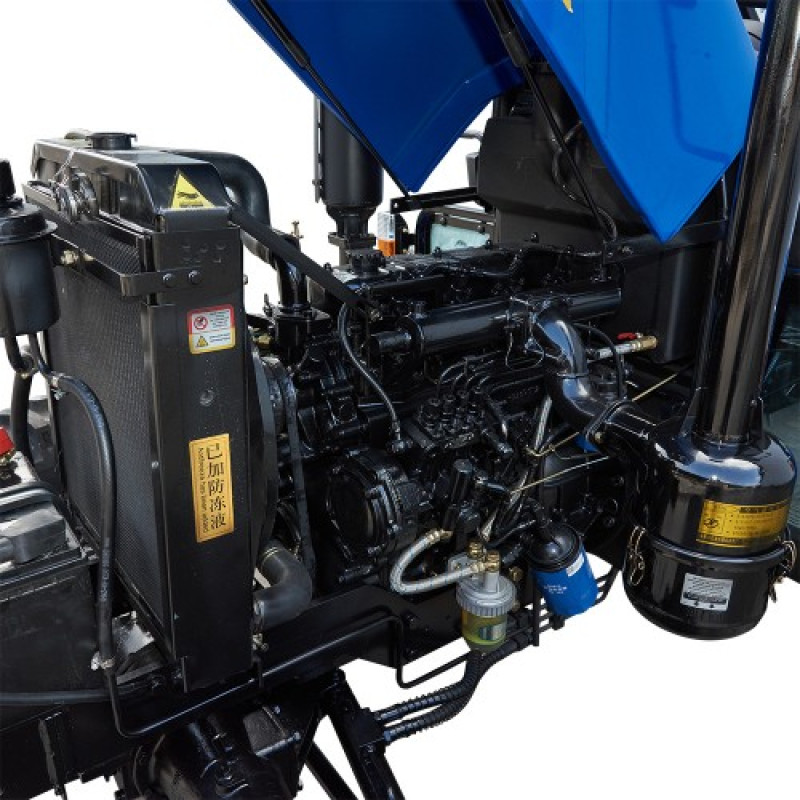

- reliable 4-cylinder 40 hp engine;
- more powerful 8 + 2 gearbox;
- 2-disc clutch;

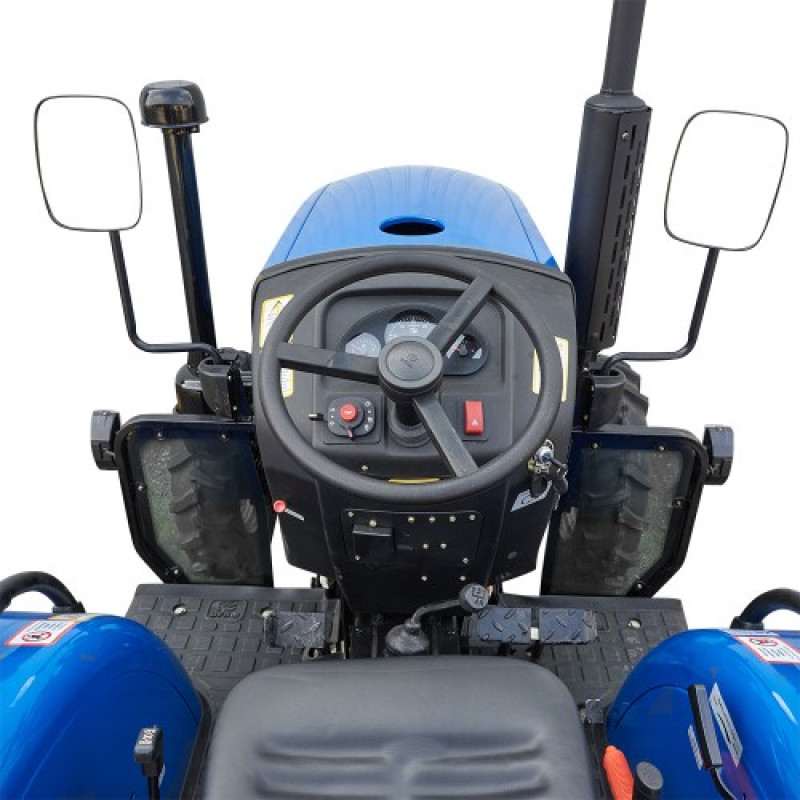

- power steering, with a separate reservoir and hydraulic pump;
- front drive axle;
- 2-speed PTO 540 / 1000 rpm;
- adjustable front and rear tracks;
- wide wheels 7.50-16 / 12.4-24;
- separate rear wheel brakes;
- parking brake;
- hand throttle;
- rear axle differential lock;

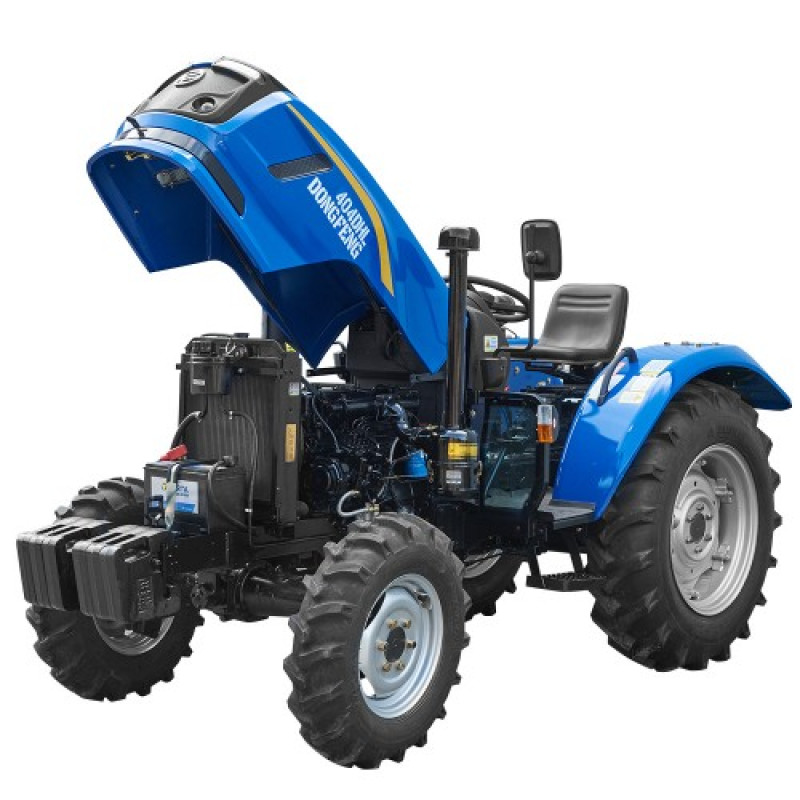

- shock absorber for easy and convenient hood lifting;
- improved parking brake.
Dongfeng 404DHL Model Configuration:

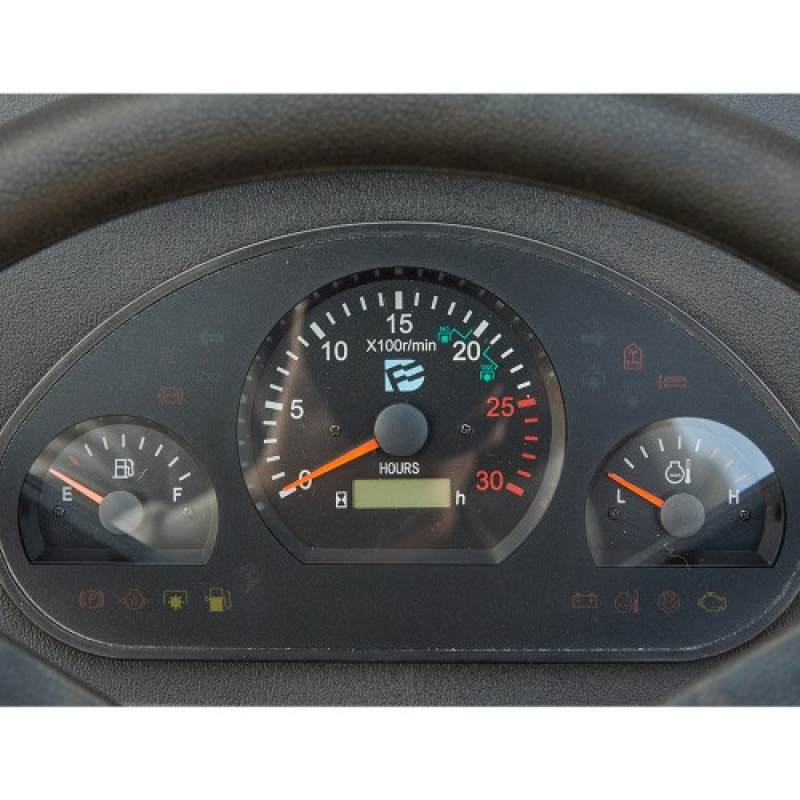

- oil pressure gauge, coolant temperature gauge, ammeter, hour meter, fuel level gauge;
- hydraulic output;
- rear additional headlight;

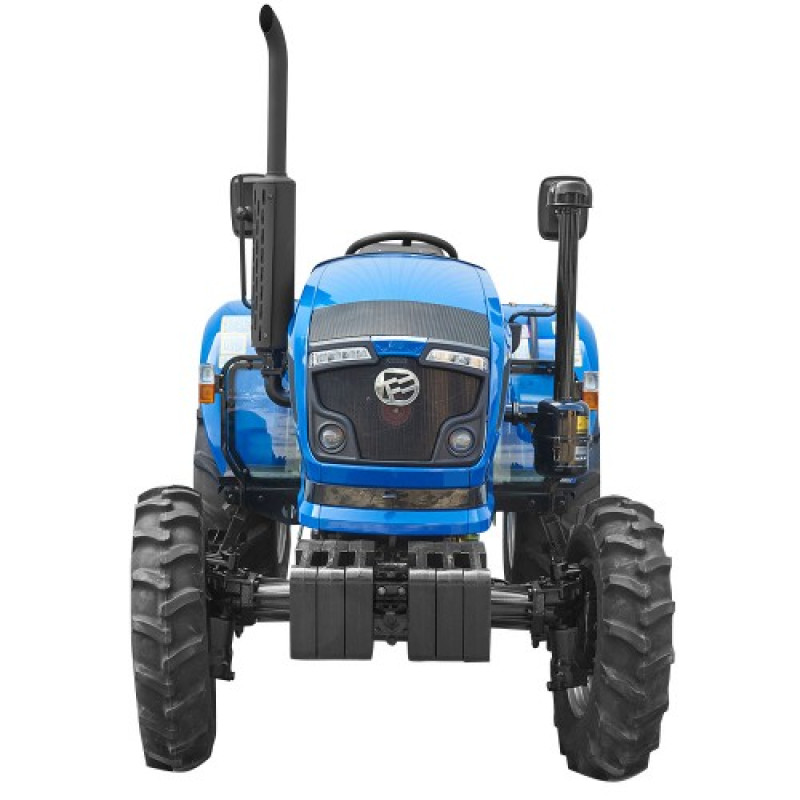

- front mounted weights 6x20 kg;

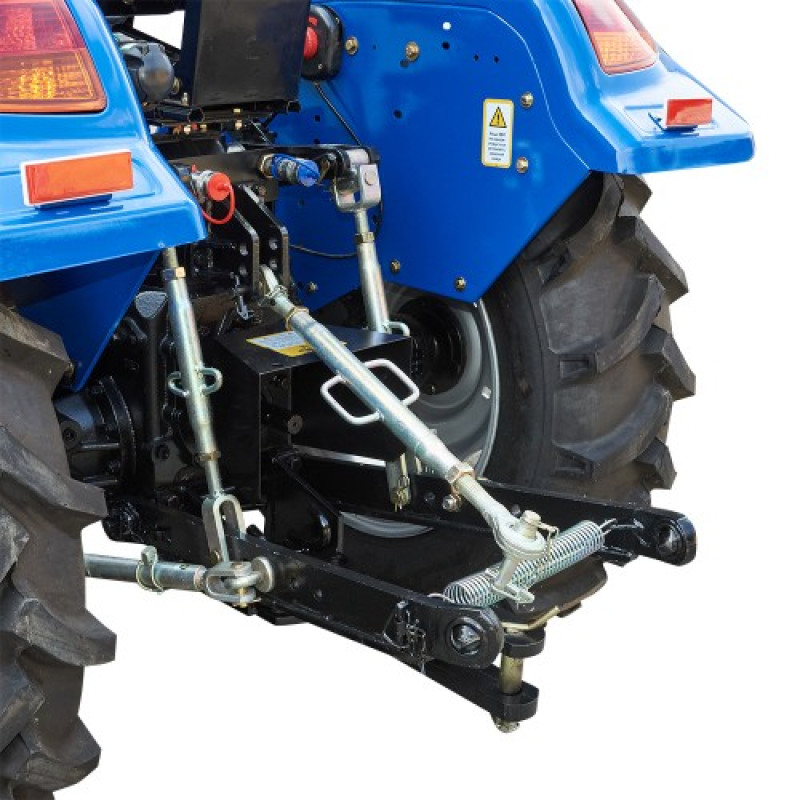

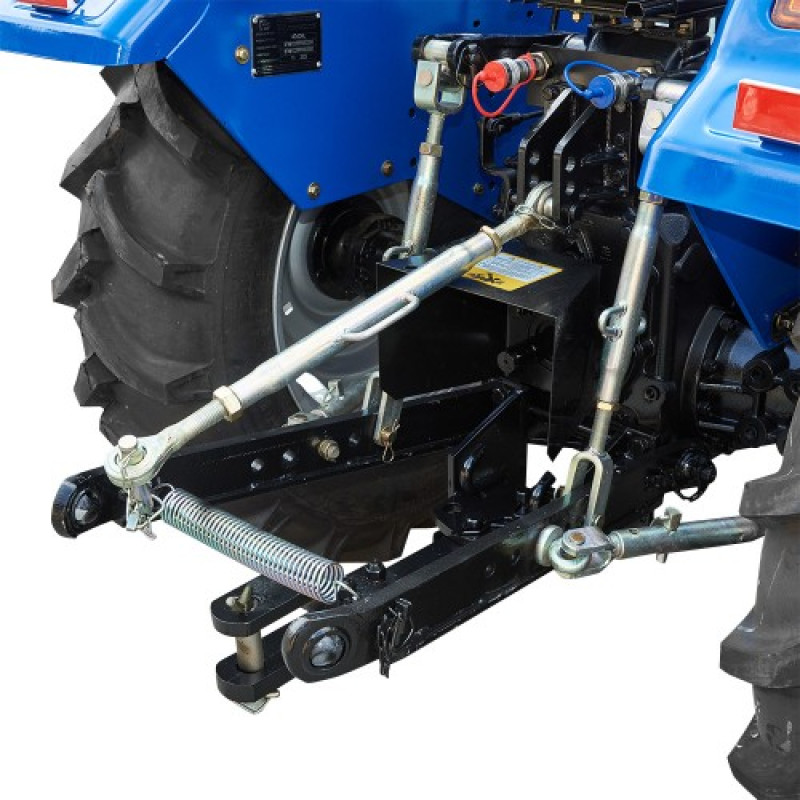

- trailer hitch;
- comfortable adjustable seat with shock absorber;
- electrical socket for trailer;
- rearview mirrors;
- turn signal and marker light repeaters installed on fenders;
- emergency stop signal;
- rubber mat.
You can buy the Dongfeng 404DHL tractor throughout Ukraine through our official representatives, or order it via the special feedback form in the "Contacts" section. All Dongfeng tractors come with a 2-year warranty period.
Specifications
Bore/stroke
90 /100
Braking Mechanism
disc brakes
Clutch
dry, twin-disc
Cooling system fan drive
V-belt drive
Engine cooling system capacity, L
6
Engine displacement, cm³
2545
Engine oil capacity, L
6.6
Engine oil type
mineral or semi-synthetic for diesel engines
Engine Start
electric starter with safe start
Engine type
vertical, 4-cylinder, 4-stroke diesel with forced water cooling and direct injection
Front axle crankcase volume, L
6
Front axle lubricant type
TAP-15 or Silver SAE 85W-90; Gold SAE 80W-90; Platinum SAE 75W-90 (transmission)
Front tire size
7.50-16
Front track, mm
1100, 1400
Fuel pump type
plunger, in-line
Fuel tank capacity, L
28
Gearbox
(4+1)x2
Gearbox and rear axle crankcase volume, L
20
Hydraulic pump type
gear pump
Loaded weight, kg
1670
Maximum payload capacity of the attachment mechanism, kg
665
Minimum clearance, mm
330
Minimum turning radius with brakes, m
2.8±0.2
Minimum turning radius without brakes, m
3.0±0.2
Nominal engine crankshaft speed, rpm
2300 - 2400
Nominal fuel consumption, g/kW*h
275
Nominal pulling force, kN
7.86
Overall dimensions (L x W x H), mm
3460 x 1500 x 1650
Power Steering Pump
+
Power take-off (PTO) shaft speed, rpm
540 / 1000
Rated engine power, hp (kW)
40 (29.4)
Rear axle differential lock
+
Rear Tire Size
12.4-24
Rear track, mm
1100, 1200, 1400, 1500
Theoretical forward speed, km/h
1.75-32.20
Theoretical reverse speed, km/h
1.31-6.80
Type of oil in gearbox and rear axle
TAP-15 or Silver SAE 85W-90; Gold SAE 80W-90; Platinum SAE 75W-90 (transmission)
Wheel formula
4x4
Wheelbase, mm
1818
