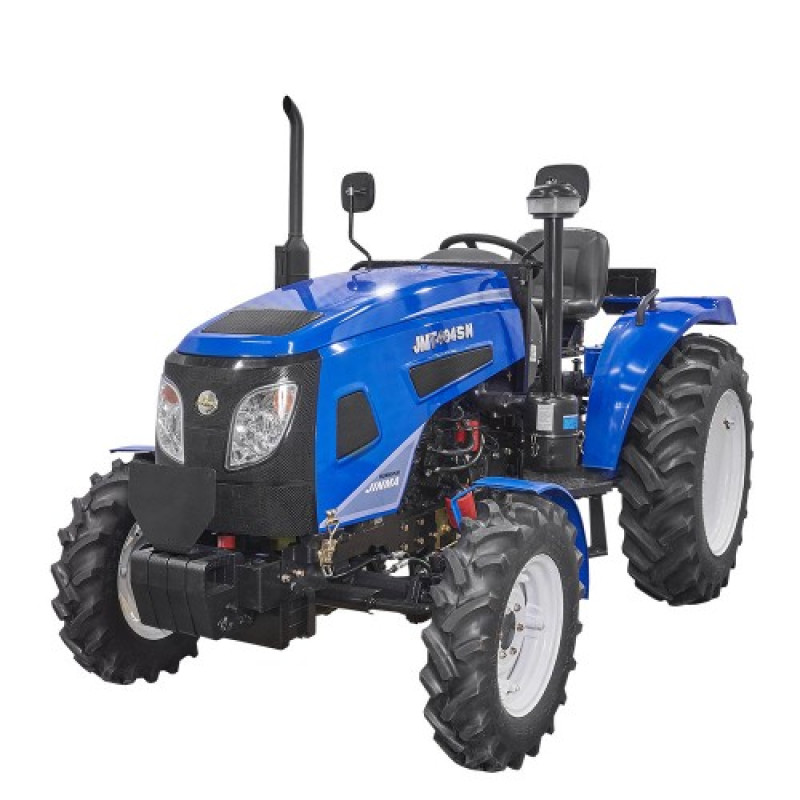

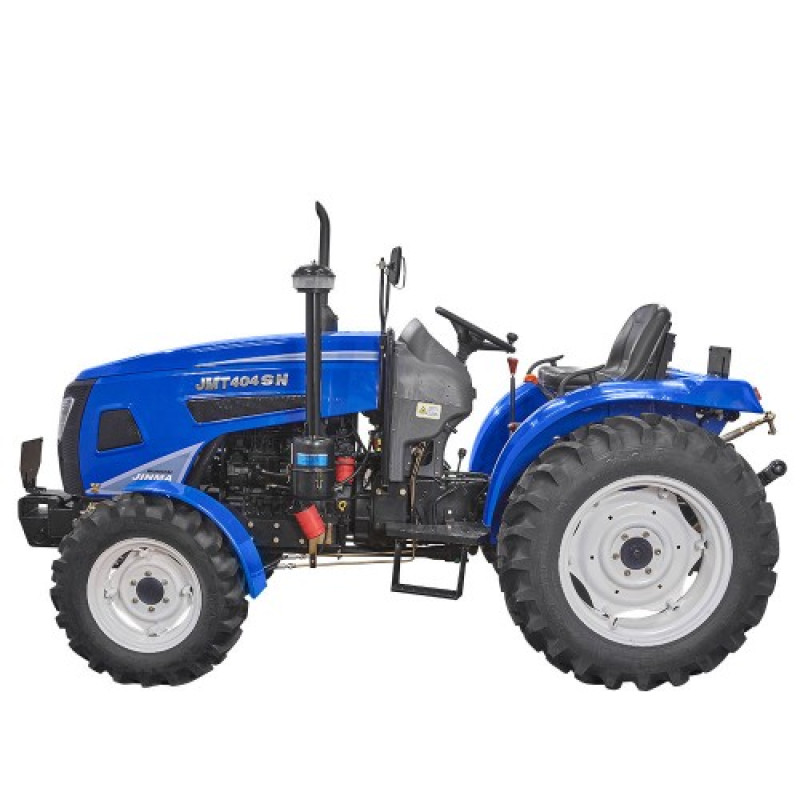

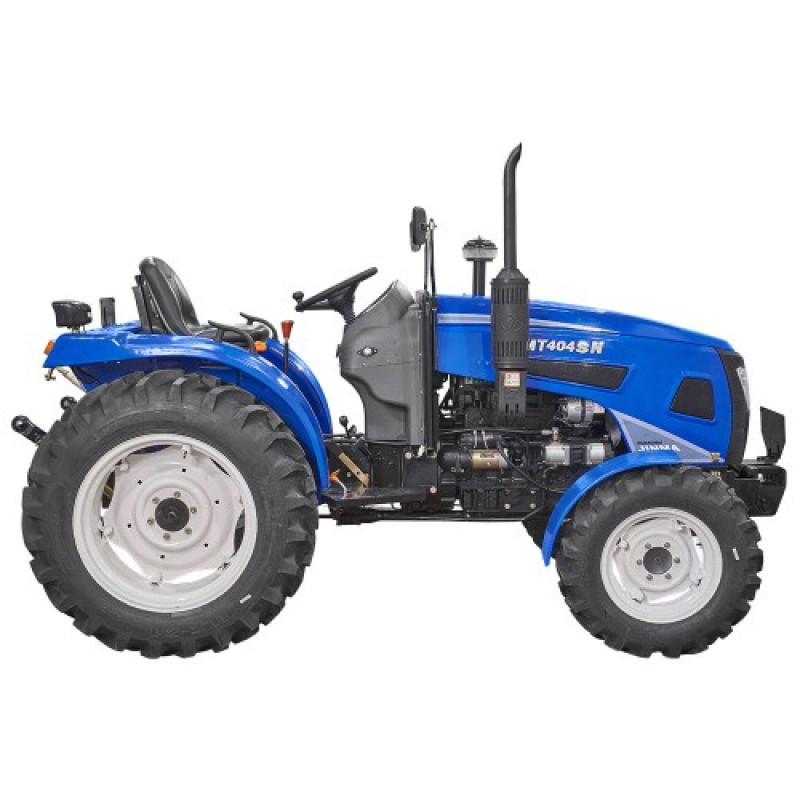

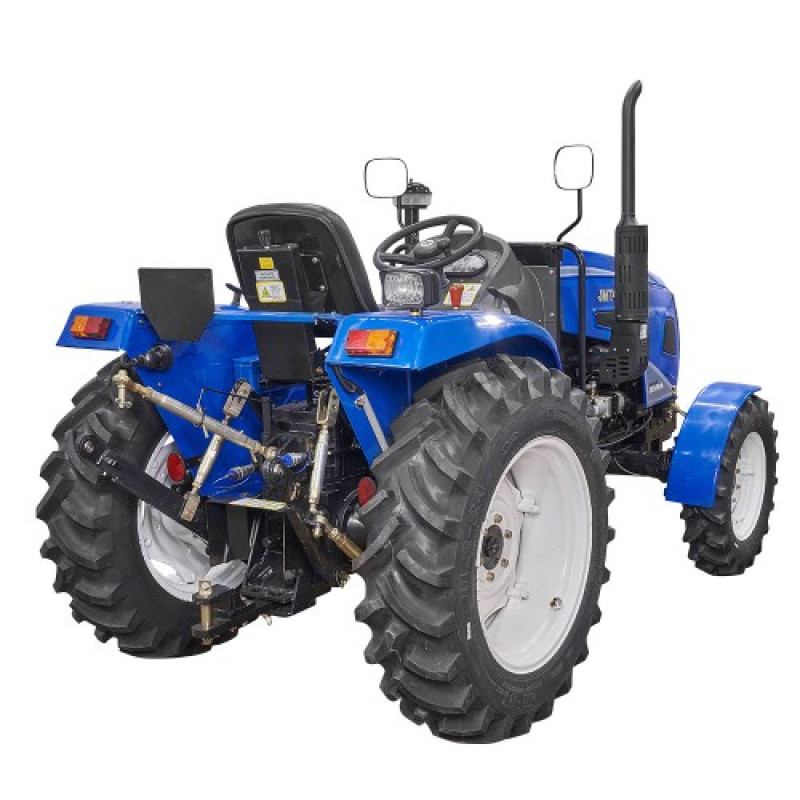

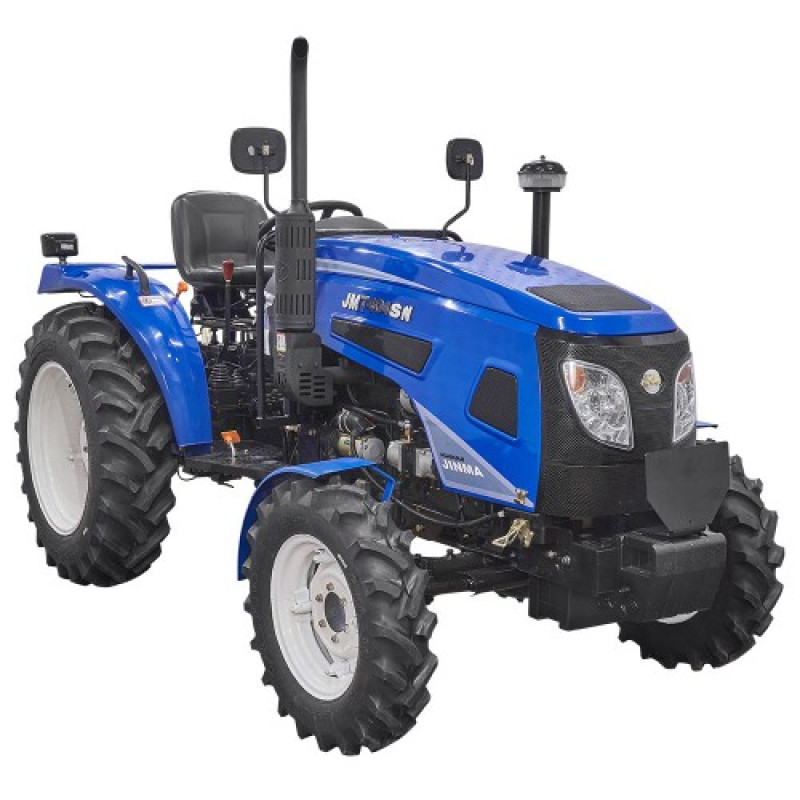

Description of JINMA JMT 404SN Tractor
The modern all-wheel-drive universal tractor Jinma JMT 404SN has everything necessary for performing all types of tractor work in agriculture, utilities, or construction. Thanks to successful design solutions, the tractor ensures high work productivity and a decent level of comfort for the tractor operator both during the day and at night.
A powerful 40 hp engine and a robust hitch system allow the JMT 404SN to be used as a primary tractor for cultivating medium-sized land plots or for auxiliary and transport work on large agro-technical and livestock industrial complexes.
The gear transmission is characterized by low noise levels. The modernized (4+1) ×2×2 gearbox, with an additional low range, provides 16 forward gears and 4 reverse gears. The front axle can be quickly engaged and disengaged as needed, as can the rear axle differential lock. Brakes are rear drum brakes, and there is a parking brake. Hydraulic power steering ensures easy and precise control in all driving conditions, even with maximum load on the hitch system. The lifting capacity of the rear hitch system with hydraulic lift is 650 kg. The power take-off (PTO) shaft is two-speed — 540 and 1000 rpm. The quick-release towing device allows simultaneous use of the PTO and trailer towing.
Design features of the JINMA JMT 404SN tractor:

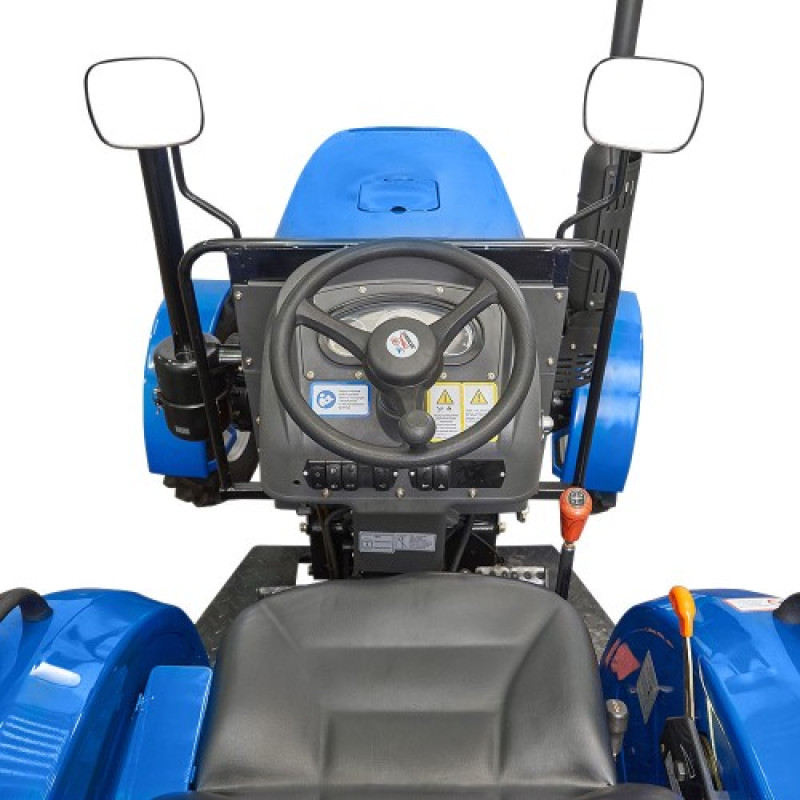

- convenient placement of all levers and other controls;
- gearbox shifter moved to the right side of the driver's seat;
- wide pedals with long travel, "hand throttle" lever on the fender, to the right of the driver;
- powerful front optics;
- 16+4 gearbox, additional low range in the gearbox;
- dual-action clutch;
- rear axle differential lock;
- air filter with high intake and translucent cyclone;
- electric glow plug for air preheating in the intake manifold;
- "safe start" — electric starter lockout by the clutch pedal;
- large fuel tank under the hood, increased diameter filler neck;

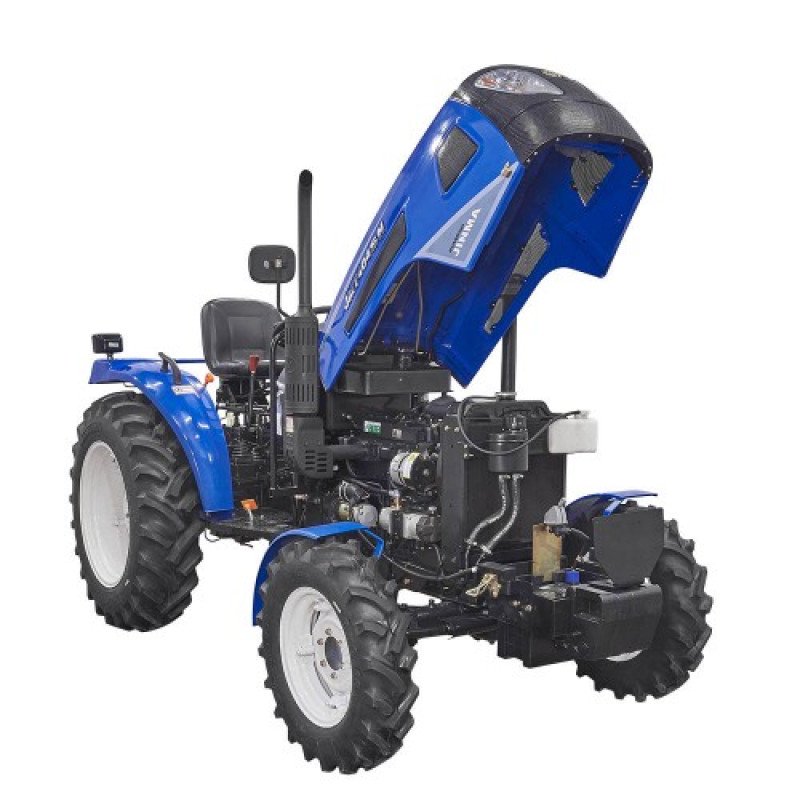

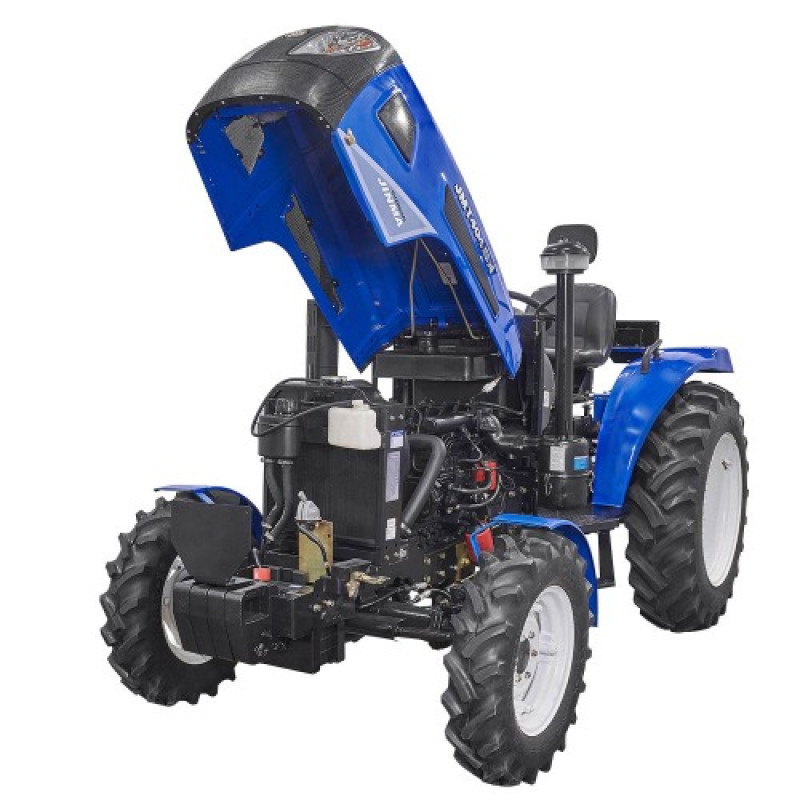

- hood with a wide opening angle, convenient and reliable hood support;
- fuel return line from injectors to the tank;

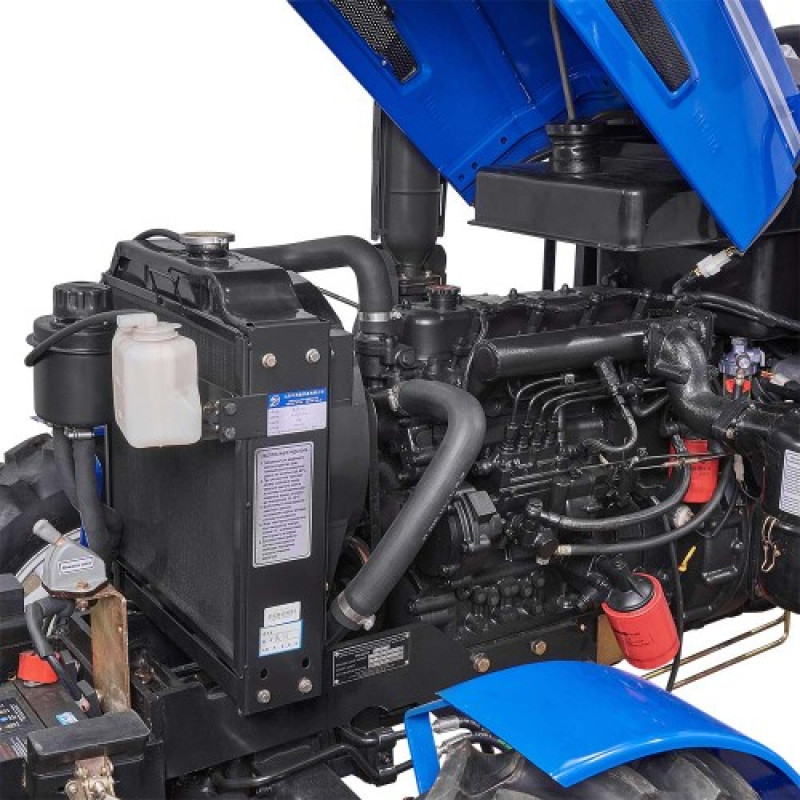

- cooling system expansion tank;
- muffler and muffler elbow covered by a protective casing;
- hydraulic power steering with a separate oil tank and pump;

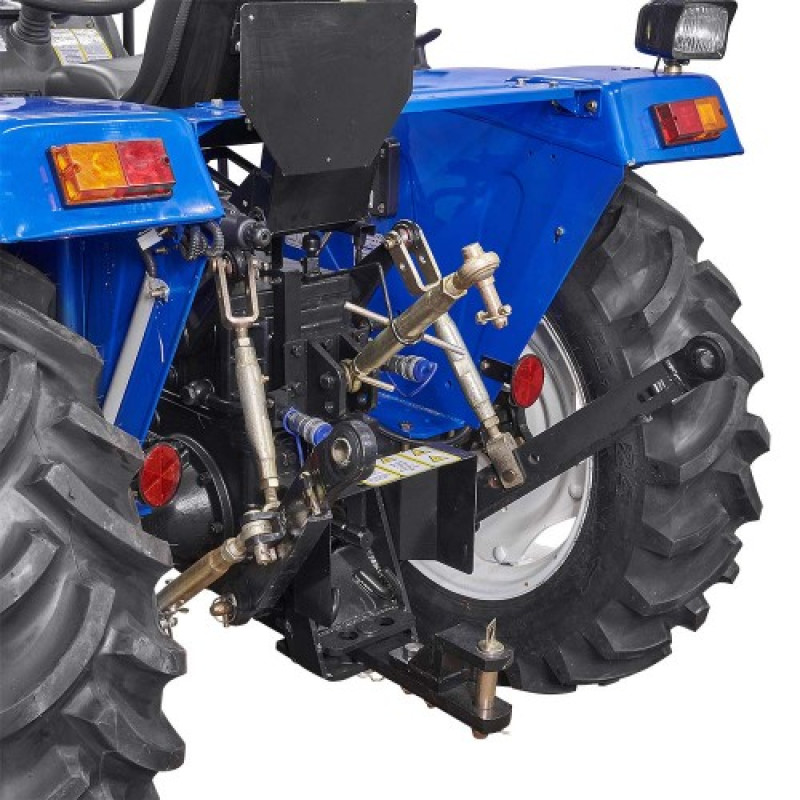

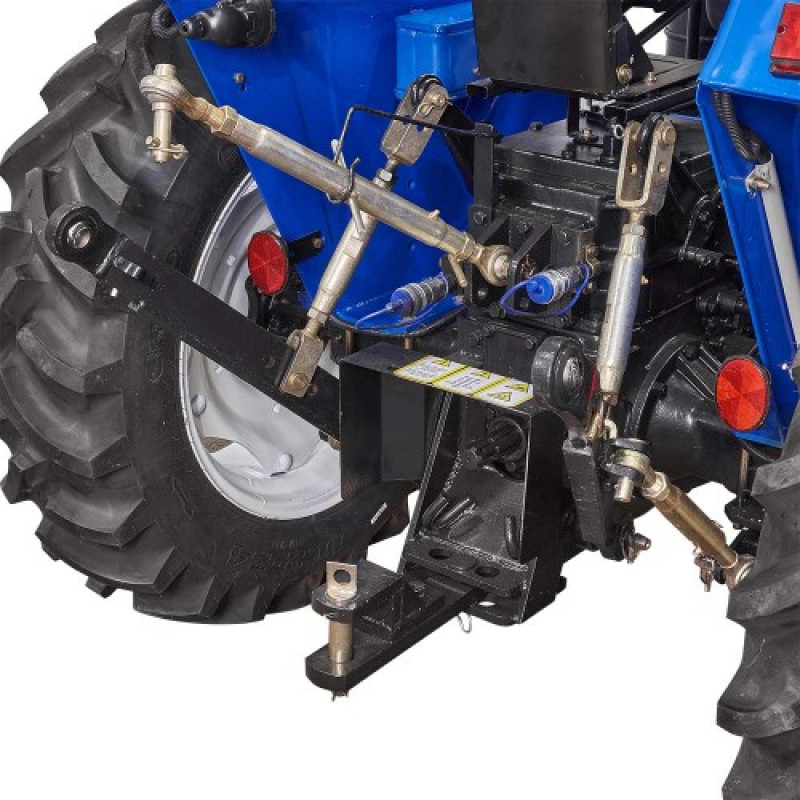

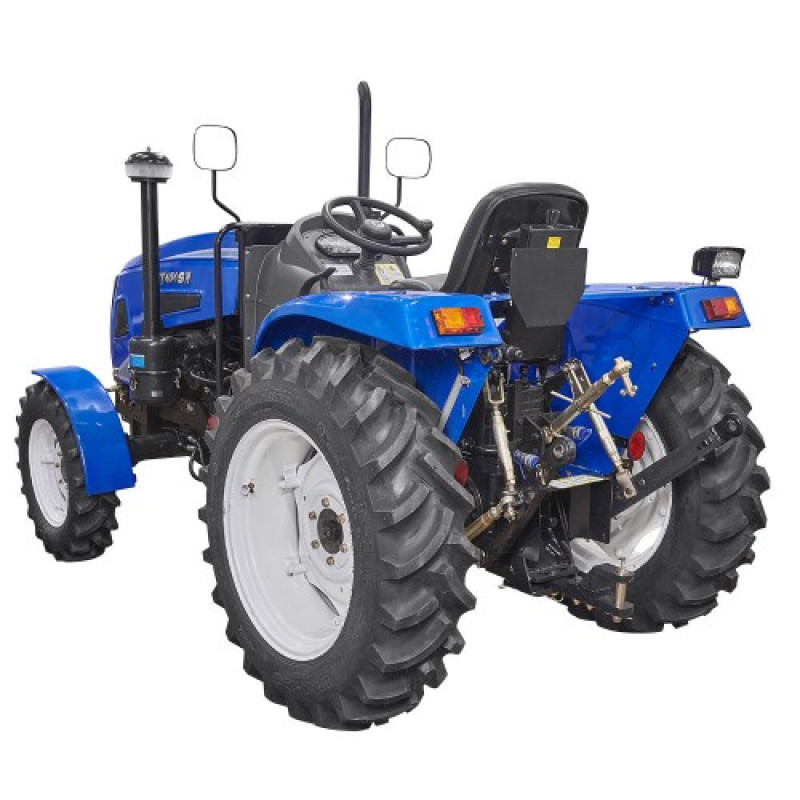

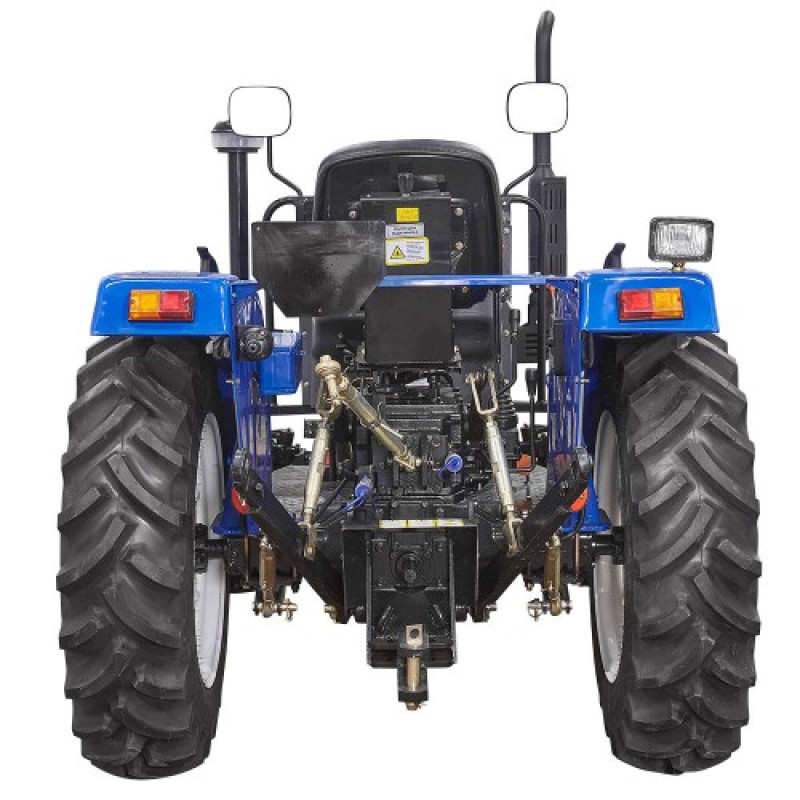

- reinforced hydraulic hitch mechanism with stepless adjustment of lower links;
- separate hydraulic pump for the hitch system;
- hooks for trailer safety chains on the towing device;
- two-speed power take-off (PTO) shaft 540 and 1000 rpm;
- high ground clearance and crop clearance;
- wheel disc mounting on captive bolts;
- rear and front wheel discs are detachable, track adjustment by re-positioning discs and rims;
- wheel nipple protection.
JINMA JMT 404SN tractor configuration:

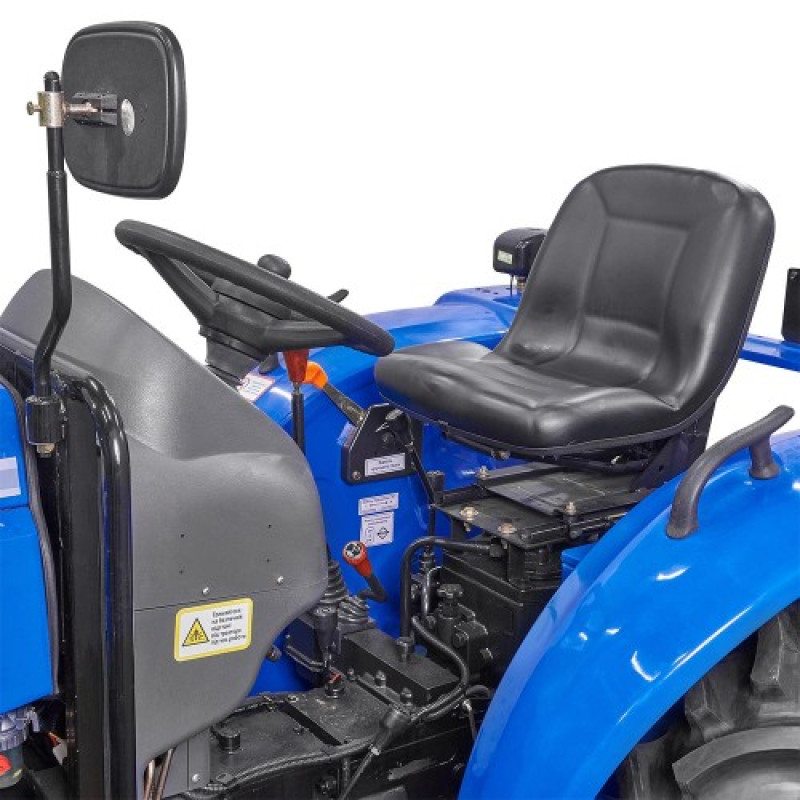

- comfortable adjustable seat with shock absorber.
- 350 W electric generator.
- automotive-type electrical fuses.

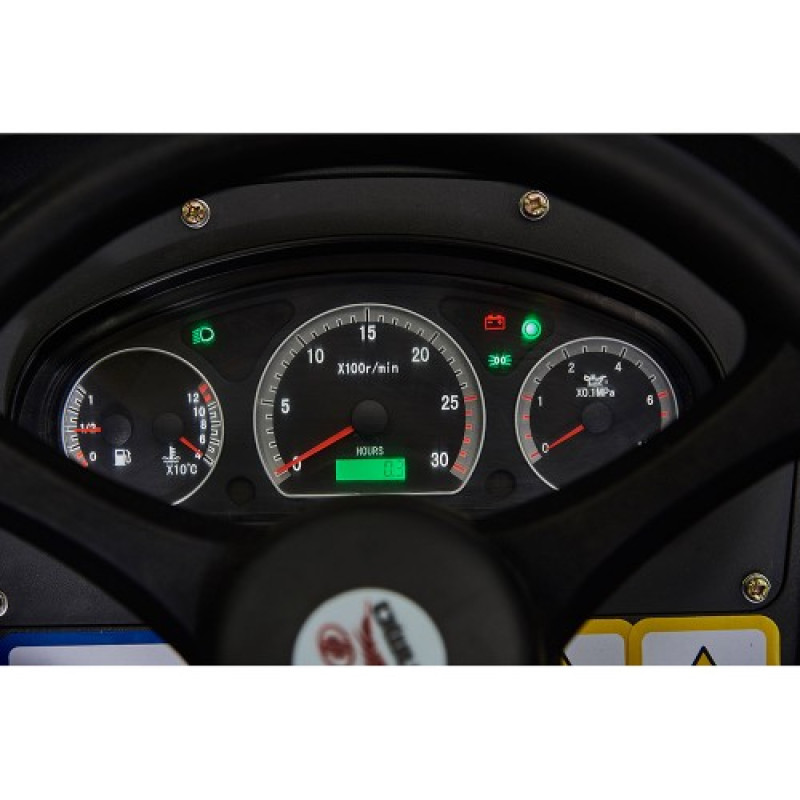

- electronic instrument panel (hour meter, oil pressure gauge, fuel level indicator, tachometer, water temperature indicator, onboard voltage indicator, emergency battery charge, etc.)
- large rearview mirrors on rigid brackets.
- electrical socket for trailer.
- pendulum hitch device for trailer towing.
- two hydraulic outlets with quick-release couplings.
- quick steering knob on the steering wheel.
- convenient footrest on the left side.
- front fenders.

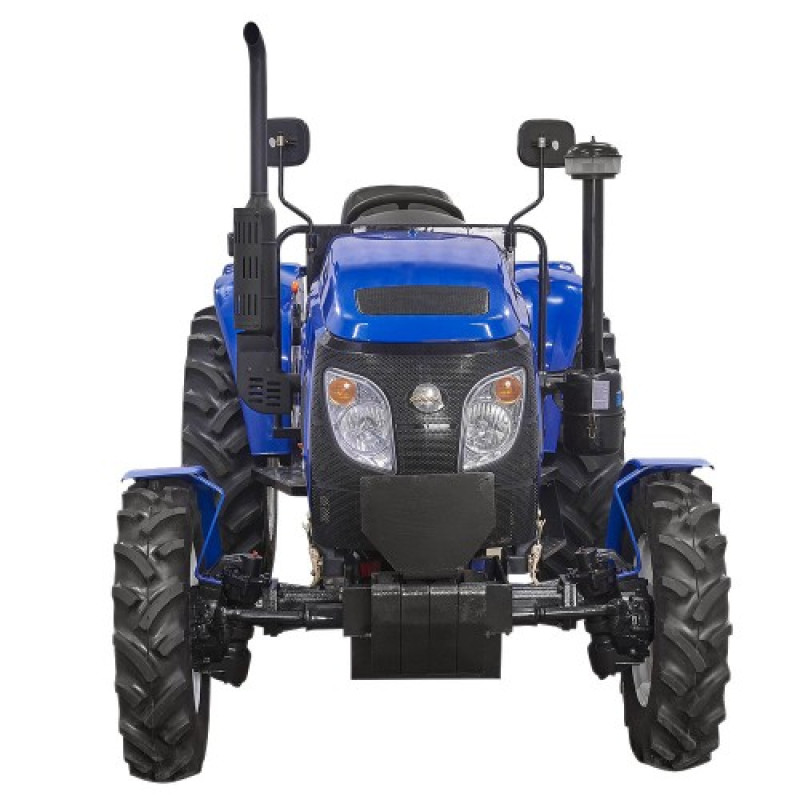

- front mounted weights 4×12 kg.
You can buy the JMT 404SN tractor throughout Ukraine through our official representatives or order it using the special feedback form in the "Contacts" section. All JINMA tractors come with a 2-year warranty period.
