Product Code: FA101-80447-101
279 040 грн.
Buy this product in 1 click:
Main specifications
Additional Cockpit Equipment:
–
Additional Equipment:
–
Additional Footrests:
on the left side
Additional front/rear payload, (unit × kg):
6x9 / –
Additional Step-Down Gearboxes:
2 bands
All specifications
We will deliver this product:
Payment
Description

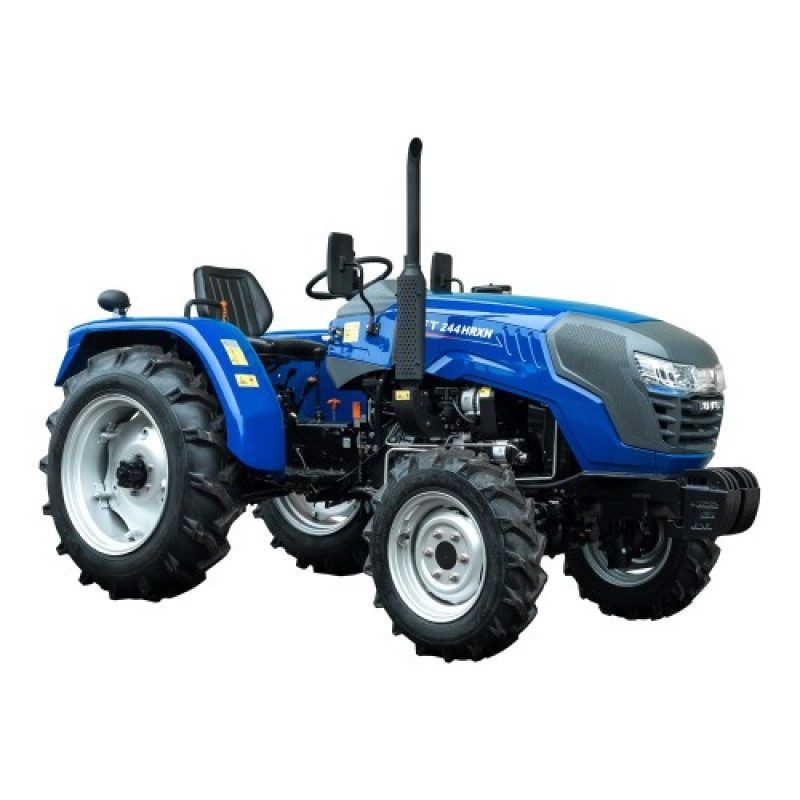

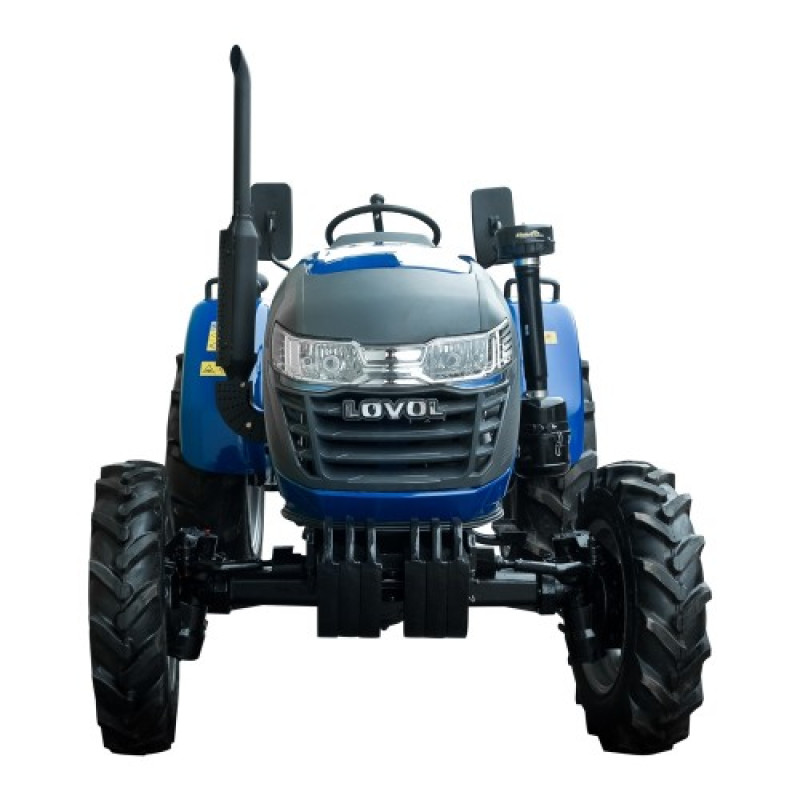

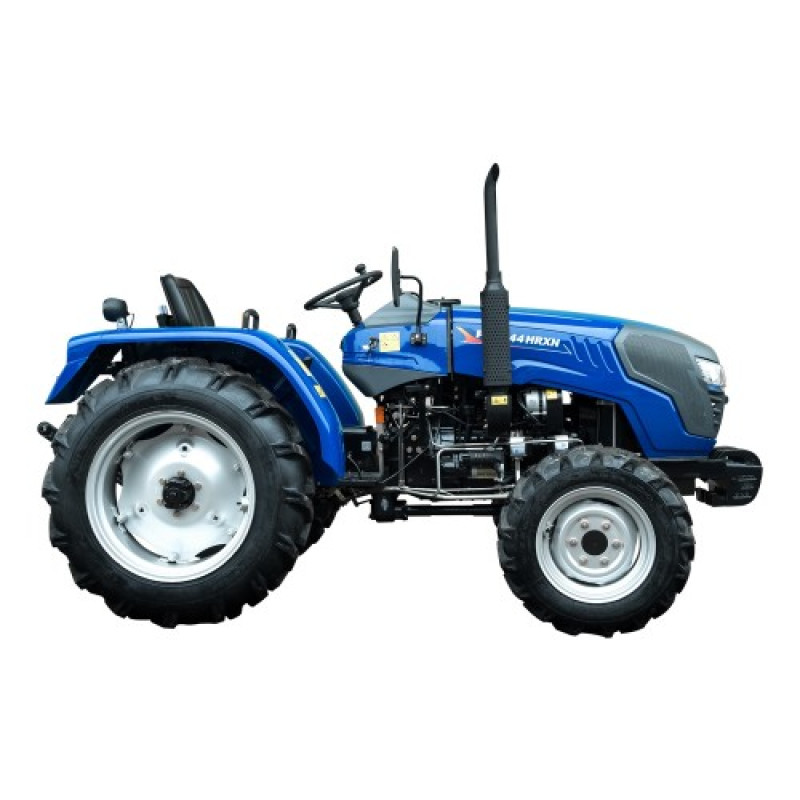

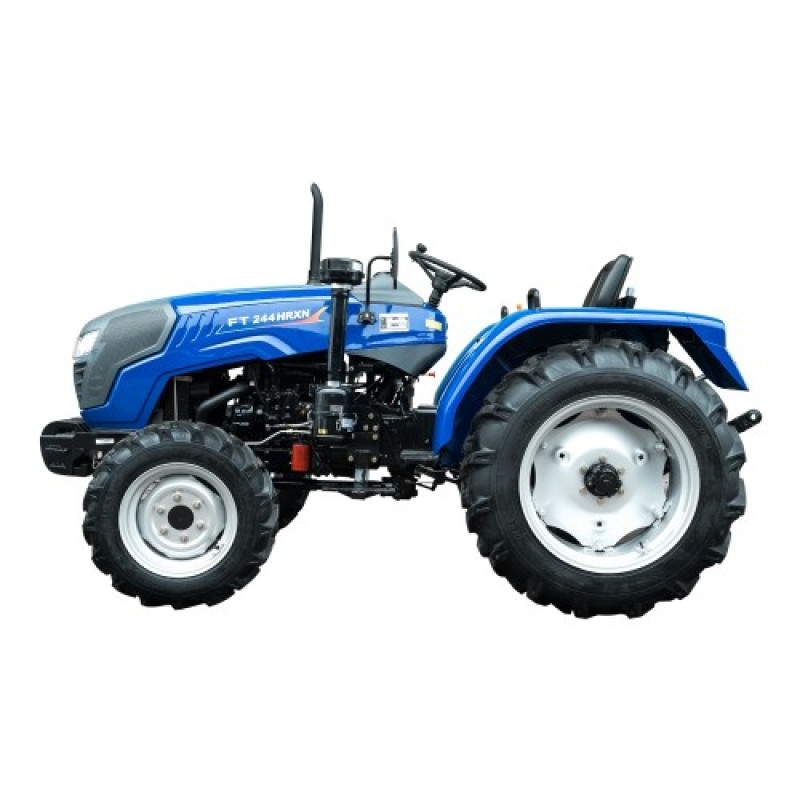

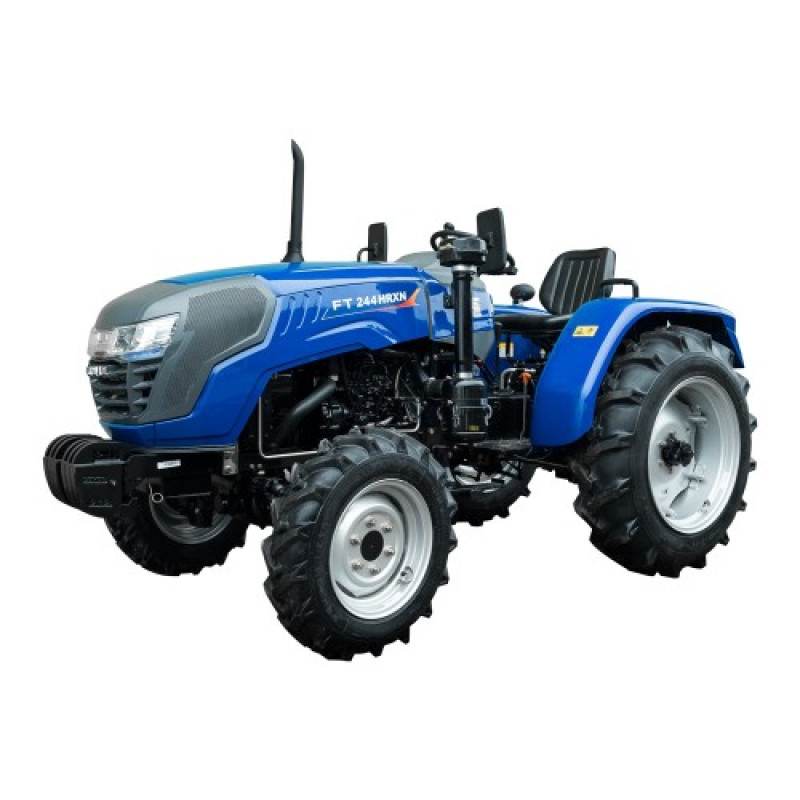

Design Features of the Foton/Lovol FT244HRXN Mini Tractor:

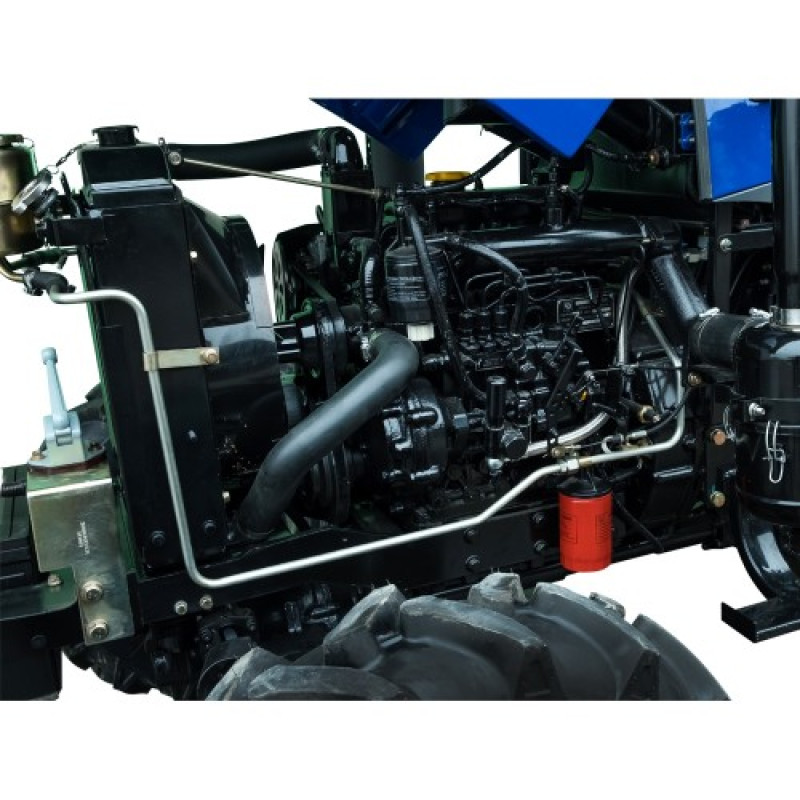

- Economical and reliable 3-cylinder engine;
- Large, convenient fuel tank;
- Electric flare system for air preheating in the intake manifold;
- Muffler covered by a protective casing along its entire length;
- 2-speed power take-off (PTO) shaft: 540/1000 rpm;
- Hydraulic system with separate hydraulic pump and oil bath;

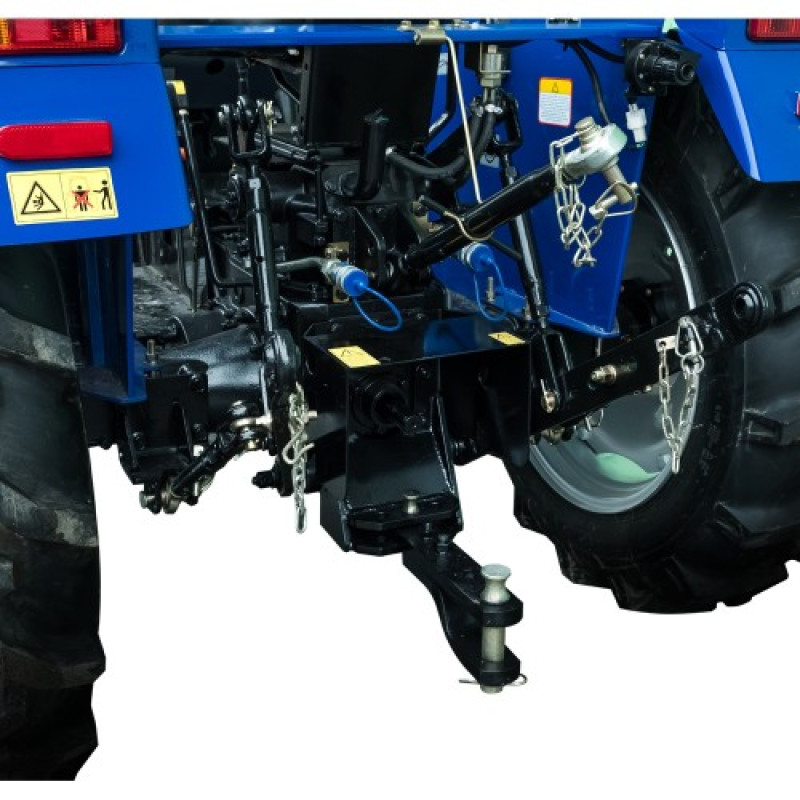

- Towing device – quick-release swinging drawbar;
- Portal-type front drive axle with high side reduction gears;
- High ground clearance and agricultural clearance;

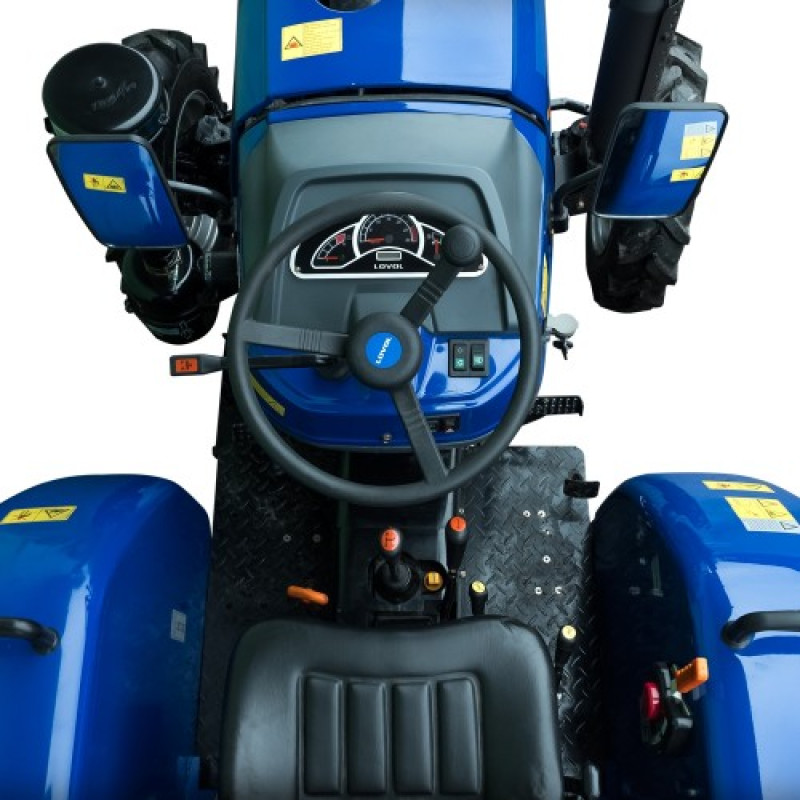

- Spacious operator's area;
- Convenient arrangement of control systems;
- Reversible gearbox (4x2)+(4x2);
- Large wheels, front 6.50-16, rear 11.2-24;
- Drum-type rear brakes;
- Separate rear-wheel brakes;
- Adjustable front and rear tracks;
- Rear axle differential lock.
Foton/Lovol FT244HRXN Mini Tractor Configuration:

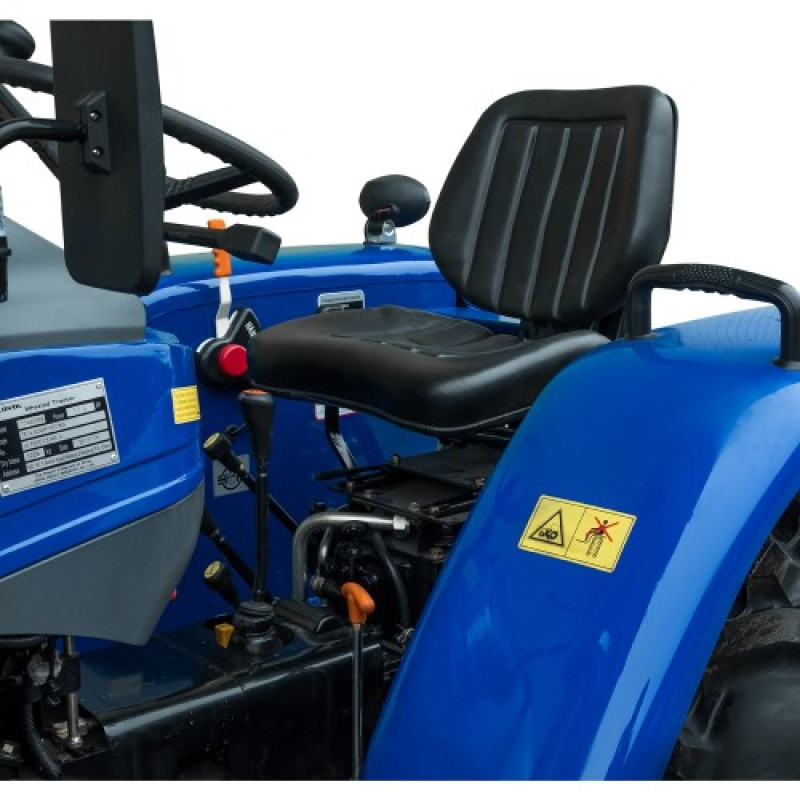

- Comfortable adjustable seat with shock absorber;

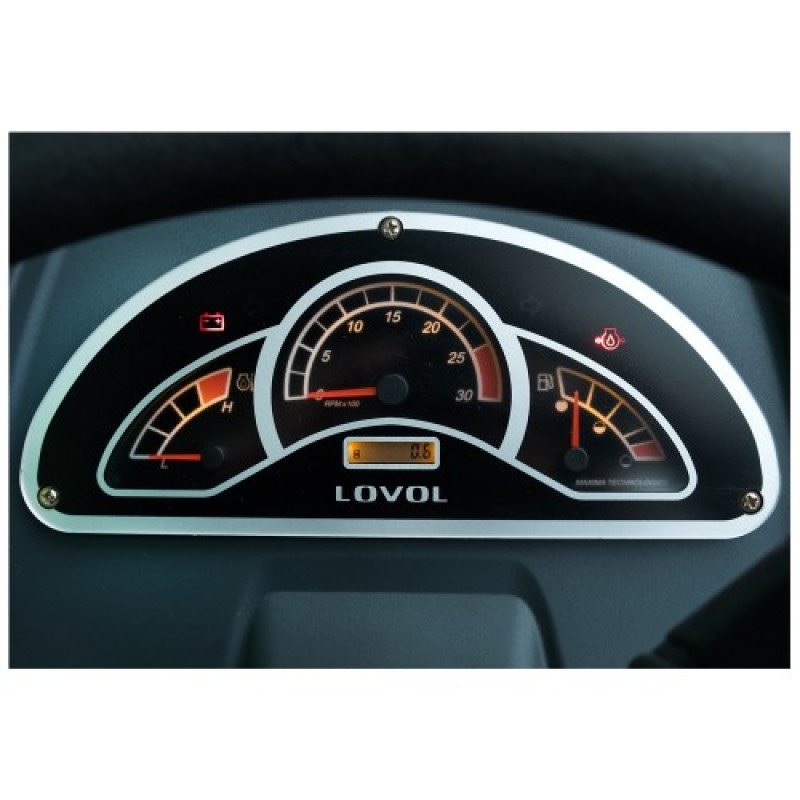

- Combined instrument panel: digital hour meter, analog tachometer, analog fuel level gauge, analog engine temperature indicator, low battery charge indicator, etc.;
- Additional footrest with high ribbing;
- Electrical socket for trailer;

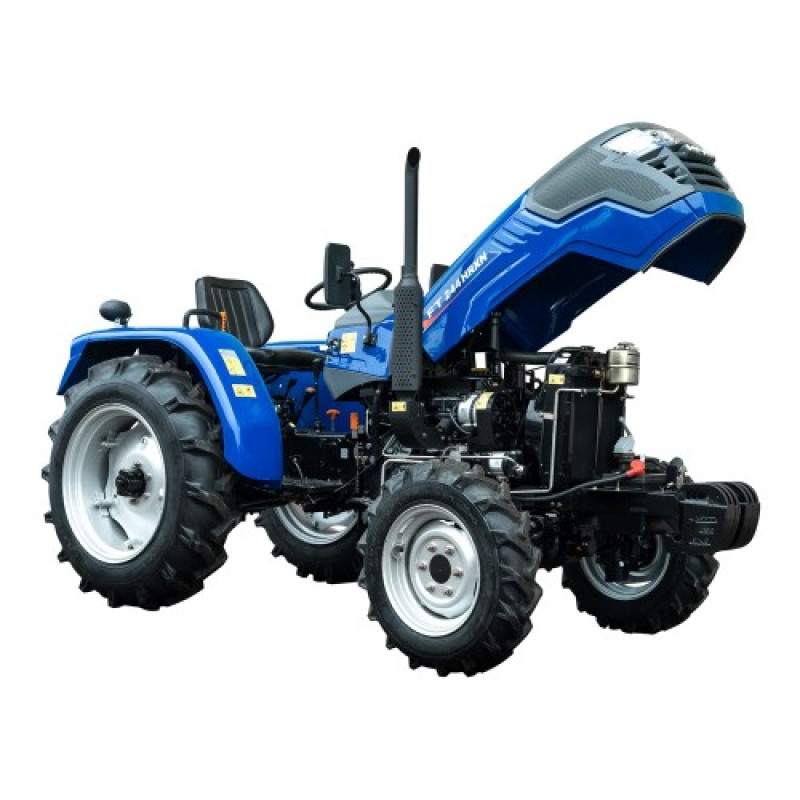

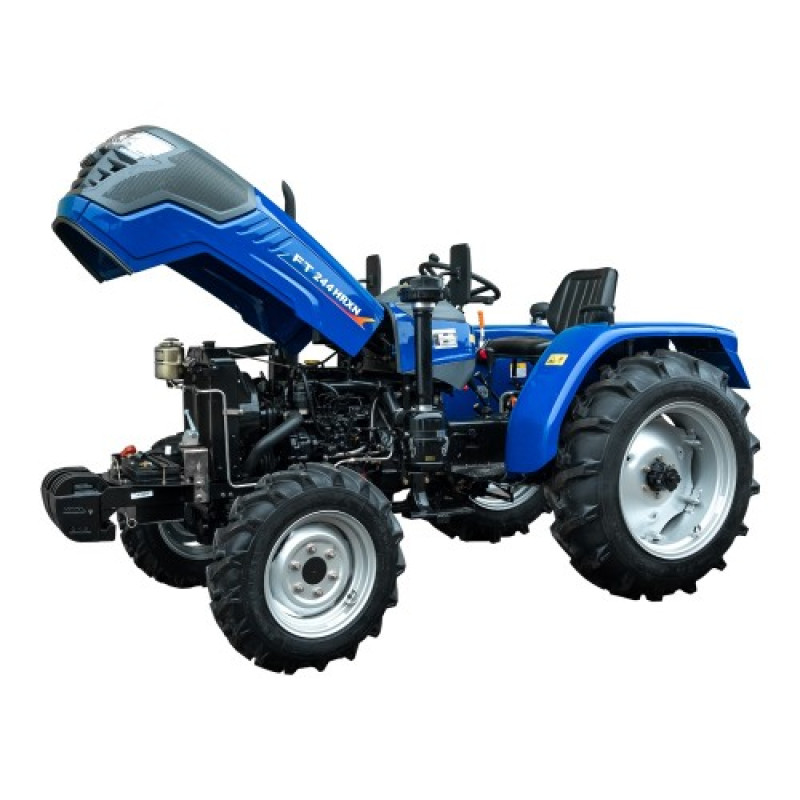

- Hood shock absorber;
- Large rearview mirrors;
- 2 hydraulic outlets with quick-release couplings;
- Front mounted weights;
- Front wheel fenders;
- Battery disconnect switch;

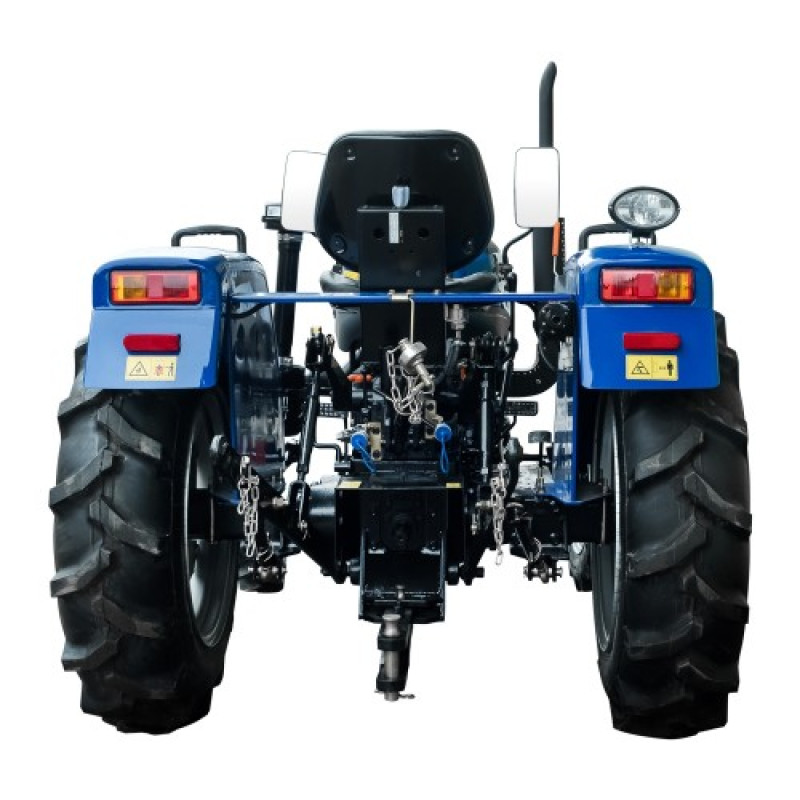

- Rear auxiliary light.
You can purchase the FT 244HRXN tractor throughout Ukraine from our official representatives or order it using the special feedback form in the "Contacts" section. All Foton/Lovol tractors come with a 2-year warranty.
Specifications
Additional Cockpit Equipment
–
Additional Equipment
–
Additional Footrests
on the left side
Additional front/rear payload, (unit × kg)
6x9 / –
Additional Step-Down Gearboxes
2 bands
Agrotechnical clearance, mm
360
Air Filter
contact-oil: high air intake with cyclone, oil bath, metal mesh
Battery disconnect switch
on the front axle frame on the left
Battery voltage and capacity, V/Ah
12 / 95
Brakes
on rear wheels, drum, with mechanical drive, dual pedals
Clearance, mm
290
Clutch coupling
dry, single-plate, normally closed type
Cockpit
–
Cooling System
liquid, closed, with forced circulation of coolant
Crankcase oil capacity, L
5.0
Crankcase oil type
engine oils for diesel engines M-10G2K, SAE 5W-30, 10W-30, 10W-40
Dashboard
electronic, combined
Decompression Needle
–
Design of side guy lines and braces
lower links are not adjustable, central upper link, vertical posts and side stays – smoothly via thread
Driver's Cab
–
Driver's Seat
on a shock absorber, adjustable for distance to handlebars, without armrests
Engine displacement, cm³
1532
Engine model
KM385BT
Engine type
diesel, 4-stroke, with direct injection
Expansion Tank for Cooling System
–
Front Axle
leading, turns off
Front Harness System
–
Front tire size
6.50-16
Front track, mm
1280, 1380
Fuel filter, fine filtration
–
Fuel injection pressure, MPa (kgf/cm²)
18.5-19.0 (185-190)
Fuel pre-filter
CX0706A, with drain plug
Fuel tank capacity, L
29.0
Gear Shifting Formula
(4x2)+(4x2)
Generator – type, voltage (V), power (W)
AC, 14, 750
Hydraulic fluid type
MG-46V, MGE-46V in summer, M-15V(S) in winter
Hydraulic lift actuator
integrated hydraulic cylinder, separate gear hydraulic pump
Hydraulic Lift Control
Three-position hydraulic control valve
Hydraulic lift oil placement
separately in the cavity of the hydraulic lift mechanism
Hydraulic outputs for connecting attachments
2 (1 pressure/return, 1 return) with quick-release couplings, controlled by the main hydraulic distributor
Hydraulic system oil tank volume, L
9.5
Intake manifold air heater
Electric flare candle
Kit Contents
front fenders, hood with hydraulic lift
Launch System
electric starter
Lighting Equipment
main headlights, tail light, rear lights, front and rear turn signals
Lubrication System
combined, pump and spray
Main Gearbox
4 speeds
Maximum payload capacity of the attachment mechanism, kg
420
Minimum turning radius with brakes, m
3.0
Minimum turning radius without brakes, m
3.75
Nominal engine crankshaft speed, rpm
2350
Nominal engine oil consumption, g/kWh
≤248
Nominal pulling force, kN
5.8
Number and arrangement of cylinders
3, vertical
Oil filter for lubrication system
+
Operating weight, kg
1390
Other Electronic Equipment
audible alarm, emergency alarm
Other Equipment
–
Overall dimensions (L x W x H), mm
3240x1350x1850
Parking Brake
lever-actuated main brake lock
Power steering oil tank volume, L
–
Power Take-Off (PTO)
rear, longitudinal, 6 splines, Ø35
Power take-off (PTO) shaft speed, rpm
540 / 1000
Quick Control Handle
–
Rated engine power, hp (kW)
24 (17.6)

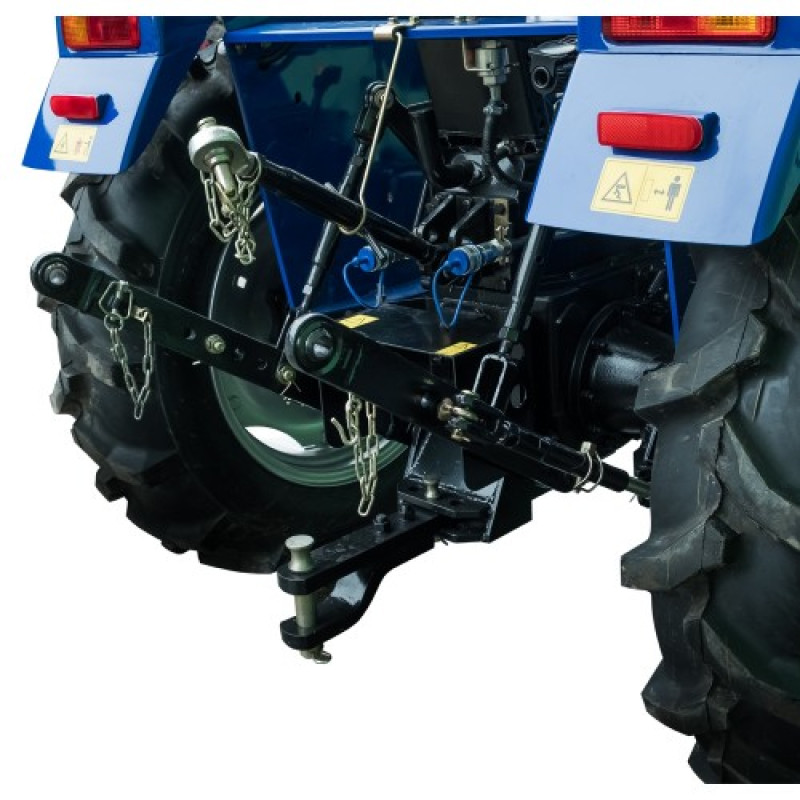

Rear attachment system
universal 3-point with hydraulic lift
Rear axle differential lock
lever
Rear Tire Size
11.2-24
Rear track, mm
1080, 1160, 1260
Safe Launch
–
Separate Reversible Box
+
Simultaneous PTO and towing capability
+
Steering
hydro-volume
Steering Hydraulic Cylinder
two-way symmetrical
Theoretical forward speed, km/h
1.92-29.83
Theoretical reverse speed, km/h
0.54-11.91
Towing Device
removable pendulum ear with vertical non-rotating trunnion
Trailer Connector Socket
+
Transmission type
mechanical gear
Transmission/FWD axle oil capacity, L
15.0 / 3.5
Turbocharger
–
Type of grease in NVG
MG-46V, MGE-46V in summer, M-V(S) in winter
Type of lubricant in the transmission and front axle crankcase
transmission TAP-15, TAD-17, Silver SAE 85W-90; Gold SAE 80W-90; Platinum SAE 75W-90
Wheel formula
4x4
Wheelbase, mm
1670
