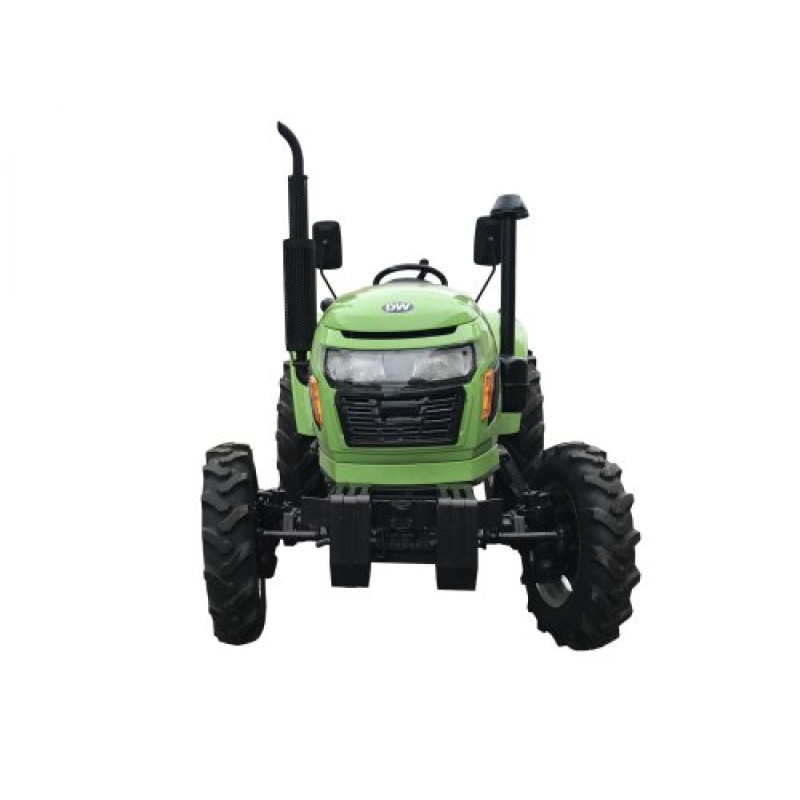

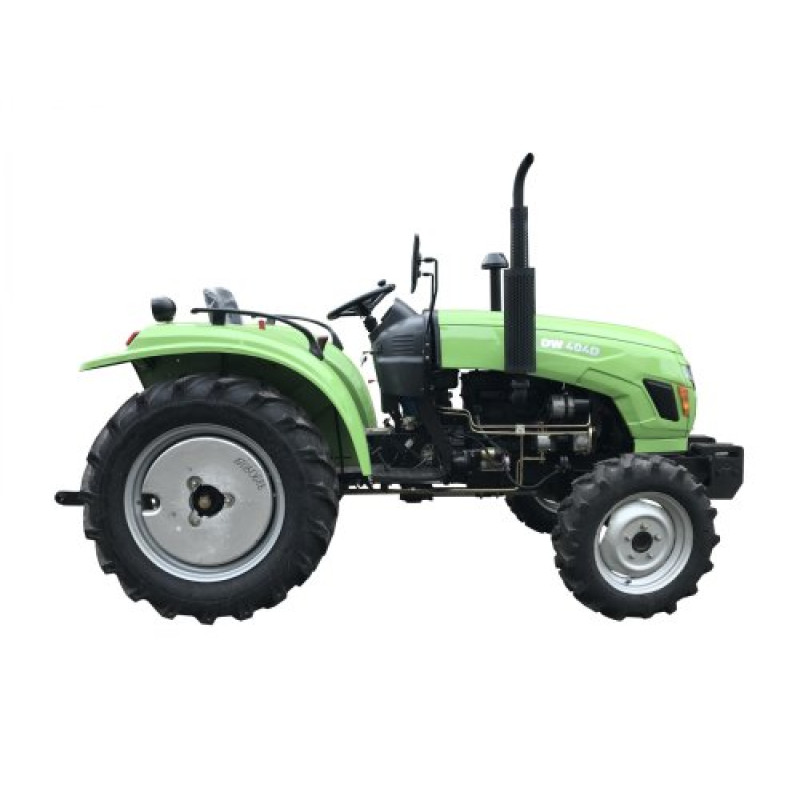

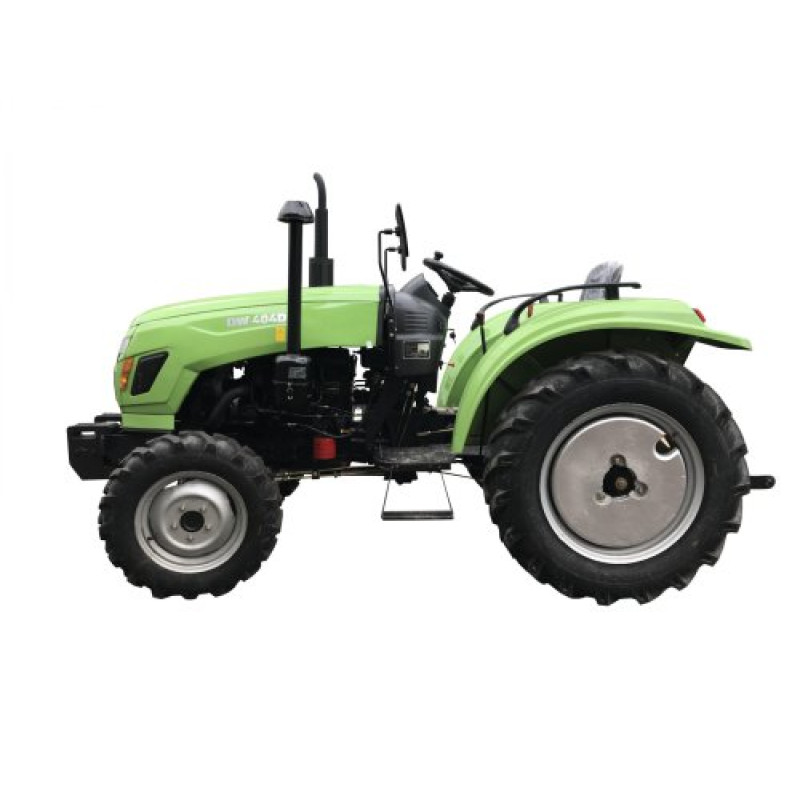

DW 404 D Tractor - Overview and Specifications

The DW 404 D Tractor from the DW brand is a compact and functional mini-tractor with a power output of 40 hp (29.3 kW), designed for a wide range of agricultural and utility tasks. This model combines a reliable diesel engine, well-thought-out ergonomics, and versatile attachment points for mounted and trailed equipment, making it an optimal solution for farms, private plots, and the municipal sector.

Engine and Technical Part: The vertical, 4-cylinder, 4-stroke diesel engine with forced liquid cooling and direct injection has a displacement of 2543 cm3 and a nominal crankshaft speed of 2350 rpm. The cylinder bore/piston stroke is 90x1000. The engine is started by an electric starter, and the average fuel consumption is 238 g/kW·h. Recommended oil types: for the engine – mineral or semi-synthetic for diesel engines; for the transmission and rear axle – transmission oil.

The model is equipped with a dual-disc clutch, a plunger fuel pump, and a closed planetary differential. The 4x4 wheel formula ensures enhanced off-road capability. The nominal traction force is 3.8 kN. Rear PTO – 540 rpm.

Comfort and Operability

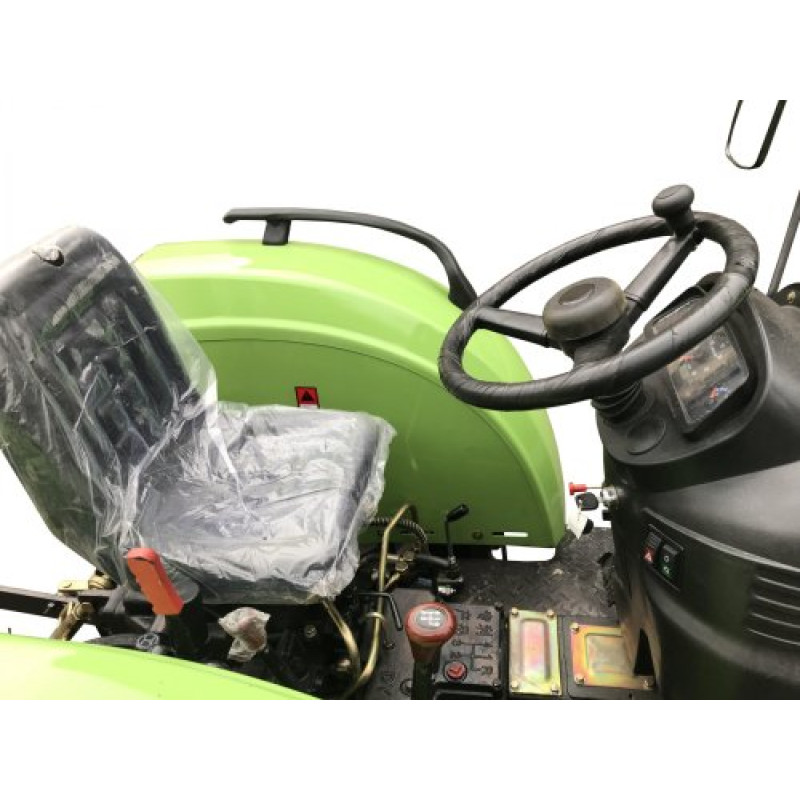

The DW 404 D features a modern streamlined metal hood and a well-designed cabin with a comfortable, adjustable operator's seat. Hydraulic power steering makes control light and precise, and two remote hydraulic channels allow for connecting additional working units. Bright front and rear headlights are provided for working in conditions of limited visibility. A separately installed hitch assembly is specifically designed for attaching trailers and performing cargo operations.

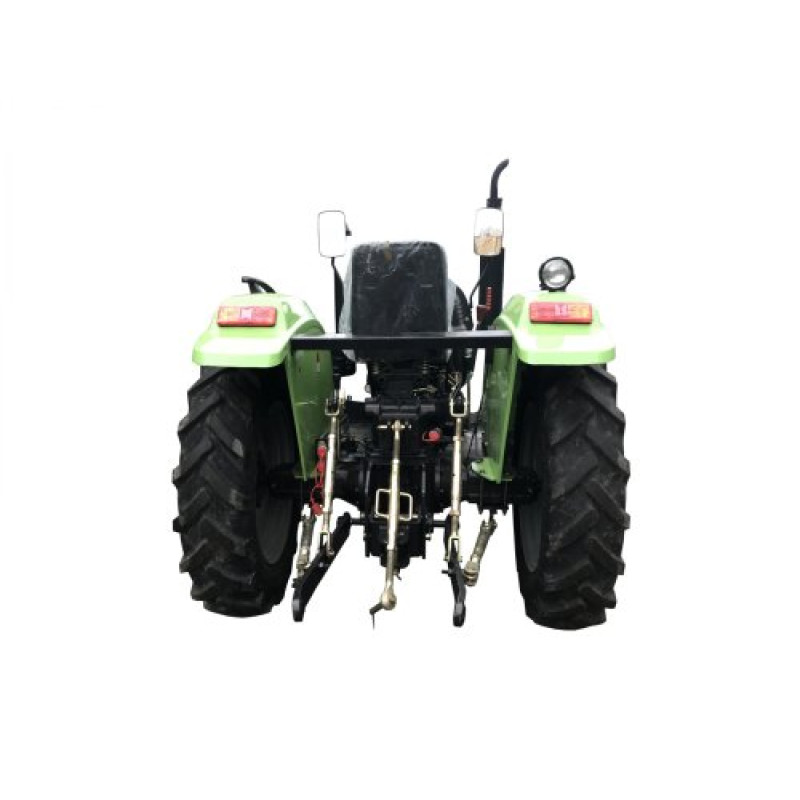

Attachments and Safety: The hitch system is three-point, allowing for the use of a wide range of mounted and trailed equipment; drum brakes can operate both independently and simultaneously, increasing maneuvering safety.

The tractor is easy to operate and accessible even to operators with basic experience; with proper technical maintenance, the unit is characterized by durability and reliability.

Scope of Application:

• field and garden cultivation;
• haymaking and harvesting;
• water pumping;
• snow removal;
• sowing and other agricultural operations.

Additional Features: two remote hydraulic channels, bright rear and front headlights, a separate hitch assembly for attaching a trailer, a comfortable adjustable operator's seat.

The description text specifies two sets of dimensions: dimensions according to the description – 3460x1500x1620 mm; dimensions in the technical table – 3340x1570x2000 mm. Tractor weight – 1370 kg.

We also recommend viewing other models: Jinma 404, Shifeng 354, Dongfeng, Xingtai, Foton, Zoomlion, DTZ 5244NRX, Bulat 454, Bulat 250, Bulat 254, Belarus 320.4, Minitraktor Shifeng, DW 244, DTZ 5404K, Solis 26 tractor.

Technical Specifications:

Other key data from the description: two remote hydraulic channels, bright rear and front headlights, a separate hitch assembly for attaching a trailer, a comfortable adjustable operator's seat.
