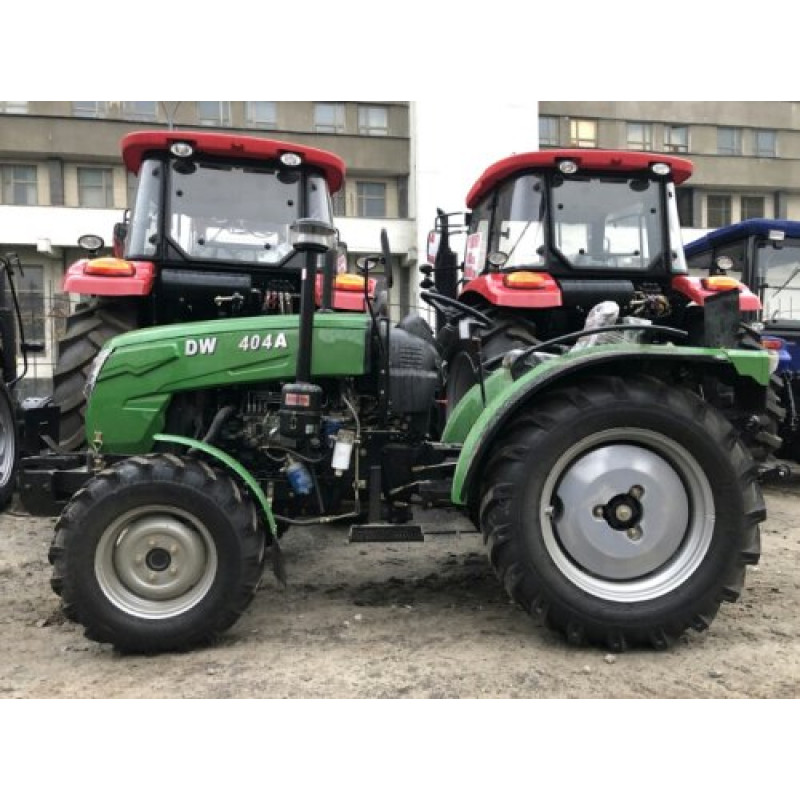

DW 404 A Tractor — a Versatile Mini Tractor from DW

The DW 404 A tractor, manufactured by DW, is a reliable 40 hp (29.42 kW) mini tractor designed for a wide range of agricultural, municipal, and private tasks. This model is ideal for soil cultivation, transportation, and working with mounted and trailed equipment, with a maximum mounted mechanism lifting capacity of up to 550 kg. Thanks to its 4x4 all-wheel drive and rear differential lock, the DW 404 A confidently handles clay and loamy soils, marshy areas, and challenging terrains.

The mini tractor's design emphasizes maneuverability and off-road capability: adjustable wheel track, large rear tires 11.20-24 and front tires 7.50-16, 300 mm ground clearance, and a turning radius of 3.2 m. The wheelbase is 1800 mm, and the overall dimensions according to technical data are 3460/1550/2000 mm (sometimes 3350x1500x1950 mm are mentioned in descriptions — please note when choosing a storage or transport location). The tractor's weight is 1524 kg.

Engine, Consumption, and Operating Parameters

The tractor is equipped with a 4-cylinder, 4-stroke, water-cooled diesel engine with a displacement of 2545 cc and a rotational speed of 2350 rpm. The engine is started by an electric starter; bimetallic glow plugs are used for preheating. The fuel supply system is direct injection, and the oil pump is an in-line plunger type. Technical consumption: fuel consumption 0.258 g/kWh, oil consumption 2.04 g/kWh; fuel tank volume 21 L, crankcase oil volume 3.5 L, cooling system volume 5 L. Bore and stroke are 85/95 mm. PTO speed is 540/720 rpm, maximum speed in the range of 2.12–31.39 km/h.

Gearbox, Steering, and Brakes

The gearbox provides 8 forward and 8 reverse speeds, clutch type is dry, single-disc. The steering system is equipped with power steering (power steering comes separately with a pump), which facilitates maneuvering and operation under heavy loads. The braking system consists of drum brakes; brake pedals can be used separately or simultaneously for precise motion control.

Comfort and Equipment

The driver's workstation is designed for long-term operation: spring-mounted seat with height adjustment, heated cabin, high-illumination lens headlights, and a muffler covered by a full-length casing for safety and noise reduction. The model combines comfort and functionality, as confirmed by positive feedback from farmers.

Model Advantages

• 40 hp (29.42 kW) water-cooled engine with electric starter.
• Versatile operation with mounted and trailed equipment; maximum mounted mechanism lifting capacity — 550 kg.
• 4x4 all-wheel drive system with differential lock for challenging soils.
• Adjustable track, large rear tires 11.20-24 and front tires 7.50-16 for enhanced off-road capability.
• Comfortable working position: adjustable seat, heated cabin, lens headlights.
• Reasonable price in Ukraine with good configuration and positive reviews.

Recommended analogs: Jinma 404, Shifeng 354, Dongfeng, Xingtai, Foton, Zoomlion, DTZ 5244, Bulat 454, Bulat 250, Bulat 254, Belarus 320.4, Shifeng 350 L, DW 244, DTZ 5404K, Solis 26, Solis 50, Shifeng SF-244.

To buy the DW 404 A tractor at a low price, call us anytime. After processing your application, you will receive the equipment from Kyiv, Kharkiv, Vinnytsia, Chernihiv, or Poltava as soon as possible; full payment or credit arrangement is possible.

Technical specifications:
