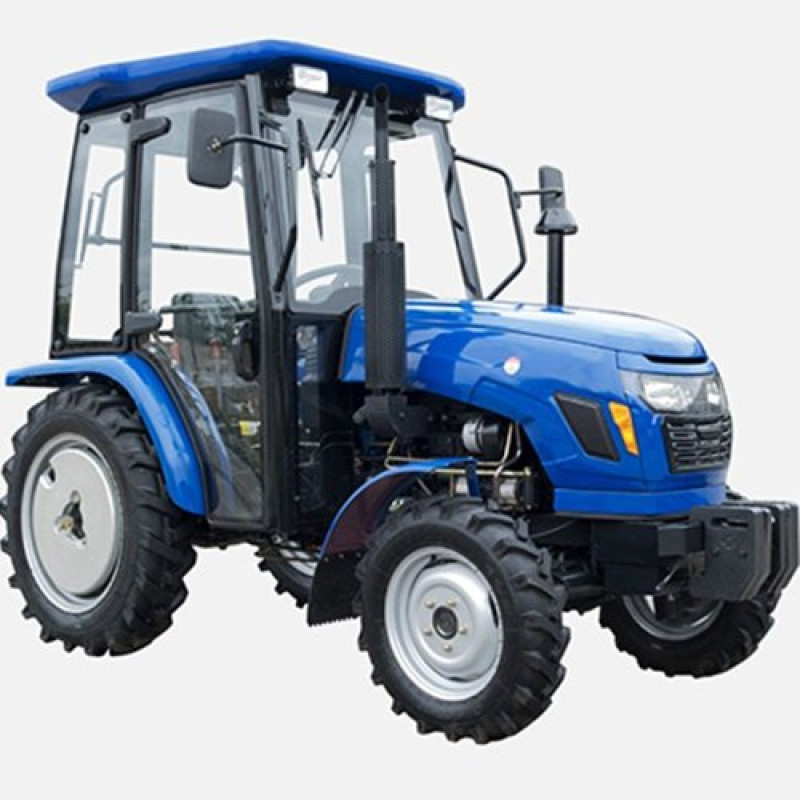

Mini Tractor DW 244 DC — Reliable Compact Tractor with Cabin
The DW 244 DC mini tractor from manufacturer DW is a versatile and durable machine for private farms, utility work, and small agricultural plots. This model is equipped with a cabin and a powerful KM385ВТ diesel engine, designed for intensive daily use and suitable for plowing, cultivation, area maintenance, cargo transportation, and working with a wide range of attachments.
Engine and Basic Unit Description
The DW 244 DC features a 24-hp KM385ВТ diesel engine — a 3-cylinder, vertically arranged, 4-stroke engine with direct injection and no turbocharging. The engine's displacement is 1531.33 cc, with a bore/stroke of 85/95 mm. The engine is equipped with a water cooling system and an electric starter for convenient ignition. Nominal crankshaft speed is 2350 rpm, fuel consumption ≤ 275 g/kWh, nominal oil consumption is 2.31 g/kWh.
Advantages and Design Features
- Power steering ensures easy and precise maneuvering even in areas with plantings or near fences.
- Drum brakes guarantee reliable braking and safe operation.
- The model does not have differential lock, but the steering and chassis are designed so that handling remains at a high level.
- Maximum forward speed up to 32.19 km/h, allowing for quick movement across the plot and between fields.
Technical Specifications
| Engine Model: | KM385ВТ |
| Engine Power: | 17.6 kW/24 hp |
| Engine Displacement: | 1531.33 cc |
| Starting System: | Electric Starter |
| Cooling System: | Water |
| Cylinder Bore / Piston Stroke: | 85 / 95 mm |
| Fuel Consumption: | ≤ 275 g/kWh |
| Engine Type: | 4-stroke, direct injection without turbocharging |
| Fuel: | Diesel |
| Number of Cylinders: | 3, vertical |
| Cooling System Fan Drive: | V-belt drive |
| Nominal Traction Force: | 5.8 kN |
| Nominal Engine Crankshaft Speed: | 2350 rpm |
| Nominal Engine Oil Consumption: | 2.31 g/kWh |
| Transmission: | (3 + 1) x 2 |
| Transmission and Rear Axle Oil Type: | Silver SAE 85W-90; Gold SAE 80W-90; Platinum SAE 75W-90 |
| Differential Lock: | None |
| Brakes: | Drum type |
| Steering: | Hydraulic |
| Main Drive: | Direct |
| Clutch: | Dry, 1-disc, constantly closed type |
| PTO: | Rear, splined |
| PTO Speed: | 540 rpm |
| Hydraulic System Pump Type: | Gear pump |
| Fuel Tank Capacity: | 17 L |
| Engine Crankcase Capacity: | 6.6 L |
| Transmission and Rear Axle Crankcase Capacity: | 11 L |
| Front Axle Crankcase Capacity: | 4 L |
| Engine Cooling System Capacity: | 6 L |
| Number of Hydraulic Outputs: | 1 |
| Trailer Connector (Socket): | Yes |
| Power Steering: | Yes |
| Wheelbase: | 1600 mm |
| Front/Rear Wheel Track: | 980 mm |
| Front Tire Size: | 6.00-16 |
| Rear Tire Size: | 9.50-24 |
| Minimum Turning Radius without Brakes: | 3 m |
| Minimum Turning Radius with Brakes: | 2.3 m |
| Forward Speed: | 2.11-32.19 km/h |
| Reverse Speed: | 1.68-7.75 km/h |
| Maximum Lifting Capacity of Mounted Mechanism: | 420 kg |
| Overall Dimensions: | 2970x1240x2300 mm |
| Weight: | 1540 kg |
This technical specification makes the DW 244 DC an excellent choice for those who need easy-to-maintain and durable equipment: the engine has proven to be reliable and economical in use, and the design of the transmission and braking system is geared towards long-term operation. The compact dimensions of the tractor allow it to perform work near buildings, fences, and on plots with complex terrain, without sacrificing productivity.
The "Flash Army" online store offers delivery of the DW 244 DC throughout Ukraine (Kyiv, Vinnytsia, Poltava, Chernihiv, Kharkiv, and other cities). We provide phone consultations, post-purchase support, and the option to apply for credit on favorable terms. Contact us for detailed consultation and purchase arrangements.
