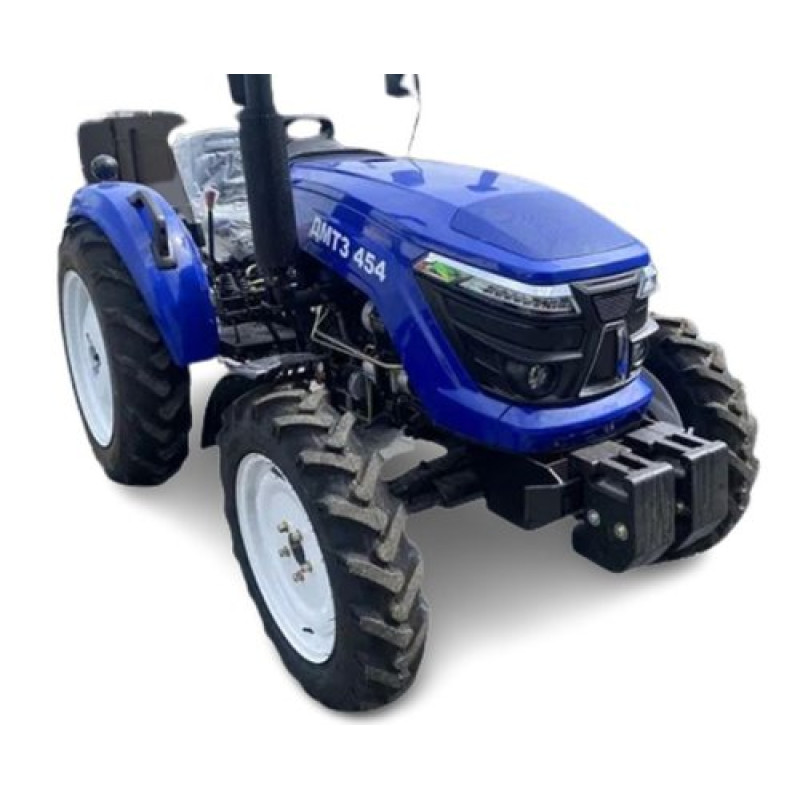

Mini Tractor DMTZ 454 — Power and Reliability for Your Farm
Model: The DMTZ 454 mini tractor from manufacturer DMTZ is a versatile machine in the category Tractors, Motorcycles, ATVs, Boats (Vehicle) > Tractors > Mini Tractors, designed for work in the field, on the farm, and in municipal services. With a structural weight of 2000 kg and dimensions of 3350x1500x2300 mm, the tractor combines stability, maneuverability, and comfort during prolonged use.
Power and Performance: The tractor's stated power of 45 hp (33 kW) allows for efficient use of a wide range of mounted and trailed equipment. The nominal traction force is 7.5 kN, ensuring confident operation with tillage and transport tasks.
Engine and Transmission: The mini tractor is equipped with a 4-cylinder vertical engine, model JF45T, with forced liquid cooling and direct injection. The engine is started by an electric starter with safe start. The fuel system features an in-line plunger pump. The gearbox has a (4+1)x2 scheme, providing a sufficient number of gears for various operating modes, and the clutch is a dry, dual-disc unit.
Comfort and Control: The 4x4 wheel formula and power steering significantly ease maneuvering, especially in difficult conditions and confined spaces. A minimum ground clearance of 350 mm allows work on uneven terrain, and a minimum turning radius with one-sided braking of 3.9 m contributes to efficient operation in enclosed areas.
Cooling System and Drives: The cooling system fan drive is a V-belt transmission, ensuring reliable operation of the cooling system. The drum-type braking mechanism provides reliable braking. The power take-off (PTO) shaft operates at 540/1000 rpm, allowing connection of various mounted implements. The hydraulic system pump type is a gear pump, guaranteeing stable hydraulic operation.
Wheels, Storage, and Operating Parameters: Rear tire size 7.5x20 and front tire size 11.2x28 provide an optimal combination of stability and проходимость. The wheelbase is 1550 mm. The fuel tank capacity is 30 L, allowing for long autonomous operation in the field without frequent refueling.
Versatility of Application: The DMTZ 454 mini tractor is designed for intensive use and is compatible with a large number of mounted and trailed equipment, making it a universal solution for agriculture, farms, and municipal services. It is a reliable choice for those who need a machine with good traction, all-wheel drive, and modern gasoline-diesel injection electronics.
Technical Specifications:
| Tractor Power, hp (kW) | 45 |
| Wheel Formula | 4x4 |
| Engine Model | JF45T |
| Engine Type | Vertical, 4-cylinder with forced liquid cooling and direct injection. |
| Engine Start | Electric starter with safe start |
| Fuel Pump Type | Plunger, in-line |
| Nominal Traction Force, kN | 7.5 |
| Gearbox | (4+1)x2 |
| Rear Differential Lock | Yes |
| Clutch | Dry, dual-disc |
| Power Steering | Yes |
| Cooling System Fan Drive | V-belt transmission |
| Braking Mechanism | Drum type |
| Power Take-Off (PTO) Shaft Speed, rpm | 540/1000 |
| Hydraulic System Pump Type | Gear pump |
| Minimum Ground Clearance, mm | 350 |
| Wheelbase, mm | 1550 |
| Tire Size | Rear 7.5x20, Front 11.2x28 |
| Minimum Turning Radius, m | with one-sided brake 3.9 |
| Fuel Tank Capacity, L | 30 |
| Overall Dimensions, (L × W × H), mm | 3350x1500x2300 |
| Structural Weight, kg | 2000 |
Manufacturer: DMTZ. The DMTZ 454 mini tractor is designed for intensive use and easily integrates with various mounted and trailed implements, making it a practical solution for farm owners and municipal enterprises.
