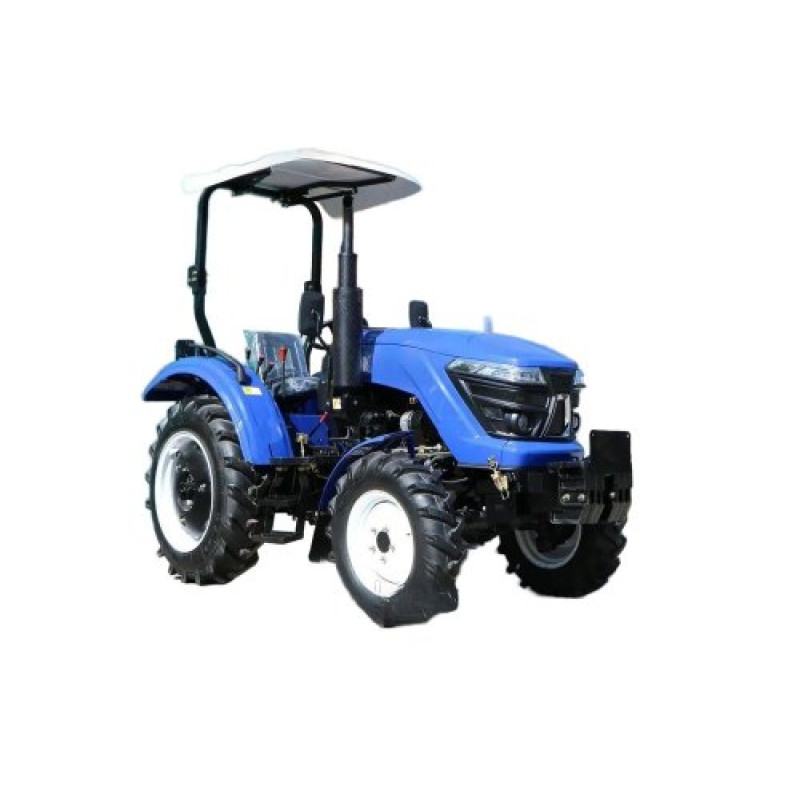

Mini Tractor DMTZ 244X — Compact Power for Your Farm
The DMTZ 244X Mini Tractor from the DMTZ brand is a reliable, versatile unit for agricultural, farming, and municipal work. It combines compact dimensions, high cross-country capability, and sufficient power for soil cultivation, cargo transportation, working with attachments, and performing various farm tasks. Category: Tractors > Mini Tractors.
Engine and Chassis Description
The engine is a three-cylinder diesel, four-stroke, with direct fuel injection, naturally aspirated, and liquid-cooled. This design ensures reliable operation in various climatic conditions and under intense loads. The 24 hp (17.6 kW) power provides efficient use of a wide range of attachments, and the 4x4 drive offers excellent cross-country capability on rough terrain. The mechanical non-synchronized gearbox combined with a single-disc dry clutch simplifies operation and maintenance.
Technical Specifications
| Engine Type | Three-cylinder diesel, four-stroke, with direct fuel injection, naturally aspirated, liquid-cooled |
| Engine Displacement, cm3 | 1532 cm3 |
| Engine Power, hp and kW | 24 hp or 17.6 kW |
| Number of Engine Cylinders | 3 |
| Cylinder Diameter | 85 mm |
| Piston Stroke | 90 mm |
| Engine Structural Weight, kg | 234 kg |
| Wheelbase, mm | 1820 mm |
| Overall Dimensions, mm | 3250x1500x1900 mm |
| Ground Clearance, mm | 400 mm |
| Drive Type | 4x4 |
| Gearbox Type | Mechanical, non-synchronized |
| Number of Gears (forward/reverse) | (4+1)x2 |
| Clutch | Single-disc dry |
| Power Take-Off (PTO) Shaft, rpm | 540/1000 |
| Front Wheel Size | 6.5x16 |
| Rear Wheel Size | 11.2x24 |
| Fuel Tank Capacity, L | 25 |
The engine's structural weight of 234 kg, combined with a robust frame and a 1820 mm wheelbase, ensures stability and comfortable operation even on uneven terrain. Dimensions of 3250x1500x1900 mm make the tractor convenient for storage in farm buildings and maneuvering in narrow passages. A ground clearance of 400 mm allows work in fields with tall vegetation and challenging ground conditions.
The gearbox with a (4+1)x2 gear configuration allows for flexible selection of speed and traction characteristics for specific tasks, and the power take-off shaft with 540/1000 rpm modes guarantees compatibility with a wide range of mounted and trailed equipment. Front wheel size 6.5x16 and rear wheel size 11.2x24 enhance cross-country capability and grip on the ground.
The 25 L fuel tank capacity ensures long autonomous operation without frequent refueling, which is important for remote areas and large volumes of work. The DMTZ 244X is ideal for small and medium-sized farms, forestry tasks, and municipal use, where reliability, maintainability, and economical operation are required.
Manufacturer: DMTZ. Purpose: universal mini tractor for agriculture, transportation, and working with attachments.
