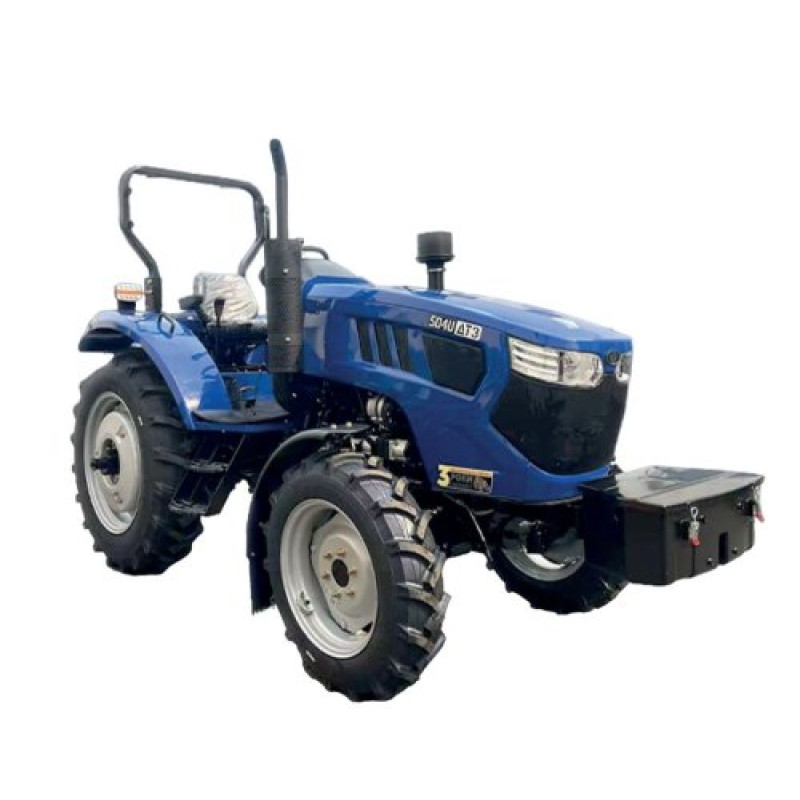

Mini Tractor DTZ 504U — A Reliable Universal Assistant for the Farm

Model: Mini Tractor DTZ 504U. Manufacturer: DTZ. Category: Tractors > Mini Tractors. This mini tractor combines a powerful and economical diesel unit with a well-designed transmission and robust chassis, making it effective for field work, on homestead plots, and in municipal services.

The CF4B50T-Z engine develops 50 hp (36.78 kW), has 4 vertically arranged cylinders, operates on a 4-stroke cycle with direct injection and no turbocharging. The engine starts with an electric starter. The cooling system is liquid, closed with forced circulation of coolant, and the fan is driven by a V-belt. The engine displacement is 2835 cm3, nominal crankshaft speed is 2400 rpm, and nominal fuel consumption does not exceed ≤ 243 g/kWh.

Chassis and transmission: 4x4 all-wheel drive ensures high cross-country capability, nominal traction force is 13.5 kN. The gearbox is designated as (4x2)+(4x2). The clutch is a dry, 2-disc, constantly closed type. The main drive is direct. Reliable disc brakes are installed on the rear wheels, and there is a rear differential lock for working in difficult conditions.

The power take-off (PTO) shaft is rear, splined with two speed modes: 540 / 1000 rpm. The hydraulic system is equipped with a gear pump, has 2 hydraulic outlets, and the maximum lifting capacity of the three-point hitch is 800 kg. The minimum ground clearance of the tractor is 380 mm.

Lubricant recommendations: for the engine, mineral or semi-synthetic oil for diesel engines is recommended; nominal oil consumption is 1.6 g/kWh. For the gearbox, rear, and front axles, transmission oils are recommended: Silver SAE 85W-90, Gold SAE 80W-90, or Platinum SAE 75W-90.

Wheel parameters and dynamics: wheelbase — 2020 mm; front wheel track — 1330, 1410, 1490 mm; rear wheel track — 1200, 1280, 1380, 1660 mm. Front tire size — 8.30-20, rear — 12.4-28. Minimum turning radius without brakes — 4.9 m, with brakes — 4.2 m. Forward speed is 1.8-28.7 km/h, reverse — 0.5-16.3 km/h.

Fluids, volumes, and weights: fuel tank capacity — 46 L; engine crankcase volume — 7 L; front axle crankcase volume — 7.0 L; engine cooling system volume — 14.0 L. Rear weights are supplied as 6x45 kg, front weights — 4x30 kg.

Dimensions and weight: dimensions (L x W x H) — 4080x1610x2100 mm, curb weight of the tractor — 1840 kg.

Key advantages of the model: powerful and economical 50-hp diesel engine, 4x4 all-wheel drive for confident movement on any terrain, double disc brakes on the rear wheels for safe braking, universal PTO with two speed modes, and robust hydraulics with a lifting capacity of 800 kg. The DTZ 504U mini tractor is suitable for plowing, cultivation, transportation, mowing grass, and other agricultural and municipal tasks.

A detailed table of technical specifications is provided below:

The description contains a complete list of technical parameters and operational characteristics of the DTZ 504U model to assist in your purchase decision. If needed, we will provide consultation on configuration, additional equipment, and maintenance to help you choose the optimal option for your tasks.
