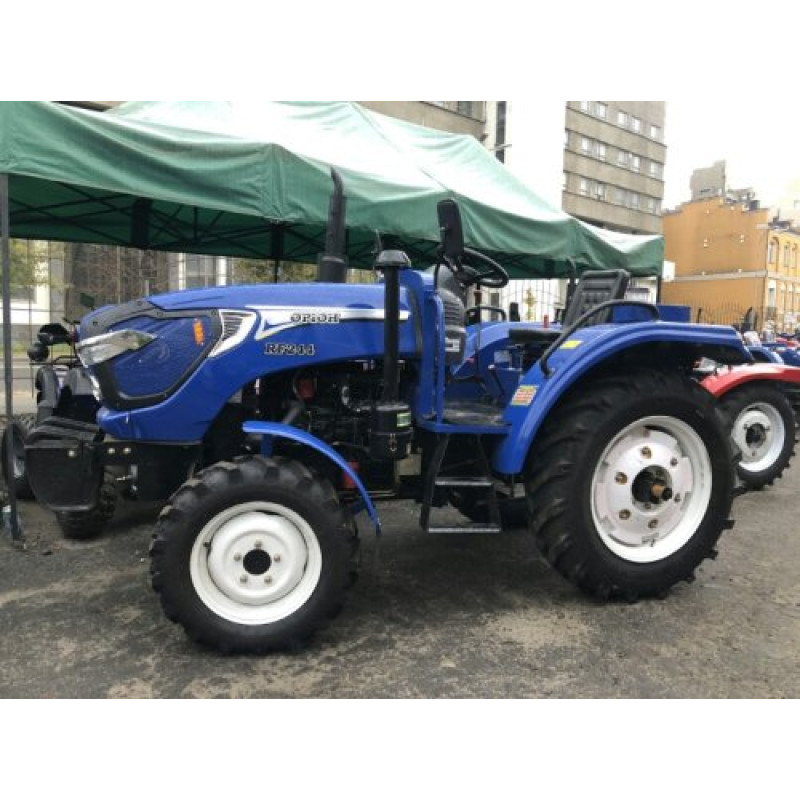

Mini Tractor ORION RF 244 REVERS — Power, Reliability, and Versatility
The ORION RF 244 REVERS mini tractor from the Orion brand is a versatile and economical unit for agricultural, municipal, and transport tasks on small plots. The model combines a reliable three-cylinder diesel engine, a reversible gearbox, and basic equipment for working with various mounted and towed implements. Product category: Tractors > Mini Tractors.
Key Advantages and Applications
The ORION RF-244 REVERS is equipped with a four-stroke diesel engine KM385VT with a power of 24 hp (17.65 kW), an electric starter, and a forced liquid cooling system, ensuring stable operation even under intense loads and high temperatures. This mini tractor is suitable for plowing, soil cultivation, sowing, area cleaning, cargo transportation, and operation with mounted equipment.
The 4x4 all-wheel drive guarantees high cross-country capability on various soil types, and a rear differential lock is included to reduce slippage. Power steering enhances driving comfort, while rear weights and large tires (front 6.50-16, rear 11.2-24) improve stability and traction characteristics.
Transmission, PTO, and Hydraulics Features
The reversible gearbox in a (4+4)x2 configuration provides 8 forward and 8 reverse speeds, allowing for precise selection of working speed for specific operations. The power take-off (PTO) shaft has two speed modes, 540 and 1000 rpm, making the tractor compatible with most mounted and towed implements. The hydraulic system is equipped with a gear pump for implement drive and power steering operation, with 4 hydraulic outlets.
Comfort options include a shock-absorbing seat and an hour meter. Available payment options include purchase on credit or cashless payment with VAT, official manufacturer's warranty, delivery in Kyiv and to regions of Ukraine.
Technical Specifications:
| Engine power, hp (kW) | 24 (17.65) |
| Wheel formula | 4x4 |
| Engine type | diesel, 4-stroke, direct injection, non-turbocharged |
| Number and arrangement of cylinders | 3, vertical |
| Engine start system | electric starter |
| Cooling system | liquid, closed, with forced circulation of coolant |
| Cooling system fan drive | V-belt drive |
| Engine displacement, cm3 | 1532 |
| Cylinder diameter / piston stroke, mm | 85 / 90 |
| Nominal engine fuel consumption, g/kW*h | ≤245 |
| Nominal engine crankshaft speed, rpm | 2350 |
| Nominal traction force, kN | 5.8 |
| Engine oil type | mineral or semi-synthetic for diesel engines |
| Nominal engine oil consumption, g/kW*h | 2.31 |
| Gearbox (КП) | (4+4)x2 |
| Oil type in gearbox and rear axle | Silver SAE 85W-90; Gold SAE 80W-90; Platinum SAE 75W-90 (transmission) |
| Oil type in front axle | Silver SAE 85W-90; Gold SAE 80W-90; Platinum SAE 75W-90 (transmission) |
| Rear differential lock | yes |
| Clutch | dry 2-disc constantly closed type |
| Main drive | direct |
| Steering | hydraulic |
| Brakes | on secondary gearbox shaft, brake drums |
| Power Take-Off (PTO) | rear, splined |
| Hydraulic system pump type | gear pump for implement drive / gear pump for power steering operation |
| PTO speed, rpm | 540 / 1000 |
| Maximum lifting capacity of mounted mechanism, kg | 420 |
| Minimum ground clearance, mm | 300 |
| Wheelbase, mm | 1700 |
| Wheel track, mm | front 1200-1450, rear 1120-1440 |
| Tire size | front 6.50-16, rear 11.2-24 |
| Minimum turning radius, m | without brakes 3.0, with brakes 2.3 |
| Travel speed, km/h | forward 2.11-32.19, reverse 1.68-7.75 |
| Fuel tank volume, L | 17.0 |
| Engine crankcase volume, L | 6.6 |
| Gearbox and rear axle crankcase volume, L | 11.0 |
| Front axle crankcase volume, L | 4.0 |
| Engine cooling system volume, L | 6.0 |
| Number of hydraulic outlets | 4 |
| Trailer connector (socket) | yes |
| Compressor | no |
| Power steering | yes |
| Hour meter | yes |
| Seat with shock absorber | yes |
| Roll bar | no |
| Rear weights | yes |
| Overall dimensions (L x W x H), mm | 3100 x 1500 x 1900 |
| Curb weight, kg | 1430 |
The ORION RF-244 REVERS is a balanced choice for farm owners and municipal services who value ease of maintenance, a wide range of speeds due to the reverse, and basic equipment: power steering, differential lock, two PTO modes, a comfortable shock-absorbing seat, and the ability to attach various mounted implements. Brand: Orion. Category: Tractors > Mini Tractors.
