15KM Fiber Optic Spool from 3dtech

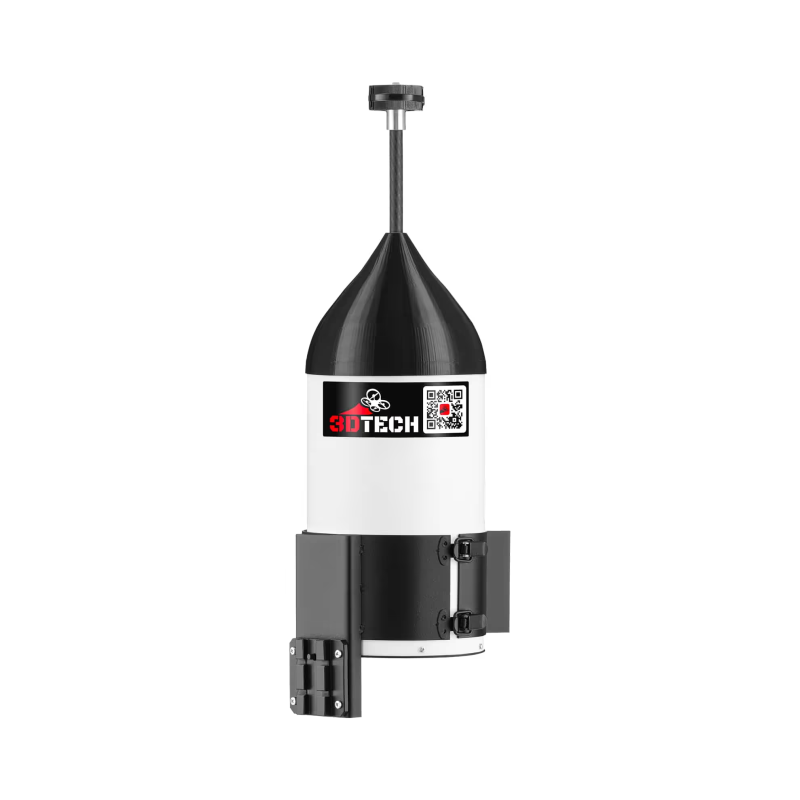

The 15KM Fiber Optic Spool is a professional solution from the manufacturer 3dtech for use in drones, quadcopters, and related data transmission systems. The spool is designed for reliable deployment and storage of a 15km fiber optic cable, combining compact dimensions with high capacity. It is suitable for both field operations and stationary installations where signal transmission accuracy, connection reliability, and ease of installation are critical.

Advantages and Features: A compact housing with a diameter of 125mm and a housing length of 410mm ensures convenient transport and installation on platforms with limited space; the low weight of the spool — only 1486g — minimizes the impact on the drone's payload; an FC/UPC type connector guarantees a stable optical connection with minimal losses; the G657.a2 0.25mm fiber used has increased flexibility and low bend sensitivity, which is critical when working with mobile platforms.

Technical Specifications:

• Cable length: 15km
• Weight: 1486g
• Housing diameter: 125mm
• Housing length: 410mm
• Connector type: FC/UPC
• Fiber type: G657.a2 0.25mm

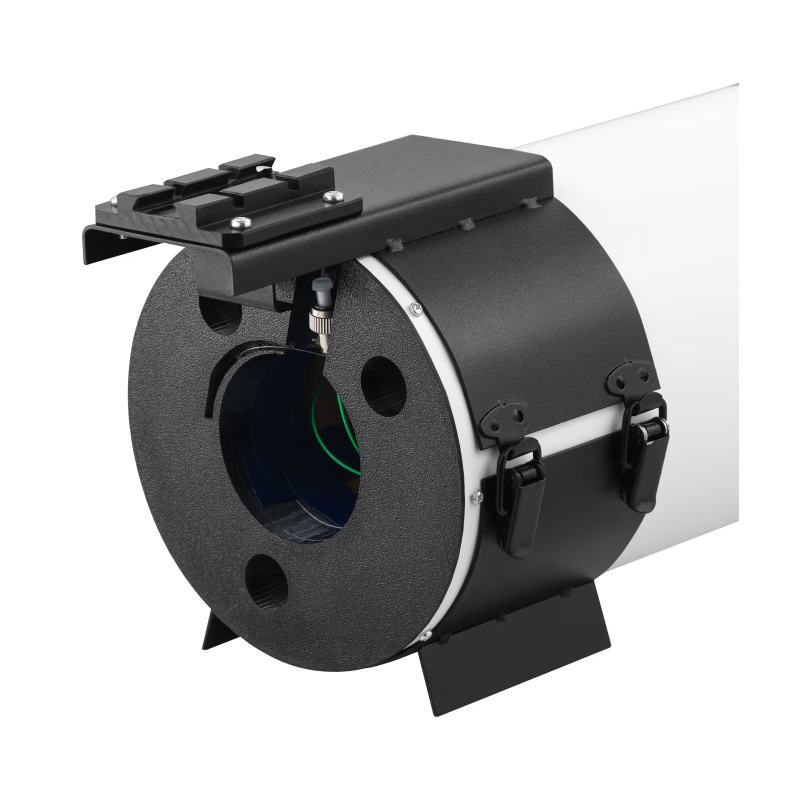

The spool is designed to protect the fiber during unwinding and winding. G657.a2 optical fiber allows for operation with small bend radii without significant optical losses, which is important when securing the cable to the drone chassis or during complex flight trajectories. The FC/UPC connector is compatible with a wide range of optical adapters and devices, simplifying integration into existing data and video transmission systems.

Operating recommendations: avoid sharp twists and strong cable tension, adhere to the recommended minimum bend radius for G657.a2 fiber, check connector cleanliness before connection to reduce optical losses. Thanks to its low weight and optimal dimensions, the spool is easily integrated into power modules, equipment compartments, or external drone mounts.

This fiber optic spool belongs to the category: Drones, EW, Drone Detectors, Components > Drone Components and Spare Parts > Fiber Optic Spools. The manufacturer 3dtech offers a reliable industrial product that combines quality materials and ease of use in field and infrastructure tasks of optical signal transmission. For additional technical questions and configuration options, please contact our managers, who will help you choose the optimal configuration for your projects with long optical communication lines or in drone applications.
