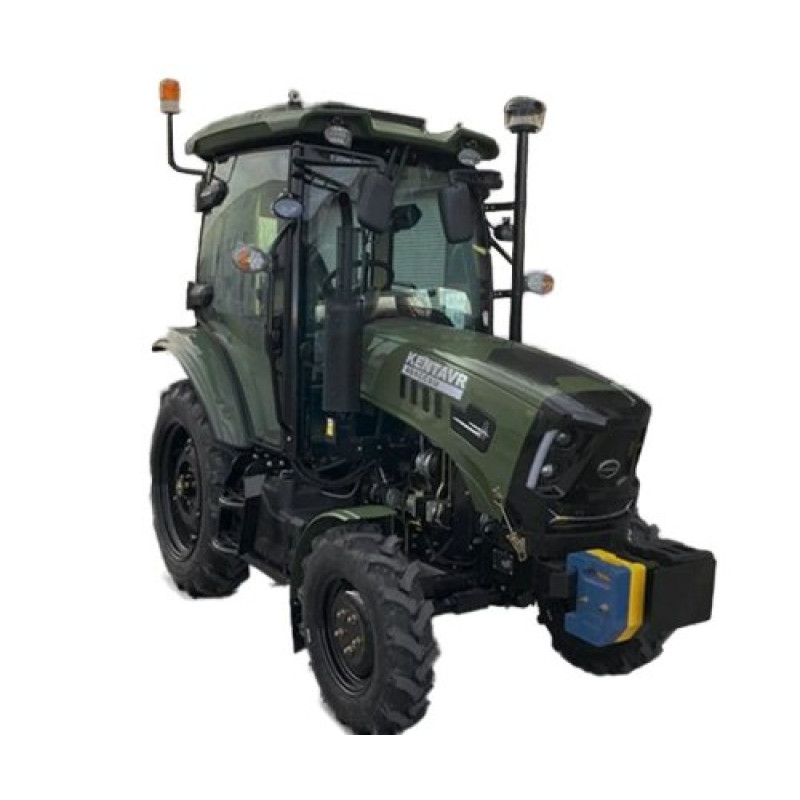

KENTAVR 404CCXU Mini Tractor is a reliable and powerful machine from the KENTAVR brand, designed for heavy agricultural and municipal work. This model is ideal for soil cultivation, cargo transportation, and working with attachments, thanks to its balanced configuration, powerful diesel engine, and versatile transmission.
Model Description and Advantages
The 404CCXU model is equipped with a vertical 4-cylinder, 4-stroke KM490BN diesel engine with forced liquid cooling and direct injection. The engine's displacement is 2543 cm3, and the cylinder bore/piston stroke is 90x100 mm. The nominal crankshaft speed is 2350 rpm, and the nominal fuel consumption does not exceed ≤238 g/kW*h. The fuel pump type is plunger, in-line.
Tractor power: 40 hp (29.3 kW). Wheel formula: 4x4. Gearbox: (4+4)x2, providing a sufficient number of gears for various working conditions. Clutch: dry, dual-disc. Power steering with a separate pump and oil reservoir makes steering light and precise.
Hydraulics, PTO, and Technical Solutions
Hydraulic system pump type: gear pump. Power take-off (PTO) shaft speed: 540/1000 rpm. Maximum lifting capacity of the hitch mechanism: 550 kg. The cooling system fan drive is implemented via a V-belt transmission. The braking mechanism is drum-type.
Mechanical Volumes and Lubricant Consumption
Fuel tank capacity: 30.0 L. Engine crankcase capacity: 6.0 L. Gearbox, rear axle, and lift crankcase capacity: 12.5/4.0 L. Front axle crankcase capacity: 8.0 L. Engine cooling system capacity: 5.0 L. Recommended engine oil type: mineral or semi-synthetic for diesel engines; transmission oil should be used in the front axle.
Dimensions, Wheels, and Chassis
Minimum ground clearance: 300 mm. Wheelbase: 1840 mm. Wheel track: rear 1220 mm; front 1122 mm. Tire size: rear 11.2-28, front 7.50-16. Overall dimensions (LxWxH): 3460x1550x1920 mm. Operating weight: 1530 kg.
Configuration and Operational Features
Power steering, dual-disc clutch, reliable (4+4)x2 transmission, and the ability to work with a large number of attachments make the KENTAVR 404CCXU a versatile solution for farms of various scales. The fan drive is a V-belt transmission; the brakes are drum-type, ensuring reliable braking during intensive operation.
Technical Specifications:
| Tractor power, hp (kW) | 40 (29.3) |
| Wheel formula | 4x4 |
| Engine brand | KM490BN |
| Engine type | vertical, 4-cylinder, 4-stroke diesel with forced liquid cooling and direct injection |
| Engine displacement, cm3 | 2543 |
| Cylinder bore / piston stroke | 90x100 |
| Nominal engine fuel consumption, g/kW*h | ≤238 |
| Fuel pump type | plunger, in-line |
| Nominal engine crankshaft speed, rpm | 2350 |
| Engine oil type | mineral or semi-synthetic for diesel engines |
| Gearbox (КПП) | (4+4)x2 |
| Front axle oil type | transmission oil |
| Clutch | dry, dual-disc |
| Power steering | with separate pump and oil reservoir |
| Cooling system fan drive | V-belt transmission |
| Braking mechanism | drum-type |
| Power take-off (PTO) shaft speed, rpm | 540/1000 |
| Hydraulic system pump type | gear pump |
| Maximum lifting capacity of the hitch mechanism, kg | 550 |
| Minimum ground clearance, mm | 300 |
| Wheelbase, mm | 1840 |
| Wheel track, mm | rear 1220; front 1122 |
| Tire size | rear 11.2-28.0, front 7.50-16.0 |
| Fuel tank capacity, L | 30.0 |
| Engine crankcase capacity, L | 6.0 |
| Gearbox, rear axle, and lift crankcase capacity, L | 12.5/4.0 |
| Front axle crankcase capacity, L | 8.0 |
| Engine cooling system capacity, L | 5.0 |
| Overall dimensions (LxWxH), mm | 3460x1550x1920 |
| Operating weight, kg | 1530 |
The KENTAVR 404CCXU Mini Tractor is the choice for those who value power, precision, and durability in equipment. It is perfectly suited for medium and large farms, municipal services, and private enterprises requiring a versatile and productive solution.
