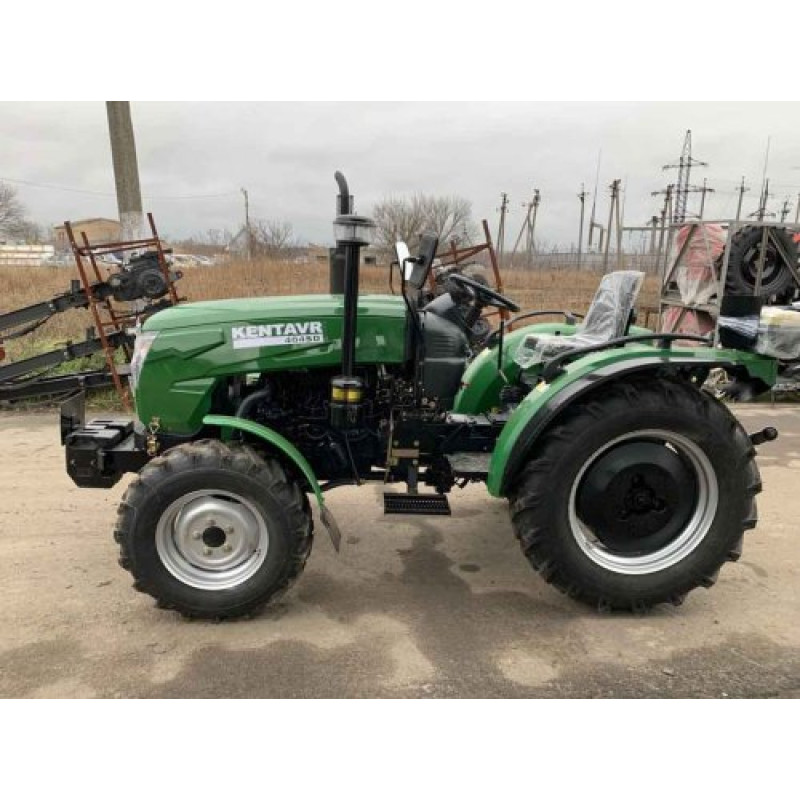

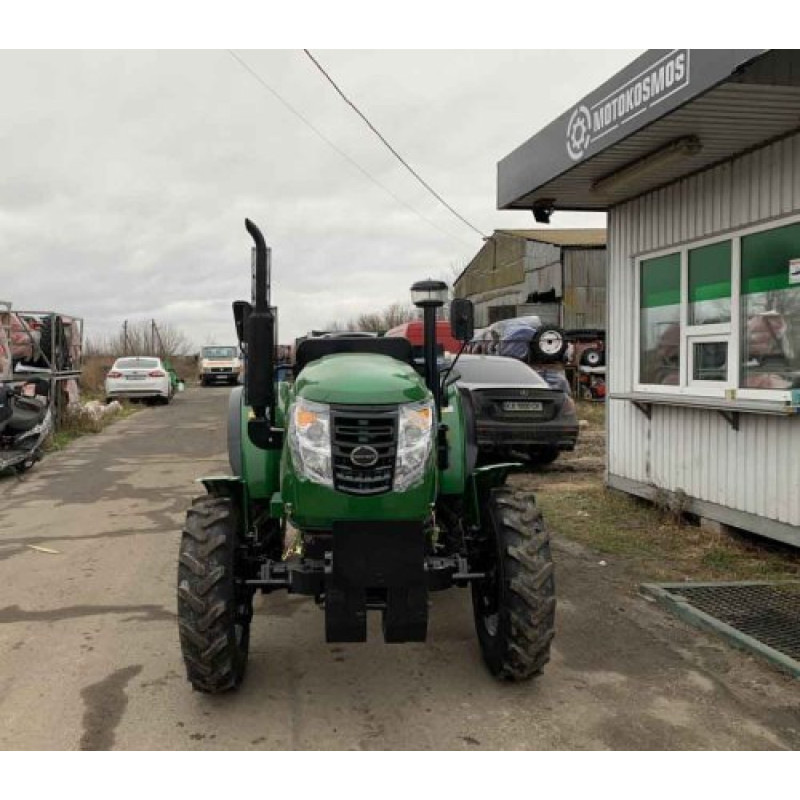

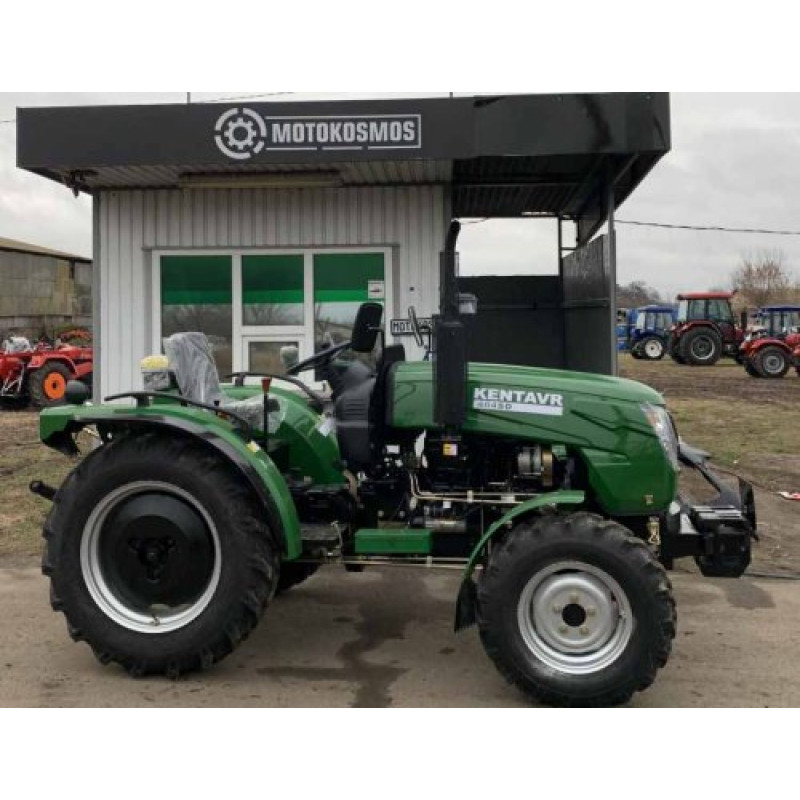

Mini Tractor KENTAVR 404 SD

Model Overview: The KENTAVR 404 SD mini tractor is a powerful 40 hp (29.3 kW) all-wheel-drive (4x4) mini tractor from the KENTAVR brand, designed for versatile tasks: agriculture, farming, municipal work, landscaping, and small construction operations. This 2023 model belongs to the 0.8 traction class and combines an economical four-cylinder diesel engine with a robust chassis and spacious, ergonomic design for the operator.

Model Description and Purpose

The KENTAVR 404 SD is designed as a versatile mini tractor for working with mounted and trailed equipment. Thanks to its 4x4 all-wheel drive and 300 mm ground clearance, the machine is effective in fields, orchards, farm plots, and municipal utilities. Efficiency and reliability are ensured by the high-quality JDM490T3 diesel engine and robust transmission.

Engine and Transmission

The heart of the tractor is a four-cylinder diesel engine with a displacement of 2543 cm3, a cylinder bore/piston stroke of 90x100 mm, liquid cooling, and direct injection. The nominal fuel consumption is ≤238 g/kWh, and the recommended oil is mineral or semi-synthetic for diesel engines. The starter, generator, and battery ensure reliable starting. The gearbox with a (4+1)x2 scheme and dry dual-disc clutch provides a sufficient number of gears for field and transport work.

Hydraulics, PTO, and Lift

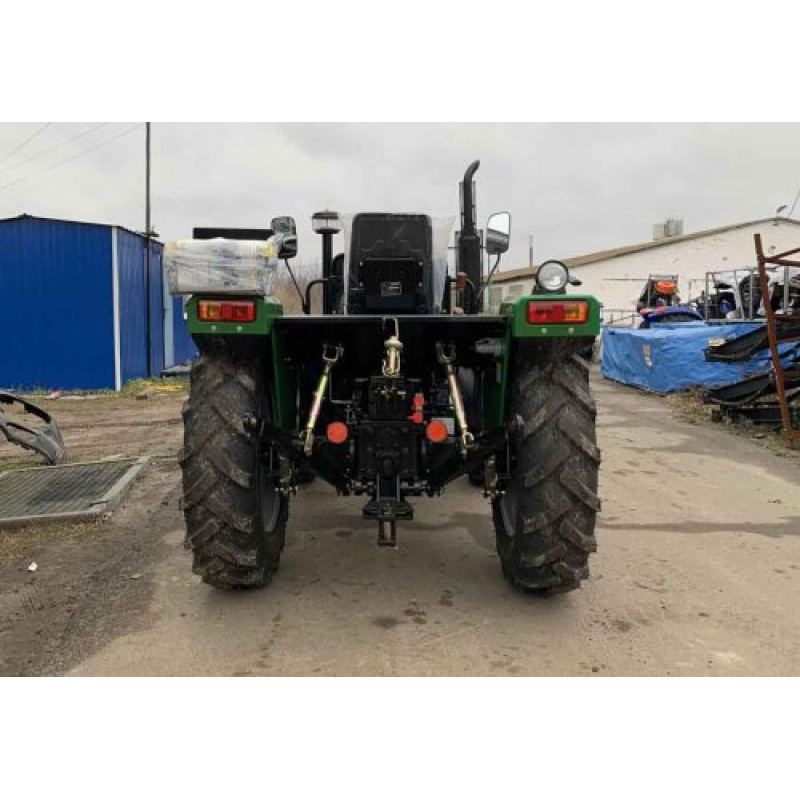

The hydraulic system is based on a gear pump; the power steering has a separate pump and oil reservoir for stable operation. The PTO operates at 540/1000 rpm, allowing various agricultural implements to be connected. The maximum lifting capacity of the hitch mechanism is 550 kg, enabling the effective use of heavier mounted equipment.

Chassis, Wheels, and Maneuverability

Wheelbase 1840 mm, rear track 1220 mm and front track 1122 mm, tire sizes – rear 11.2-24, front 7.50-16. The compact minimum turning radius (with one-sided brake 4.15 m) ensures high maneuverability in narrow rows and yards. Drum brakes and a V-belt fan drive emphasize the simple and reliable chassis design.

Advantages of KENTAVR 404 SD

• 1. Powerful and economical JDM490T3 engine with extended service life and direct injection.
• 2. Reliable (4+1)x2 transmission and dry dual-disc clutch for intensive operation.
• 3. 4x4 all-wheel drive, high ground clearance of 300 mm, and adjustable tracks for working on difficult and uneven terrain.
• 4. Robust hydraulic system with gear pump, 540/1000 rpm PTO, and hitch mechanism lifting capacity up to 550 kg.

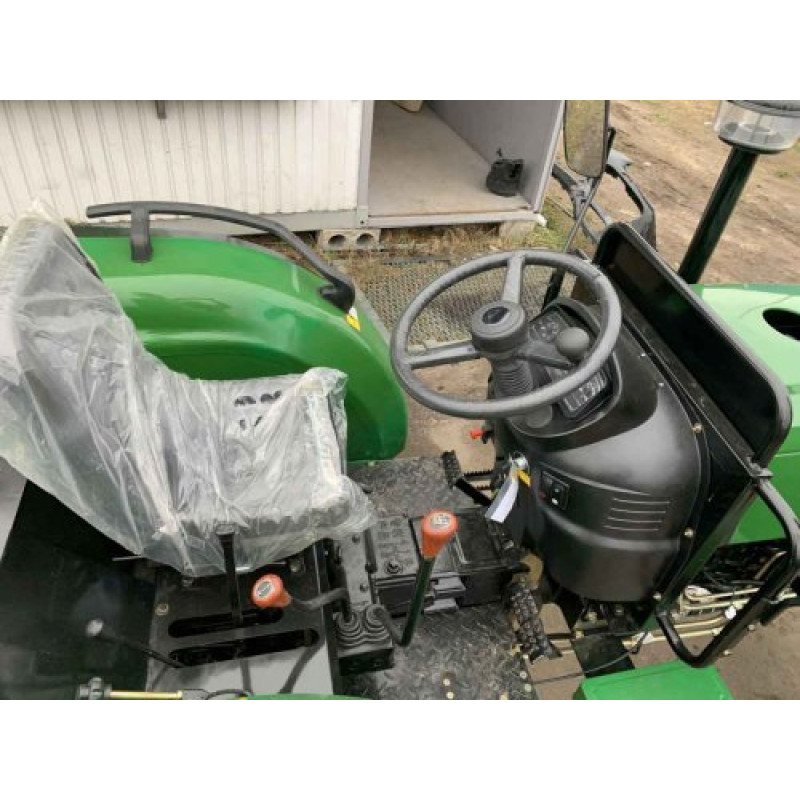

• 5. Operator comfort: cushioned adjustable seat, protection near the driver's seat, footrest, and convenient illuminated dashboard.
• 6. Modern optics: halogen and projector headlights at the front, rear headlight, and marker lights for safety in the dark.
• 7. Complete set: counterweights on the front axle and rear wheels, glove compartment under the hood, toolbox on the fender, wheel fenders, factory tool kit, and technical documentation.

Summary and Purchase Conditions

The KENTAVR 404 SD is an optimal choice for farmers, farm owners, and municipal enterprises who need an economical, maneuverable, and versatile mini tractor. Tractor dimensions 3460x1550x1920 mm, curb weight 1530 kg, fuel tank capacity 30 L, engine crankcase volume 6.0 L, gearbox/rear axle/lift crankcase volume 12.5/4.0 L, front axle crankcase volume 8.0 L, cooling system volume 5.0 L. Flash Army online store offers this model with installment or credit options, pre-sale preparation, and free delivery across Ukraine.

If you are looking for a versatile 40 hp mini tractor with rich equipment, an economical engine, and convenient operation – the KENTAVR 404 SD meets these requirements.
