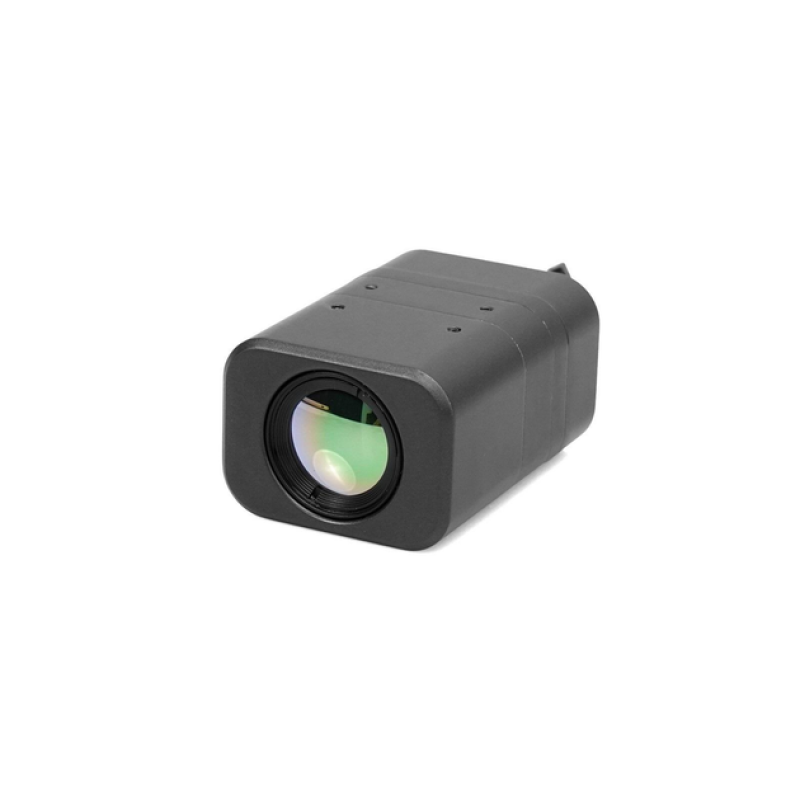

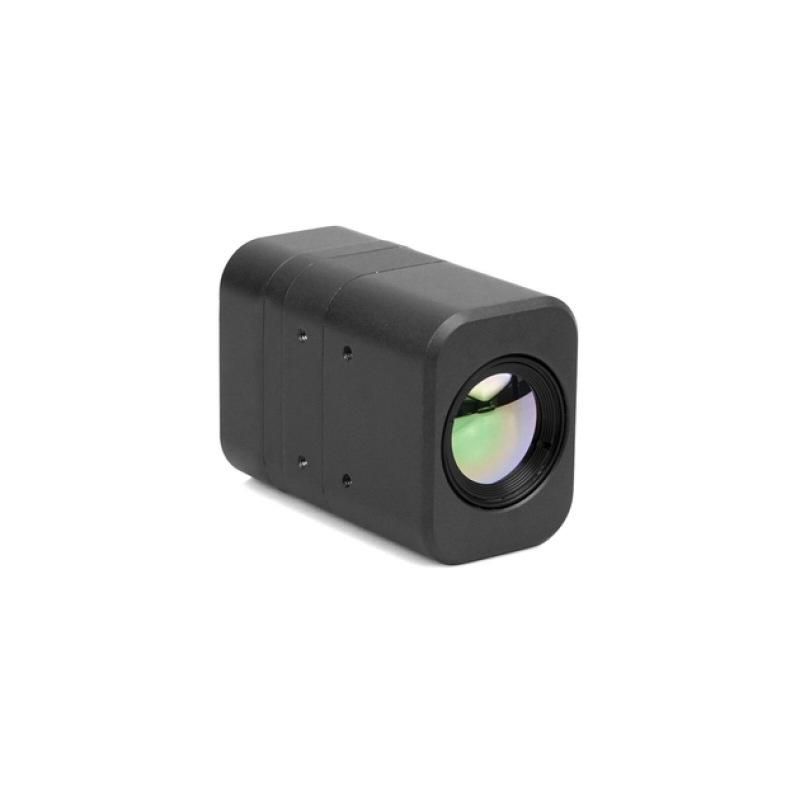

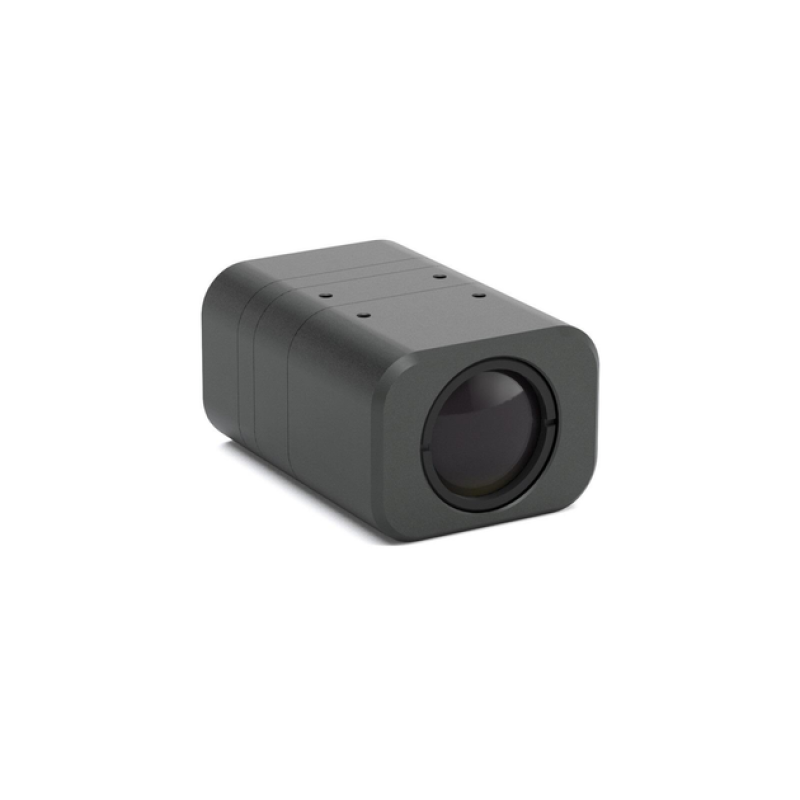

Caddx 384CA Thermal Imager by CADDXFPV

The Caddx 384CA thermal imager is a professional module for FPV drones from the CADDXFPV brand, designed for industrial and amateur applications: search and rescue operations, inspections, night flights, and other missions requiring reliable thermal imaging. The device combines compact size, energy efficiency, and a high frame rate for stable and smooth thermal image transmission.

Key Advantages

• Uncooled vanadium oxide detector — provides high-quality thermal imaging with a resolution of 384×288 pixels.
• High frame rate — 50 Hz ensures smooth imagery in dynamic flight conditions.
• Wide operating temperature range — the camera operates at temperatures from -20°C to +60°C, allowing its use in various climatic conditions.
• Compactness and low weight — dimensions of 27×37×49.8 mm (the comparison table also states 27×37×40 mm) and a weight of 73.5 g (the table mentions 74.0 g), simplifying integration into various platforms without significantly increasing the device's mass.
• Low power consumption — up to 1.5 W, extending flight time without frequent recharges.

Technical Specifications

• Detector type: Uncooled vanadium oxide
• Resolution: 384×288 @ 17μm (technical specifications also mention 384×288 @ 12 μm in the comparison table)
• Wavelength range: 8-12 μm
• Sensitivity (NETD): ≤ 40 mK at 25°C
• Lens: F1.0 / 4 mm
• Video format: PAL
• Power supply voltage: 9-24 V
• Dimensions: 27×37×49.8 mm (the comparison table states 27×37×40 mm)
• Weight: 73.5 g (in the table — 74.0 g or 60.5 g for the 640CA model)
• Frame rate: 50 Hz
• Power consumption: up to 1.5 W

Package Contents

• 1x CADDXFPV IRC-384CA thermal imager

This product belongs to the category: Drones & Quadcopters > Cameras. The camera is ideal for integration into FPV systems where low weight, economical power consumption, and high thermal signal detail are crucial. Thanks to NETD ≤40 mK and an operating temperature range of -20°C to +60°C, the Caddx 384CA reliably detects thermal sources even in challenging operating conditions.

Comparison with Caddx 640CA

The Caddx 384CA model offers balanced thermal image quality and cost-effectiveness compared to the Caddx 640CA model. A comparison of key parameters is provided in the table below.

By choosing the Caddx 384CA, you get a compact and reliable thermal imaging module from CADDXFPV with optimized characteristics for drone use, where weight, power consumption, and stable operation at various temperatures are critical. The camera is suitable for a wide range of tasks: from technical inspections to search missions and night observations.
