Camera for FPV RunCam Phoenix 2

Brand: RunCam. Category: Drones & Quadcopters > Cameras.

Brief Overview

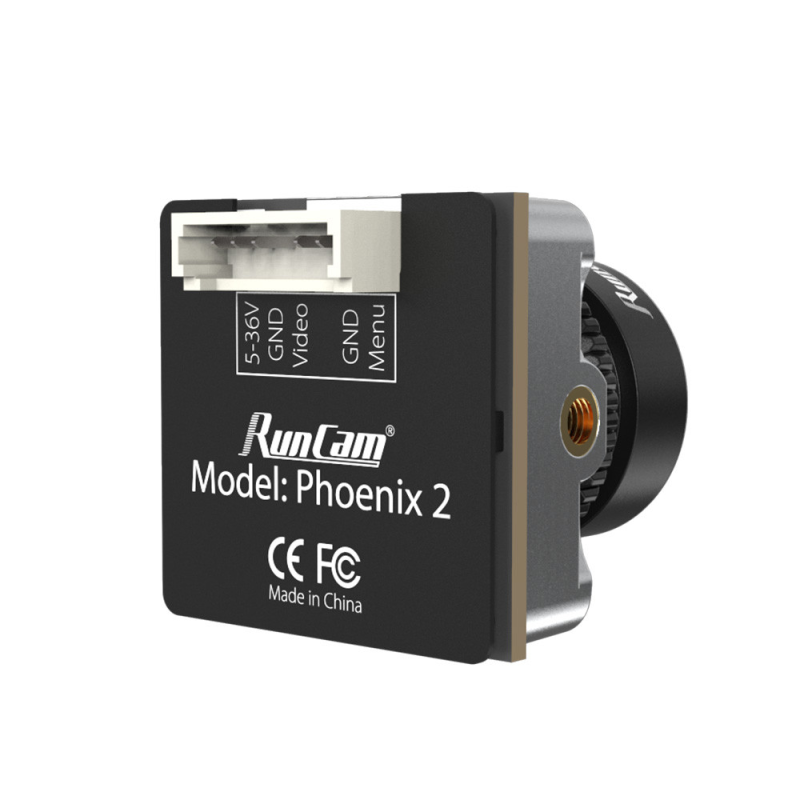

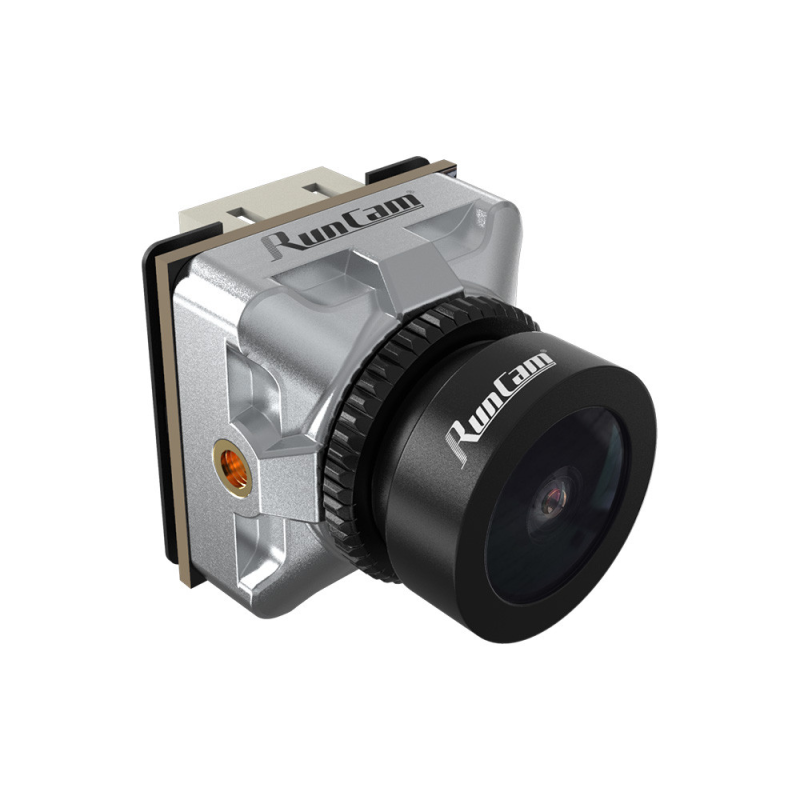

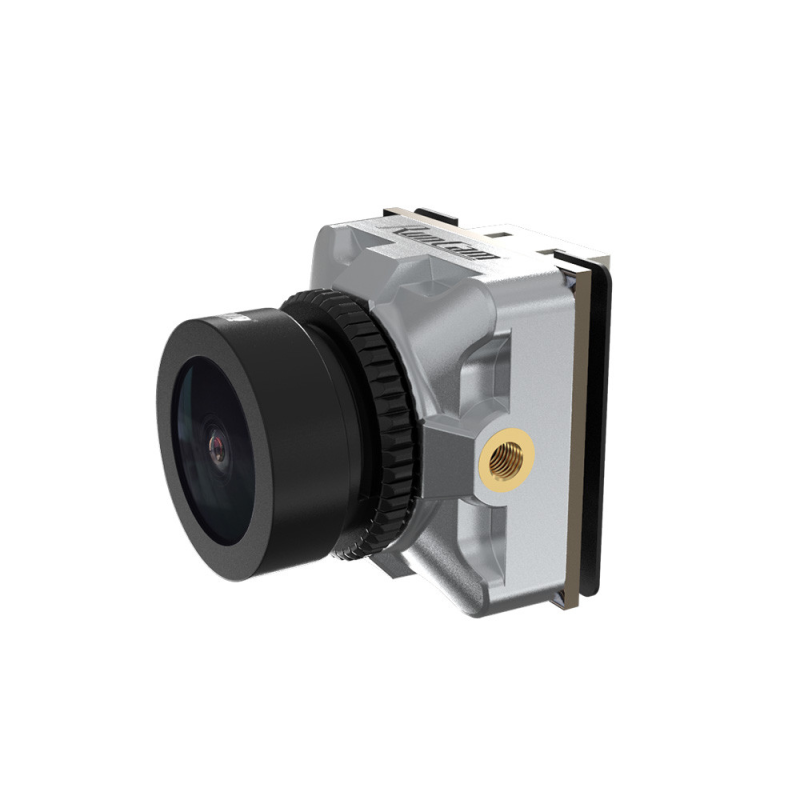

RunCam Phoenix2 is a high-quality FPV camera for freestyle with a large 1/2.8″ Starlight CMOS sensor, ƒ/2.0 aperture, and an improved processor for more natural and saturated colors. The camera provides less electronic distortion compared to RunCam Eagle and excellent low-light performance.

Specifications

• Product Name: RunCam Phoenix2
• Image Sensor: 1/2.8″ Starlight CMOS Sensor
• Horizontal Resolution: 1500TVL
• Lens: FOV D:155° H:122° V:92°, FOV D:138° H:122° V:68°
• Screen Format: 4:3, 16:9
• Mirror/Flip: Available
• Signal System: NTSC/PAL
• Shutter: Rolling Shutter
• Sensitivity: 15000mV/Lux•sec
• WDR: Global WDR
• Day/Night: Color/B&W
• Menu Control: Cable Control
• Power: DC 5-36V
• Current: 120mA@5V, 220mA@12V
• Housing Material: ABS
• Net Weight: 7.5 g
• Dimensions: 19mm × 19mm × 21mm

Package Contents

• 1x Camera
• 1x 6-pin FPV Silicone Cable
• 1x Manual
• 1x Screw Set

Advantages and Features

The RunCam Phoenix 2 is designed for pilots who require a clean, saturated image and reliable performance in night or low-light conditions. The large 1/2” sensor and ƒ/2.0 aperture ensure high light sensitivity and minimal red glare and purple fringing. The improved processor combined with super global WDR guarantees better detail in high-contrast scenes.

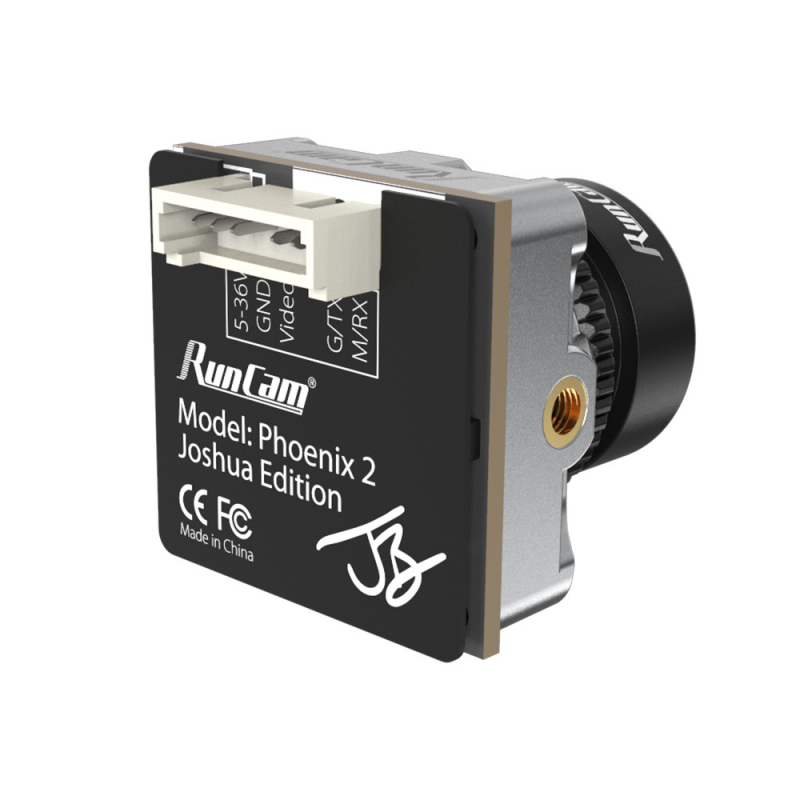

The camera has low signal latency, comparable to the RunCam Eagle, making it an excellent choice for freestyle. The Joshua Edition UART control version displays the current control mode briefly in the upper left corner of the screen; joystick control mode is set by default.

DC 5-36V power supply and low power consumption (120mA@5V, 220mA@12V) allow the camera to be used on various platforms. The lightweight and durable ABS housing with a net weight of 7.5 g and compact dimensions of 19×19×21 mm facilitates integration into FPV quadcopter frames.

This camera is suitable for both amateur and professional pilots who value image quality, low-light performance, and minimal latency. The RunCam Phoenix2 offers an excellent balance between weight, size, and optical characteristics.

Other technical details and specifications are listed above in the «Specifications» section. The package includes everything needed for quick installation and setup: the camera, a 6-pin silicone cable, a manual, and a screw set.
