Product Code: FA100-WHA-4563-14-1-100
In Stock
1 127 грн.
Buy this product in 1 click:
Main specifications
Connector type:
SMA
Polarization:
RHCP / LHCP
Weight (depends on size):
35 g
Frequency range:
4.5–6.3 GHz
Beam angle:
35–47°
All specifications
We will deliver this product:
Payment
Description

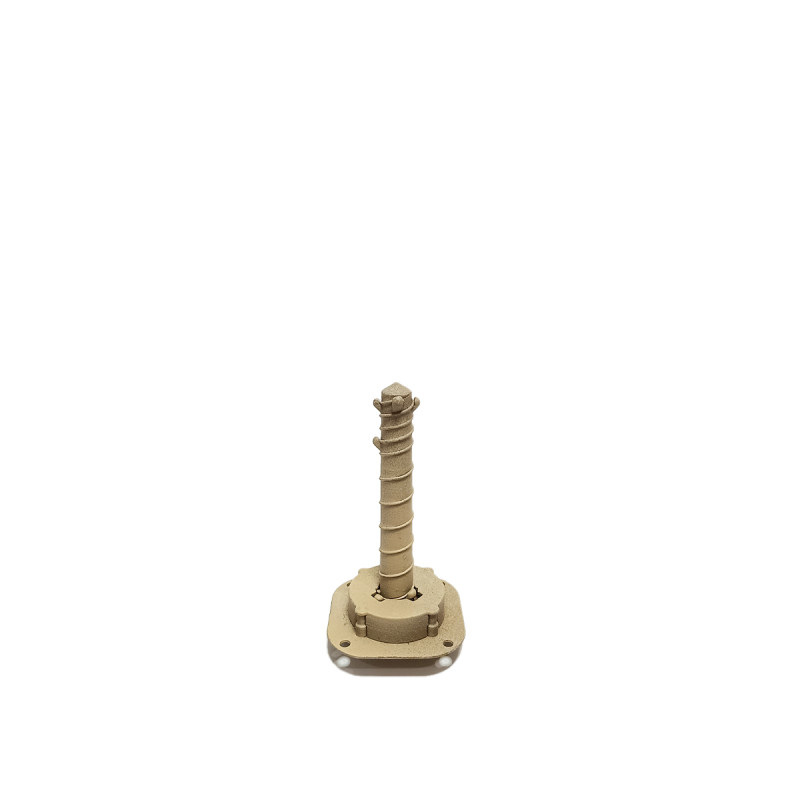

Broadband spiral antenna for the 4.5 - 6.3 GHz band, RHCP or LHCP, gain from 11 dBi at 4.5 GHz to 14 dBi at 6.3 GHz. Beamwidth from 35 to 47 degrees. Optimized for use as part of a ground station.
Frequency range: 4.5-6.3 GHz
Beamwidth 35-47 degrees
Number of turns - 14
Gain 11-14 dBi
Polarization - RHCP or LHCP
VSWR - no more than 2
Connector - SMA
Dimensions 64x64x115 mm
Weight - 35 g
Specifications
Connector type
SMA
Polarization
RHCP / LHCP
Weight (depends on size)
35 g
Size
64×64×115 mm
Antennas
Frequency range
4.5–6.3 GHz
Beam angle
35–47°
Enhancements
11–14 dBi
