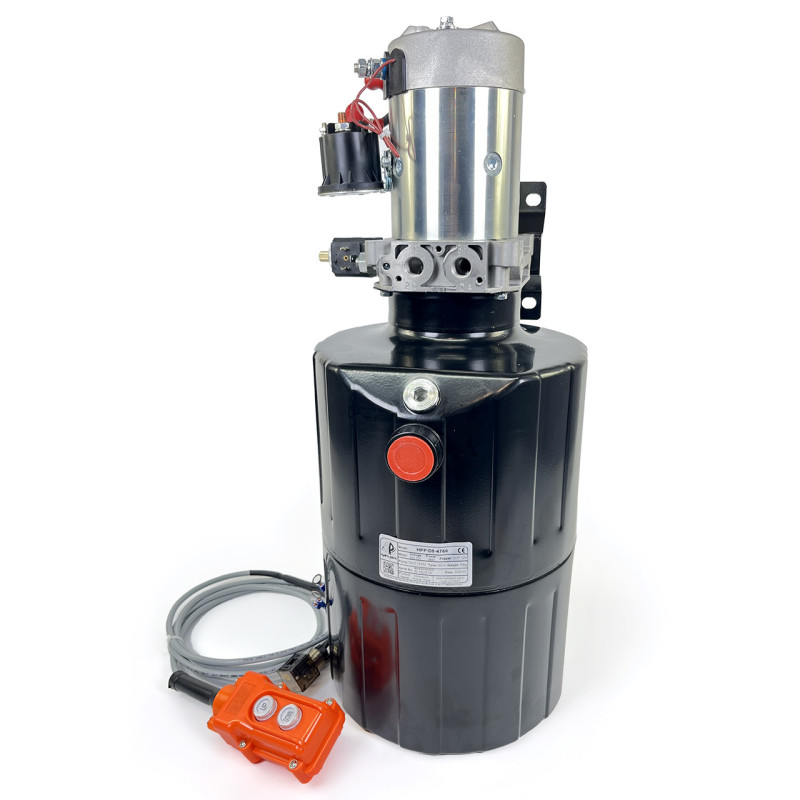

Mini Power Unit HYDRO-PACK HHP/D5-4766 (12V, 2.0 kW, 3.7 cm³/rev, 18 L tank) for Body Lift
The HYDRO-PACK HHP/D5-4766 mini power unit is designed for reliable and durable operation of hydraulic mechanisms for lifting truck bodies, trailers, and other vehicles. This compact power unit from the Hydro-pack brand is specifically developed for systems requiring powerful operation at 12V DC. Installation is in a horizontal position, simplifying mounting in confined spaces of technical compartments.
The electric motor has a nominal power of 2.0 kW at 12V DC and provides a rotation speed of 2500 rpm, ensuring stable system characteristics. The power unit's pump has a displacement of 3.7 cm³/rev, and the maximum operating pressure is up to 100 bar, guaranteeing efficient body lifting under load. The 18 L oil tank is made of steel and has a cylindrical shape, providing strength and resistance to mechanical stress.
Advantages and Applications
The HYDRO-PACK HHP/D5-4766 is notable for its compactness, ease of installation, and compatibility with widely used hydraulic body lift systems. The unit is perfectly suited for agricultural machinery, construction mechanisms, municipal equipment, and large vehicle fleets requiring reliable 12V powered solutions. The tank design and component execution allow for operation under intensive use conditions.
Technical Specifications
| Electric Motor Power | 2.0 kW |
| Voltage | 12 V DC |
| Rotation Speed | 2500 rpm |
| Pump Displacement | 3.7 cm³/rev |
| Maximum Pressure | 100 bar |
| Oil Tank Volume | 18 L |
| Tank Type | Cylindrical |
| Tank Material | Steel |
| Installation | Horizontal |
The power unit is equipped with reliable components and parts that ensure stable operation: PRV pressure relief valve, check valves, filter, and other elements for safe operation and system protection. The 12V design allows the device to be integrated into transport systems with the vehicle's onboard electrical network or with external power sources of the appropriate type.
Manufacturer: Hydro-pack. Product Category: Tractors, Motorcycles, ATVs, Boats (Vehicle) > Hydraulic Systems > Power Units.
Parts Kit
| PART NO. | PART NAME | QUANTITY |
|---|---|---|
| 1 | MBWP-10 | 1 |
| 2 | DC Connection | 1 |
| 3 | Plastic Check Valve | 1 |
| 4 | Connecting Plate | 1 |
| 5 | Pressure Relief Valve (PRV) | 1 |
| 6 | AB 1/2" Fitting | 1 |
| 7 | 10C3.7X302 | 1 |
| 8 | P-NC-12-MO | 1 |
| 9 | HP-SFCV Check Valve (VTH200) | 1 |
| 11 | Filter | 1 |
| 14 | STT12V150 | 1 |
| 15 | SP-45 | 1 |
| 16 | DC12MY-2 | 1 |
| 17 | TP18YD | 1 |
The HYDRO-PACK HHP/D5-4766 is an optimal solution for those seeking a 12V powered hydraulic power unit with a powerful 2.0 kW motor and high operating pressure up to 100 bar, all within a compact 18-liter tank. If you need a reliable, easy-to-install and maintain power unit for body lifting, this model combines quality, durability, and efficiency.
