Advantages of using the ЩТП-8-1 telescopic mast:

1. Increased signal reception.

The telescopic design allows the antenna to be raised to a great height, improving the quality and stability of TV and radio signal reception.

2. Easy setup.

The design allows for easy and quick adjustment of the horizontal signal reception angle.

3. Versatility.

The mast is suitable for mounting various types of antennas.

4. Easy installation.

The product's design allows for quick deployment and installation of the mast on uneven surfaces, as well as quick retraction.

5. Durability.

The mast is made of high-quality steel, which ensures its rigidity and long

service life. Sandblasting the product before painting and the polymer coating provide reliable protection against atmospheric influences and corrosion.

ЩТП-8-1 PORTABLE TELESCOPIC MAST

The mast consists of seven individual connecting tubular sections of different diameters, which fit into one another. They can be extended or retracted.

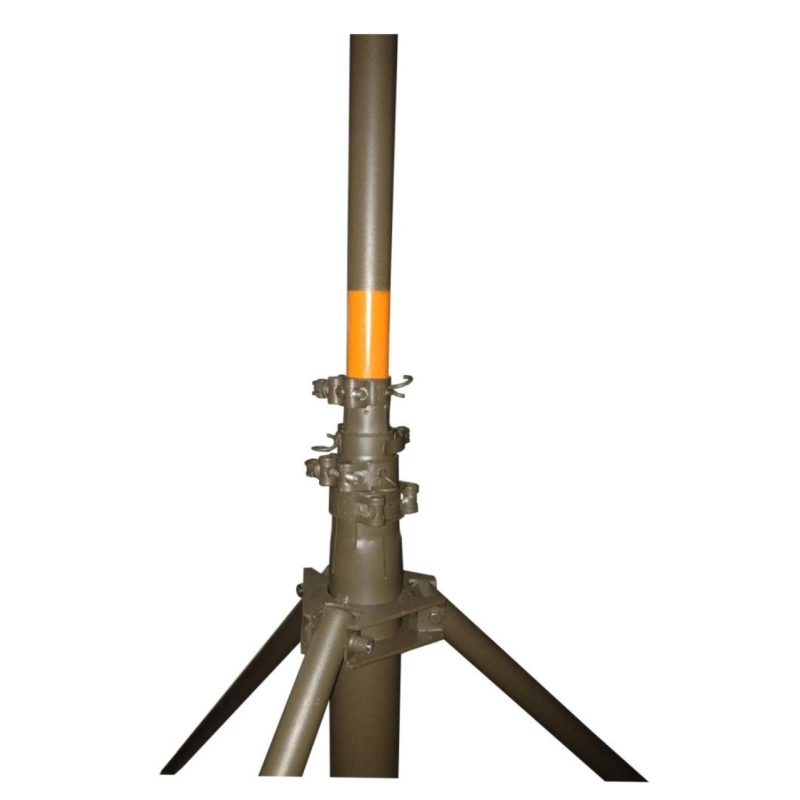

Each section has clamping locks that allow them to be secured in a specific position when extended.

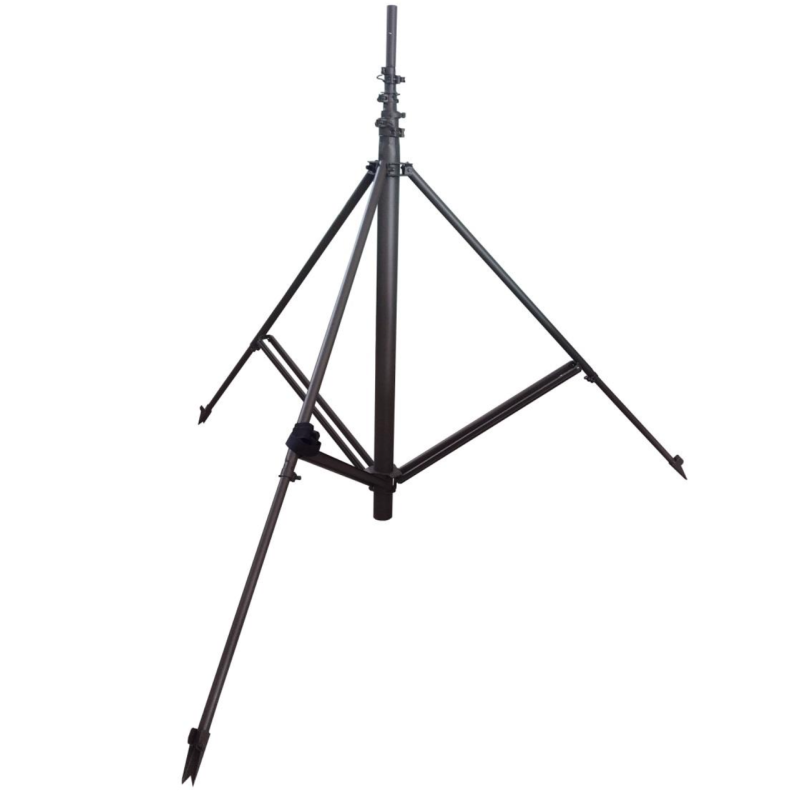

The first and largest section has a support base and legs that ensure reliable fixation on the surface. The telescopic design of the legs makes it possible to stabilize the mast on uneven surfaces. The leg tips are equipped with spikes for increased grip on the surface, and the spikes have rings for attaching additional anchors.

The top section has a built-in quick-release mechanism that allows for convenient installation or changing of devices.

The fifth section has a ring for additional installation of guy wires, which increase the mast's wind resistance.

A quick-release handle allows the user to easily and quickly change the antenna's operating angle in the horizontal plane.

The outer surface of the product has a matte polymer coating in "khaki" RAL-6014.

Each section has an open ring for quick routing of wires and cables.

Each extendable section is marked with a visual marker for maximum extension.

Before starting mast installation, the user must determine where they want to install the antenna. Ensure that the chosen location is safe and that the antenna is free from obstructions.

After vertically installing the mast in its assembled position, the support base and legs must be opened and securely fixed to the surface. If necessary, secure additionally with separate anchors.

Attach the necessary equipment to the last section of the mast.

Deploy the telescopic mast by extending the sections. After ensuring that each section has not exceeded its maximum extension mark, tighten its clamps. Wires and cables are routed through the open rings.

If additional fixation is required, use the mounting ring on the fifth section, installing guy wires and securing them with anchors in the ground.

If it is necessary to change the signal reception angle, securely attach the swivel handle to the second section, loosen the clamping lock of the second section, rotate, and then tighten the lock of the second section.

Retracting the mast is done in reverse order.

Technical specifications:

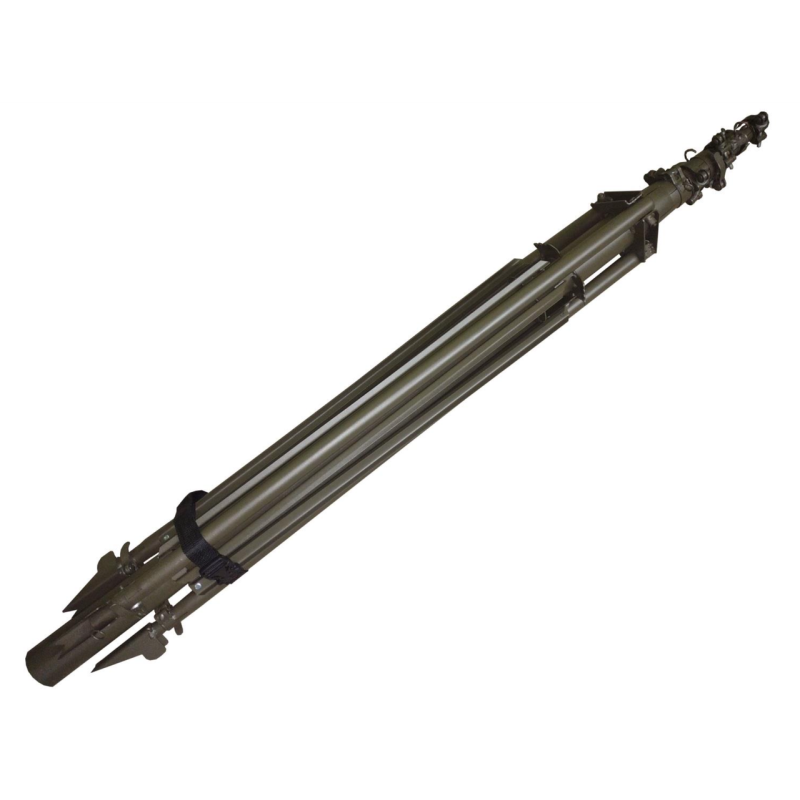

1. Length in assembled state - 1.4 m

2. Maximum length in extended state - 8 m

3. Mast weight - 17 kg

4. Kit weight - 19.4 kg

5. Support base diameter - 2.4 m

6. Support base diameter with installed guy wires - 11 m

7. Permissible equipment weight - 5 kg

Package contents:

1. ЩТП-8-1 telescopic mast - 1 pc.

2. Cover (bag) - 1 pc.

3. 7m guy wire - 3 pcs.

4. Quick-release handle - 1 pc.

5. Quick-release adapter for equipment - 1 pc.

6. Ground anchors - 3 pcs.

7. Technical passport - 1 pc.
