The 4.4-meter telescopic mast "Shpyl 4K.1 - 1.20/4.4" for antennas is designed specifically for communication operators who monitor signal levels, and is also ideal for installing various lightweight devices. The main advantage of this "Shpyl" series is its compact transport length of only 1200 mm when folded, which significantly facilitates transportation and storage. This feature makes the mast indispensable for mobile teams and field operations.

Thanks to its versatility, the "Shpyl 4K.1 - 1.20/4.4" telescopic mast is perfect for installing Wi-Fi antennas to expand coverage, antennas to ensure high-quality 3G communication, TV antennas for receiving digital or analog signals, surveillance cameras for security, and any other lightweight equipment that needs to be raised to a certain height. The mast deployment process takes minimal time, allowing equipment to be quickly prepared for operation in the field.

Key features of the 4.4-meter telescopic mast "Shpyl 4K.1 - 1.20/4.4" for antennas

Advantages of the "Shpyl 4K.1 - 1.20/4.4" telescopic mast for antennas

The main advantage of the "Shpyl 4K.1 - 1.20/4.4" telescopic mast is its exceptional portability due to its short transport length, allowing it to be easily placed in a car. The process of installing and deploying the mast takes only a few minutes, which is an important factor for operational work. Made of lightweight and durable aluminum, the mast provides reliable support for various equipment with a relatively low weight. The kit includes all necessary elements for fastening and installation, making it ready for use immediately after purchase.

Features of the telescopic mast design

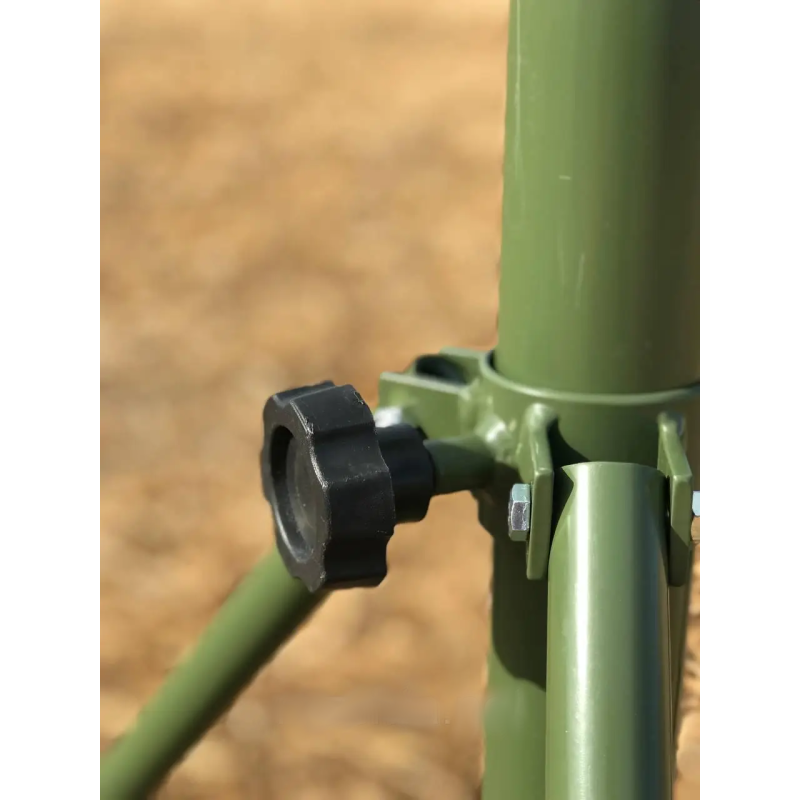

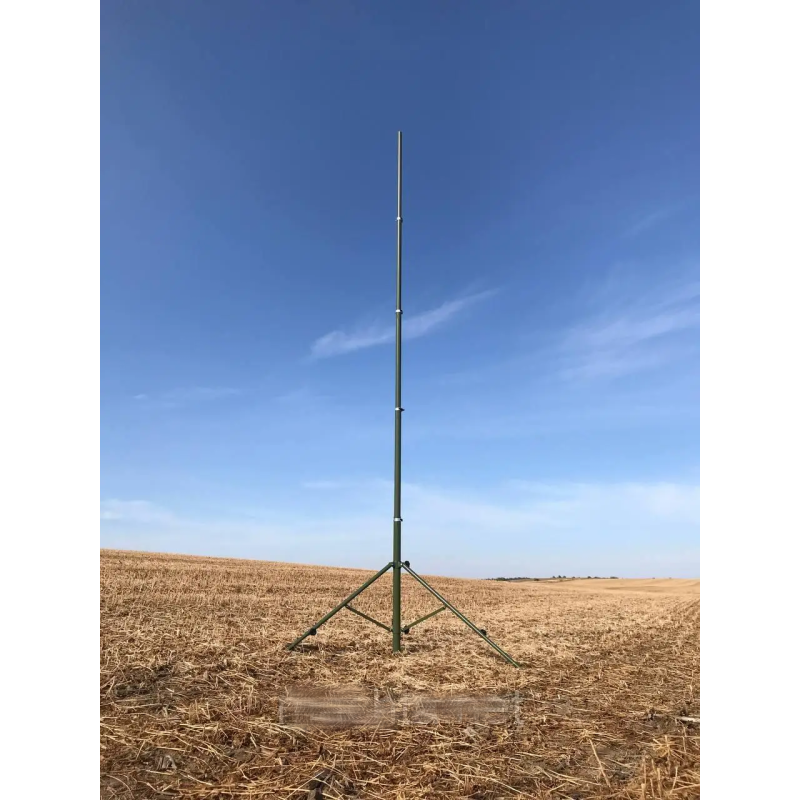

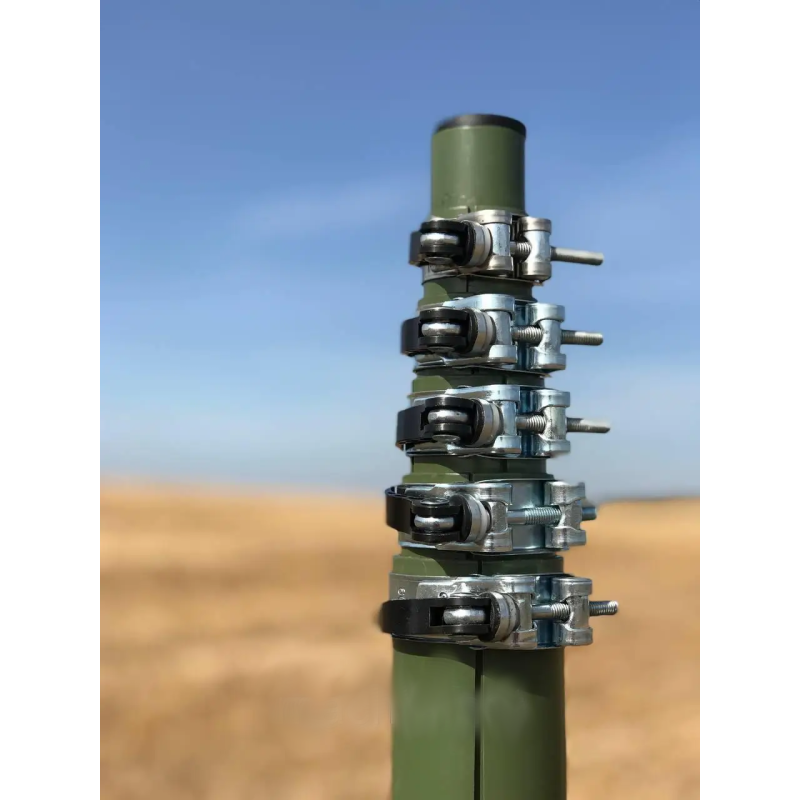

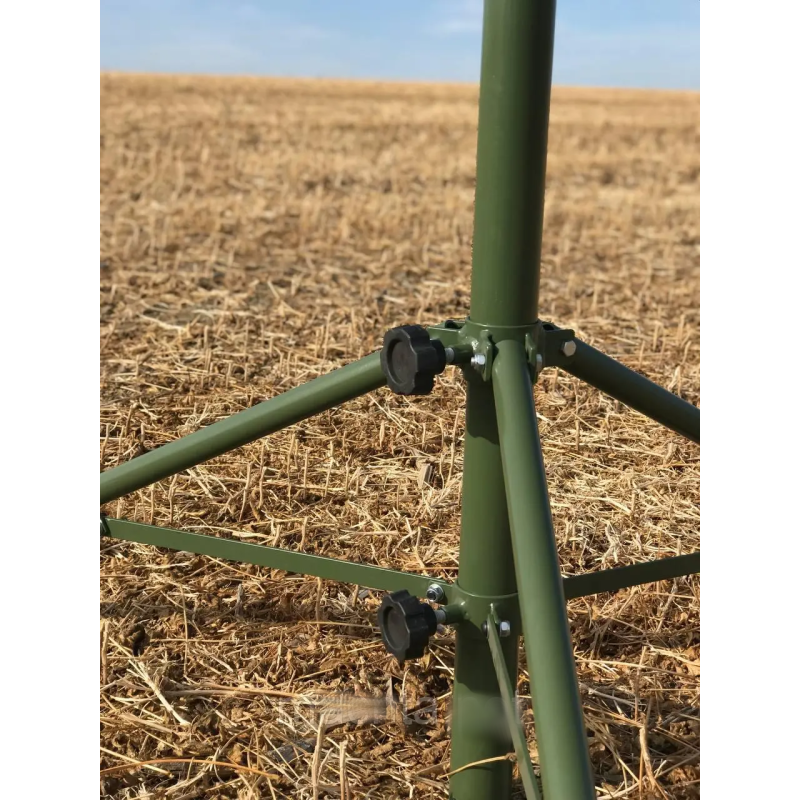

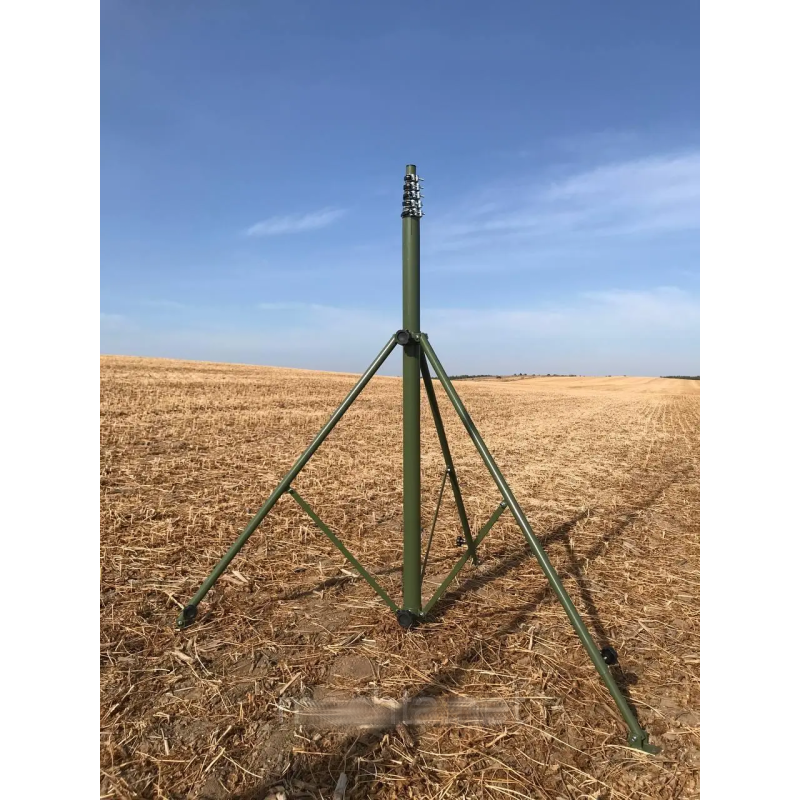

A key feature of this mast is its telescopic design, consisting of several sections that extend from one another, allowing the equipment installation height to be adjusted up to 4.4 meters. When folded, the mast length is only 1.2 meters, which greatly facilitates its transportation and storage. The sections are secured with reliable clamps, ensuring stability and safe use.

Useful functions

• Quick and easy deployment and folding


• Compact folded size for convenient transport


• Reliable mounting for antennas, cameras, and other equipment


• Wind load resistance up to 22 m/sec


• All necessary elements for installation and fastening included



•
•
•

Compatibility with various antennas and devices

The "Shpyl 4K.1 - 1.20/4.4" telescopic mast demonstrates high compatibility with various types of antennas and lightweight devices, including:

• Wi-Fi antennas


• Antennas for 3G/4G communication


• TV antennas (terrestrial and satellite)


• Surveillance cameras


• Weather stations


• Lightweight lighting fixtures



•
•
•

Package contents of the "Shpyl 4K.1 - 1.20/4.4" telescopic mast for antennas

The "Shpyl 4K.1 - 1.20/4.4" telescopic mast package includes:

• Mast sections (diameters: 56/2.5, 50/2, 45/2, 40/2, 35/2 mm)


• Paracord: 35 m


• Turnbuckle M8 Eye-Hook: 3 pcs.


• Thimble M4: 6 pcs.


• Flange d-35mm: 1 pc.


• Clamp M3: 12 pcs.



•
•
•

Packaging

The mast and components are supplied in secure packaging that ensures their preservation during transportation and storage. This is typically a cardboard box or a special mast case.

If you need a portable and lightweight mast for installing antennas or other equipment, the "Shpyl 4K.1 - 1.20/4.4" telescopic mast will be an excellent choice. Its compactness, quick deployment, and reliable design will make your work efficient and convenient. We recommend purchasing this high-quality Ukrainian-made mast for your needs.
