Product Code: FA103-16899-103
In Stock
1 910 грн.
This product has a minimum quantity of 2
Buy this product in 1 click:
Main specifications
Battery Support:
3–6S (11–27 V)
Dimensions:
39.5×41 mm
ESC Current:
45A×4 or 55A×4
Features:
5" drones; 1000 µF capacitor
Firmware:
BLHELI_S J_H_15_REV16_7.HEX
All specifications
We will deliver this product:
Payment
Description
*** Minimum order - 3000 UAH! Ships from a remote warehouse. Shipping times 2-5 days.

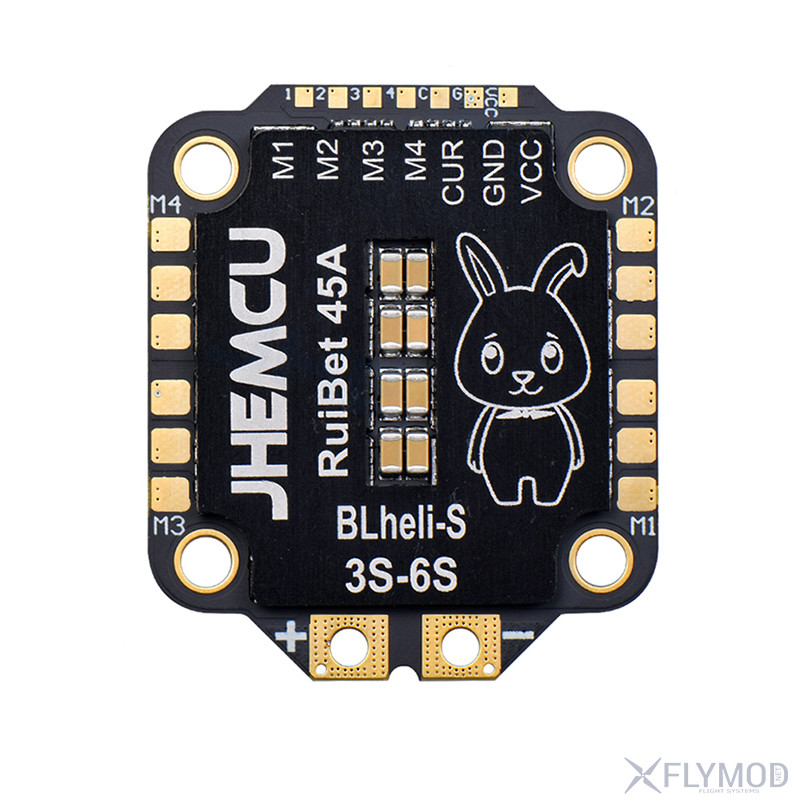

ESC Ruibet 45A/55A from the JHEMCU brand is an affordable speed controller with BlHeli_S firmware. It supports 3-6S Lipo, has a current sensor, and weighs 14.5 grams. This Ruibet 45A/55A model is mainly used on classic 5-inch drones. The kit also includes a capacitor and a board with TVS diodes, which help eliminate unwanted voltage spikes.
Specifications
- Input voltage: 3-6S (11-27V)
- Maximum continuous current:
- 45A*4
- 55A*4
- BEC: No
- Current sensor: Yes
- Mounting pattern: 30.5mm/M4
- Firmware: BLHELI_S J_H_15_REV16_7.HEX
- Dimensions: 39.5*41mm
- Weight: 14.5g
Package Contents
- 1x RuiBet 45A/55A Quad ESC
- 1x double-sided JST cable 8p*1.0mm
- 1x XT60 connector
- 1x capacitor 1000 UF/35V
- 2x wire
- 16AWG (for 45A)
- 12AWG (for 55A)
Specifications
Battery Support
3–6S (11–27 V)
Dimensions
39.5×41 mm
ESC Current
45A×4 or 55A×4
Features
5" drones; 1000 µF capacitor
Firmware
BLHELI_S J_H_15_REV16_7.HEX
Interfaces
Current sensor
Mounts
30.5 mm, M4
Processor
BLHeli_S (MCU ESC)
Protocols
DShot (typical)
Type
ESC 4in1
Weight
14.5 g
