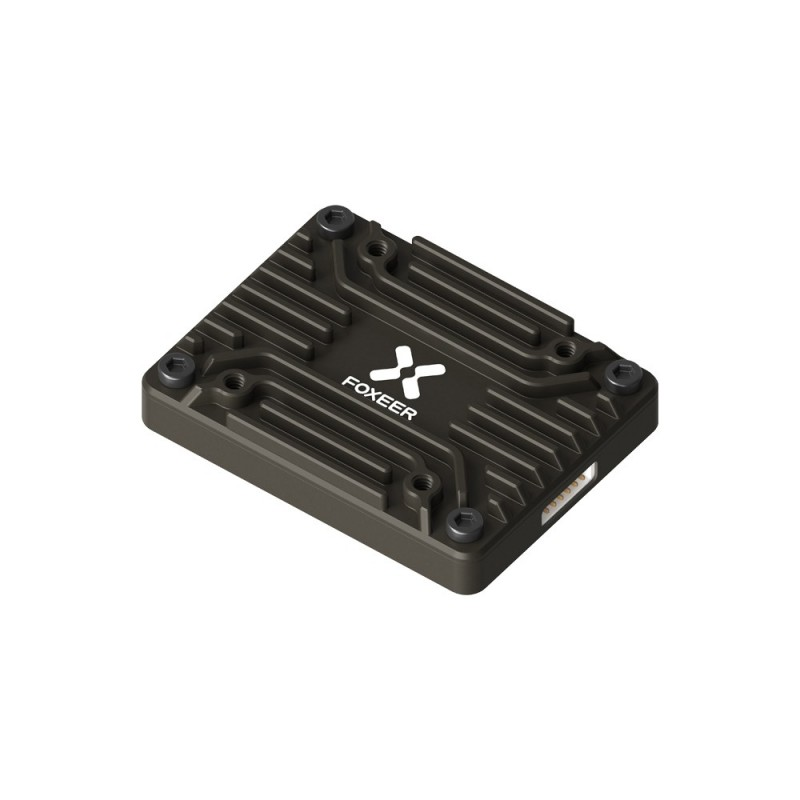

The Foxeer Reaper Extreme V3 2.5W 80CH VTX is a high-quality video transmitter designed for FPV pilots who need flexible output power and reliable long-range signal transmission. With adjustable power levels ranging from 25mW to 2.5W, this VTX offers an ideal solution for both short-range indoor flights and long-range outdoor flights. The Reaper Extreme V3 supports 80 channels, including Raceband, providing a wide selection of frequencies to avoid interference and ensure optimal video communication.

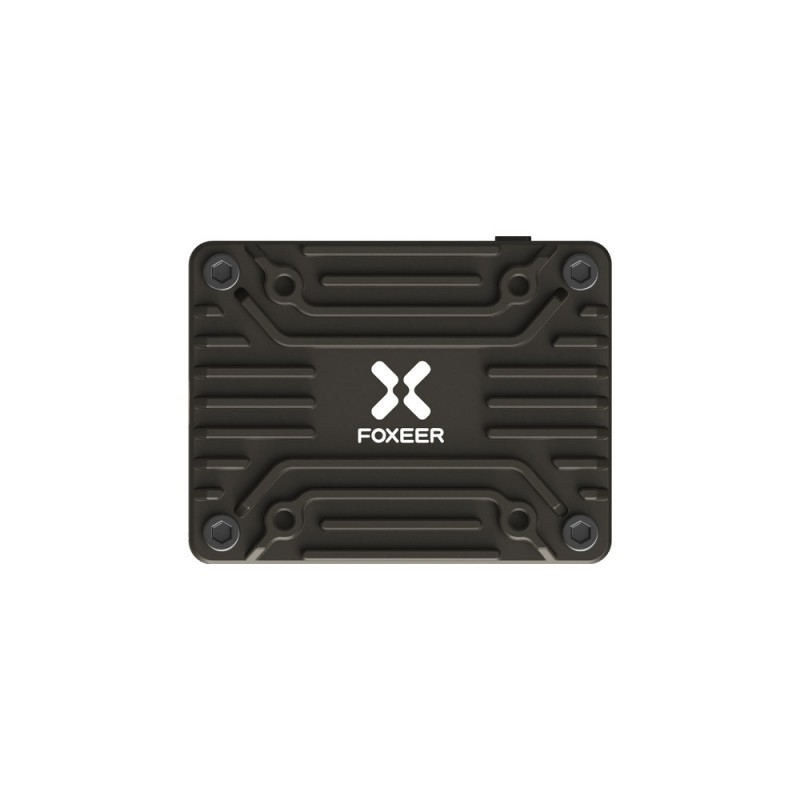

The transmitter is equipped with an active cooling system that prevents overheating during long flights, ensuring stable operation even in the most challenging conditions. It supports input voltage from 7 to 36V, making it a versatile solution for various drone types. The MMCX connector provides a reliable antenna connection, while its compact size and light weight (only 13g) allow for easy integration into any drone configuration.

The Foxeer Reaper Extreme V3 also supports PIT mode, which allows operation at minimal power during setup or competitions, ensuring safe operation in crowded environments. Additionally, Tramp protocol support enables remote control of power and frequency settings via the flight controller, adding convenience in use.

The Foxeer Reaper Extreme V3 is the choice of professional pilots who value reliability, flexible settings, and high-quality video signal. Thanks to its transmission power, wide frequency selection, PIT mode, and Tramp protocol support, this VTX is an ideal solution for FPV racing and long-range amateur flights.

Specifications:

• Model: Foxeer Reaper Extreme V3


• Transmission Power: 25mW / 200mW / 500mW / 1.5W / 2.5W


• Number of Channels: 80 (including Raceband)


• Input Voltage: 7-36V


• Output Voltage: 5V


• Size: 36×27.5×8 mm


• Weight: 13g


• Connector Type: MMCX


• Cooling System: Active


• PIT Mode: Supported (double-click button to activate)


• Protocol Support: Tramp


• Consumption: 1.2A at 9V


• Mounting Hole: 20×20 mm, M2, depth 2.8 mm

Band and Channel Table

PIT Mode and Tramp Protocol:

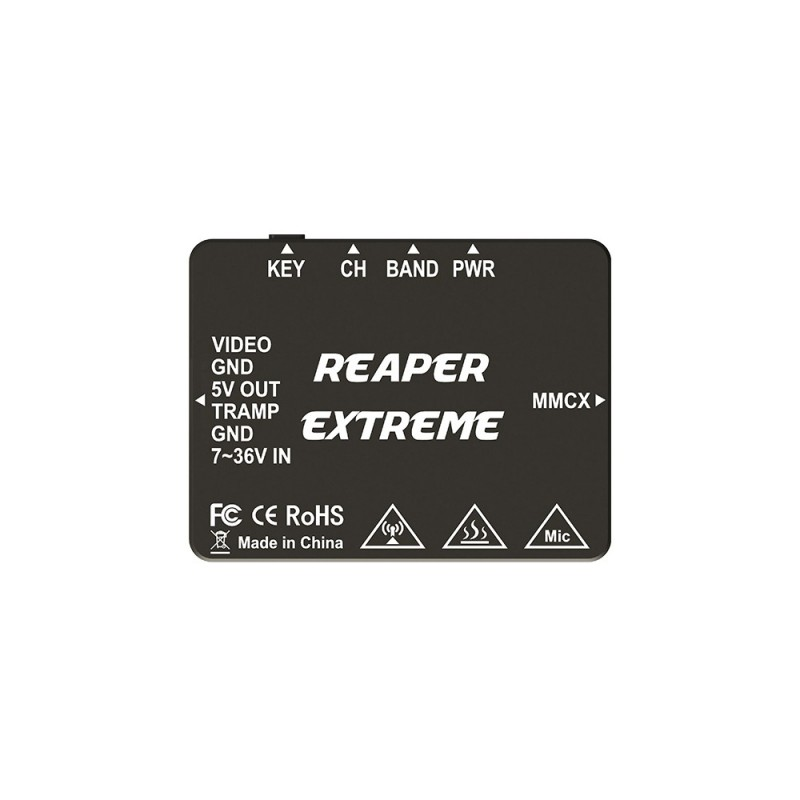

• PIT On/Off: Double-press the "KEY" button to enable or disable PIT mode. When the red LED (PWR) is off, PIT mode is enabled; when the red LED (PWR) is on, PIT mode is disabled.


• Tramp Cable: When connected to the flight controller via the Tramp Rx pin, the VTX button will be disabled. Frequency and power adjustments will be controlled by the flight controller.

Additional Note:

• Betaflight Limit: Betaflight supports a maximum of 64 channels. It is necessary to delete 2 bands before importing channels into Betaflight.

Package Contents:

• 1× Reaper Extreme V3 2.5W VTX


• 1× Silicone Cable
