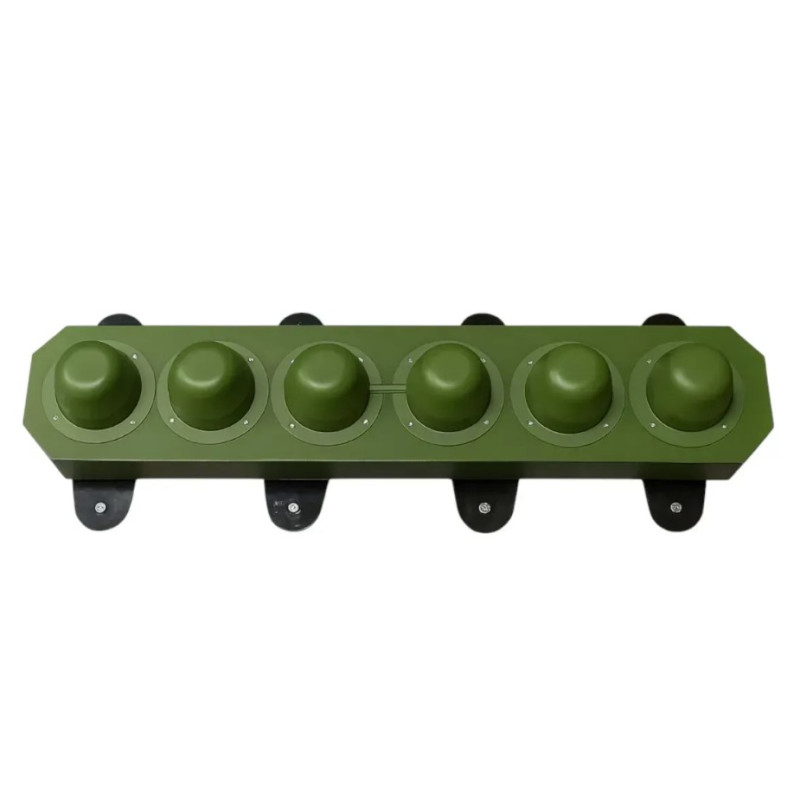

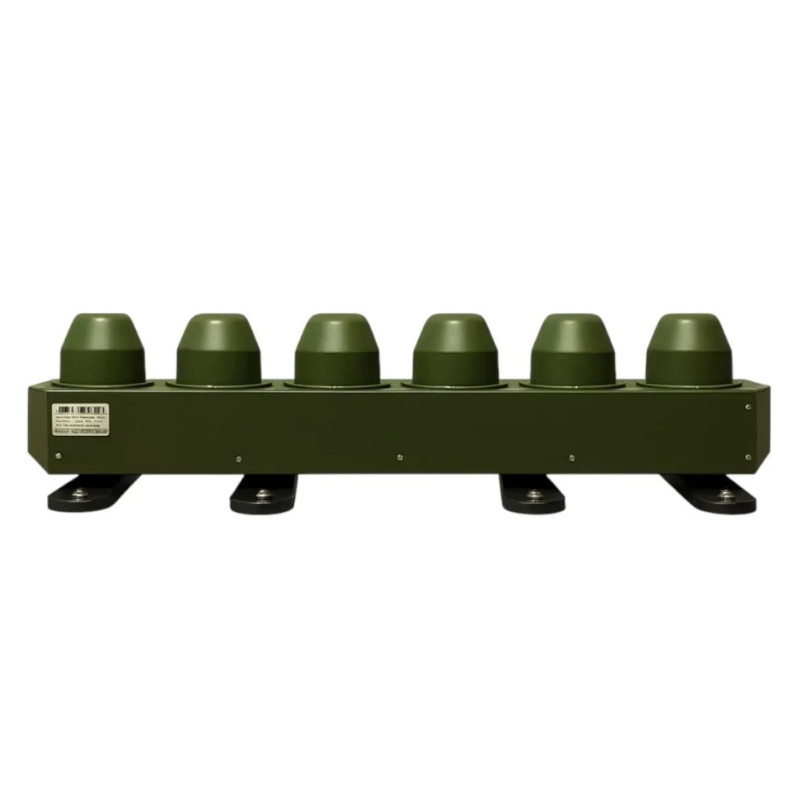

Electronic Warfare (EW) System "SHKVARKA TYPE6 V2" — a compact multi-channel device for targeted suppression of control and data transmission channels of enemy UAVs in the 2100–2700 MHz range.
The model features 6 autonomous 50W channels each, a built-in set of omnidirectional circular polarization dome antennas, and power from a LiFePO4 28V/105Ah battery with up to 5 hours of autonomy; a durable aluminum casing with an improved cooling system and anti-vibration elements inside and on the mounts ensures reliable operation in field conditions. Unlike extended configurations, this version comes without additional external antennas, which significantly simplifies installation and transportation and increases the system's mobility.
The device has undergone field tests and has confirmed cases of effective application for protection against reconnaissance drones and FPV systems.
Specifications
| Antenna type | Dome |
|---|---|
| Jamming power at jammer output, W | 50 |
| Electronic warfare frequency ranges | 2100-2700 MHz |
| Electronic warfare range, m | 150 |
| Detection frequency ranges | 2100-2700 MHz |
| Power supply voltage, V | 28 |
| Ability to operate from internal battery | No |
| Continuous operation time on battery, min | 300 |
| Product codified | No |
