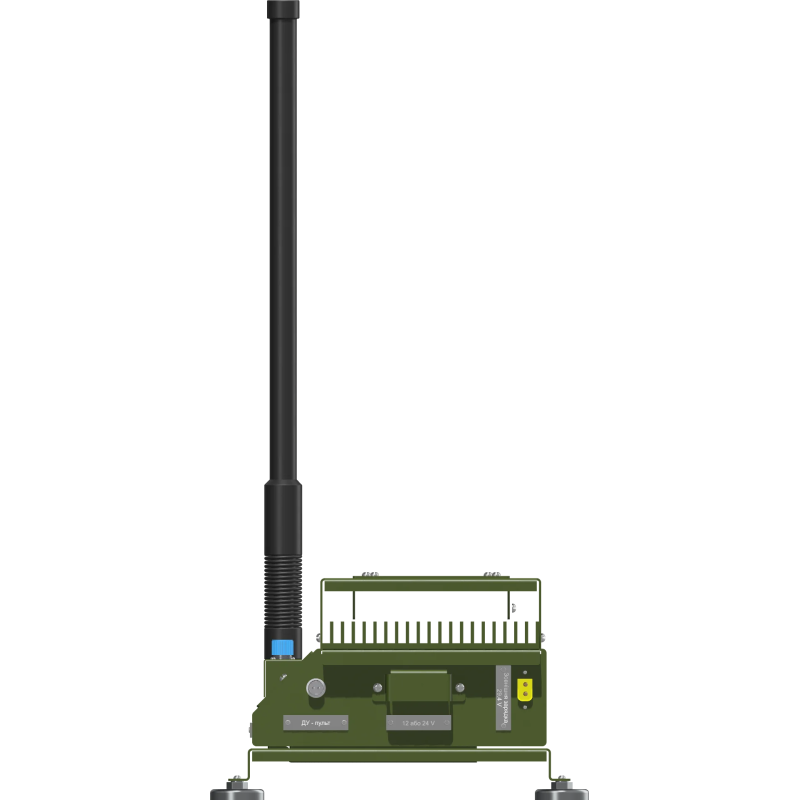

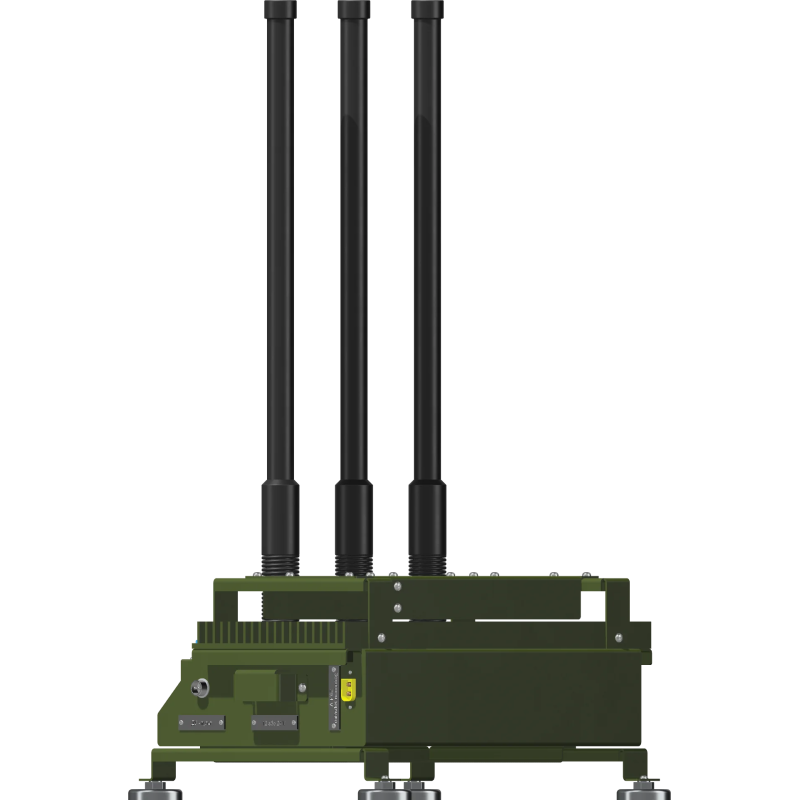

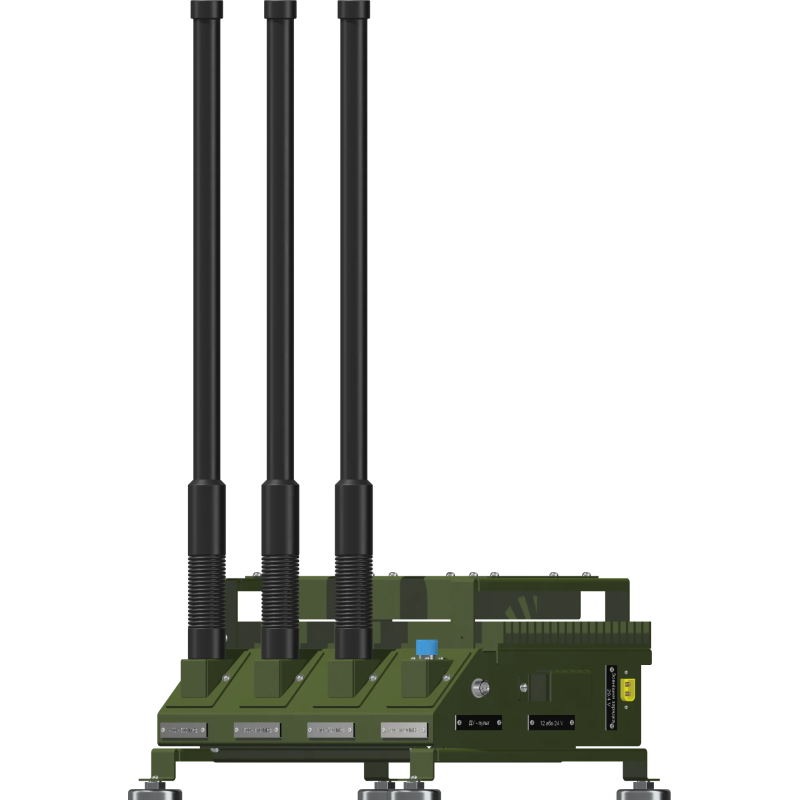

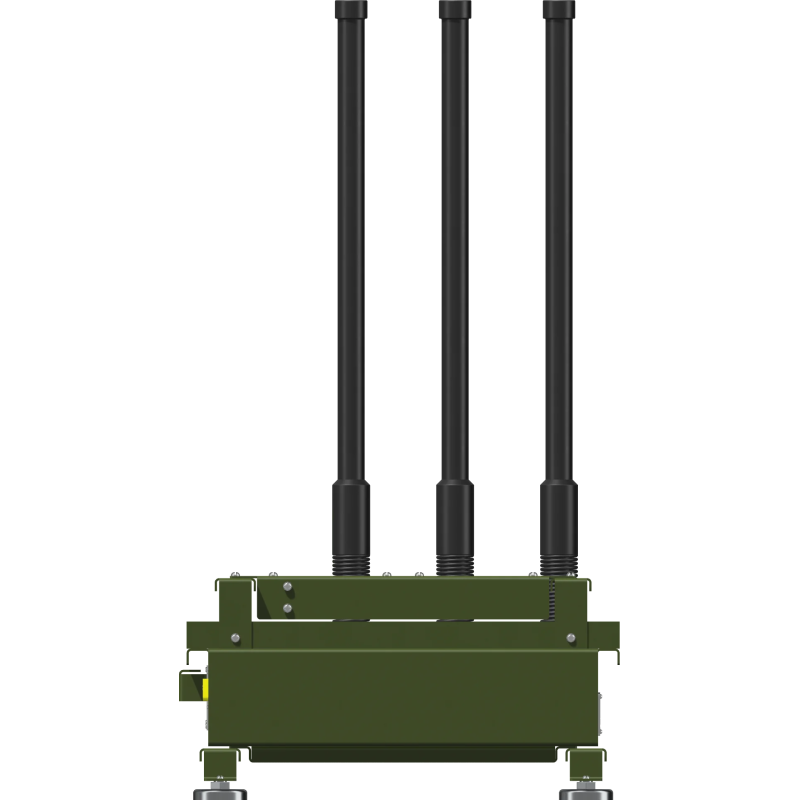

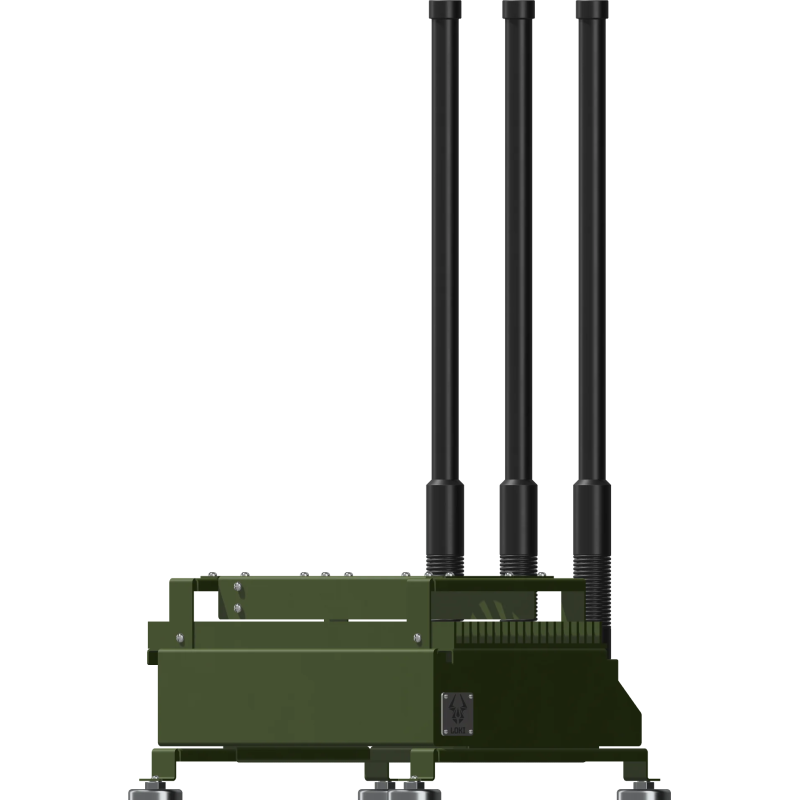

Loki-3 — Vehicle EW Jammer with Three Antennas — a mobile system for protecting and jamming signals across a wide frequency range. Product ID: 4743. Manufacturer (as specified in description): Loki. Brand/Supplier: Asgard Defence Technologies. Category: EW Jammers > Vehicle EW Jammers.
Specifications
- Frequency range: 200 to 5850 MHz with selectable sub-bands: 200-300 MHz, 300-400 MHz, 400-500 MHz, 500-610 MHz, 610-720 MHz, 720-840 MHz, 840-950 MHz, 950–1050 MHz, 1050–1200 MHz, 1200–1350 MHz, 1350–1500 MHz, 2400-2500 MHz, 5150-5350 MHz, 5725-5850 MHz.
- Output power: 50 W per antenna; the number of antennas in the set can be from 3 to 5. With 3 antennas, the total output power is 50 W × 3 = 150 W.
- Effective range: 350 m.
- Peak power up to 200 W.
- Average output power: 47 dBm.
- Power supply: DC 12/24V — connection to vehicle electrical system.
- Operating temperature: -25 °C to +65 °C.
- Kit weight (housing + antennas): 5 kg.
- Technology: GaN (Gallium Nitride) — modern semiconductor technology providing higher efficiency, lower heat dissipation, and compact size.
- Cooling: dual active cooling for stable operation under prolonged loads.
- Protection: reverse polarity protection.
- Country of manufacture: Ukraine.
Mounting and Connection

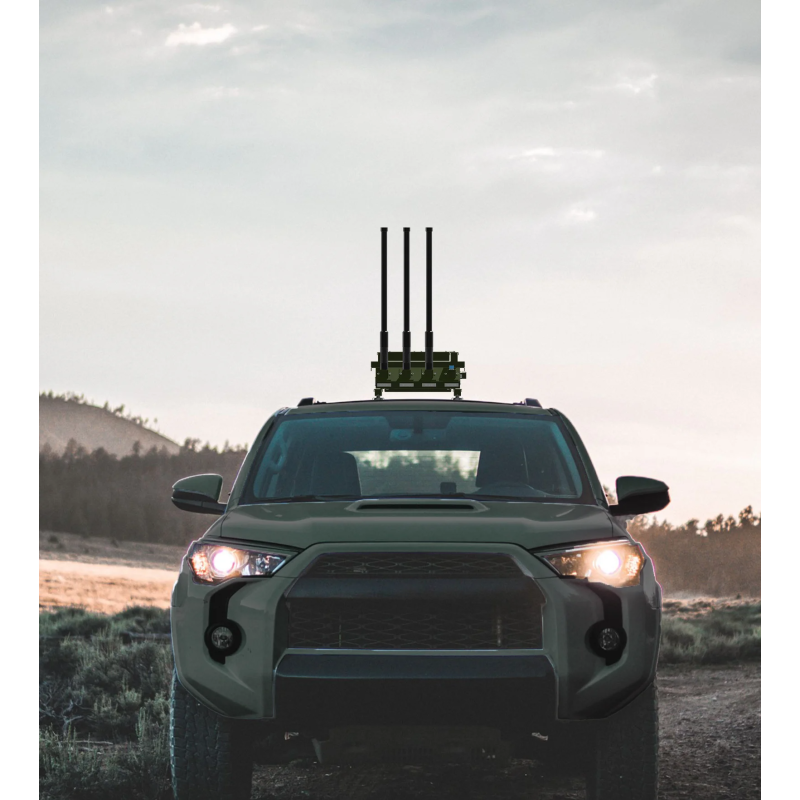

The system is designed for mounting on a vehicle using 4 magnets, allowing for quick installation and removal without damaging the bodywork. The kit includes a control panel for convenient power and operating mode management, installed in the cabin. Connection is made to the vehicle's battery (DC 12/24V). The documentation includes wiring diagrams — Wiring Diagram — 1 and Wiring Diagram — 2 for different mounting and power options.
Loki-3 Kit Contents

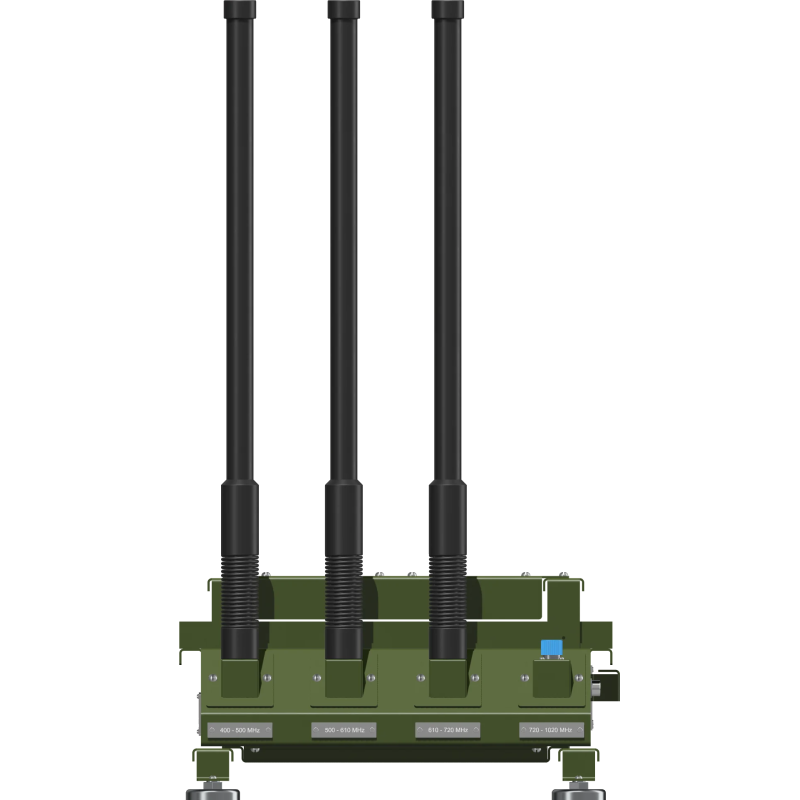

- 3 antennas (the number of antennas can be selected from 3 to 5). Any of the possible frequency ranges specified in the specifications can be set for each antenna.
- Control panel — 1 pc., power control panel for installation in the vehicle cabin.
- Power cable — cable for connecting to the vehicle's electrical system — 1 pc.
- Loki system assembled — 1 pc.
- Documentation: passport and user manual — 1 set.
An optional additional battery and fast charger are available (not included in the standard kit and supplied as additional accessories upon request).
Additional Information
The system is designed as a mobile vehicle EW jammer with a priority on efficiency, compactness, and reliability. Thanks to the use of GaN technology and dual active cooling, high stability and reduced heating are ensured during prolonged operation at high power. The average and peak output powers correspond to the stated parameters, and the ability to select ranges and the number of antennas provides flexibility for customization to specific tasks and application conditions. The product has reverse polarity protection for safe connection to the vehicle's electrical system. For ordering configurations or clarifying technical questions, please contact the manufacturer's representative Loki or the supplier Asgard Defence Technologies.
Certificate of Conformity
The product has a Certificate of Conformity, confirming compliance with technical requirements and standards. Documentation and photos of the kit are provided for review upon request.
