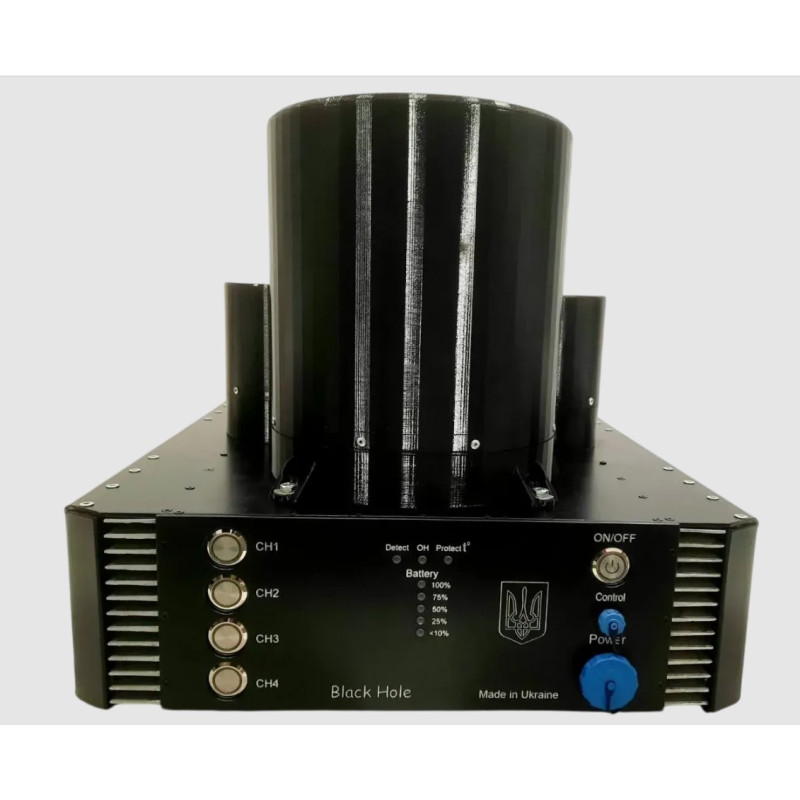

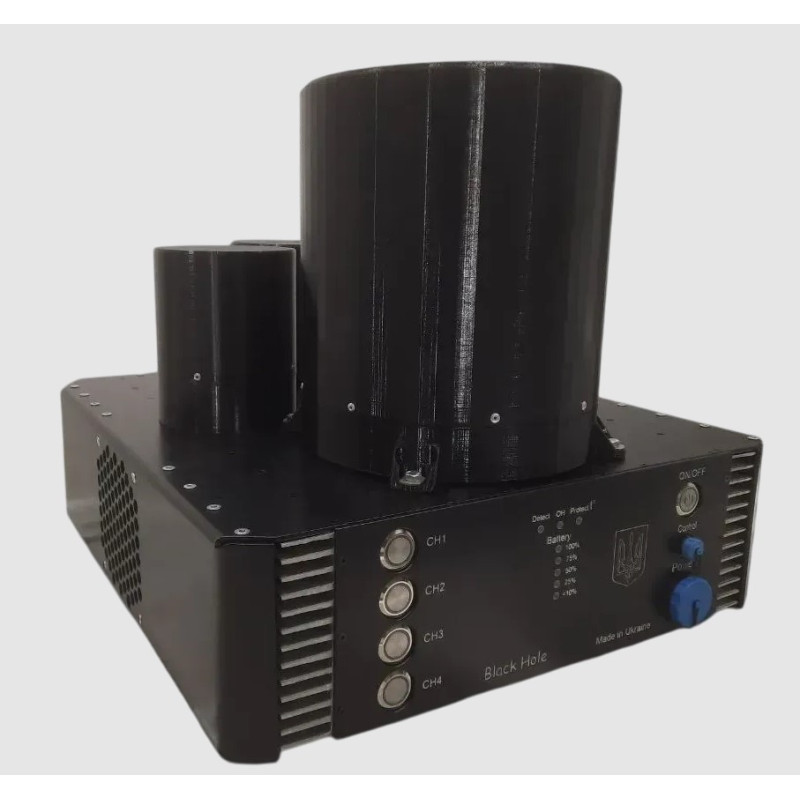

Tactical EW jammer BH1-Amini is a four-band EW jammer that can be supplemented with an external drone detector.
The device can operate in two modes: automatic and manual. In manual mode, each band can be switched on separately and operate until the operator switches it off. In automatic mode, the EW jammer will activate when the drone detector is triggered.
Power supply 12 – 24V. The EW jammer is equipped with quadrifilar antennas. The antenna radiation pattern is hemispherical, providing protection without "blind" spots. The antennas have a protective radio-transparent casing.
The device is equipped with overheat protection and active cooling.
CH1 400-460MHz 50W
CH2 730-840MHz 50W
CH3 840-940MHz 50W
CH4 985-1065MHz 50W
Specifications
- Antenna type Quadrifilar
- Jamming power at the output of the jamming device, W 50
- Electronic warfare frequency bands 417-480, 700-1000 MHz
- Electronic warfare range, m 200
- Supply voltage, V 12-24
- Ability to operate from internal battery No
- Product codified No
