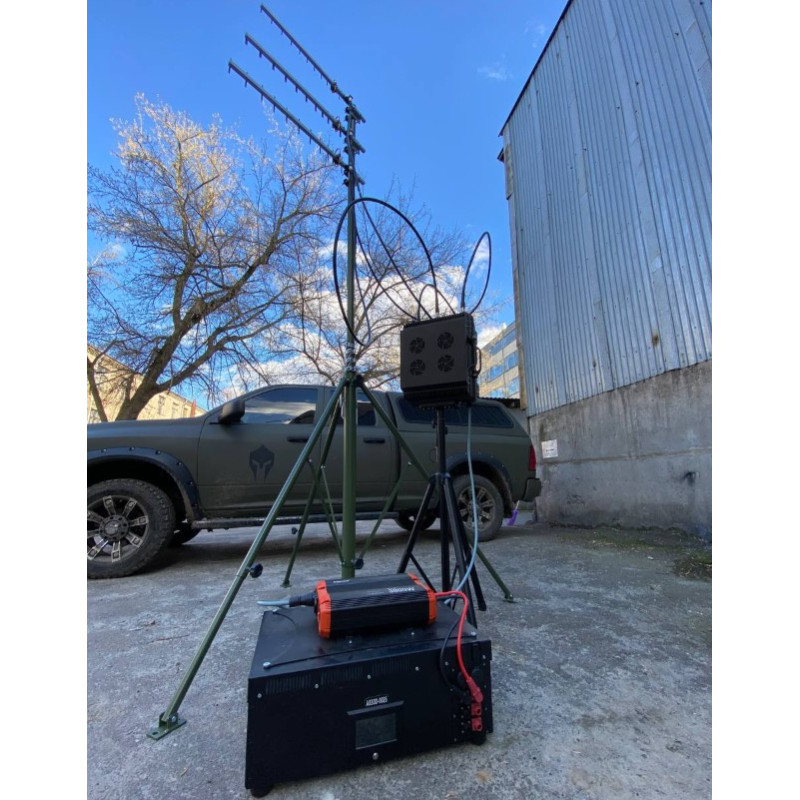

EW KVERTUS AD KRAKEN COUNTER GPS

Manufacturer: Kvertus. Purpose: EW jammer for suppressing satellite navigation channels (GPS, GLONASS, Galileo, BeiDou) in the protected area. The KVERTUS AD KRAKEN COUNTER GPS EW jammer is designed to effectively interfere with the positioning of unmanned aerial vehicles, blocking their autonomous or remote guidance to protected objects. It is recommended to use as individual units or as part of a KVERTUS AD KRAKEN COUNTER GPS network around objects requiring protection.

DEVICE JAMMING FREQUENCY RANGES

TECHNICAL SPECIFICATIONS:

• Effective range: from 500 m.
• Antennas: directional YAGI antennas, with a spatial angle of 30-40°.*
• Power supply: - from stationary sources: 220 V/50 Hz; - from external battery: 24 V (via inverter); - from inverter generator with power of at least 2500 W.
• Power consumption: no more than 2000 W.
• Continuous operation time: from 220 V, 50 Hz power source — up to 12 hours after each one-hour break; from external 24 V battery — depending on battery capacity, but no more than 12 hours after each one-hour break; from gasoline inverter generator with power of at least 2500 W — up to 3 hours after each one-hour break.
• Cooling: active.
• Readiness time: no more than 30 seconds.

By additional agreement with the manufacturer, the following components can be supplied:

• Antennas: omnidirectional — quadrifilar, collinear; antenna unit with directional antennas.
• Battery 24 V, 300 A-h.
• Inverter
• Portable frequency analyzer

PACKAGE CONTENTS:

• Generator unit — 1 pc.
• Tripod — 1 pc.
• YAGI directional antenna — 3 pcs.
• Antenna connection cables, 3 m — 3 pcs.
• Power extension cord, 10 m — 1 pc.
• Telescopic mast kit — 1 pc.
• Transport packaging — 1 pc.
• Passport and manual — 1 pc.

The KVERTUS AD KRAKEN COUNTER GPS EW jammer from Kvertus combines high output power in each of the three bands (150 W per module), mobile power options, and simple integration into existing security systems. This solution is suitable for protecting high-value objects when it is necessary to quickly and reliably interfere with UAV navigation and control. By choosing this complex, you get a modular architecture, the ability to equip with additional antennas and battery solutions, as well as a complete delivery set for rapid deployment in the field.
