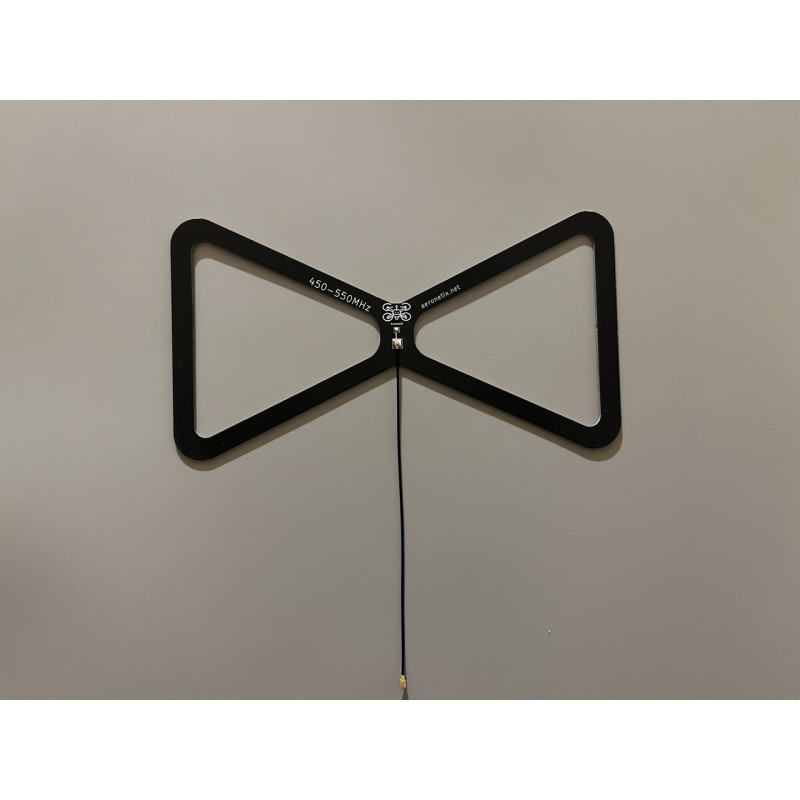

Broadband Dipole Receiver Antenna for FPV Drone Control 450-550 MHz — Aeronetix
We offer a compact and reliable broadband dipole receiver antenna from Aeronetix, designed for receiving FPV drone control signals in the 450-550 MHz range. This antenna is optimized for applications where signal stability, low weight, and ease of connection are crucial. It is ideal for upgrading or replacing standard receivers in control systems without adding unnecessary load to the platform.
Key Features
The antenna operates in a wide frequency range of 450-550 MHz with a gain of 2 dBi, making it a balanced solution between directivity and coverage. The design has operational dimensions of 195×105×1.5 mm and an operational weight of 29 g, making it suitable for lightweight FPV platforms and mini-drones where weight and compactness are important.
Connection and Design
The antenna comes with a 150 mm (15 cm) cable with an IPEX1 connector, ensuring simple and quick connection to popular receiver modules. The thin, flat design with a thickness of 1.5 mm allows the antenna to be placed under the casing or on the body surface without significantly affecting aerodynamics.
Full Technical Specifications
| Parameter | Value |
|---|---|
| Frequency Range | 450-550 MHz |
| Gain | 2 dBi |
| Dimensions | 195×105×1.5 mm |
| Weight (operational) | 29 g |
| Connector | IPEX1 |
| Cable Length | 150 mm |
Additional Parameters (Product Attributes)
- Length (attribute): 25.0
- Weight, kg (attribute): 0.100
- Height (attribute): 1.0
- Width (attribute): 14.0
Please note: the additional attributes provided (length 25.0, weight 0.100 kg, height 1.0, width 14.0) may refer to packaging or internal model labeling. Meanwhile, the operational dimensions of the antenna are stated as 195×105×1.5 mm, and the operational weight is — 29 g.
Who It's For
The Aeronetix dipole antenna is suitable for users seeking a lightweight, easy-to-install, and reliable solution for receiving control signals in the mid-frequency range. Thanks to its short 150 mm cable and IPEX1 connector, installation and connection are quick, and its minimal weight does not affect flight characteristics. This model is part of the product category: Antennas > Dipole Antennas and is well-suited for upgrading or replacing standard receiver antennas in many control systems.
If you have questions regarding compatibility or installation — please contact a manager before ordering to clarify technical details and installation recommendations.
