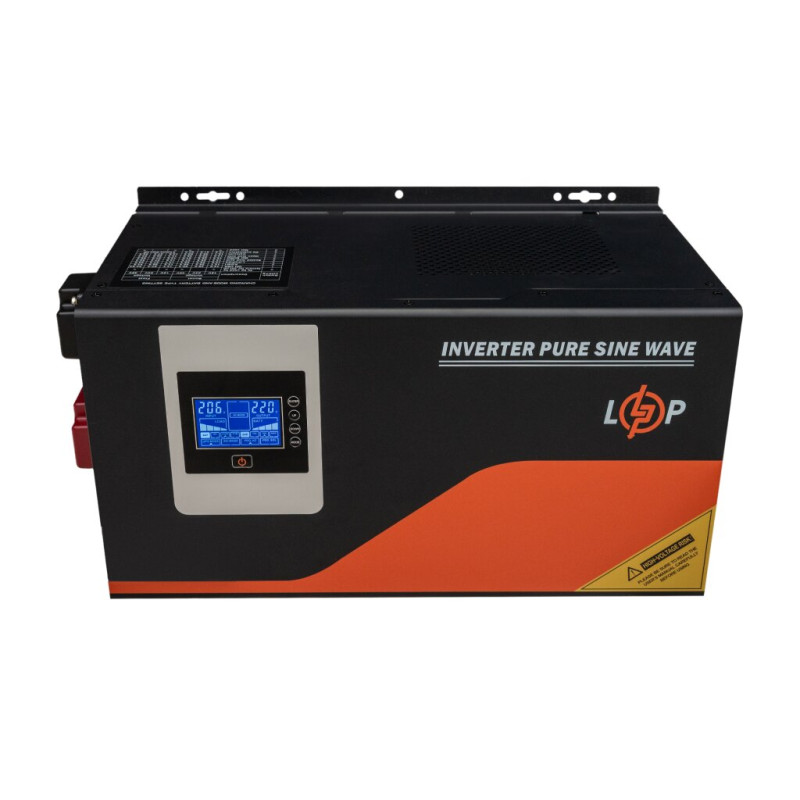

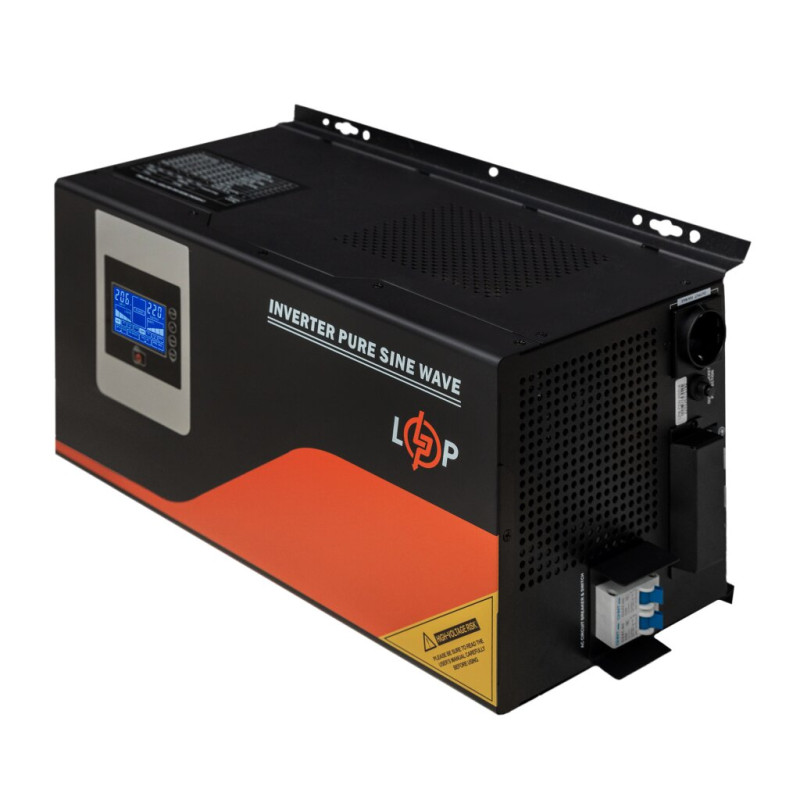

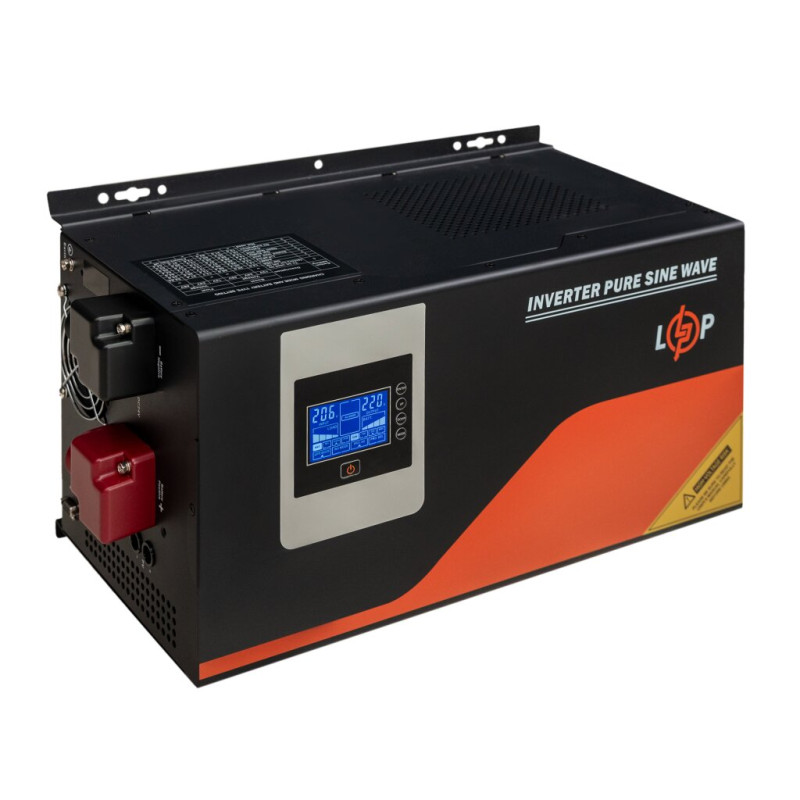

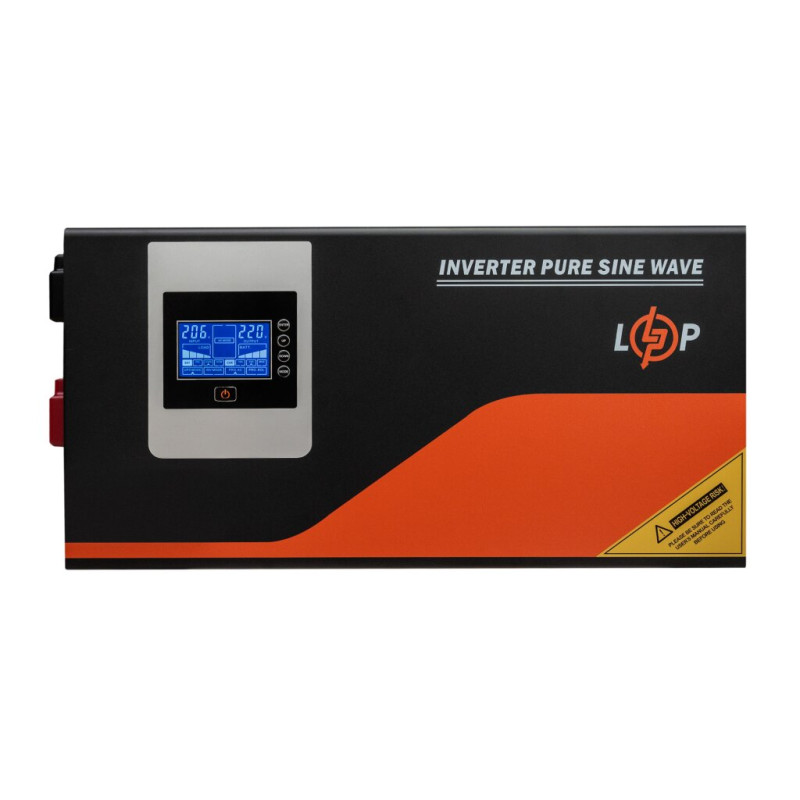

The LPM-PSW-4500VA (3000W) uninterruptible power supply has a built-in voltage stabilization function in the range from 160-275 at the input and up to 230±10% at the output.
The 48V solar inverter with MPPT controller can charge the battery from both the power grid and solar panels.
UPS for solar power plants with a built-in MPPT controller allows for the most efficient use of solar panel potential, increasing and optimizing output charge power.
The UPS must only be used with a battery that meets the technical specifications of the device.
3 steps to connect the UPS:
- Connect the battery, observing polarity;
- Connect the UPS to the mains by plugging the UPS plug into a 230V socket;
- Wait for the self-diagnosis to complete and the UPS to turn on.
Attention! The UPS will turn on automatically! Do not press the power button or interrupt self-diagnosis!
UPS with pure sine wave and external battery are used:
- as uninterruptible power supplies for gas or solid-fuel heating boilers;
- UPS for emergency lighting;
- to provide backup power for server stations and telecommunications equipment, thanks to the hot-swap battery function;
- UPS with pure sine wave for circulation pumps;
- as a voltage stabilizer with a backup power source for powerful and high-speed computers.
How to choose a UPS for heating boilers and emergency lighting systems?
Before buying a UPS with a pure sine wave, you need to consider the following technical characteristics:
-
Total power of electrical appliances that will be connected to the UPS. This parameter can be found in the technical documentation of each piece of equipment.
-
Starting power – the amount of electricity consumed by the device when it is turned on. To connect the UPS to equipment with high inrush currents, you need to choose a more powerful UPS model.
-
Required time for autonomous operation from the battery. Determined by the individual needs of the consumer. For long-term autonomous operation, you should choose a UPS with a pure sine wave output to which an external battery can be connected.
