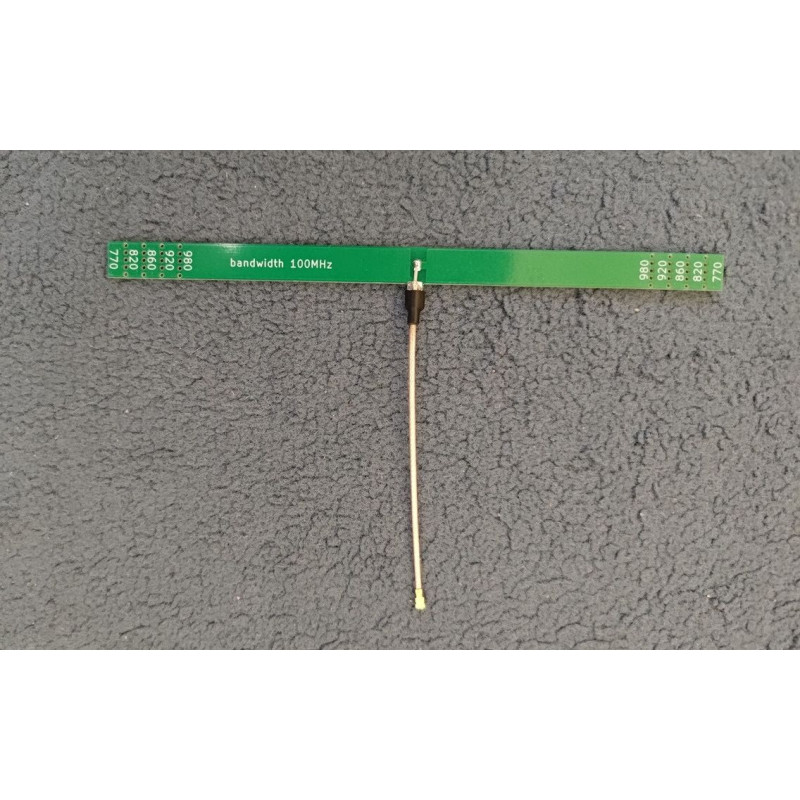

Aeronetix FPV Drone Control Receiver Dipole Antenna (20cm Cable)

We offer a universal receiver dipole antenna for FPV drone control from Aeronetix. This model is designed for reliable reception in the UHF band and is ideal for compact and lightweight platforms where low weight and ease of integration are important. The antenna combines simple installation, stable reception, and technical parameters that meet the requirements of field conditions.

Key Features

• Frequency Range: 730-800 MHz (according to technical description)
• Gain: 2 dBi
• Dimensions: 170x20x1.5 mm
• Weight (in description): 6 g
• Connector: IPEX1
• Cable Length: 180 mm (20 cm)

The manufacturer specifies additional parameters: the center frequency without trimming is 765 MHz, and the operating range by standing wave ratio (SWR) covers 720-830 MHz, which provides a margin for antenna tuning and makes reception more stable in field conditions.

Technical Parameters and Attributes

The product properties list values that will help with mounting selection and compatibility with the drone's design: Length: 17.0; Weight, kg: 0.100; Height: 5.0; Width: 10.0. Please note the difference in the specified weight values: the main description indicates 6 g, while the attributes show 0.100 kg — please consider both values when confirming the configuration and balancing the platform.

Model Advantages

• Compact dimensions of 170x20x1.5 mm and minimal mass (6 g in the description), allowing the antenna to be installed in lightweight drone frames and shells.
• Suitable for a frequency range close to 765 MHz with an SWR margin of 720-830 MHz, which simplifies tuning and increases reception stability.
• The IPEX1 connector ensures quick and simple connection to the receiver without complex modifications.
• The short 180 mm (20 cm) coaxial cable provides sufficient freedom for antenna placement in a slot or housing without additional extension.
• A small gain of 2 dBi provides directional reception without significantly increasing the antenna's mass.

This receiver dipole antenna is ideal as a spare or replacement element in FPV drone control systems when low weight and compact design need to be maintained. The IPEX1 connector facilitates integration with most modern receivers, and the length and dimension parameters (Length: 17.0; Height: 5.0; Width: 10.0) help plan mounting and placement within the housing.

Before installation, we recommend checking the compatibility of the coaxial cable and IPEX1 connector with your receiver's plugs, and considering the specified weight values (6 g and 0.100 kg) for final platform balancing. Manufacturer: Aeronetix. Product category: Antennas > Dipole Antennas.
