Product Code: FA103-17878-103
In Stock
1 282 грн.
This product has a minimum quantity of 3
Buy this product in 1 click:
Main specifications
Connector type:
SMA
Housing type:
flat patch
Polarization:
circular RHCP
Weight (depends on size):
19 g
Frequency range:
5500–5800 MHz
All specifications
We will deliver this product:
Payment
Description
*** Minimum order - 3000 UAH! Ships from a remote warehouse. Shipping times 2-5 days.

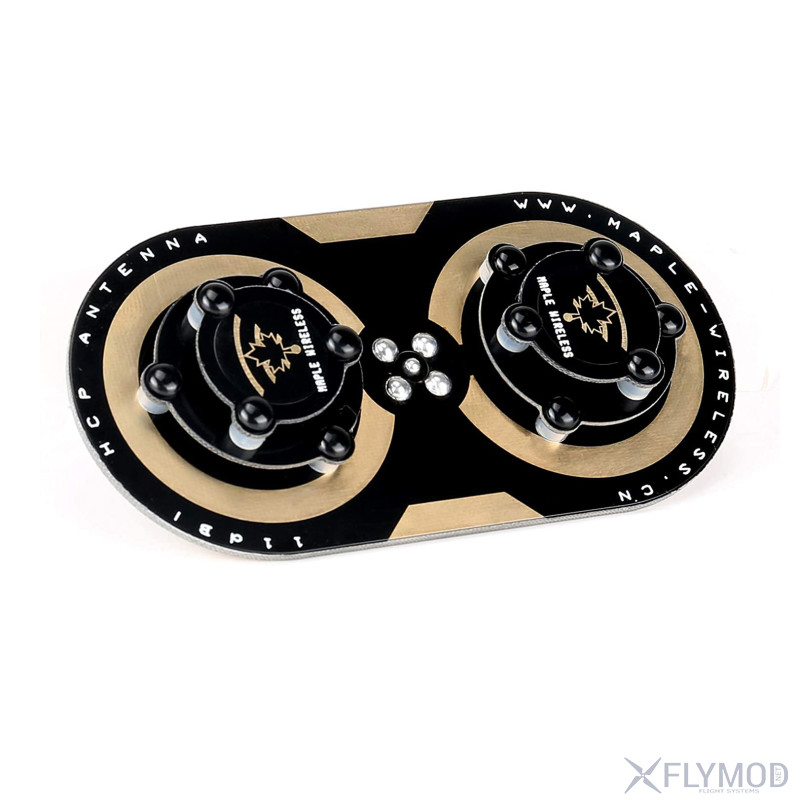

Powerful directional patch antenna Maple Wireless 5.8G with 11dBi gain and circular RHCP polarization. Beam width reaches 80° in the horizontal plane and up to 40° in the vertical plane.
The antenna design features two "sandwiches" spread out on all sides, which improves signal reception efficiency and range.
Specifications
- Frequency range: 5500-5800MHz
- Gain: 11dBi
- Polarization type: circular RHCP
- Input impedance: 50 Ohm
- Standing wave ratio: < 1.5
- Half-power beamwidth: 75° H-plane, 40° E-plane
- Front-to-back ratio: over 10dB
- Size: 82 x 42 x 24 mm
- Weight: 19g
Package Contents
- 1 x Maple Wireless 5.8G 11dBi patch antenna
- 1 x SMA 45-degree adapter
Specifications
Connector type
SMA
Housing type
flat patch
Polarization
circular RHCP
Weight (depends on size)
19 g
Size
82 x 42 x 24 mm
Antennas
Frequency range
5500–5800 MHz
Beam angle
75° H-plane, 40° E-plane
Enhancements
11 dBi
