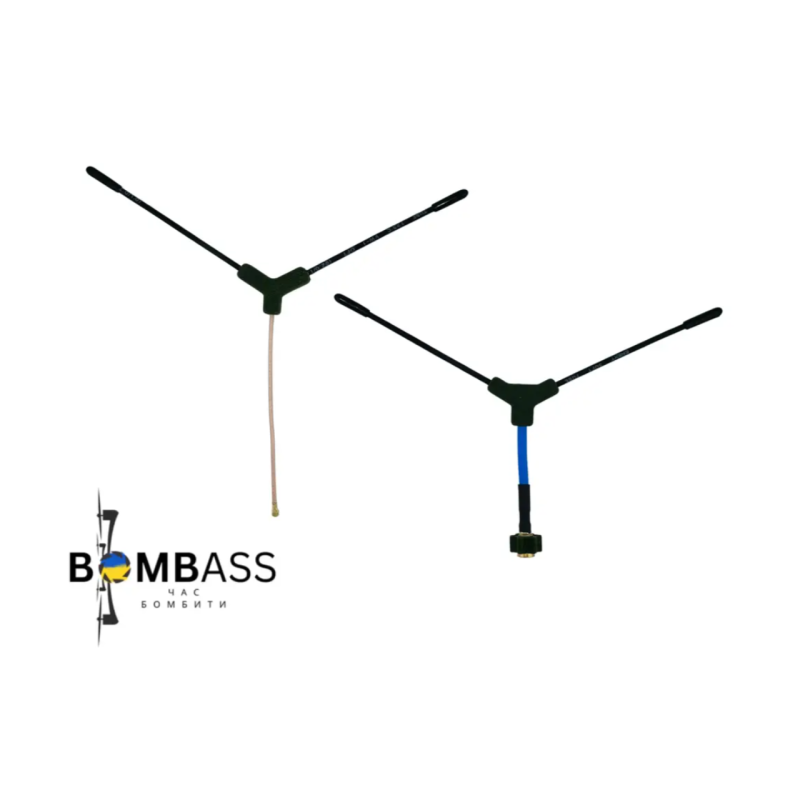

Vee Dipole TX Antenna (Fish Tail) 750 MHz — BombAss
We offer a high-quality Vee dipole TX antenna, known as "fish tail," manufactured by BombAss. By default, the model is optimized for a frequency of approximately 750 MHz, but it can be manufactured and tuned for any operating frequency in the range of 500 MHz to 2.8 GHz. The antenna is designed for FPV applications, radio communication, and other signal transmission systems where a reliable, moisture-resistant design and the possibility of individual tuning are required.
Key Features:
- Antenna Type: Vee Dipole (Fish Tail)
- Bandwidth (at VSWR < 1.5): 40 MHz
- Connector Type: SMA male (RG402)
- Cable Length: Any (custom order)
- Radiation Pattern: Toroidal
- Gain: 2.15 dBi
- Moisture Resistance: IP65

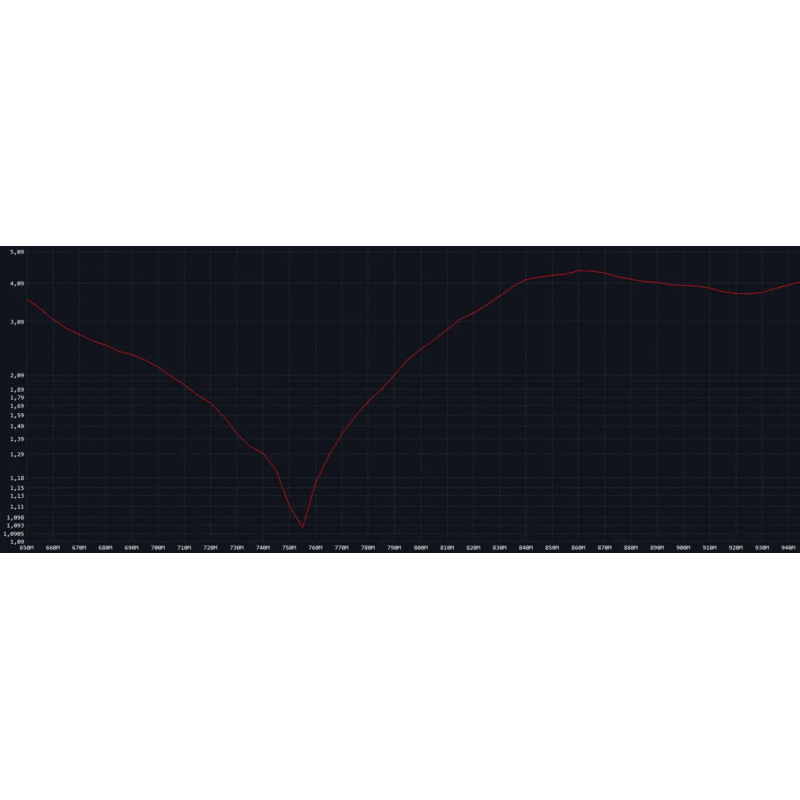

Each antenna is individually tuned to the required operating frequency using a professional vector analyzer to achieve optimal matching parameters and minimum VSWR. This ensures a stable signal, minimal losses, and maximum efficiency in the specified frequency range.
Design Advantages
The Vee shape ("fish tail") provides broadband operation with a smooth radiation pattern, which in most cases results in a toroidal radiation characteristic. This shape is ideal for tasks requiring uniform horizontal coverage and reliable reception in various antenna positions. The compact and robust design makes the antenna suitable for outdoor use in various climatic conditions.
Additional Information and Recommendations
The SMA male (RG402) connector ensures a reliable connection to your equipment. If a non-standard cable length is required, we can order the antenna with a cable of any length to meet your request. The IP65 protection class guarantees resistance to moisture and dust, increasing durability in field conditions.
Technical Parameters| Parameter | Value |
|---|---|
| Model | Vee Dipole (Fish Tail) TX |
| Frequency | 750 MHz (tunable: 500 MHz — 2.8 GHz) |
| Bandwidth | 40 MHz (VSWR < 1.5) |
| Connector | SMA male (RG402) |
| Cable Length | Any (custom order) |
| Radiation Pattern | Toroidal |
| Gain | 2.15 dBi |
| Moisture Protection | IP65 |
| Manufacturer | BombAss |
The model is also tagged TG - BombAssFPV, emphasizing its FPV application orientation and high technical parameter requirements. We recommend ordering tuning for a specific operating frequency to achieve the best VSWR performance and minimize signal loss.
If you need consultation regarding frequency selection, cable length, or equipment compatibility, please contact customer support. Our specialists will help you choose the optimal configuration and perform professional tuning on a vector analyzer.
