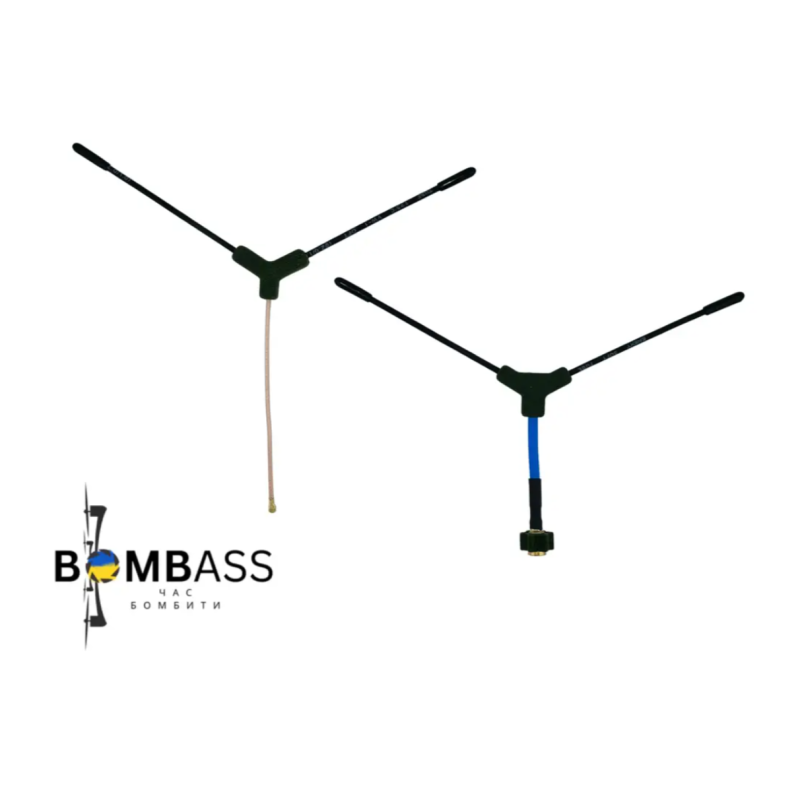

Vee dipole RX antenna (fishtail) 750MHz — a versatile solution from BombAss

Introducing the compact and reliable Vee dipole ("fishtail") RX antenna from BombAss, optimized for operation at 750 MHz with the ability to fine-tune to any frequency in the range from 500 MHz to 2.8 GHz. This antenna combines ease of installation, high resistance to external influences, and a stable radiation pattern, making it an ideal option for FPV projects, data transmission systems, and other radio frequency applications.

Description and application

Antenna type: Vee dipole (fishtail). Product category: Antennas > Dipole antennas. The model is suitable for users who need moderate gain and a wide operating band, as well as compatibility with standard modular boards thanks to its compact connector.

Technical specifications

• Default operating frequency: 750 MHz (adjustable in the range 500 MHz — 2.8 GHz)
• Bandwidth (VSWR < 1.5): 40 MHz
• Connector: IPEX1 (1.13 mm)
• Cable length: 10/15 cm
• Radiation pattern: toroidal
• Gain: 2.15 dBi
• Moisture resistance: IP65 protection rating

The "fishtail" design ensures compactness and a good size/efficiency ratio. The IPEX1 connector makes the antenna compatible with many boards and modules without the need for bulky adapters, and the 10 or 15 cm cable allows flexible antenna placement in confined spaces.

Setup and quality

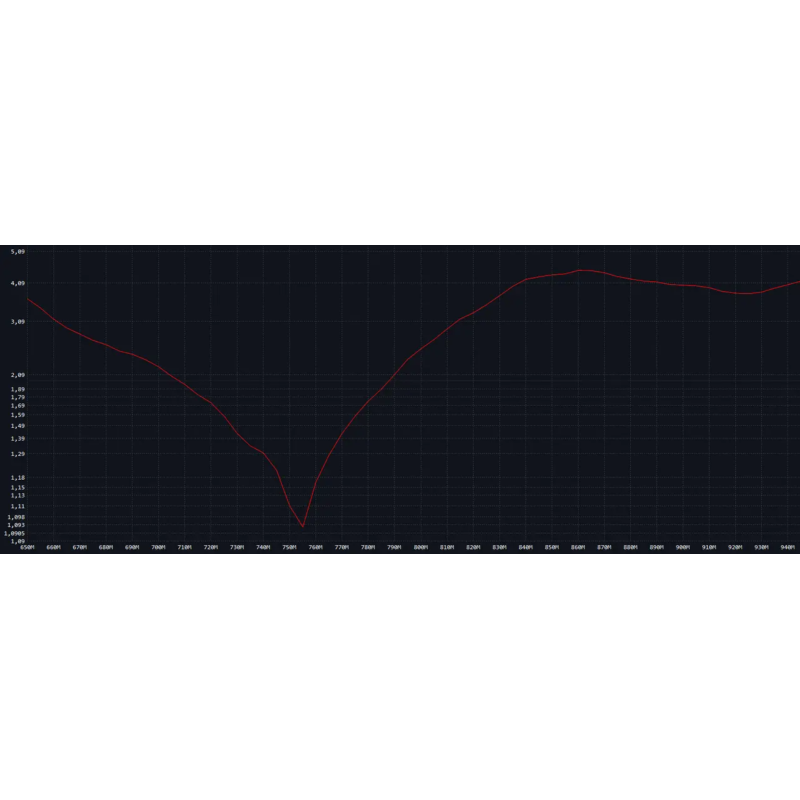

Each antenna is factory-tuned to the desired frequency using a vector analyzer, which guarantees compliance with the declared bandwidth and VSWR parameters. This confirms a high level of quality control at all stages of production and before shipment to the client.

Additional information: for prompt technical support, the model description includes the TG channel — BombAssFPV, through which you can get advice on frequency selection or compatibility with your equipment.

The Vee dipole RX antenna from BombAss is a compact and reliable choice for those who need an antenna with precise tuning capabilities in the range from 500 MHz to 2.8 GHz, with a 40 MHz operating band, IPEX1 connector, 10/15 cm cable, toroidal radiation pattern, 2.15 dBi gain, and IP65 protection. It is suitable for applications in data transmission systems, FPV projects, and other radio frequency solutions where reliability and ease of integration are required.
