DDSR1 V3 Drone Detector — Updated UAV Detection System

The DDSR1 V3 is the third version of a highly effective drone detector from Kseonics Technology (Manufacturer country: Ukraine). The device is designed for operational airspace monitoring and detection of control panels and unmanned aerial vehicles in the 0.9, 1.2, 2.4, and 4.9–6.0 GHz bands at a distance of 1500 m, even in challenging conditions (at night or in poor visibility). Directional antennas allow determining the direction of UAV approach, and the compatible MDDSR1 mobile device displays signals for additional control.

Advantages of DDSR1 V3

This detector is designed for early warning of approaching quadcopters, UAVs, and active EW signals. Thanks to its high sensitivity and wide frequency range, the DDSR1 V3 helps to react in time — change position, use EW equipment for suppression, or take other protective measures. The device is also suitable for collective protection during prolonged stays in one location while performing tasks.

• Range: from 1500 m
• Detects: quadcopters, UAVs, active EW, control panels
• Operating time: up to 16 hours

Technical Specifications

Operating frequency ranges and approximate detection distances:

• 860–928 MHz — from 1500 m
• 1080–1360 MHz — from 1500 m
• 2400–2520 MHz — from 1500 m
• 4900–6000 MHz (analog video signal) — from 1500 m

The device does not scan non-standard FPV frequencies outside the operating range. The maximum tested detection height is 500 m.

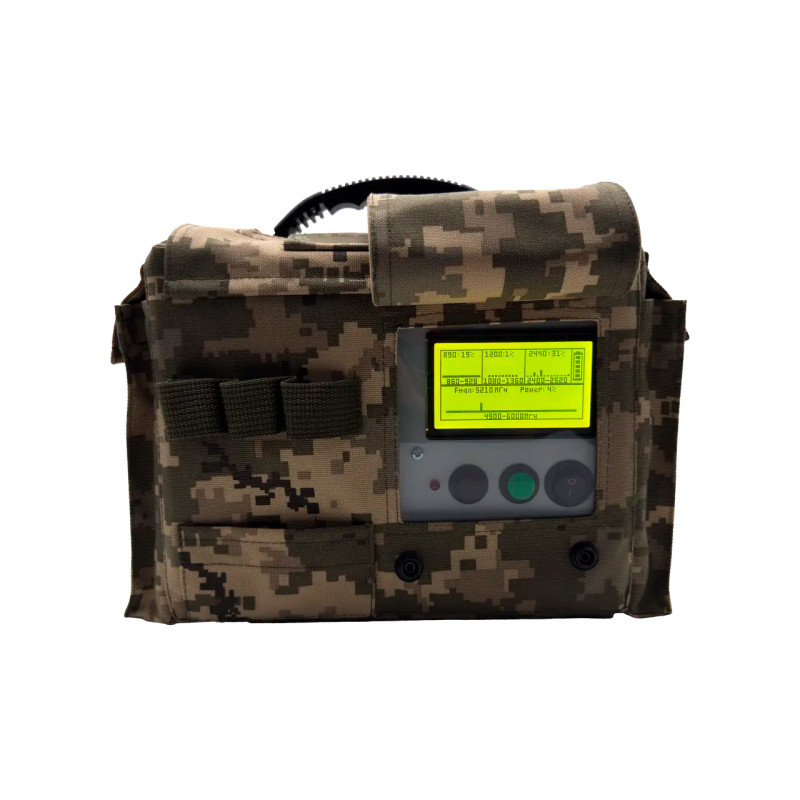

Alert methods: audible signal, vibration, LED indication, display message, alarm to headphones or external acoustic system.

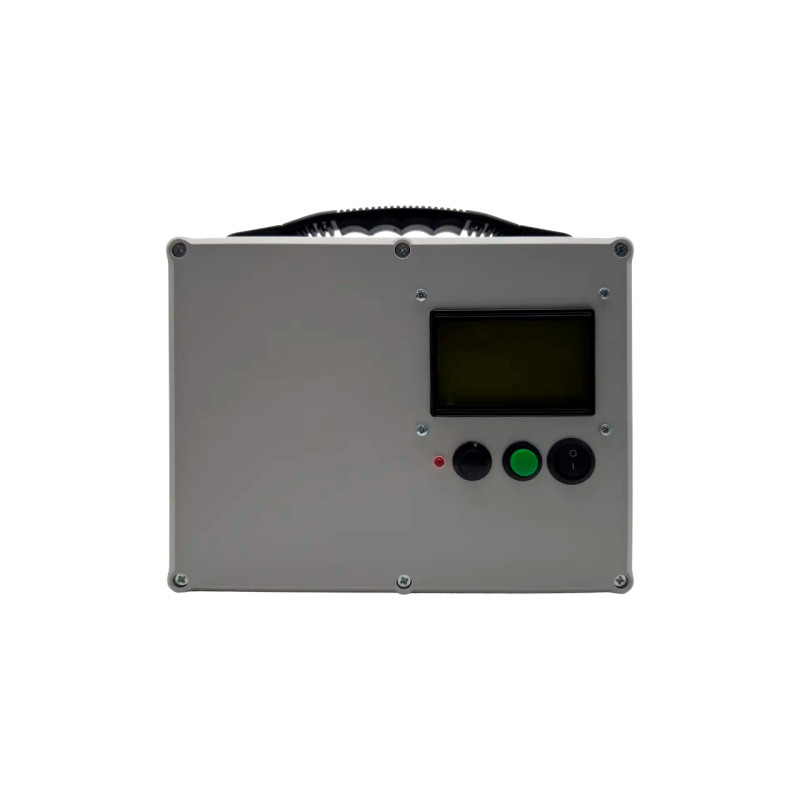

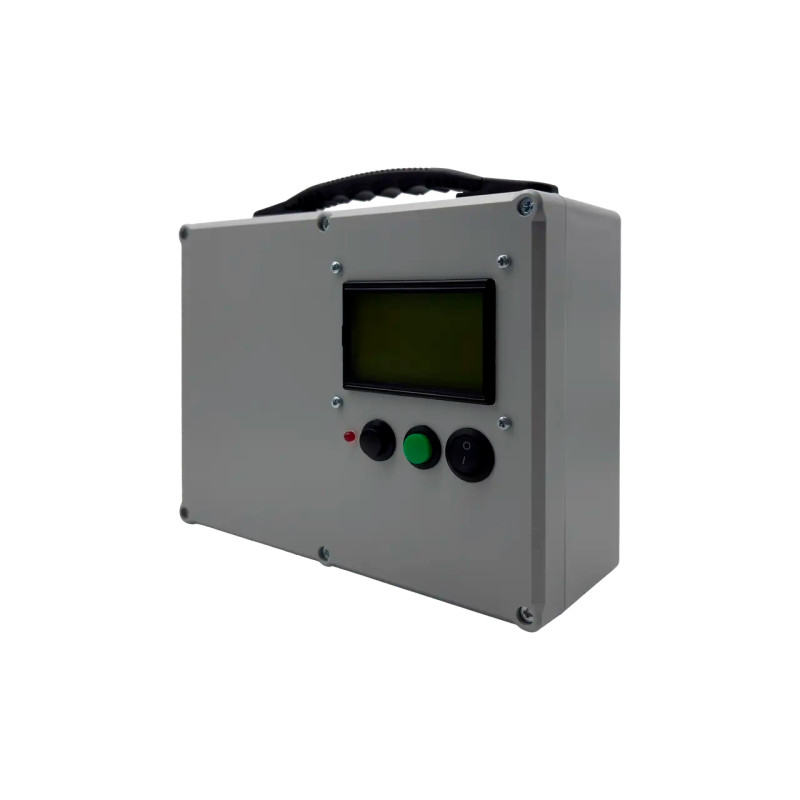

Housing protection: IP65. Display: graphic LCD 3.2" 128x64. Battery capacity: Li-Ion 20000 mAh. Charging time: up to 3 hours (AC/DC 16.8V / 2A). Operating time: up to 16 hours (depends on operating mode and conditions).

Dimensions and Weight

Device dimensions: length 225 mm, width 175 mm, height 80 mm. The source data contains different values for weight and width: the main text indicates a weight of 1450 g, while the specifications table shows 1100 g. Also, in the table, the width is stated as 175 cm — please note the discrepancy in units of measurement in the original data.

Package Contents

• DDSR1 V3 drone detection device
• User manual (warranty card)
• AC/DC 16.8V / 2A mains charger

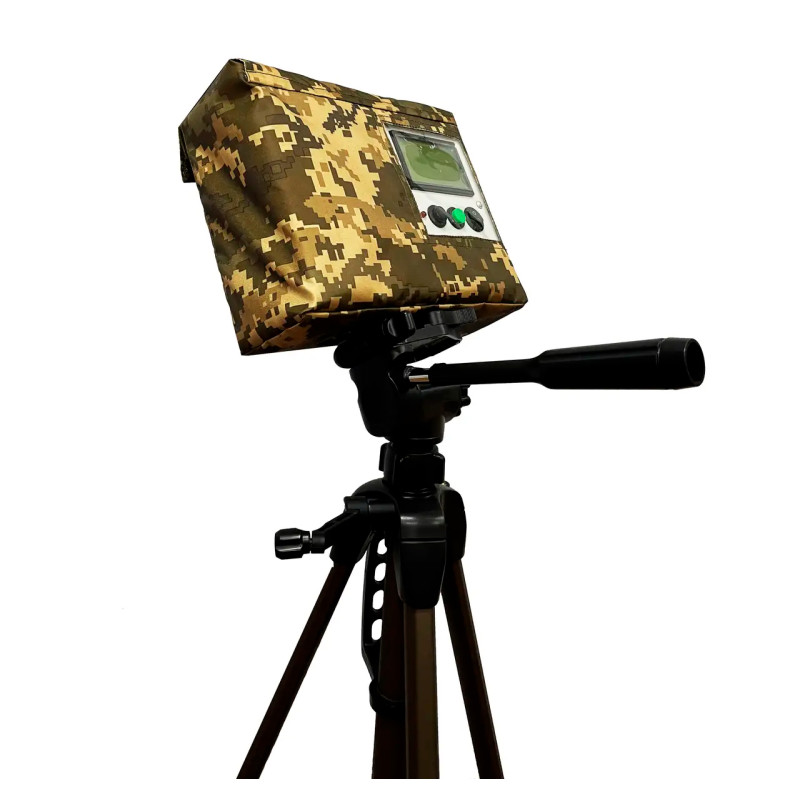

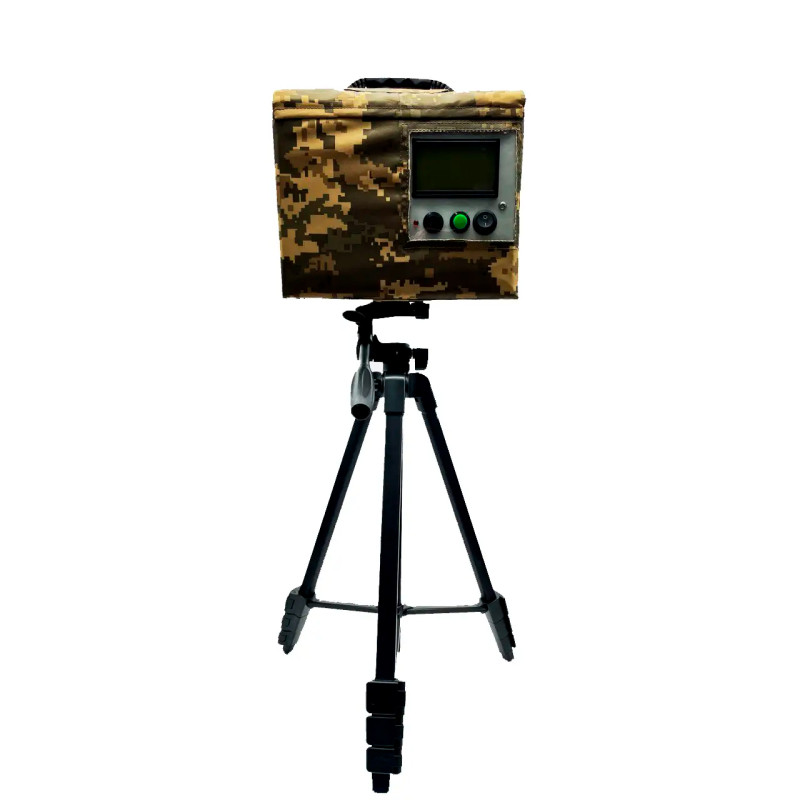

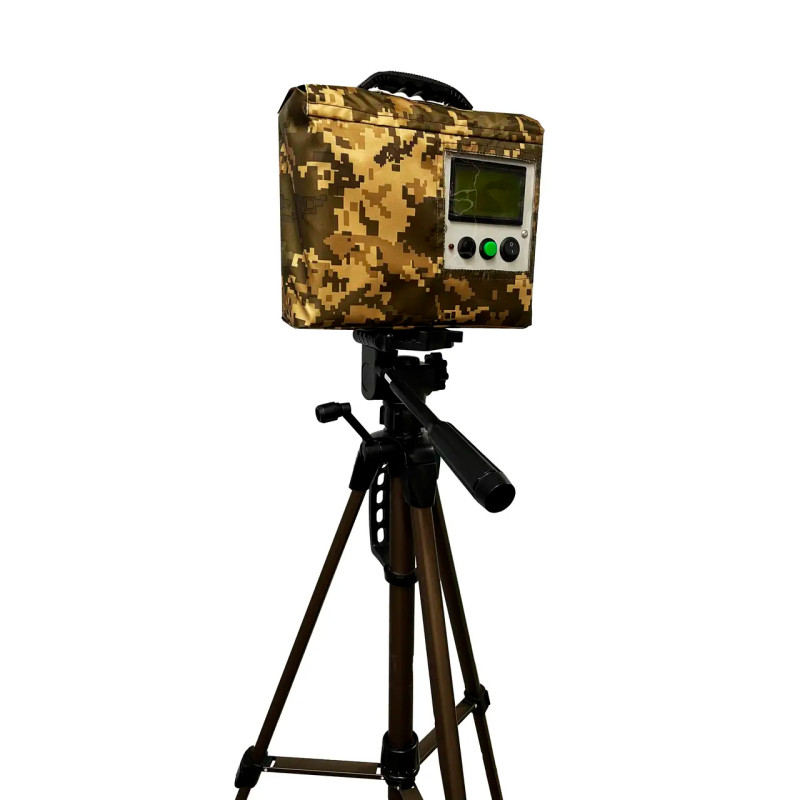

• Additional accessories: case, tripod

Manufacturer and Materials

Manufacturer: Kseonics Technology. Country of manufacture: Ukraine. Color: gray. Housing material: plastic. Condition: new. Battery type: Li-Ion. Battery capacity: 20000 mAh. Assembly tool: False.

The DDSR1 V3 is a reliable drone detector for operational detection and control of airspace. It combines broad detection capability across various frequency bands, an IP65-rated protected housing, a high-capacity battery for extended field operations, and convenient event indication. The device is suitable for object protection, police and military operations, and any tasks where early warning of an approaching drone is critical.
