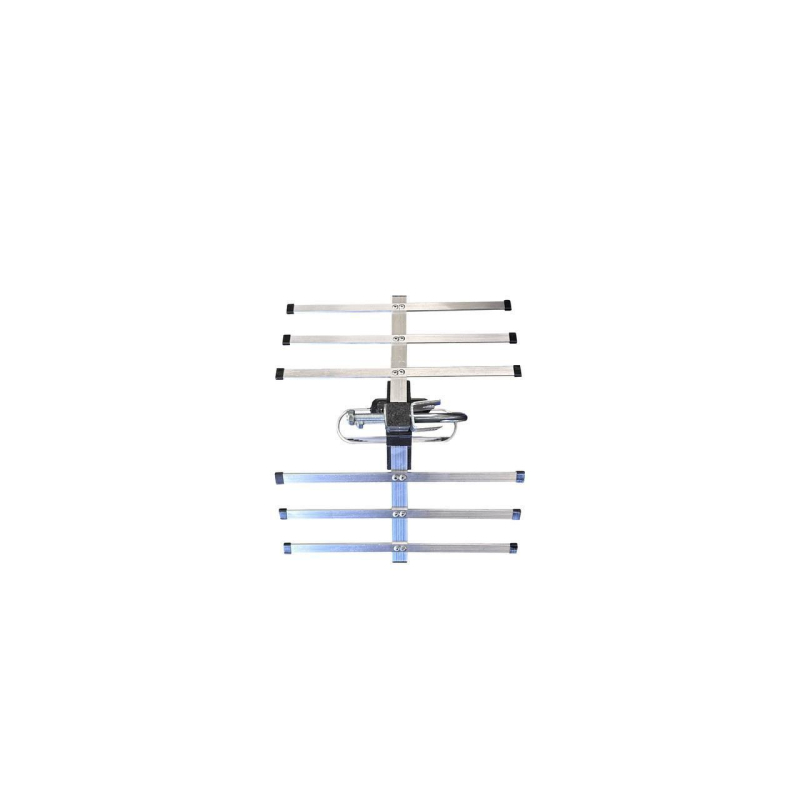

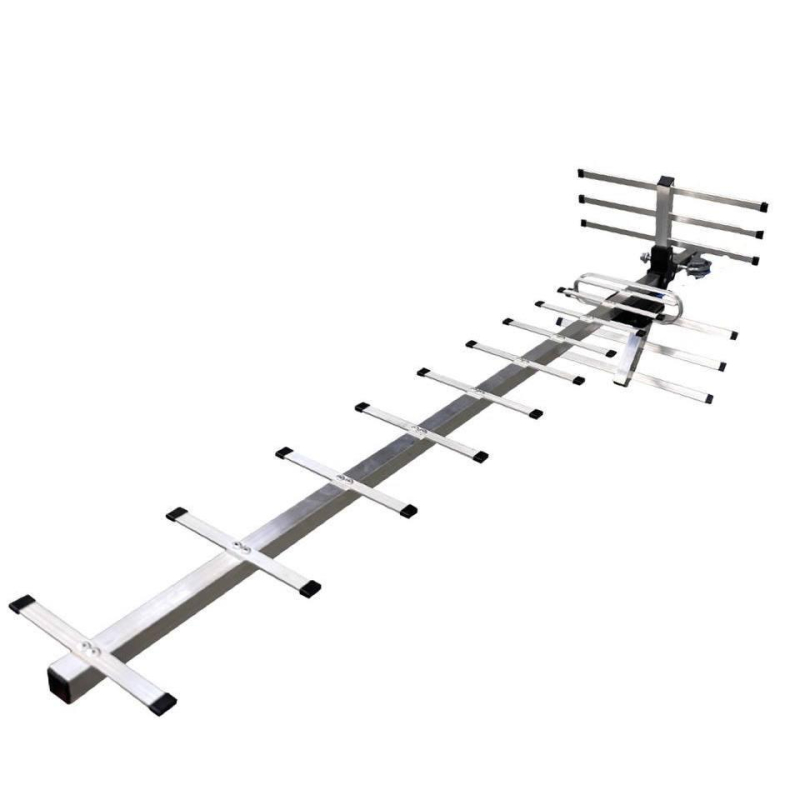

Yagi antenna for FPV control systems SKYNOVA
This antenna has a wide frequency range:
1. Version with range 680-880 MHz (12-15dBi gain)
2. Version with range 880-1080 MHz (12-15dBi gain)
3. Version with range 420-500 MHz (12-15dBi gain)
4. Version with range 700-950 MHz (12-15dBi gain)
5. Version with range 370-420 MHz (12-15dBi gain)
6. Version with range 250-300 MHz (12-15dBi gain)
7. Version with range 450-580 MHz (12-15dBi gain)
*Please specify your frequency in the order comments
Gain chart for 670-870MHz antenna:
VSWR chart for 670-870 MHz antenna:
Gain chart for 880-1080 MHz antenna:
VSWR chart for 880-1080 antenna:
High-quality RG402 cable is used, with a transmission speed 80% of the speed of light.

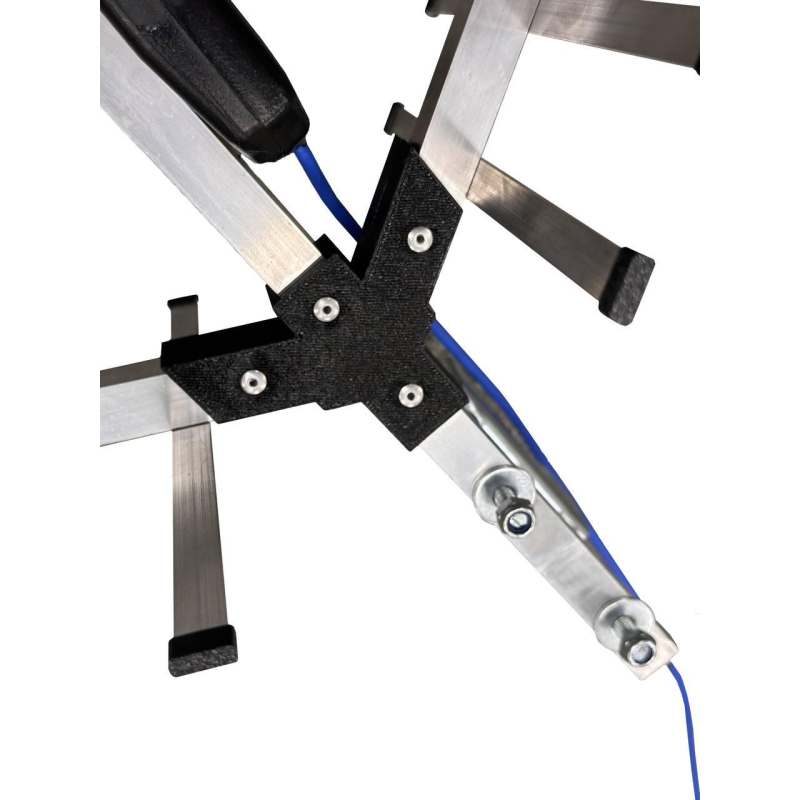

Balun for Yagi:
Specifications:
Antenna type: Yagi.
Purpose: FPV control at frequencies in the 670-1080MHz range.
Antenna material: aluminum.
Number of gain elements: 10.
Vibrator material: copper/aluminum.
Cable type: RG402.
Connector type: SMA (for RG402 cable). Different connectors can be made for your devices.
Frequency: 670-870MHz (12-15dBi)/880-1080MHz (12-15dBi).
Connection cable length: 50cm (can be made longer upon request)
Balun: RG402 common ground (photo above).
