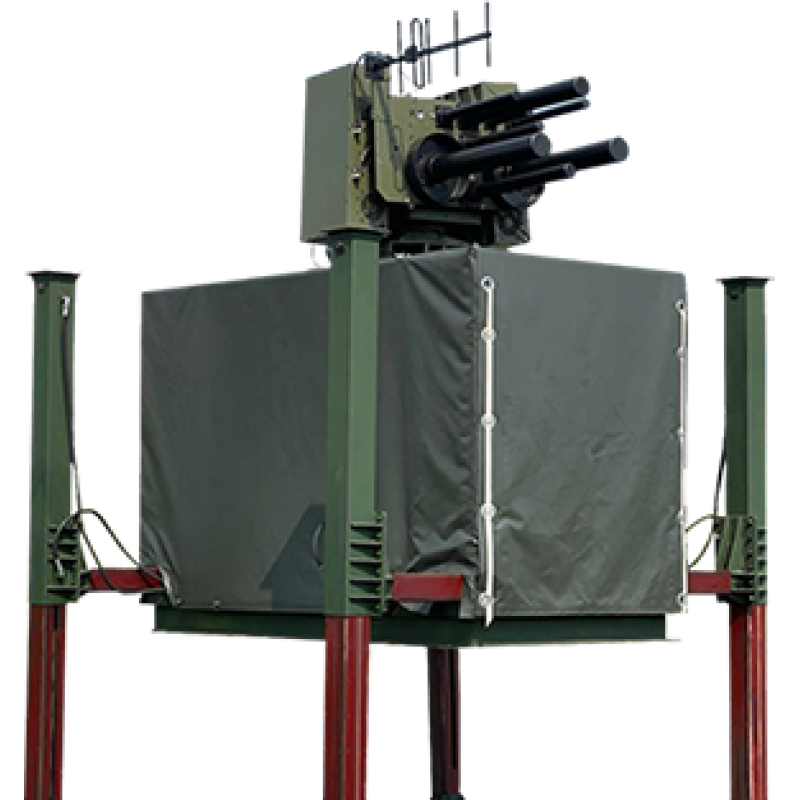

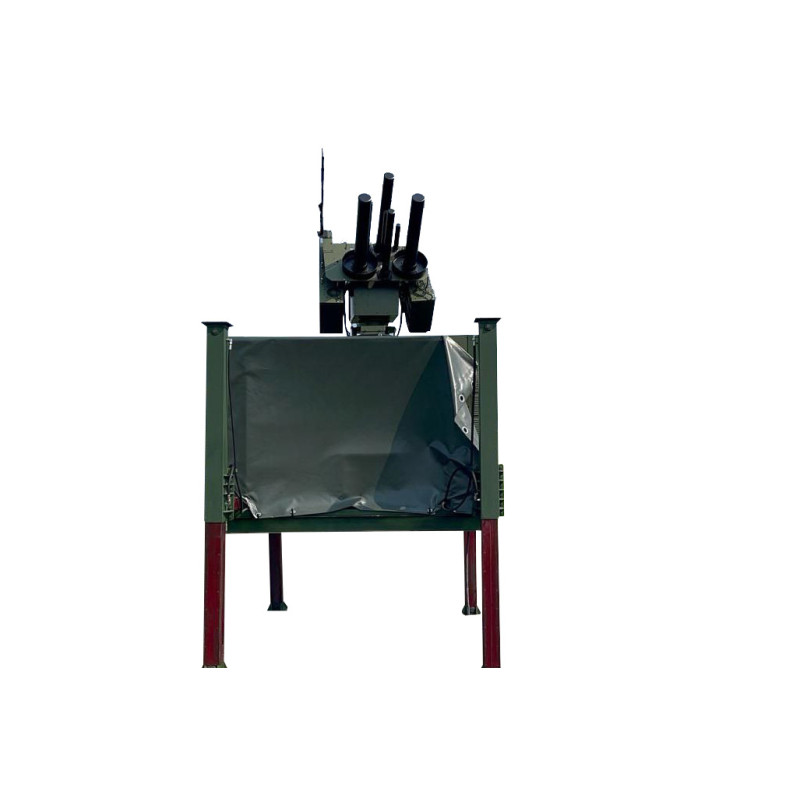

Mobile Counter-UAV System MSPBPLA-12 "Closed Sale"

The price is for marketing purposes. Please inquire about the actual price with our manager. Calculation is performed individually based on your request!

The Mobile Counter-UAV System MSPBPLA-12 "Closed Sale" from Piranha-Tech is a modern EW complex designed for effective protection of territories, infrastructure objects, and confidential zones from unauthorized UAV flights. The complex combines a robust stationary design with the capability for rapid mobile deployment, ensuring operational efficiency and flexibility for field and perimeter security applications.

Complex Components and Power Supply

The system includes a lifting mechanism for antenna deployment, high-precision electronic units, a control panel in a protected shockproof case, an integrated personal computer with specialized software, and an autonomous power supply system that allows operation without connection to an external power grid. Internal power is supplied by 24/28 V DC. Energy consumption does not exceed 6 kW, allowing the use of backup power sources or autonomous power supply units.

Specifications

• Total output power up to 1500 W
• Number and type of antennas: up to 12 directional antennas
• Antenna gain: at least 8 dBi for low frequencies and at least 12 dBi for high frequencies
• Generator type: VCO+PLL/PLL
• Protection: VSWR, overheating
• Control: control panel in a protected shockproof case
• Integrated PC with specialized software
• Internal power: 24/28 V DC
• Consumption: no more than 6 kW
• Operating conditions:
• Operating temperature: -20…+40oC
• Humidity: 5%…95%

Operating Principle

The system's operation involves jamming radio signals across multiple frequency bands to block UAV control and data transmission channels. During complex operation, operator commands are suppressed, video signals and telemetry are blocked, and geopositioning systems are disrupted. As a result, drone control becomes difficult or impossible: loss of orientation, forced landing, return to the takeoff point, or emergency landing may occur.

Counteraction Effect

• Loss of UAV/drone operator control or significant control difficulties
• Loss of video signal from UAV
• Inability to use geopositioning systems
• Loss of telemetry readings from UAV

The system is designed for round-the-clock operation in various weather conditions and provides stable protection against aerial threats. It is optimal for security companies, government facilities, critical infrastructure enterprises, and high-risk areas for unauthorized drones. The product belongs to the EW category (product type: EW > Trench EW) and is manufactured by Piranha-Tech. Orders and individual calculations are handled through our company's sales department.
