Multi-channel Combined Action System PIRANHA "Ocheret-M" "Closed Sale"

Brand: Piranha-Tech
Product Type: EW Jammers

The price is for marketing purposes. Please inquire about the actual price with our manager. Calculation is performed individually based on your request!

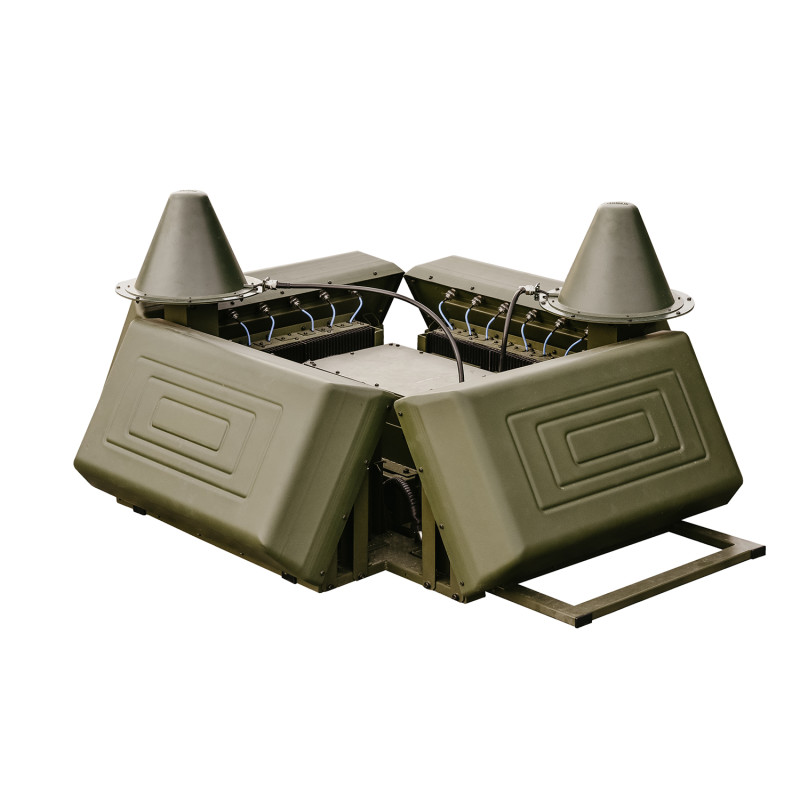

PIRANHA "Ocheret-M" is a directional, powerful electronic jammer designed for effective suppression of UAV control and communication channels. The system provides simultaneous operation across numerous frequency bands, combining four directional channels with additional omnidirectional antennas for low-frequency bands. The control system is built on a microcontroller with functions for jammer frequency stabilization, automatic activation when integrated with RF detectors, and overheating protection, which increases operational reliability during prolonged operations and in field conditions.

Key Features

• Directional jamming in four directions for precise target suppression.
• Additional omnidirectional antennas for low-frequency channels, providing coverage for a wide range of threats.
• Adjustable powerful 140 mm cooling system fans with rotation speed control to prevent overheating.
• Capability for autonomous power supply and remote control from a console.
• Car roof mounting and IP55-rated aluminum casing for field operation.
• Ability to integrate with RF detectors with automatic jammer activation upon drone detection.

Technical Specifications

• Up to 26 bands; directional channels are duplicated in four directions for simultaneous coverage of multiple sectors.
• Output power: 50 W per channel for directional antennas; 100 W per channel for omnidirectional antennas.
• Can simultaneously operate on frequency bands specified in the specification, allowing suppression of various types of UAV communication.
• High-gain directional antennas ensure precise energy steering into desired sectors.
• Absence of interference for adjacent frequency bands due to high-quality filtering and design solutions.
• VSWR protection to ensure system parameter stability.
• Overheating protection and adjustable cooling fans (140 mm) with rotation speed control.
• Operating temperature: from -20˚C to +40˚C, allowing the system to be used in a wide range of climatic conditions.
• Weight: 110 kg, accounted for in the development of mounting and transportation options.
• Overall dimensions (L×W×H): 1500×1185×612 mm.

Design and Operation

The casing is made of aluminum, combining reliability with relatively low weight while maintaining structural strength. IP55 rating guarantees protection against dust and water splashes, allowing PIRANHA "Ocheret-M" to be used in field and mobile operations. The presence of a jammer frequency stabilization system and microcontroller-based control ensures accuracy and reliability during long operating cycles, and facilitates integration with existing detection systems.

The system allows for car roof mounting, autonomous power supply, and remote control from a console, making PIRANHA "Ocheret-M" a flexible solution for mobile and stationary EW tasks. The device is suitable for military units, specialized services, and private security systems that require powerful and reliable jamming against drones.

The frequency range and detailed operating spectra of the system can be viewed via the image link: Frequency Range Image

As a manufacturer, Piranha-Tech offers a high-tech system for UAV protection with the ability to integrate into existing threat detection and management systems. PIRANHA "Ocheret-M" provides a comprehensive approach to drone countermeasures, combining high output power, directional impact, and automatic protective mechanisms necessary for modern tactical tasks.
