Mini Tractor KENTAVR F404XU — a powerful and reliable mini tractor from the manufacturer KENTAVR, designed for field, municipal, and transport work on private farms and smallholdings. This is a 4x4 all-wheel-drive machine with a KM490BT four-cylinder vertical diesel engine, rated at 40 hp (29.3 kW), combining efficiency, economy, and durability.
Brief Overview and Advantages
The KENTAVR F404XU is equipped with a modern 2543 cm3 diesel engine with an in-line plunger fuel pump and direct injection. The nominal engine speed is 2350 rpm with a fuel consumption of ≤238 g/kWh. The vertical arrangement of cylinders (bore 90 mm, piston stroke 100 mm) ensures stable operation under load, and forced liquid cooling maintains operating temperature in challenging conditions.
Driving Comfort and Transmission
The tractor features power steering with a separate pump and oil reservoir for easy steering, a dry single-disc clutch, and drum brakes for reliable deceleration. The fan is driven by a V-belt transmission. The gearbox (4+1)x2 allows for speed adjustment: theoretical forward speed from 0.39 to 31.97 km/h, reverse from 0.51 to 12.76 km/h.
Hydraulics and Mounted Mechanisms

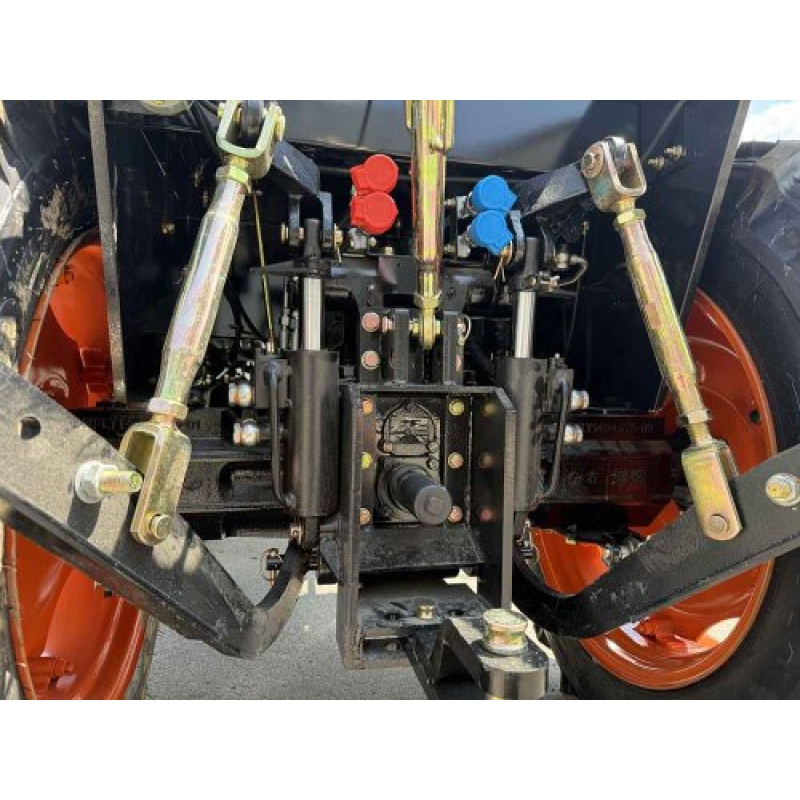

The hydraulic system with a gear pump ensures the operation of mounted equipment, with a maximum lifting capacity of the rear linkage of 550 kg. The power take-off (PTO) shaft speed is 540/1000 rpm, making the tractor compatible with many implements and mechanisms.
Technical Specifications
Below is a complete table of technical parameters for the KENTAVR F404XU model:
| Tractor power, hp (kW) | 40 (29.3) |
| Wheel formula | 4x4 |
| Engine brand | KM490BT |
| Engine type | vertical, 4-cylinder 4-stroke diesel with forced liquid cooling and direct injection |
| Engine displacement, cm3 | 2543 |
| Cylinder bore / piston stroke | 90x100 |
| Nominal engine fuel consumption, g/kWh | ≤238 |
| Fuel pump type | plunger, in-line |
| Nominal crankshaft speed | engine, rpm 2350 |
| Engine oil type | mineral or semi-synthetic for diesel engines |
| Gearbox (КПП) | (4+1)x2 |
| Front axle oil type | transmission oil |
| Clutch | dry, single-disc |
| Power steering | with separate pump and oil reservoir |
| Cooling system fan drive | V-belt transmission |
| Braking mechanism | drum type |
| Power take-off (PTO) shaft speed, rpm | 540/1000 |
| Hydraulic system pump type | gear pump |
| Maximum lifting capacity of mounted mechanism, kg | 550 |
| Minimum ground clearance, mm | 310 |
| Wheelbase, mm | 1820 |
| Wheel track, mm | front 1220, 1440; rear 1200, 1360, 1400 |
| Tire size | front 7.50-16.0; rear 11.2-28.0 |
| Minimum turning radius, m | with one-sided brake 4.15, without brake 4.45 |
| Theoretical travel speed, km/h | forward 0.39 - 31.97, reverse 0.51 - 12.76 |
| Fuel tank capacity, L | 50.0 |
| Engine crankcase volume, L | 6.0 |
| Gearbox, rear axle, and lift crankcase volume, L | 12.5 |
| Front axle crankcase volume, L | 8.0 |
| Engine cooling system volume, L | 5.0 |
| Overall dimensions (LxWxH), mm | 3540x1570x2050 |
| Curb weight, kg | 1440 |
Application
The KENTAVR F404XU is ideal for plowing, cultivating, sowing, soil tillage, cargo transportation, and working with mounted equipment. Reliable hydraulics, a versatile PTO, and a powerful diesel engine make this mini tractor an effective assistant in farms, homesteads, and municipal services.
Manufacturer: KENTAVR. Category: Tractors > Mini Tractors.
