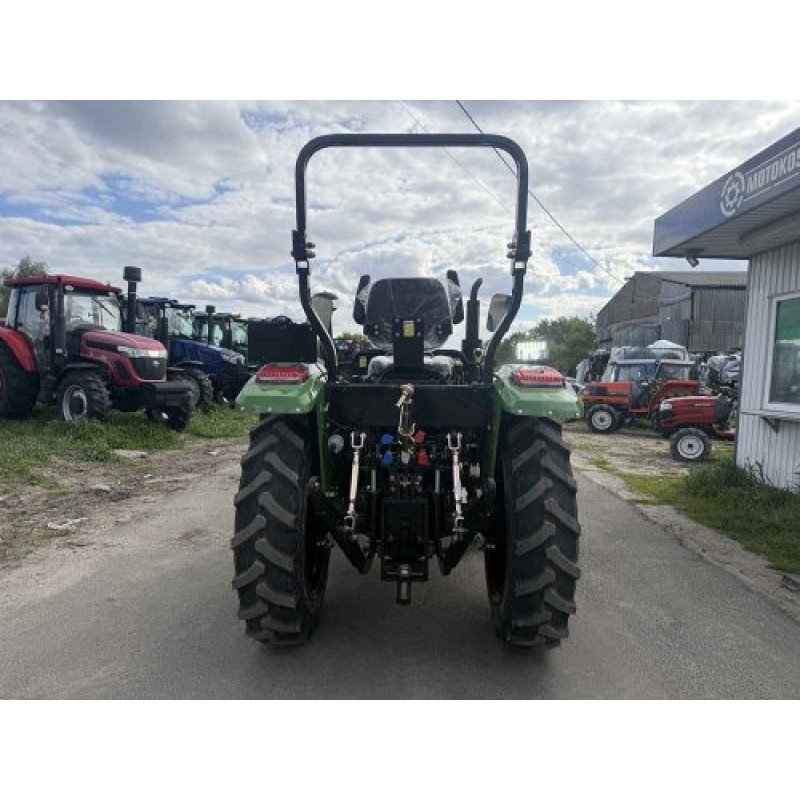

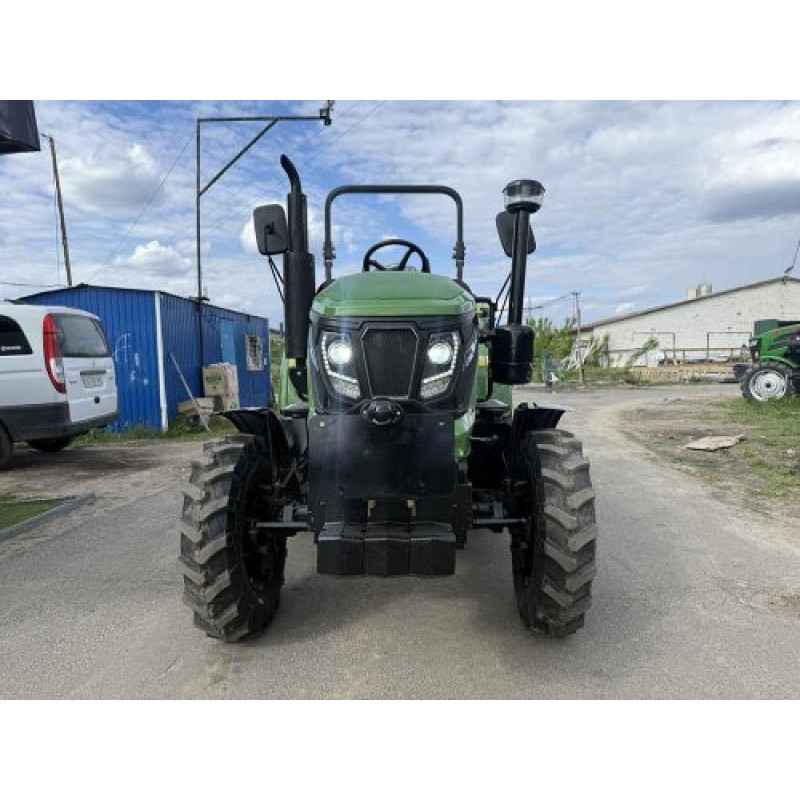

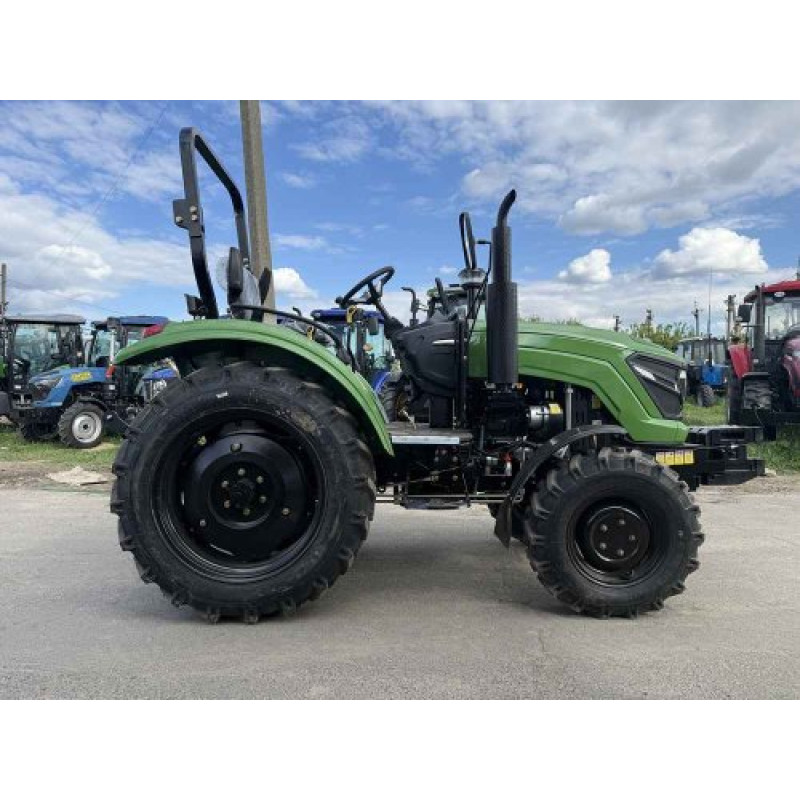

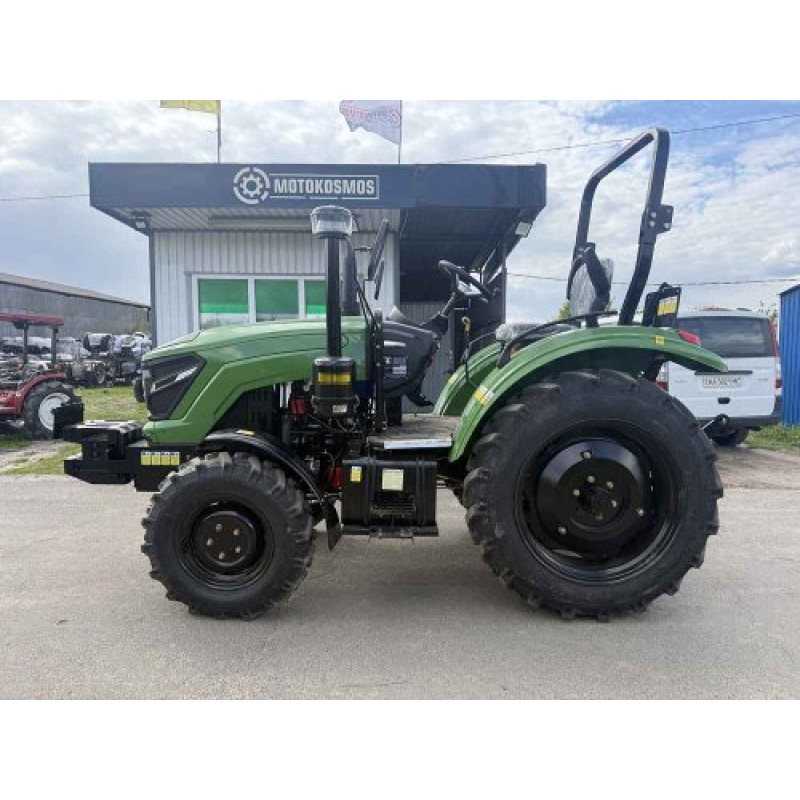

KENTAVR F244XU Mini Tractor — A Reliable Helper for Your Farm
Model: KENTAVR F244XU. Manufacturer: KENTAVR. This is a compact and powerful mini tractor with 4x4 all-wheel drive, designed for farm work, gardening, construction, and various agricultural tasks. It combines a 3-cylinder diesel engine with a displacement of 1530 cm3, electric start, and a modern hydraulic system, making it a versatile solution for working with attachments.
Key Features and Technical Data
- Engine power: 24 hp (17.65 kW).
- Engine type: diesel, 4-stroke, direct injection, naturally aspirated.
- Cylinders: 3, vertical arrangement.
- Starting system: electric starter.
- Cooling system: liquid, closed, with forced circulation; fan drive — V-belt transmission.
- Engine displacement: 1530 cm3; cylinder bore/piston stroke: 85/90 mm.
- Rated fuel consumption: ≤275 g/kW*h, rated engine speed: 2300 rpm.
- Rated traction force: 7.2 kN.
- Transmission: (4+1)x2.
- Rear differential lock: yes; clutch: dry, single-disc, constantly closed type.
- Power take-off (PTO) shaft: rear splined, PTO speed: 540 / 1000 rpm.

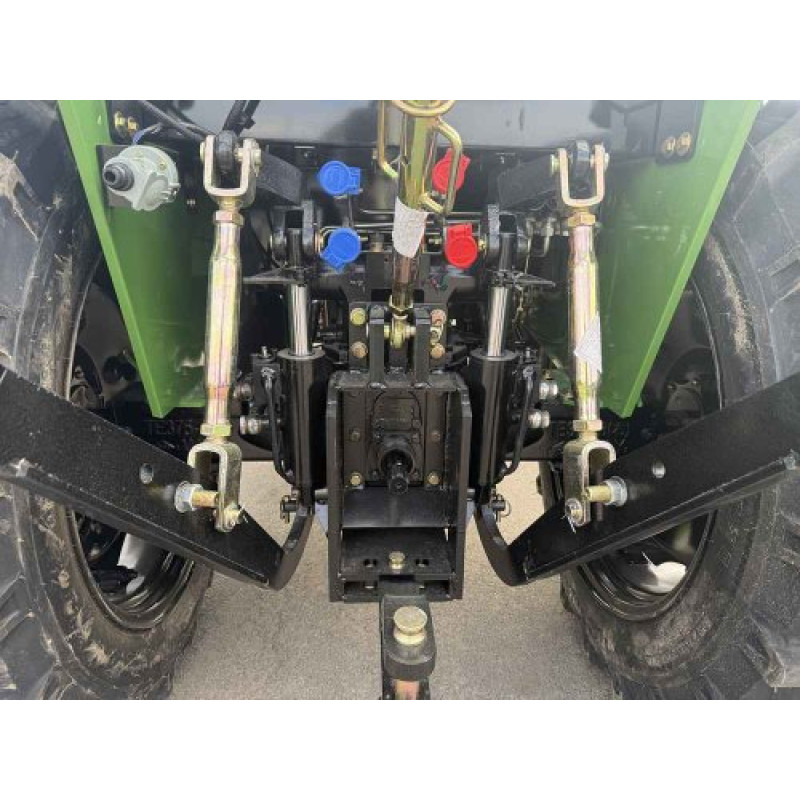

- Hydraulics: gear pump, number of hydraulic outputs — 2, maximum lifting capacity of the hitch mechanism — 420 kg.
- Power steering: yes; trailer connector (socket): yes.
- Minimum ground clearance: 315 mm; wheelbase: 1660 mm.
- Wheel track: front 1220, 1440 mm; rear 1120, 1360, 1400 mm. Tire size: front 7.50-16, rear 11.20-24.
- Minimum turning radius: without brakes 3.5 m; with brakes 3.2 m.
- Travel speed: forward 0.37-30.64 km/h; reverse 0.49-12.23 km/h.
- Fuel tank capacity: 18.5 L.
- Oil and system capacities: engine crankcase — 4.5 L; transmission and rear axle crankcase — 14.0 L; front axle crankcase — 3.0 L; engine cooling system volume — 6.0 L.
- Engine oil type: mineral or semi-synthetic for diesel engines; for transmission and axles, the following are allowed: Silver SAE 85W-90; Gold SAE 80W-90; Platinum SAE 75W-90.

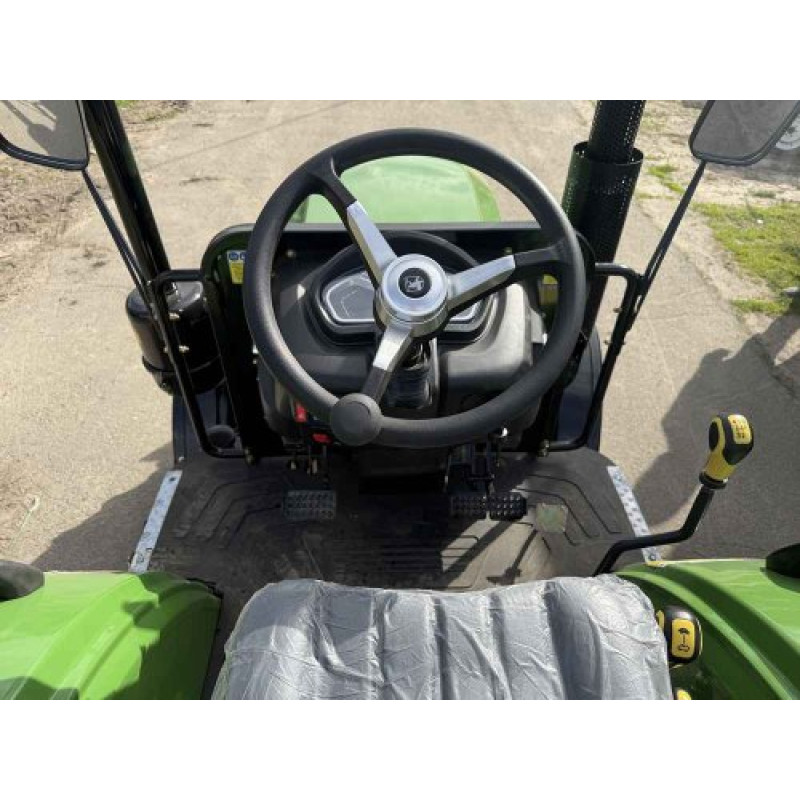

- Steering: mechanical; brakes: on rear wheels, drum brakes.
- Final drive: direct.
- Overall dimensions (L x W x H): 3400 x 1490 x 2050 mm; curb weight: 1370 kg.
Below are the full technical specifications in a table for easy reference:
| Engine power, hp (kW) | 24 (17.65) |
| Wheel formula | 4x4 |
| Engine type | diesel, 4-stroke, direct injection, naturally aspirated |
| Number and arrangement of cylinders | 3, vertical |
| Engine starting system | electric starter |
| Cooling system | liquid, closed, with forced coolant circulation |
| Cooling system fan drive | V-belt transmission |
| Engine displacement, cm3 | 1530 |
| Cylinder bore / piston stroke, mm | 85 / 90 |
| Rated engine fuel consumption, g/kW*h | ≤275 |
| Rated engine crankshaft speed, rpm | 2300 |
| Rated traction force, kN | 7.2 |
| Engine oil type | mineral or semi-synthetic for diesel engines |
| Rated engine oil consumption, g/kW*h | 2.31 |
| Transmission (КП) | (4+1)x2 |
| Transmission and rear axle oil type | Silver SAE 85W-90; Gold SAE 80W-90; Platinum SAE 75W-90 (transmission oil) |
| Front axle oil type | Silver SAE 85W-90; Gold SAE 80W-90; Platinum SAE 75W-90 (transmission oil) |
| Rear differential lock | + |
| Clutch | dry, single-disc, constantly closed type |
| Final drive | direct |
| Steering | mechanical |
| Brakes | on rear wheels, drum brakes |
| Power take-off (PTO) shaft | rear, splined |
| Hydraulic system pump type | gear pump |
| Power take-off (PTO) shaft speed, rpm | 540 / 1000 |
| Maximum lifting capacity of the hitch mechanism, kg | 420 |
| Minimum ground clearance, mm | 315 |
| Wheelbase, mm | 1660 |
| Wheel track, mm | front 1220, 1440, rear 1120, 1360, 1400 |
| Tire size | front 7.50-16 rear 11.20-24 |
| Minimum turning radius, m | without brakes 3.5 with brakes 3.2 |
| Travel speed, km/h | forward 0.37-30.64 reverse 0.49-12.23 |
| Fuel tank capacity, L | 18.5 |
| Engine crankcase volume, L | 4.5 |
| Transmission and rear axle crankcase volume, L | 14.0 |
| Front axle crankcase volume, L | 3.0 |
| Engine cooling system volume, L | 6.0 |
| Number of hydraulic outputs | 2 |
| Trailer connector (socket) | + |
| Power steering | + |
| Overall dimensions (L x W x H), mm | 3400x1490x2050 |
| Curb weight, kg | 1370 |
This mini tractor is ideal for working with attachments, as it features reliable hydraulics, sufficient lifting capacity, and a versatile PTO. Thanks to its compact dimensions, power steering, and maneuverability, the KENTAVR F244XU ensures efficient operation in confined spaces, on challenging terrains, and in greenhouse farms.
Manufacturer information: KENTAVR. Product category: Tractors, Motorcycles, ATVs, Boats (Vehicle) > Tractors > Mini Tractors. Technical data and oil volumes are provided to facilitate operation and maintenance of the equipment.
