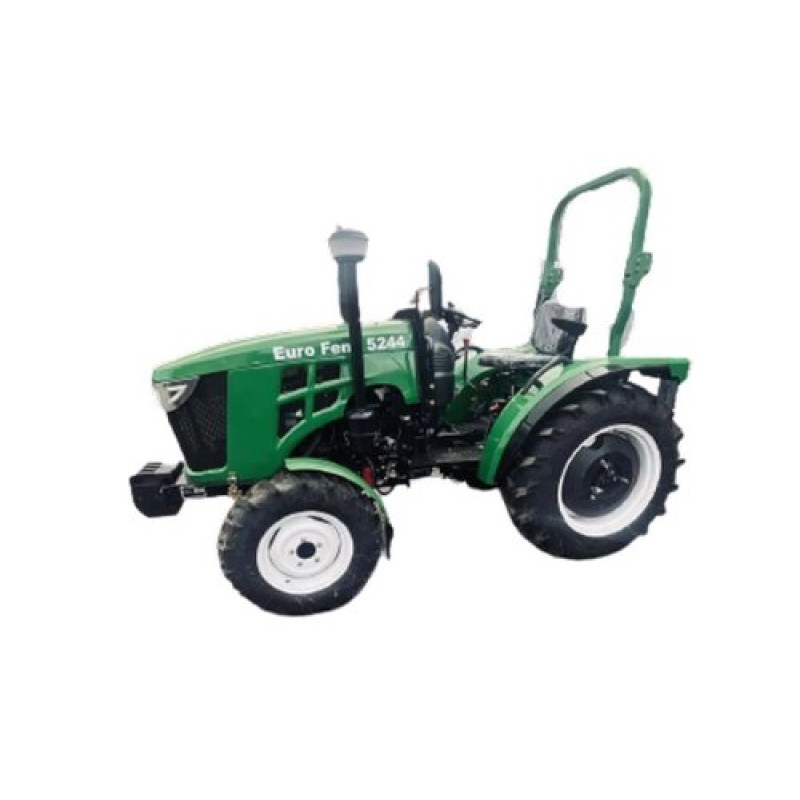

Mini Tractor EURO FENG 5244
The EURO FENG 5244 mini tractor is a compact and reliable tractor from the EURO FENG brand, designed for work on homestead plots, small farms, and in communal services. The model belongs to the category: Tractors > Mini Tractors and combines an economical diesel engine, 4x4 all-wheel drive, electric starter, and a wide range of technical solutions for working with mounted and trailed equipment. Below are the key advantages and a full list of technical parameters that will help you choose this mini tractor for your tasks.
Key Features
- Engine power: 24 hp (17.65 kW) ensures efficient operation with mounted and trailed implements;
- Engine type: diesel, 4-stroke with direct injection, non-turbocharged — economical and durable;
- 4x4 wheel formula and rear differential lock for increased off-road capability;
- Electric starter for comfortable starting in any conditions;
- Rear splined power take-off (PTO) shaft with 540/1000 rpm modes for connecting various mounted equipment;
- Reliable transmission ((4+1)x2 gearbox), dry single-disc clutch, and mechanical steering guarantee ease of maintenance.
The full list of technical parameters is presented in the table below.
| Engine power, hp (kW) | 24 (17.65) |
| Wheel formula | 4x4 |
| Engine type | diesel, 4-stroke, direct injection, non-turbocharged |
| Number and arrangement of cylinders | 3, vertical |
| Engine starting system | electric starter |
| Cooling system | liquid, closed, with forced circulation of coolant |
| Cooling system fan drive | V-belt drive |
| Engine displacement, cm3 | 1530 |
| Cylinder diameter / piston stroke, mm | 85 / 90 |
| Nominal engine fuel consumption, g/kWh | ≤275 |
| Nominal engine crankshaft speed, rpm | 2300 |
| Nominal traction force, kN | 7.2 |
| Engine oil type | mineral or semi-synthetic for diesel engines |
| Nominal engine oil consumption, g/kWh | 2.31 |
| Gearbox (КП) | (4+1)x2 |
| Oil type in gearbox and rear axle | Silver SAE 85W-90; Gold SAE 80W-90; Platinum SAE 75W-90 (transmission) |
| Oil type in front axle | Silver SAE 85W-90; Gold SAE 80W-90; Platinum SAE 75W-90 (transmission) |
| Rear differential lock | yes |
| Clutch | dry 1-disc constantly closed type |
| Main drive | direct |
| Steering | mechanical |
| Brakes | on rear wheels, brake drums |
| Power take-off (PTO) shaft | rear, splined |
| Hydraulic system pump type | gear pump |
| Power take-off (PTO) shaft speed, rpm | 540 / 1000 |
| Maximum lifting capacity of mounted mechanism, kg | 420 |
| Minimum ground clearance, mm | 350 |
| Wheelbase, mm | 1750 |
| Wheel track, mm | front 1240, rear 1240/1260/1460 |
| Tire size | front 7.50-16 rear 11.20-24 |
| Minimum turning radius, m | without brakes 3.5; with brakes 3.1 |
| Travel speed, km/h | forward 0.37-30.64; reverse 0.49-12.23 |
| Fuel tank capacity, L | 18.5 |
| Engine crankcase capacity, L | 3.0 |
| Gearbox and rear axle crankcase capacity, L | 11.0 |
| Front axle crankcase capacity, L | 3.0 |
| Engine cooling system capacity, L | 6.0 |
| Number of hydraulic outputs | 1 |
| Trailer connector (socket) | yes |
| Power steering | yes |
| Overall dimensions (L x W x H), mm | 3300x1460x1880 |
| Curb weight, kg | 1350 |
The EURO FENG 5244 mini tractor is optimal for cultivating small fields, tending gardens, transporting goods, and working with mounted equipment: a powerful 24 hp engine combined with a two-mode PTO, a mounted mechanism lifting capacity of 420 kg, and a reliable (4+1)x2 transmission allow for a wide range of tasks. The rear differential lock increases off-road capability on difficult terrain, and the recommended transmission oil options (Silver/Gold/Platinum) allow for selecting lubricants according to operating conditions. Compact dimensions of 3300x1460x1880 mm, a minimum ground clearance of 350 mm, and a curb weight of 1350 kg ensure maneuverability and stability when working on uneven terrain. A fuel capacity of 18.5 L provides long autonomous operation in the field or on the plot. This model is suitable for private households and small farms looking for a balance between cost, reliability, and functionality.
