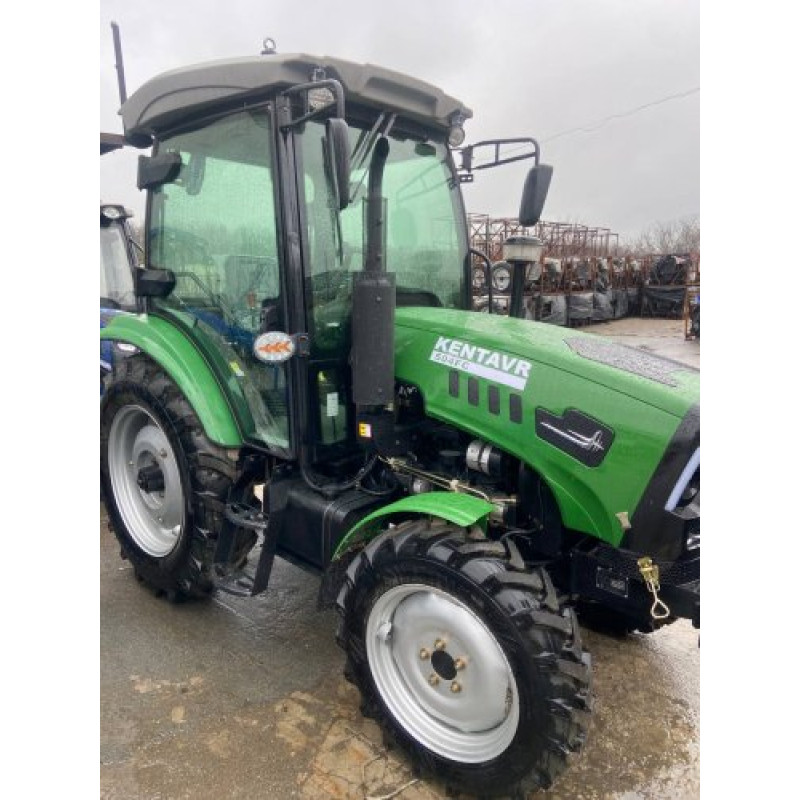

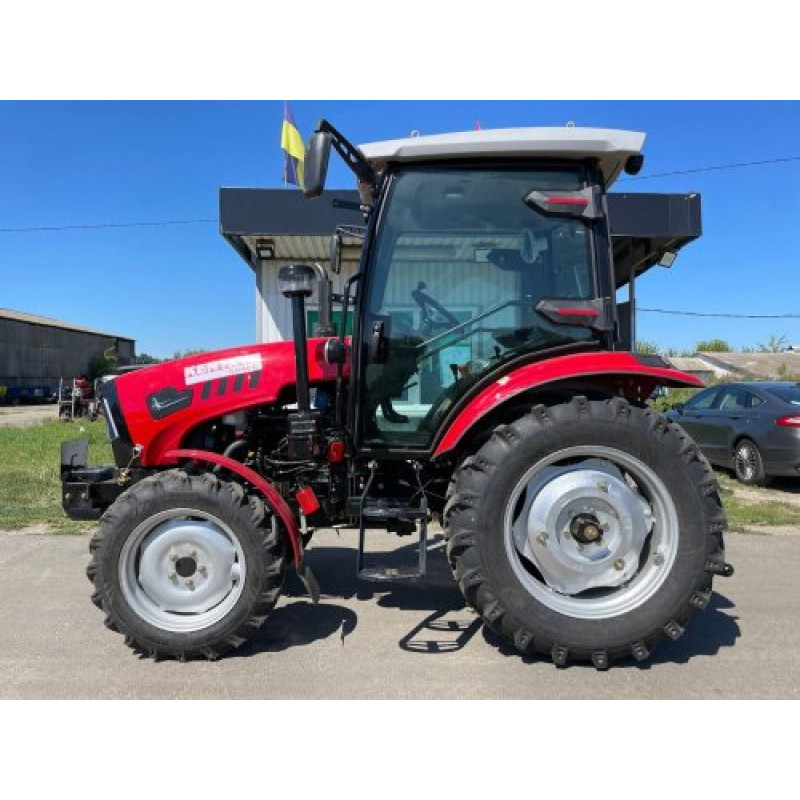

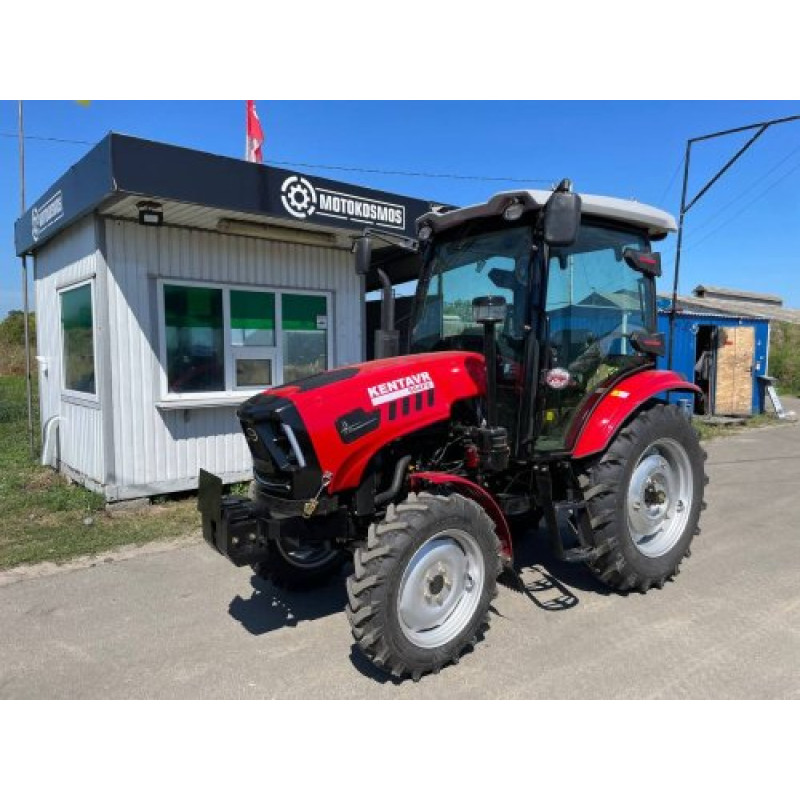

Mini Tractor KENTAVR 504FC
KENTAVR 504FC is a versatile mini tractor from the manufacturer KENTAVR, designed for a wide range of agricultural and utility tasks: soil preparation, sowing, harvesting, cargo transportation, garden and vineyard care, as well as municipal tasks. The model belongs to the category: Tractors > Mini Tractors and combines reliability, power, and ease of operation.
Brief Technical Specifications
- Engine power: 50 hp (36.75–36.8 kW)
- Wheel formula: 4x4 (all-wheel drive)
- Engine types: general description states 4-cylinder Perkins 404D-22TA diesel, 2210 cm3 displacement; technical specifications table states 4-stroke, 4-cylinder, KM495
- Clutch: dry, dual-disc
- Rear tires: 12.4-24 or 12.40-28 options
- Front tires: 8.30-20

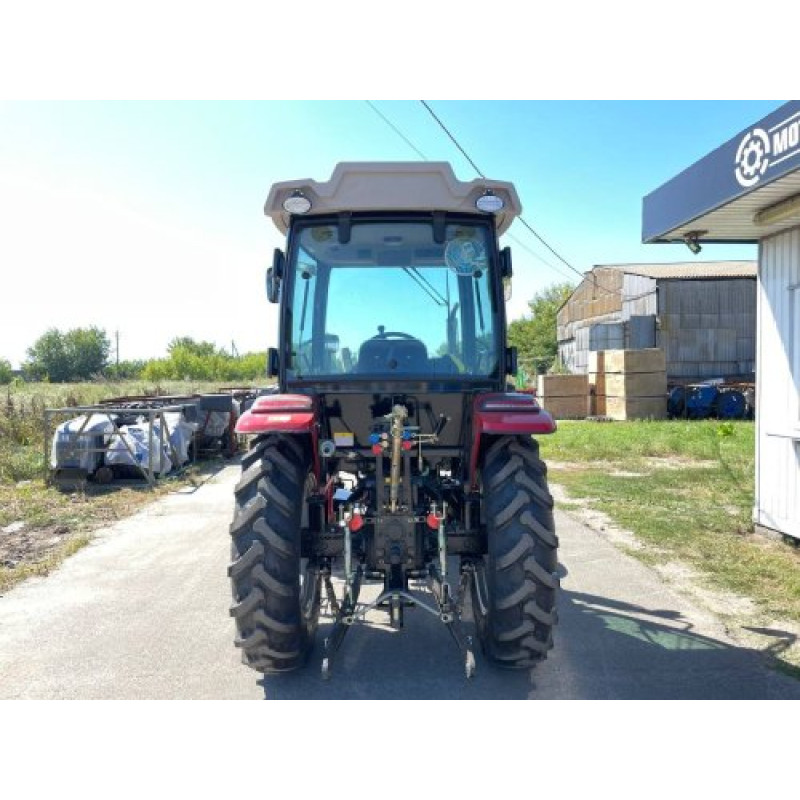

- Maximum lifting capacity of the hitch mechanism: general description states 1000 kg; technical table states 650 kg
- Ground clearance: general list 320 mm, table 350 mm
- Wheelbase: general list 2050 mm, table 1850 mm
Hydraulics and Operation

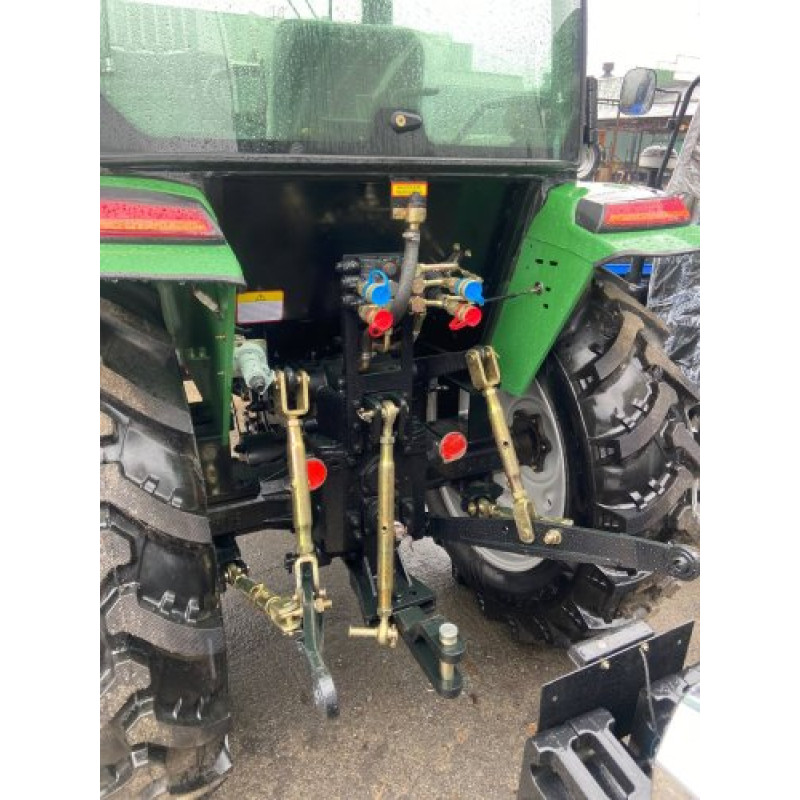

- Hydraulic system with two hydraulic outlets
- PTO (power take-off) speed: 540/1000 rpm

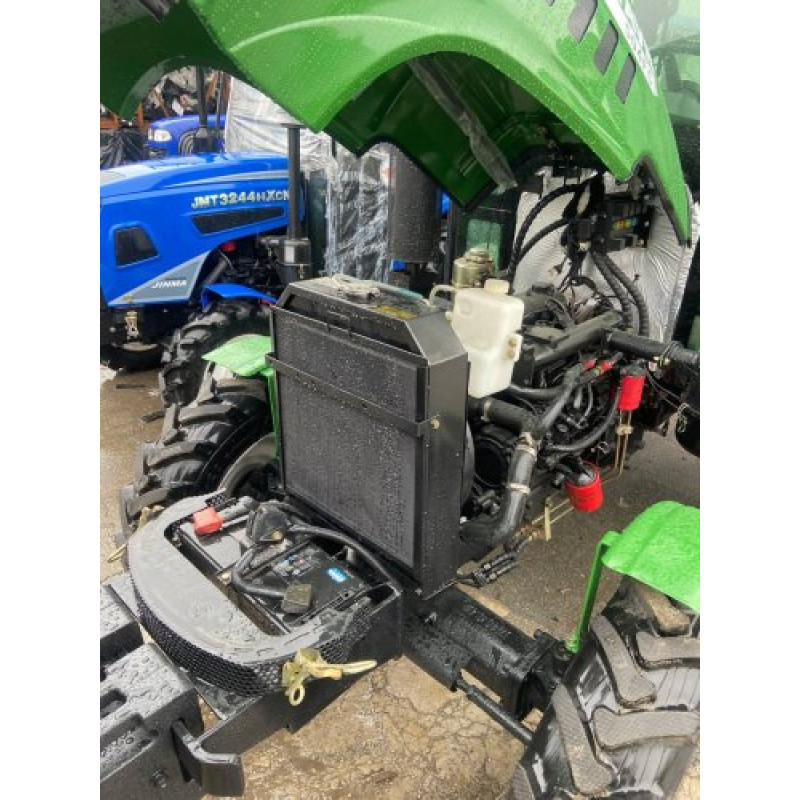

- Cooling system: liquid (water cooling)
- Fuel tank capacity: description states 60 L, table states 50 L
This mini tractor is equipped with an electric starter for convenient engine start, power steering, and differential lock for improved off-road capability. The braking system features drum brakes, ensuring reliable braking in field conditions. It is recommended to clarify the specific configuration and technical parameters when ordering, as the stated data includes variations and may differ depending on the configuration.
Areas of Application
- Plowing and soil preparation
- Sowing and harvesting
- Cargo transportation
- Garden and vineyard care
Detailed technical table:

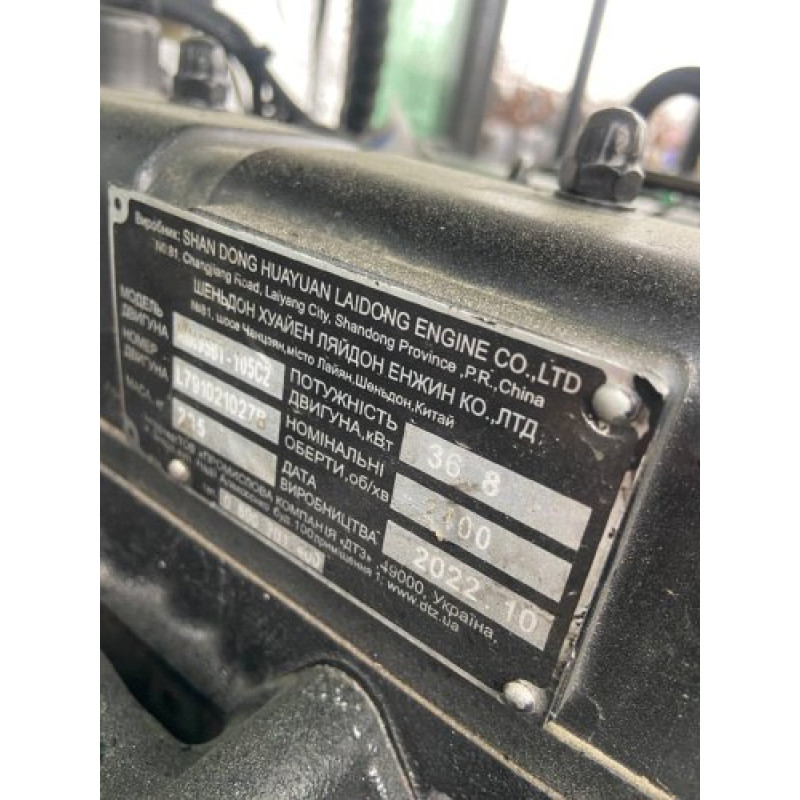

| Engine type: | 4-stroke, 4-cylinder, KM495 |
| Power, kW: | 36.8 |
| Power, hp: | 50 |
| Cooling: | water |
| Fuel tank capacity, L: | 50 |
| Engine speed, rpm: | 2350 |
| Engine start: | electric starter |
| Oil volume in crankcase, L: | 8.5 |
| Cooling system volume, L: | 5 |
| Oil consumption, grams, kW/h: | 2.04 |
| Fuel delivery: | direct injection |
| Oil pump: | plunger, in-line |
| Clutch type: | dry, dual-disc |
| Ground clearance, mm: | 350 |
| Differential lock: | yes |
| Braking system: | drum brakes |
| Front wheel track, cm: | 1230, 1450 |
| Rear wheel track, cm: | 1100, 1260, 1360, 1450 |
| Turning radius, m: | 4.2 |
| Wheel formula: | 4x4 (all-wheel drive) |
| Front tires: | 8.30-20 |
| Rear tires: | 12.40-28 |
| Overall dimensions L/W/H, mm: | 3550x1500x2520 |

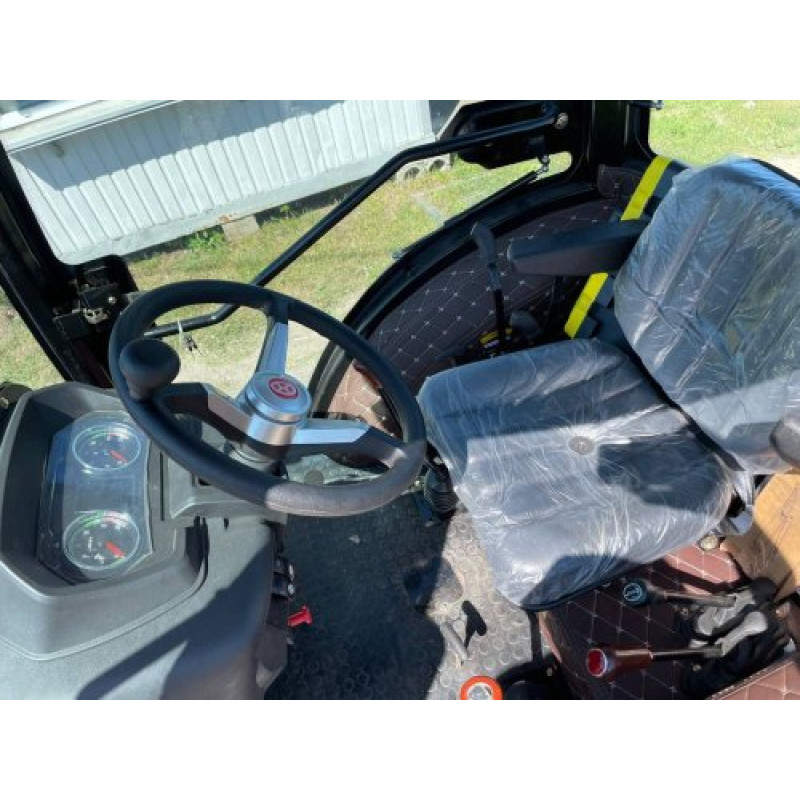

| Steering: | with power steering |
| PTO shaft speed: | 540/1000 |
| Maximum lifting capacity of hitch mechanism, kg: | 650 |
| Wheelbase, mm: | 1850 |
| Weight, kg: | 1996 |
The text provides both general characteristics and data from the technical table, which explains some differences in values (engine model KM495 and Perkins 404D-22TA, different fuel tank capacities, and other indicators). For accurate selection of configuration and parameters, it is recommended to clarify details with the seller or at a KENTAVR service center.
KENTAVR 504FC is ideal for farms, private households, and municipal services where reliability, high traction, and versatility are required. When planning work with this machine, consider the availability of configuration options and possible differences in technical parameters.
For other technical questions and specific configurations, please contact the seller or a KENTAVR service center.
