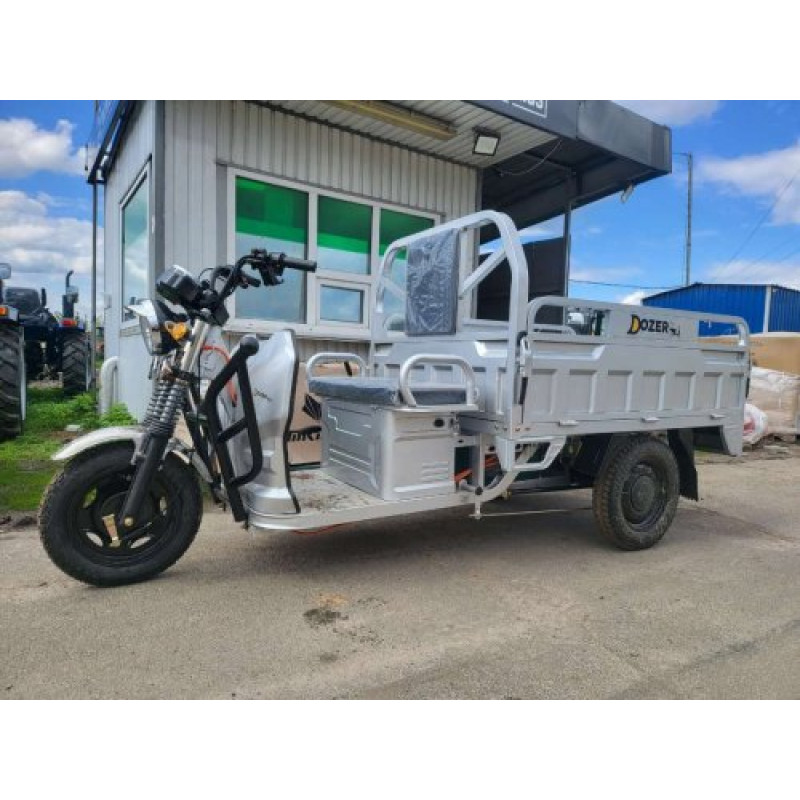

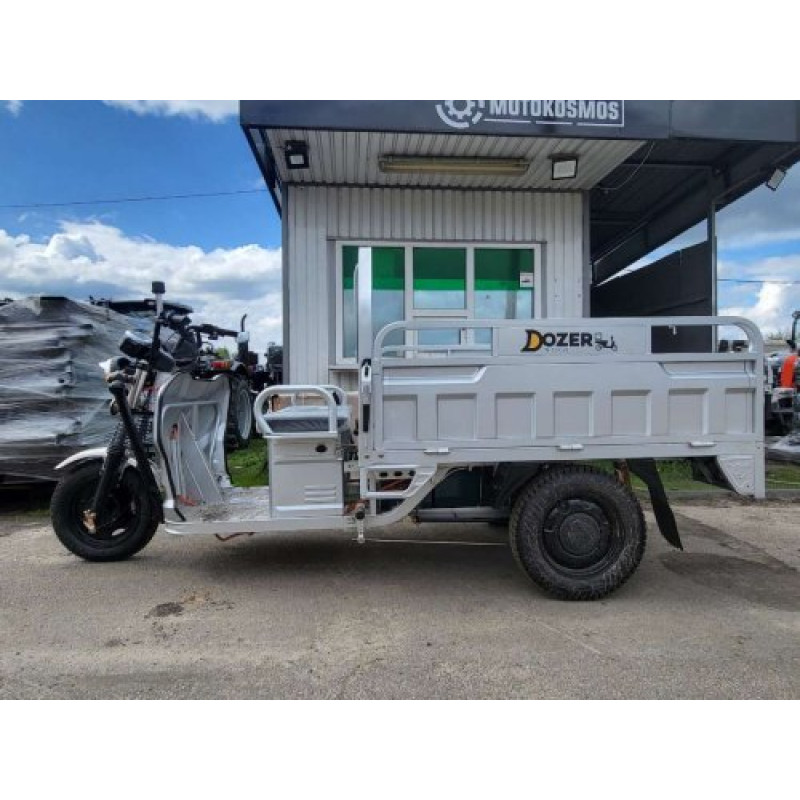

Electric Cargo Tricycle Dozer Model-3 (1500W)
Brand: Dozer. The Dozer Model-3 electric tricycle is a powerful and reliable cargo dump truck for transporting goods over short and medium distances, combining a modern electric motor with an ergonomic body design and well-thought-out technical solutions for industrial and commercial use.
Specifications| Engine power, W | 1500 |
| Engine voltage, V | 60 |
| Max. speed, km/h | 45 |
| Battery capacity, V/Ah | 60/52 |
| Range per charge, km | 65 |
| Engine type | electric |
| Number of seats | 1 |
| Motorcycle type | cargo dump truck |
| Battery type | maintenance-free lead-acid |
| Battery charging time, h | 6-8 |
| Body tipping function | yes |
| Drop sides | rear/left/right |
| Front tire size, inches | 3.50-12 |
| Rear tire size, inches | 3.75-12 |
| Brakes (front/rear) | drum/drum |
| Front suspension | telescopic fork with coil springs |
| Rear suspension | dependent leaf spring suspension |
| Body dimensions (LxWxH), mm | 1500x1100x330 |
| Overall dimensions (LxWxH), mm | 2940x1180x1370 |
| Load capacity, kg | 750 |
| Weight, kg | 230 |
Description and purpose: The Dozer Model-3 is equipped with a 1500 W electric motor at 60 V, ensuring economical, quiet, and environmentally friendly driving without harmful emissions. A maximum speed of up to 45 km/h allows for quick and efficient cargo delivery within enterprises, warehouses, cities, or on agricultural premises. The 60 V / 52 Ah battery capacity provides up to 65 km of range on a single charge, and the maintenance-free lead-acid battery simplifies upkeep — no need to add electrolyte.
Body practicality: The body, measuring 1500x1100x330 mm, features a tipping function and three drop sides (rear, left, right), allowing for quick loading and unloading of bulk, piece, or palletized goods. With a load capacity of 750 kg and compact overall dimensions of 2940x1180x1370 mm, the Dozer Model-3 is suitable for heavy tasks in confined spaces.
Comfort and technical solutions: The tricycle is designed for a single driver. The front suspension features a telescopic fork with coil springs, while the rear is a dependent leaf spring suspension, ensuring stability and a smooth ride even under full load. The brakes — drum brakes front and rear — are known for their simplicity and reliability in operation.
Wheels and maintenance: Tire sizes: front 3.50-12, rear 3.75-12. Full battery charging takes 6-8 hours, allowing for work cycle planning with overnight charging or battery rotation for continuous operation.
Weight and dimensions parameters: The vehicle's weight is 230 kg. Compact dimensions combined with significant load capacity make the Dozer Model-3 an optimal choice for agriculture, construction, municipal services, and private enterprises requiring maneuverable electric transport for cargo delivery.
Motorcycle type: cargo dump truck. Engine type: electric. Category: Motor Vehicles > Motorcycles.
Other technical details are provided in the table above. This is a functional and efficient electric tricycle from Dozer, combining high load capacity, a convenient loading system thanks to drop sides, and economical electric traction for daily operation.
