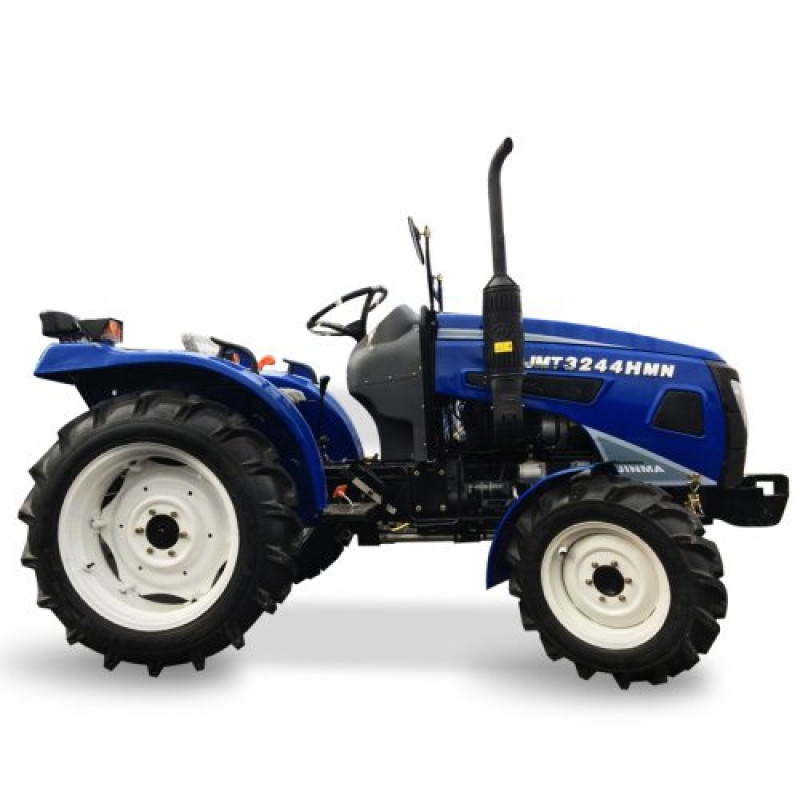

Mini Tractor Jinma JMT 3244 HMN — A Powerful and Reliable Assistant for Your Farm
The Jinma JMT 3244 HMN mini tractor from manufacturer JINMA is a balanced combination of performance, comfort, and affordable price for work in the field, garden, construction site, and municipal services. This "mini tractor" class model is designed for farmers and businesses that need versatile equipment with all-wheel drive and modern solutions for the operator.
Key Advantages and Design Features
The Jinma JMT 3244 HMN is equipped with a reliable three-cylinder engine, model YD385 or KM385, with a liquid cooling system and power up to 24 hp (17.6 kW). The engine displacement is 1,532 cm3, cylinder diameter — 85 mm, piston stroke — 90 mm, compression — 22. Fuel consumption up to 275 g/kWh ensures economical operation under intensive loads.
- Front wheels: 6.00 - 16; rear wheels: 9.50 - 24 — reliable grip on the surface for working on various soils.
- Hydraulic power steering (hydro-booster) ensures easy and comfortable control.
- Rear differential lock is available for navigating difficult terrain and viscous soils.
- Adjustable track width: front 1080–1280 mm, rear 1050–1310 mm — convenience for attaching implements and working between rows.
The model also received a number of upgrades:
- wider operator seating area for increased comfort;
- instrument panel illumination for evening work;
- comfortable steering wheel and operator seat;
- improved modern optics for safe operation in challenging conditions.
Functionality
The Jinma JMT 3244 HMN easily aggregates with most modern attachments and trailers: sowing, harvesting, plowing and cultivation, inter-row care, grass mowing, haymaking, snow removal, and many other operations throughout the year. Thanks to its 4x4 all-wheel drive and reliable transmission, this mini tractor is suitable for various tasks in agriculture and municipal services.
Price of Jinma JMT 3244 HMN — with free delivery across Ukraine. Flash Army online store offers favorable purchase conditions, the possibility of credit arrangement, and an individual payment schedule. Delivery is available to cities: Kyiv, Vinnytsia, Poltava, Chernihiv, Kharkiv, and other regions of Ukraine. If you have any questions, call our manager; we will provide up-to-date information and consultation.
We also recommend considering other models: Jinma 404, Shifeng 354, Dongfeng, Xingtai, Foton, Zoomlion, DTZ 5244NRX, Bulat 454, Bulat 250, Bulat 254, Belarus 320.4, Mini Tractor Shifeng, DW 244, DTZ 5404K, Solis 26 tractor.
Technical specifications and other parameters:
Model Information | |
|---|---|
| Model Information | JMT 3244 HMN |
| Manufacturer | JINMA |
| Country of Manufacture | China |
| Engine Technical Specifications | |
| Compression | 22 |
| Engine Model | YD 385 or KM 385 |
| Engine Displacement, cm3 | 1,532 cm3 |
| Engine Power, hp and kW | 24 hp or 17.6 kW |
| Number of Engine Cylinders | 3 |
| Cylinder Diameter | 85 mm. |
| Piston Stroke | 90 mm. |
| Fuel Consumption | up to 275 g/kWh |
| Engine Dimensions, mm | 569 mm x 525 mm x 604 mm |
| Engine Structural Weight, kg | 234 kg. |
| Overall Dimensions, mm | |
| Wheelbase, mm | 1,700 mm. |
| Overall Dimensions, mm | 3,080 mm x 1,440 mm x 1,510 mm. Height indicated to the highest point of the mini tractor body |
| Front Wheel Track, mm | 1,080 / 1,280 mm. |
| Rear Wheel Track, mm | 1,050 mm - 1,310 mm. |
| Ground Clearance, mm | 295 mm. |
| Structural Weight, kg | 1,290 kg. |
| Gearbox (Transmission) | |
| Drive Type | 4x4 |
| Number of Gears (forward / reverse) | (4+1)x2 |
| Clutch | Single-disc dry |
| Rear Differential Lock | Yes |
| Travel Speed, km/h | |
| Maximum Speed, km/h | 26.4 km/h |
| Configuration | |
| Front Wheel Size | 6.00 - 16 |
| Rear Wheel Size | 9.50 - 24 |
| Number of Hydraulic Outputs | hydraulic output (2 couplings) |
| Steering Type | Hydraulic power steering |
| Other Characteristics | |
| Engine Oil Volume, L | 6.6 L. |
| Engine Cooling System Volume, L | 10 L. |
| Fuel Tank Volume, L | 30 L. |
| Transmission Oil Volume, L | 14 L |
| Front Axle Oil Volume, L | 6 L |
| Hydraulic Tank Oil Volume, L | 9 L |
Product Type: Tractors > Mini Tractors. Brand: Jinma. Model: JMT 3244 HMN.
Choose Jinma JMT 3244 HMN if you need a mini tractor with a reliable engine, 4x4 all-wheel drive, differential lock, and updated operator comfort. Our specialists are ready to provide consultation and assistance with purchase, delivery arrangement, or credit.
