KENTAVR 244 SXC Mini Tractor — Budget Cabin Option
Introducing the KENTAVR 244 SXC mini tractor from the manufacturer KENTAVR — a practical and affordable solution for agriculture, utility, and construction work. The model is equipped with a 24-horsepower engine (17.65 kW), ensuring versatility for small farms. We work directly with the manufacturer, guaranteeing favorable purchase terms and free delivery throughout Ukraine.
Brief Model Information
Name: KENTAVR 244 SXC Mini Tractor. Manufacturer: KENTAVR. Category: Tractors > Mini Tractors. The model is positioned as a budget-friendly "cabin tractor" with well-designed components for daily operation in the field, on plots, and in utility services.
Technical Specifications and Capabilities
The KENTAVR 244 SXC combines compactness and functionality: 4x4 all-wheel drive, mechanical gearbox, power steering, and a modern hydraulic system with a three-point hitch. This machine is suitable for working with mounted and trailed equipment, soil cultivation, cargo transportation, and many other tasks.
Key Component Overview
- 1. Engine: Four-stroke diesel three-cylinder unit with liquid cooling system and electric starter; enlarged radiator located at the front under the hood; engine displacement 1530 cm3, bore/stroke 85/90 mm, nominal RPM 2300 rpm, nominal fuel consumption ≤275 g/kWh.
- 2. Transmission and Control: Mechanical gearbox ((4+1)x2 combination), dry single-disc clutch, mechanical steering with power assist for easy maneuvering.
- 3. Drive and Off-road Capability: 4x4 all-wheel drive with rear differential lock for enhanced off-road capability and traction characteristics (nominal traction force 7.2 kN).

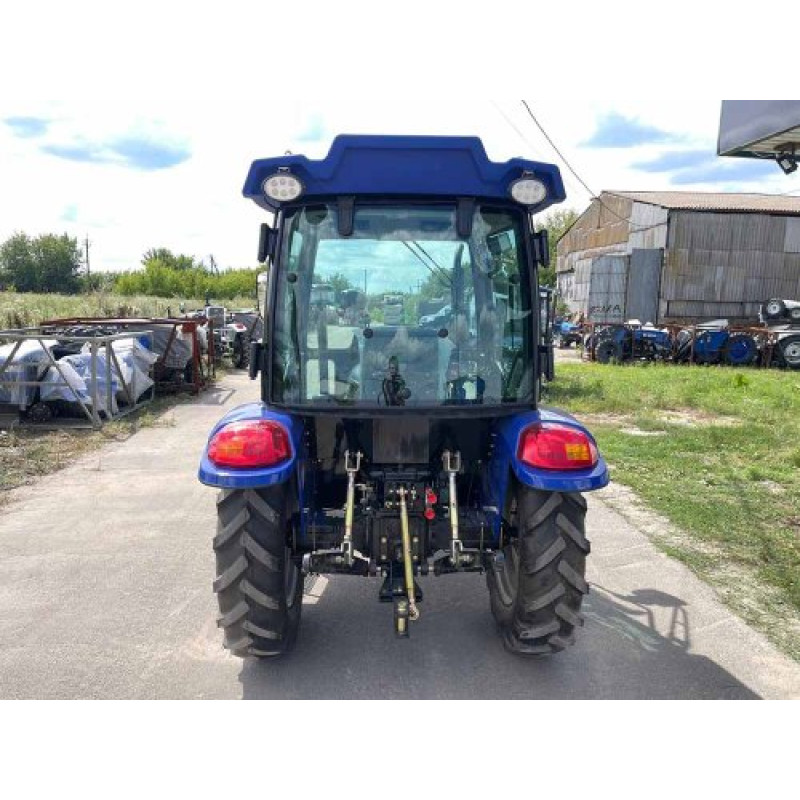

- 4. Hydraulics and PTO: Hydraulic hitch with a separate gear pump, two-speed power take-off (PTO) shaft (540/1000 rpm), maximum lifting capacity of the hitch mechanism 420 kg (the manufacturer does not recommend overloading to prevent premature wear).
Cabin and Configuration

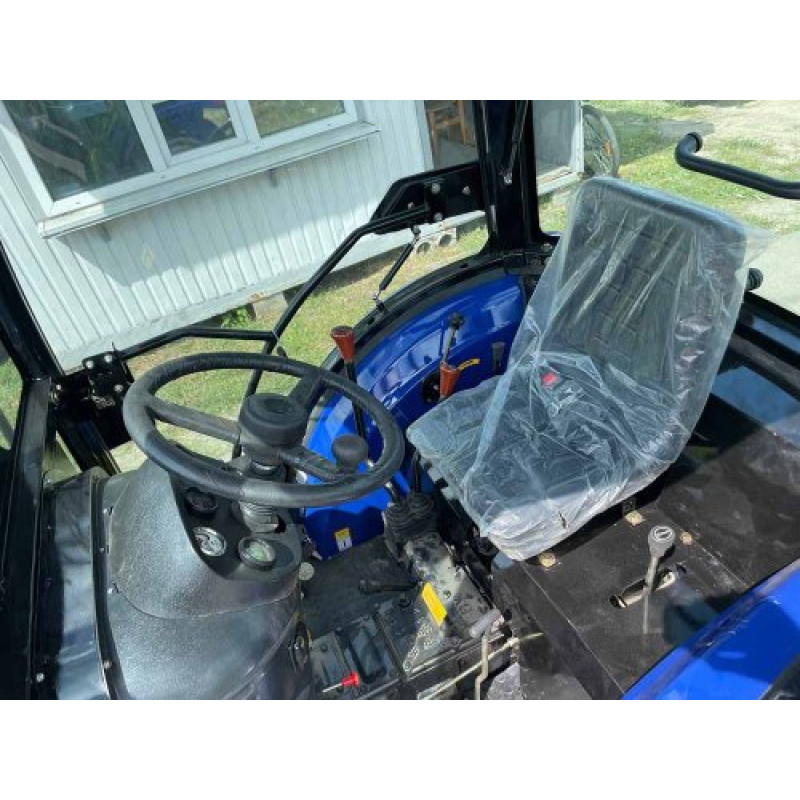

The KENTAVR 244 SXC cabin features panoramic glazing, providing a wide viewing angle for the operator. The seat is adjustable in height and position, levers are ergonomically placed, and the instrument panel is standard. Standard equipment includes a heating system, a small fan, and a factory radio. Disadvantages include gaps in the floor, through which dust can enter in summer and heat can escape in winter; this drawback can be eliminated by refinement.
Catalog and Purchase Advantages
Our catalog features KENTAVR mini tractors and other brands — over 300 models of various power and configurations. Key reasons to buy from us:
- Wide selection of models;
- Convenient payment options upon receipt: cash, bank transfer, credit, or installment plan;
- Free delivery throughout Ukraine.
Technical Specifications:
| Engine power, hp (kW) | 24 (17.65) |
| Wheel formula | 4x4 |
| Engine type | diesel, 4-stroke, with direct injection, non-turbocharged |
| Number and arrangement of cylinders | 3, vertical |
| Engine start system | electric starter |
| Cooling system | liquid, closed, with forced circulation of coolant |
| Cooling system fan drive | V-belt drive |
| Engine displacement, cm3 | 1530 |
| Cylinder bore / piston stroke, mm | 85 / 90 |
| Nominal engine fuel consumption, g/kWh | ≤275 |
| Nominal engine crankshaft speed, rpm | 2300 |
| Nominal traction force, kN | 7.2 |
| Engine oil type | mineral or semi-synthetic for diesel engines |
| Nominal engine oil consumption, g/kWh | 2.31 |
| Gearbox (КП) | (4+1)x2 |
| Gearbox and rear axle oil type | Silver SAE 85W-90; Gold SAE 80W-90; Platinum SAE 75W-90 (transmission) |
| Front axle oil type | Silver SAE 85W-90; Gold SAE 80W-90; Platinum SAE 75W-90 (transmission) |
| Rear differential lock | + |
| Clutch | dry 1-disc, constantly closed type |
| Main drive | direct |
| Steering | mechanical |
| Brakes | on rear wheels, brake drums |
| Power Take-Off (PTO) shaft | rear, splined |
| Hydraulic system pump type | gear pump |
| Power Take-Off (PTO) shaft speed, rpm | 540 / 1000 |
| Maximum lifting capacity of hitch mechanism, kg | 420 |
| Minimum ground clearance, mm | 350 |
| Wheelbase, mm | 1750 |
| Wheel track, mm | front 1220, rear 1230 |
| Tire size | front 7.50-16 rear 11.20-24 |
| Minimum turning radius, m | without brakes 3.5, with brakes 3.1 |
| Travel speed, km/h | forward 0.37-30.64 reverse 0.49-12.23 |
| Fuel tank capacity, L | 18.5 |
| Engine crankcase capacity, L | 3.0 |
| Gearbox and rear axle crankcase capacity, L | 11.0 |
| Front axle crankcase capacity, L | 3.0 |
| Engine cooling system capacity, L | 6.0 |
| Number of hydraulic outlets | 1 |
| Trailer connector (socket) | + |
| Power steering | + |
| Overall dimensions (L x W x H), mm | 3300x1460x1880 |
| Curb weight, kg | 1400 |
The KENTAVR 244 SXC mini tractor is an optimal choice for those who need reliable, easy-to-maintain, and affordable equipment with a cabin. For detailed consultation on configurations, availability, and purchase conditions, please contact our manager.
