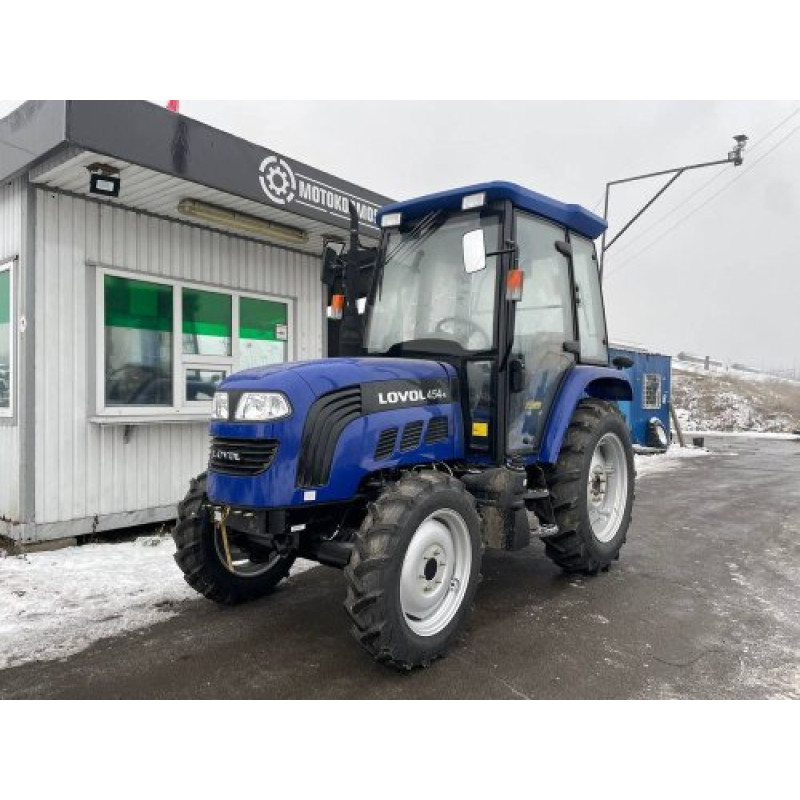

Foton-Lovol FT504 SC Mini Tractor — Power and Versatility for Your Farm
The Foton-Lovol FT504 SC model from the manufacturer Foton belongs to the Mini Tractors category and is designed for intensive work in fields, orchards, vegetable gardens, and farms. This is a 4x4 mini tractor with a diesel 4-stroke A498BT-6A engine, combining economy, reliability, and sufficient power reserve to perform a wide range of agricultural and transport tasks.
Key technical specifications: engine power — 50 hp (36.8 kW), displacement — 3168 cm3, nominal fuel consumption — ≤238 g/kWh, nominal traction force — 13.5 kN. The engine has 4 vertically arranged cylinders and an electric starter for convenient and quick starting.
Technical Specifications:
| Engine power, hp (kW) | 50 (36.8) |
| Wheel formula | 4x4 |
| Engine type | diesel, 4-stroke, A498BT-6A |
| Number and arrangement of cylinders | 4, vertical |
| Engine starting system | electric starter |
| Cooling system | liquid, closed, with forced circulation of cooling fluid |
| Cooling system fan drive | V-belt drive |
| Engine displacement, cm3 | 3168 |
| Nominal engine fuel consumption, g/kWh | ≤238 |
| Nominal traction force, kN | 13.5 |
| Gearbox (КП) | (4x3)+(4x3) |
| Rear differential lock | + |
| Clutch | dry 2-disc constantly closed type |
| Main drive | direct |
| Steering control | hydraulic |
| Brakes | on rear wheels, disc, with mechanical drive, dual pedals |
| Power take-off (PTO) | rear, splined |
| Hydraulic system pump type | gear pump (НШ) for hitch drive / gear pump for power steering operation |
| Hitch lifting capacity | 670 kg |
| Power take-off (PTO) speed, rpm | 540/1000 |
| Tire size | front 8.30-20, rear 12.4-28 |
| Wheel track | front 1300, 1500, rear 1220, 1300, 1500, 1620 |
| Ground clearance, mm | 350 |
| Number of hydraulic outlets | 2 |
| Trailer connector (socket) | + |
| Compressor | + |
| Dimensions LxWxH mm | 4150x1610x2550 |
| Curb weight, kg | 2726 |
The model's transmission features a (4x3)+(4x3) gear structure, providing a sufficient number of speed modes for field work and cargo transportation. The presence of a rear differential lock improves cross-country capability on difficult terrain or muddy areas. The clutch is a dry 2-disc constantly closed type, and the main drive is direct, which increases reliability and simplifies service maintenance.
The hydraulic system is equipped with gear pumps (НШ) for hitch drive and power steering operation; the hitch lifting capacity is 670 kg, allowing for the use of a wide range of attachments. The power take-off is rear, splined, with 540/1000 rpm modes for connecting plows, mowers, spreaders, and other equipment.
Running characteristics include tire sizes: front 8.30-20, rear 12.4-28; ground clearance — 350 mm; adjustable front wheel track — 1300 or 1500 mm, rear — 1220, 1300, 1500 or 1620 mm. The braking system is disc on the rear wheels with mechanical drive and dual pedals for safe operation in the field and on the road.
Additional options: the presence of a trailer connector and a compressor, as well as two hydraulic outlets, expand the tractor's functionality and increase its versatility. The machine's dimensions are 4150x1610x2550 mm, and its curb weight is 2726 kg, which determines its maneuverability and stability when working with mounted and trailed equipment.
The Foton-Lovol FT504 SC model is a comprehensive solution for small and medium-sized farms: a powerful and economical engine, balanced transmission, efficient hydraulics, and the ability to work with various attachments make this mini tractor an excellent choice for those who value reliability and versatility in agricultural machinery.
Product category information: Tractors, Motorcycles, ATVs, Boats (Vehicle) > Tractors > Mini Tractors. Manufacturer: Foton. Model name: Foton-Lovol FT504 SC Mini Tractor.
