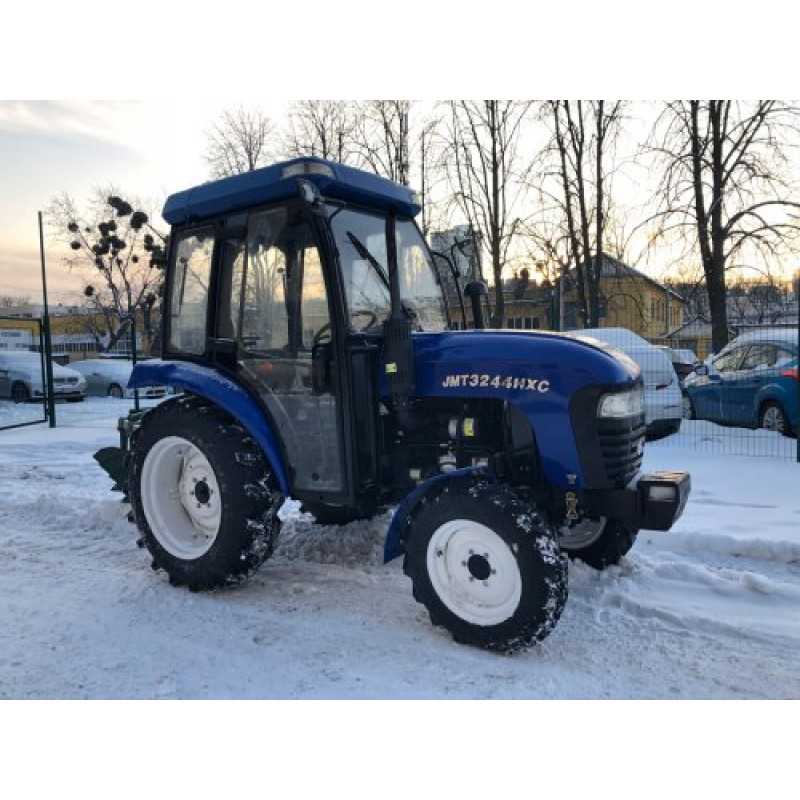

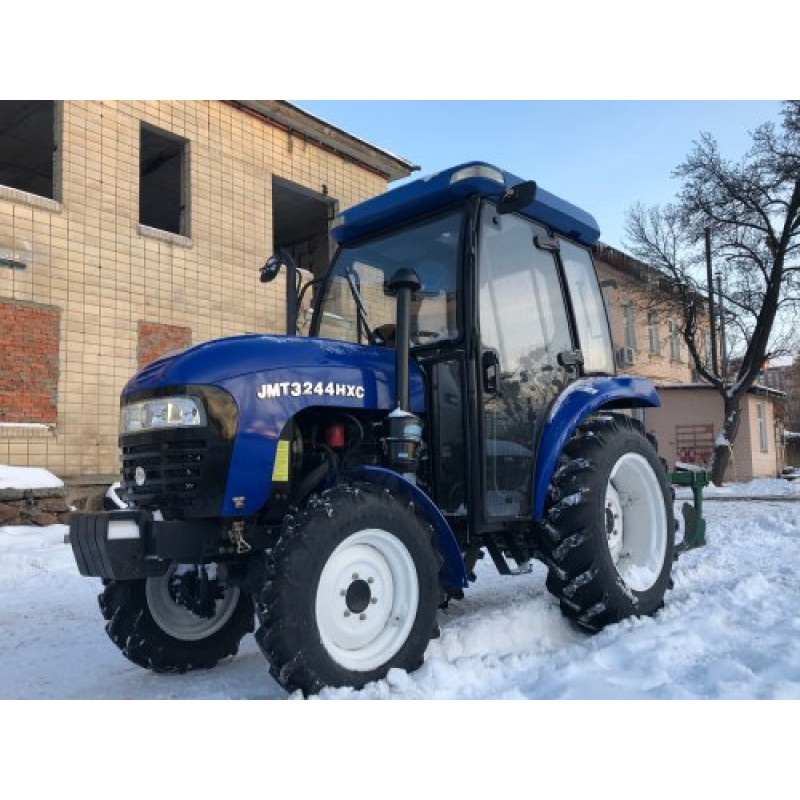

JINMA JMT 3244 HXC Mini Tractor — A Versatile Helper for Your Farm

Brand: Jinma. Category: Tractors > Mini Tractors. This is a compact, reliable, and multifunctional mini tractor that combines high performance, fuel efficiency, and ease of operation for agricultural, municipal, and private tasks.

The JINMA JMT 3244 HXC model is equipped with a 3-cylinder, four-stroke diesel engine with direct injection, producing 24 hp (17.6 kW). The engine is vertical, with a liquid cooling system and an electric starter for reliable ignition in all conditions. The nominal fuel consumption is 248 g/kWh, ensuring economical operation even during intensive work.

  • Engine: vertical, 3-cylinder, 4-stroke diesel with forced liquid cooling and direct injection.
  • Engine displacement: 1532 cm3; cylinder bore/piston stroke: 85x90 mm; nominal crankshaft speed: 2350 rpm.
  • Engine start: electric starter with safe start.

The transmission (gearbox) provides a wide range of speeds and maneuverability: (4+1)x2x2 — a total of 8 forward and 2 reverse speeds. It features a reverser and a creeper gear, which is especially useful for working in gardens, on homestead plots, and for municipal tasks. The nominal traction force of 6.6 kN allows the tractor to be used as a towing vehicle for trailers and attachments. Rear differential lock and all-wheel drive, combined with chevron tire tread, enhance off-road capability in challenging conditions.

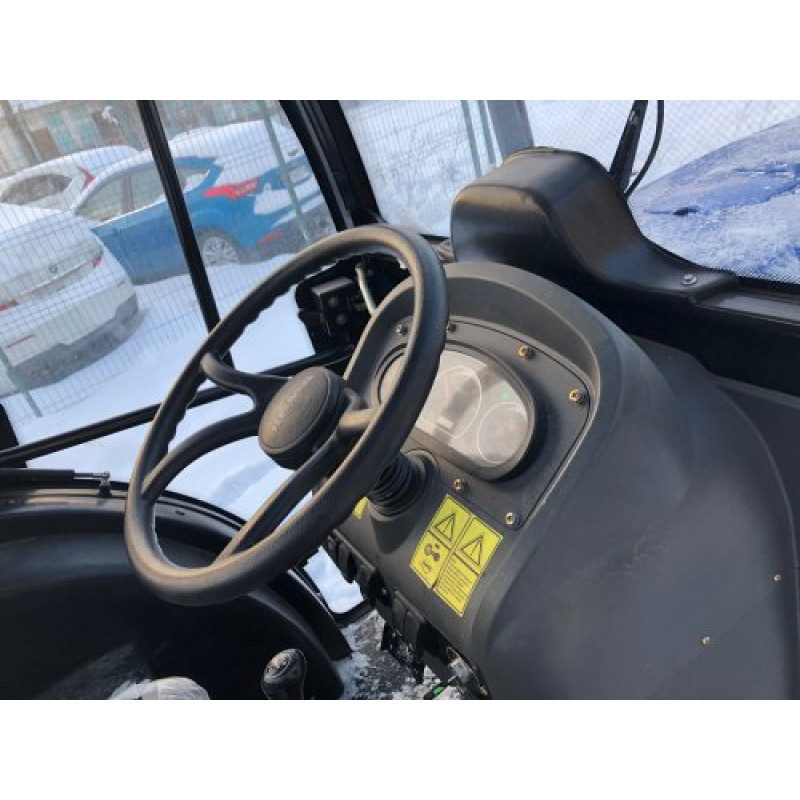

The cabin is equipped with a heating system with a fan, making work comfortable in cold weather. Power steering is included as standard, ensuring easy and precise control. The drum-type braking mechanism guarantees reliable stopping even under load.

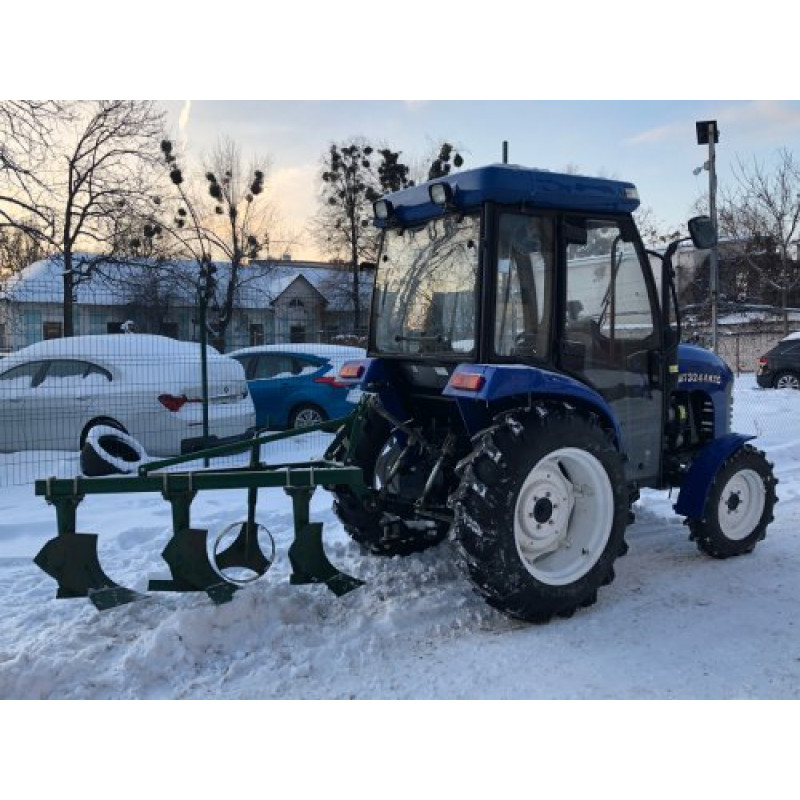

The Jinma JMT 3244 HXC is compatible with a wide range of mounted and trailed equipment: seeding units, hay harvesting devices, snow removal equipment, mounted plows, and other implements. This makes the model a versatile solution for private farms, farmers, and municipal services that require a multifunctional and reliable mini tractor.

Purchase Conditions and Delivery in Ukraine

Ordering the JINMA JMT 3244 HXC at the Flash Army online store is simple: submit an electronic application, confirm the order with a manager by phone, and under favorable conditions, we will deliver the tractor to your door for free on the day of purchase. Purchase in installments is also available on favorable terms with the support of partner banks. Delivery and installments are available in the cities of Kyiv, Vinnytsia, Poltava, Chernihiv, Kharkiv. For additional questions, contact a manager — our specialists will help you choose the optimal configuration and purchase conditions.

Specifications:

Tractor power, hp (kW)24 (17.6)
Wheel formula4x4
Engine typevertical, 3-cylinder, 4-stroke diesel with forced liquid cooling and direct injection.
Engine startelectric starter with safe start
Engine displacement, cm31532
Cylinder bore / piston stroke85x90
Nominal fuel consumption, g / kWh248
Fuel pump typeplunger, inline
Nominal engine crankshaft speed, rpm2350
Nominal traction force, kN6.6
Engine oil typemineral or semi-synthetic for diesel engines
Nominal engine oil consumption, g / kWh2.04
Gearbox (transmission)(4+1)x2x2
Oil type in gearbox, rear axletransmission oil
Oil type in front axletransmission oil
Rear differential lock+
Clutchdry dual-disc
Power steering+
Cooling system fan driveV-belt drive
Braking mechanismdrum type
Power take-off (PTO) speed, rpm540/1000
Hydraulic system pump typegear pump
Power steering pump typegear pump
Maximum lifting capacity of hitch mechanism, kg420
Minimum ground clearance, mm315
Wheelbase, mm1660
Wheel track, mmrear1090 / 1350 (by wheel repositioning)
front1260
Tire sizerear11.20-24
front6.50-16
Minimum turning radius, mwith one-sided brake2.8±0.2
without brakes3.0±0.2
Theoretical travel speed, km / hforward1.75-26.4
reverse2.28-11.02
Fuel tank capacity, L22.0
Engine crankcase capacity, L6.6
Gearbox and rear axle crankcase capacity, L14.0
Front axle crankcase capacity, L6.0
Engine cooling system capacity, L10.0
Lift housing capacity, L9.0
Overall dimensions, (LxWxH), mm3100x1530x2230
Curb weight, kg1505.00 +/- 2

The Jinma JMT 3244 HXC model is a beneficial combination of quality components, thoughtful design, and broad application possibilities. If you have any questions, call us or leave an inquiry, and our specialists will help you choose the optimal configuration and purchase conditions.
