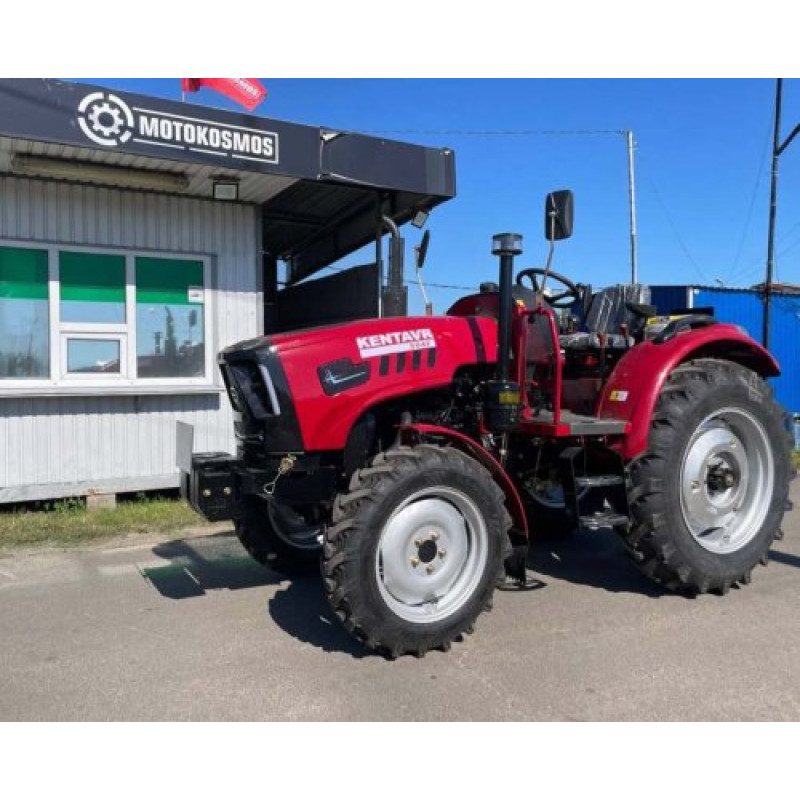

Mini Tractor KENTAVR S 504Ue — Power and Reliability for Your Farm
The Mini Tractor KENTAVR S 504Ue model from the manufacturer KENTAVR is designed for a wide range of agricultural, municipal, and park maintenance tasks. This is a 4x4 all-wheel-drive tractor that combines a modern diesel engine, well-designed hydraulics, comfortable steering, and versatile attachment capabilities. Product category: Tractors > Mini Tractors.
At the heart of the machine is a 4-stroke, 4-cylinder KM495 liquid-cooled engine, which develops 36.8 kW (50 hp) at 2350 rpm. Starting is done via an electric starter. The fuel tank capacity is 70 L, the crankcase oil volume is 8.5 L, and the cooling system volume is 5 L. The fuel delivery system is direct injection, and the oil pump is a plunger-type, in-line pump, ensuring durable and stable engine operation with an oil consumption of 2.04 g/kWh.
For heavy-duty operations, the tractor features a forced hydraulic system and a maximum lifting capacity of the three-point hitch of 650 kg. The power take-off (PTO) operates at 540/1000 rpm, allowing for the connection of various mounted and trailed equipment. The steering is equipped with power assistance, enhancing comfort, while differential lock and drum brakes add confidence when working on challenging terrains.
Below are the full technical specifications of the model:
| Engine type: | 4-stroke, 4-cylinder, KM495 |
| Power, kW: | 36.8 |
| Power, hp: | 50 |
| Cooling: | liquid |
| Fuel tank capacity, L: | 70 |
| Engine speed, rpm: | 2350 |
| Engine start: | electric starter |
| Crankcase oil volume, L: | 8.5 |
| Cooling system volume, L: | 5 |
| Oil consumption, g/kWh: | 2.04 |
| Fuel delivery: | direct injection |
| Oil pump: | plunger-type, in-line |
| Clutch type: | dry, dual-disc |
| Ground clearance, mm: | 350 |
| Differential lock: | yes |
| Brake system: | drum brakes |
| Front wheel track, cm: | 1230, 1450 |
| Rear wheel track, cm: | 1100, 1260, 1360, 1450 |
| Turning radius, m: | 4.2 |
| Wheel formula: | 4x4 (all-wheel drive) |
| Front tires: | 8.30-20 |
| Rear tires: | 12.40-28 |
| Overall dimensions L/W/H, mm: | 3550x1510x2065 |
| Steering: | with power assistance |
| Forced hydraulic system: | yes |
| PTO speed: | 540/1000 |
| Maximum lifting capacity of three-point hitch, kg: | 650 |
| Wheelbase, mm: | 1850 |
| Weight, kg: | 1775 |
| Compressor: | yes |
Features and Benefits
- Power and Efficiency: 50 hp at 2350 rpm for heavy field and transport work.
- Engine Reliability: 4-cylinder KM495 with liquid cooling and direct fuel injection ensures long-term and stable operation.
- Operating Comfort: Power-assisted steering and electric starter for quick start-up and operator convenience.
- Versatility of Application: PTO shaft 540/1000 rpm, forced hydraulics, and 650 kg lifting capacity for a wide range of mounted equipment.
- Off-road Capability and Maneuverability: 350 mm ground clearance, 4x4 all-wheel drive, differential lock, and 4.2 m turning radius for working in difficult conditions.
The Mini Tractor KENTAVR S 504Ue is ideal for farms, private plots, and municipal enterprises that require a combination of power, endurance, and adaptability. Dimensions of 3550x1510x2065 mm and a weight of 1775 kg ensure stability when working with various trailed equipment. The presence of a compressor, drum brakes, and adjustable wheel track options make this mini tractor even more versatile for specific operating conditions.
This SEO description includes all technical specifications provided by the manufacturer and will help you make an informed purchasing decision and optimal configuration choice.
