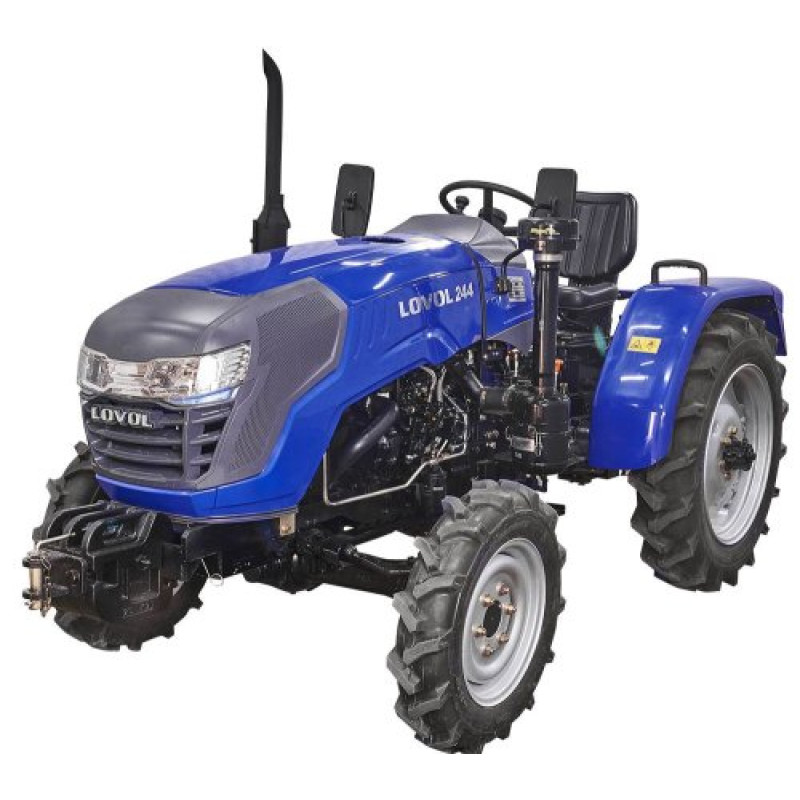

Foton-Lovol FT 244 HM Mini Tractor — Overview and Specifications
The Foton-Lovol FT 244 HM mini tractor from manufacturer Foton is reliable and versatile equipment for agriculture, horticulture, and municipal work. It belongs to the category: Tractors > Mini Tractors. This compact mini tractor combines an economical diesel engine, four-wheel drive, and multifunctionality, making it an optimal choice for private farms and small businesses.
Model Advantages
- Rated engine power: 24 hp (17.6 kW) — sufficient for a wide range of tasks.
- 4x4 all-wheel drive ensures confident movement on rough terrain and in the field.
- Electric starter for quick start-up and ease of operation.
- Power steering (GUR) — for comfortable and easy control.
- Two PTO speed modes (540 / 1000 rpm) for compatibility with various attachments.
Technical Specifications
| Rated engine power, hp (kW) | 24 (17.6) |
| Drive | 4x4 |
| Rated traction force, kN | 5.8 |
| Power steering | yes |
| Gear shift pattern | (4+1)x2 |
| Clutch | single-disc, dry |
| Dimensions (L x W x H), mm | 3340x1460x1960 |
| Weight, kg | 1355 |
| Engine model | KM385BT |
| Engine type | diesel, 4-stroke, with direct injection |
| Cylinders | 3, vertical |
| Cylinder volume, cm3 | 1532 |
| Rated crankshaft speed, rpm | 2350 |
| Rated fuel consumption, g/kWh | ≤248 |
| Fuel injection pressure, MPa (kgf/cm2) | 18.5-19.0 (185-190) |
| Starting system | electric starter |
| Cooling system | liquid, closed, with forced circulation of cooling fluid |
| Fuel tank volume, L | 29.0 |
| Power take-off (PTO) speed, rpm | 540 / 1000 |
| Hydraulic system oil tank volume, L | 9.5 |
| Front wheel size | 6.00-16 |
| Rear wheel size | 9.50-24 |
| Wheelbase, mm | 1670 |
| Front wheel track | 1280, 1380 |
| Rear wheel track | 1080, 1160, 1260 |
| Ground clearance, mm | 290 |
The KM385BT engine model with a volume of 1532 cm3 and three vertical cylinders ensures stable operation at a rated 2350 rpm. The injection system with a pressure of 18.5–19.0 MPa provides efficient fuel combustion, and the rated consumption of ≤248 g/kWh indicates economical operation. The presence of an electric starter and a liquid closed cooling system with forced circulation makes engine start-up and prolonged operation reliable in various conditions.
The transmission with a (4+1)x2 pattern and a single-disc dry clutch ensure simple and reliable gear shifting. The rated traction force of 5.8 kN and two PTO modes (540 / 1000 rpm) make the tractor compatible with a wide range of mounted and trailed equipment: mowers, plows, rotary cultivators, etc.
Compact dimensions of 3340x1460x1960 mm, a weight of 1355 kg, and a ground clearance of 290 mm allow the tractor to be used both in open fields and on limited areas of gardens and homesteads. Front wheel sizes of 6.00-16 and rear wheel sizes of 9.50-24 provide good cross-country ability and stability, while adjustable front (1280, 1380 mm) and rear (1080, 1160, 1260 mm) wheel track values allow the machine to be adapted to specific tasks.
A fuel tank volume of 29.0 L and a hydraulic system oil tank volume of 9.5 L increase operational autonomy. The presence of power steering makes control less tiring during prolonged operation. The Foton-Lovol FT 244 HM mini tractor is suitable for soil cultivation, haymaking, work with attachments, and municipal tasks — an ideal option for those looking for a compact, powerful, and economical tractor from a proven manufacturer.
If you need an efficient and multifunctional mini tractor for a private farm or small agribusiness, the FT 244 HM model from Foton is an excellent choice, combining reliability, economy, and operational comfort.
